A1 - Grade Crossing Control Systems Products
Grade Crossing Control Systems Products
Wayguard®
MS 4000 Series
Simple Grade Crossing Predictor / Motion Sensor
SIEMENS SGCP 4000 / MS 4000 is an electronic, microprocessor based modular system designed to reliably detect the motion of an approaching train and start the crossing warning system.
Operation of the system is based on the maximum impedance of an unoccupied track circuit, which is determined by the location of termination shunts and rate of change in impedance resulting from physical location of a train as it moves within a track circuit.
System will apply a constant current AC signal to track and measures level of the resulting voltage. These levels vary with approach track impedance, which also varies due to distance of train from the crossing.
System detects inbound motion of train and activates crossing warning equipment.
When the train has cleared crossing, system no longer senses inbound motion and allows crossing warning signal system to recover.
When a train stops before reaching crossing, or reverses direction and backs away from the crossing, system will recover after a short (programmable) time-out as inbound motion is no longer detected.
• Available in single track non-redundant and single track
redundant models.
• Uses proven GCP 4000 / 5000 modules. (Which are all
hot swappable and interchangeable within any
Wayguard® GCP 4000 Series systems)
• CPU III Module (Model A80903) • Track Module
• Provides a simple user interface in order to easily
program and setup the unit.
• Provides a simple user interface in order to easily
setup unit.
• The Wayguard® SGCP 4000 / MS 4000 programming
can be confirmed by an Office Configuration
Check Number (OCCN) and the track calibration
information
can be confirmed by a Track Check Number (TCN).
• Provides a diagnostic history log and train move history
log capable of interfacing to a SEAR II Event Recorder/
Analyzer for additional capability.
• Supports the use of an external island using a vital input.
• Transfer module can be removed and a strap can
be used to force either main or standby operation
without transfer module being present. (On Redundant
A80490 models only) Can be configured as either a
motion sensor or as a simple grade crossing predictor.
Grade Crossing Control Systems Products
NYK:8110804900001
NYK:8421804900001
SGCP 4000 / MS 4000 Basic Wide
- Weight is approx. 19.80 lbs. (8.98 kgs.) including
connectors. - Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity
SGCP 4000 / MS 4000 Comprehensive Wide
- Weight is approx. 23.60 lbs. (10.70 kgs.)
including connectors. - Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity
Lead Time
Price: $13641.00
Lead Time
Price: $18700.00
SGCP 4000 / MS 4000 - Single Track Chassis
| Spare PN | NYK:8000809032021 | NYK:8000800780001 | NYK:8000804180001 | NYK:8000804060002 | |||
| Siemens Part Number | Tracks | Red. / Non-Red. | CPU3 | Network Term. Unit | Track Module | Transfer Module | Config Chart |
| NYK:8110804900001 | 1 | Non-Redundant | 1 | 0 | 1 | 0 | A80490 |
| NYK:8210804900001 | 1 | Non-Redundant | 1 | 1 | 1 | 0 | A80490 |
| NYK:8321804900001 | 1 | Redundant | 2 | 0 | 2 | 1 | A80490 |
| NYK:84108049500000 | 1 | Non-Redundant | 1 | 0 | 1 | - | A80490 |
| NYK:8421804900001 | 1 | Redundant | 2 | 1 | 2 | 1 | A80490 |
| NYK:87108049500000 | 1 | Non-Redundant | 1 | 1 | 1 | - | A80490 |
A5 - Grade Crossing (GCP 3000 Plus Series)
Grade Crossing Control Systems Products
Wayguard®
Grade Crossing Predictors
Model A80740 GCP 3000 Plus Series Grade Crossing
Predictor Shown for reference purposes only.
Actual unit selected may vary in mounting and
features.
SIEMENS GCP 3000 Plus is an electronic,
microprocessor based modular system designed
to reliably detect the motion of an approaching train
and start the crossing warning system.
Utilizing up to (2) track circuits for train detection,
with each track module having (1) track predictor
that is configurable as a motion sensor or predictor.
Each track module has (2) vital inputs and
(2) vital outputs. (2) track modules are required for
each track circuit in redundant applications.
The Track Module Prime Predictor is generally
used for control of local crossings. The Track
Module DAX A through DAX D
Predictors are generally used for control of remote
crossings. (1) RIO module required per main / standby
for external islands or DAX functionality The Track
Module Preempt Predictor is generally used for
interconnection with traffic signal systems.
In addition to predictors, each track module
is capable of providing a multifrequency island circuit.
- Next generation decedent of proven legacy GCP
3000. (No onboard SEAR or SSCC modules.) - Utilizes proven GCP 4000 / 5000 modules and
software updates are fully backwards compatible
with the GCP 4000 / 5000. (If utilizing existing
modules from other GCP 4000 / 5000 units,
module software may need confirmation
through WebUI.) - Capable of monitoring up to (2) track circuits.
(Number of maximum track modules dependent
on chassis GCP system selected. On redundant
systems, (2) track modules needed for each track
circuit.) - Multiple ethernet ports available for interfacing with
eSSR radios, as well as vital communications.
(Depending on configuration, some parts may
not be activated.) - Enhanced user interface tools including OCE,
WebUI and new display. (Offline PAC files can be
created OCE version 2.4.6 or later.) - Common menu structure between all user interfaces.
- Generate office configuration check number (OCCN).
- Simple, tailored drop down menus for user friendly
configuration, diagnostics and troubleshooting.
Reference to any specific commercial products, processes, or services,
or the use of any trade, firm, or corporation name is for the information
and convenience of the public and does not constitute endorsement,
recommendation, or favoring by their respective entities.
Grade Crossing Control Systems Products
NYK:8004807400011
NYK:8101807400001
GCP 3000+ - One Track Non-Redundant
- (1) NYK:Z630389260001 NAME PLATE, RACK
- (1) NYK:8000804350001 SPI ECD MODULE GEO/NGCP
- (1) NYK:8000809034021 MODULE, CPU III W/ECHELON - GCP3K+
- (1) NYK:8000804180001 GCP, TRACK MODULE
- (1) NYK:Z803001290040 FUSE, 40 AMP 32V
- (1) NYK:8000809660001 GCP3000+ ASSEMBLY DUAL 2 TRACK CASE
- (6) NYK:Z610393250001 PANEL, BLANK 2" GCP
- (1) NYK:8000800780001 NETWORK TERMINATON UNIT 80078
- (1) NYK:9000535550001 ASSEMBLY WAYCONNEX ECD (USB)
- (1) NYK:8K008K0040001 FERRITE BEAD KIT GCP4000/5000/MS4000
- (1) NYK:8000804850001 DISPLAY, GCP 4000/5000
GCP 3000+ - One Track Redundant
Lead Time
Price: $19961.00
Lead Time
Price: $33356.00
NYK:8102807400001
GCP 3000+ - Two Track Redundant
Lead Time
Price: $45092.00
GCP 3000+ - Dual 2 Track Chassis
| Spare PN | NYK:8000809034021 | NYK:8000800780001 | NYK:8000804180001 | NYK:8000804130001 | NYK:8000804850001 | NYK:8000804680001 | |||
| Siemens Part Number | Tracks | Red. / Non-Red. | CPU3 | Network Term. Unit | Track Module | RIO | Display | Transfer Module | Config Chart |
| NYK:8001807400001 | 1 | Redundant | 1 | 1 | 2 | 0 | 1 | 1 | A80740B |
| NYK:8004807400011 | 1 | Non-Redundant | 1 | 1 | 1 | 0 | 1 | 0 | A80740B |
| NYK:8005807400001 | 2 | Non-Redundant | 1 | 1 | 2 | 0 | 1 | 1 | A80740B |
| NYK:8005807400011 | 2 | Non-Redundant | 1 | 1 | 2 | 0 | 1 | 0 | A80740B |
| NYK:8006807400011 | 2 | Non-Redundant | 1 | 1 | 2 | 1 | 1 | 0 | A80740B |
| NYK:8101807400001 | 1 | Redundant | 2 | 1 | 2 | 0 | 1 | 1 | A80740B |
| NYK:8102807400001 | 2 | Redundant | 2 | 1 | 4 | 0 | 1 | 1 | A80740B |
| NYK:8103807400001 | 2 | Redundant | 2 | 1 | 4 | 2 | 1 | 1 | A80740B |
| NYK:8104807400001 | 1 | Non-Redundant | 2 | 1 | 1 | 0 | 1 | 1 | A80740B |
| NYK:8105807400001 | 2 | Non-Redundant | 2 | 1 | 2 | 0 | 1 | 1 | A80740B |
| NYK:8106807400001 | 2 | Non-Redundant | 2 | 1 | 2 | 1 | 1 | 1 | A80740B |
| NYK:8107807400001 | 1 | Redundant | 2 | 1 | 2 | 2 | 1 | 1 | A80740B |
A8 - Grade Crossing (GCP 4000)
Grade Crossing Control Systems Products
Wayguard®
Series
Grade Crossing Predictors
SIEMENS GCP 4000 is an electronic, microprocessor
based modular system designed to reliably detect the
motionof an approaching train and start the crossing
warning system. Utilizing up to (6) track circuits for
train detection, with each track module having (9) track
predictors that are configurable as motion sensors or
predictors. Each track module has (2) vital
inputs and (2) vital outputs. (2) track modules are
required for each track circuit in redundant applications.
The Track Module Prime Predictor is generally used for
control of local crossings. The Track Module DAX A
through DAX G Predictors are generally used for control
of remote crossings. The Track Module Preempt
Predictor is generally used for interconnection with
traffic signal systems. In addition to predictors, each
track module is capable of providing a multifrequency
island circuit.

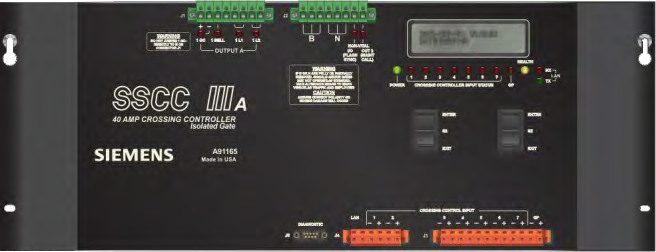

Using internal SSCC IIIi crossing controller module(s),
system is able to control the bells and gates of a crossing
and up to (40) amps of light energy and each SSCC IIIi
module contains (5) vital outputs. Providing up to (40)
amps of lamp energy and controlling up to (4) gates.
Using internal PSO module(s) system is able to detect
train direction on a bidirectional track circuit that allows
the control of remote crossings (Bi-DAXing) and each
PSO module contains (3) vital outputs and (2)
vital inputs.
Using internal RIO modules system is able to extend
I/O capability and each RIO modules contains (4) vital
inputs and (4) vital outputs.
● Capable of monitoring up to (6) track circuits including
Intelligent Processor Island and Bi-DAXing.
(Number of maximum track modules dependent on
chasis of GCP system selected.) (On redundant
systems , (2) track modules needed for each track
circuit.)

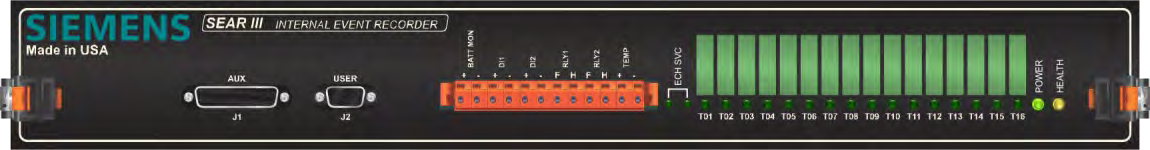

● SEAR IIi Event Analyzer / Recorder programmable via
OCE and new display.
● Provides a diagnostic history log and train move
history log utilizing a SEAR IIi Event Recorder/
Analyzer.
● Internal logic utilizing vital AND gates and vital timers.
● Multiple ethernet ports available for interfacing with
eSSR radio,vital communications as well as PTC
applications. (Depending on configuration,
some ports may not be activated.)
● Enhanced user interface tools including OCE,
WebUI and new display.
● Common menu structure between all user interfaces.
● Generate office configuration check number (OCCN).
● Simple, tailored dropdown menus for user friendly
configuration, diagnostics and troubleshooting.
Grade Crossing Control Systems Products
NYK:80008044500000
NYK:84108044500000
GCP 4000 Empty Single One Track
- Weight is approx. 8.25 lbs. (3.74 kgs.) including connectors.
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - Single one track narrow chassis
- NO other modules
- Reduced footprint for installation almost anywhere
- Simple interface for programming
GCP 4000 Comprehensive Single One Track
- Weight is approx. 10.50 lbs. (4.76 kgs.) including connectors.
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - Reduced footprint for installation almost anywhere
- Simple interface for programming
- (1) NYK:Z630389260001 NAME PLATE, RACK
- (1) NYK:8000809032021 MODULE, CPU III W/ECHELON - GCP4/5K
- (1) NYK:8000804180001 GCP, TRACK MODULE
- (1) NYK:8000804350001 SPI ECD MODULE GEO/NGCP
- (1) NYK:8K008K0040001 FERRITE BEAD KIT GCP4000/5000/MS4000
- (1) NYK:8000804460001 SINGLE TRACK CASE GCP 4000
Lead Time
Price: $2928.00
Lead Time
Price: $14219.00
GCP 4000 Single 1 Track
| Spare PN | NYK:8000809032021 | NYK:8000804180001 | |||
| Siemens Part Number | Tracks | Red. / Non-Red. | CPU3 | Track Module | Config Chart |
| NYK:84108044500000 | 1 | Non-Redundant | 1 | 1 | A80445E |
NYK:80008045500000
GCP 4000 Empty Single Basic Crossing
- Weight is approx. 13.33 lbs. (6.05 kgs.) including connectors.
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - Single basic crossing chassis
- Reduced footprint for installation almost anywhere
- Simple interface for programming
Lead Time
Price: $3605.00
GCP 4000 Basic Crossing
| Spare PN | NYK:8000809032021 | NYK:8000804180001 | NYK:8000804050001 | NYK:8000804850001 | |||
| Siemens Part Number | Tracks | Red. / Non-Red. | CPU3 | Track Module | SSCC | Display | Config Chart |
| NYK:81108045500080 | 1 | Non-Redundant | 1 | 1 | 0 | 1 | A80455F |
| NYK:811080455001B0 | 1 | Non-Redundant | 1 | 1 | 1 | 1 | A80455F |
| NYK:811080455002A0 | 1 | Non-Redundant | 1 | 1 | 2 | 1 | A80455F |
| NYK:81108045500280 | 1 | Non-Redundant | 1 | 1 | 2 | 1 | A80455F |
NYK:80008044000000
NYK:811080440002J3
GCP 4000 Empty Single Five Track
- Weight is approx. 26.01 lbs. (11.80 kgs.) including connectors.
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - Single five track chassis
GCP 4000 Comprehensive Single Five Track
- Weight is approx. 48.60 lbs. (22.04 kgs.)
including connectors. - Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity
Lead Time
Price: $4284.00
Lead Time
Price: $30207.00
GCP 4000 5 Track Non Redundant
| Spare PN | NYK:8000809032021 | NYK:8000804180001 | NYK:8000804050001 | NYK:8000804850001 | NYK:8000804100001 | |||
| Siemens Part Number | Tracks | Red. / Non-Red. | CPU3 | Track Module | SSCC | Display | SEAR | Config Chart |
| NYK:810080440002C0 | - | - | 1 | 0 | 2 | 1 | 1 | A80440F |
| NYK:811080440000E0 | 1 | Non-Redundant | 1 | 1 | 0 | 1 | 0 | A80440F |
| NYK:811080440001C0 | 1 | Non-Redundant | 1 | 1 | 1 | 1 | 1 | A80440F |
| NYK:811080440001E0 | 1 | Non-Redundant | 1 | 1 | 1 | 1 | 0 | A80440F |
| NYK:811080440002A0 | 1 | Non-Redundant | 1 | 1 | 2 | 0 | 1 | A80440F |
| NYK:811080440002C0 | 1 | Non-Redundant | 1 | 1 | 2 | 1 | 1 | A80440F |
| NYK:81E080440000E0 | 2 | Non-Redundant | 1 | 2 | 0 | 1 | 0 | A80440F |
| NYK:81E080440001E0 | 2 | Non-Redundant | 1 | 2 | 1 | 1 | 0 | A80440F |
| NYK:81E080440002E0 | 2 | Non-Redundant | 1 | 2 | 2 | 1 | 0 | A80440F |
| NYK:81F080440000E0 | 4 | Non-Redundant | 1 | 4 | 0 | 1 | 0 | A80440F |
NYK:80008046500000
NYK:822080465002W3
GCP 4000 Empty Dual Two Track
- Weight is approx. 25.73 lbs. (11.67 kgs.) including connectors.
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - Dual two track chassis
- Built in DAXing, ATCS communications protocols
GCP 4000 Comprehensive Dual Two Track
- Weight is approx. 50.10 lbs. (22.73 kgs.) including
connectors. - Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - Built in DAXing, ATCS communications protocols
Lead Time
Price: $2509.00
Lead Time
Price: $41627.00
GCP 4000 2 Track Redundant
| Spare PN | NYK:8000809032021 | NYK:8000804180001 | NYK:8000804130001 | NYK:8000804050001 | NYK:8000804850001 | NYK:8000804100001 | |||
| Siemens Part Number | Tracks | Red. / Non-Red. | CPU3 | Track Module | RIO | SSCC | Display | SEAR | Config Chart |
| NYK:822080465000E0 | 2 | Non-Redundant | 2 | 2 | 0 | 0 | 1 | 0 | A80465E |
| NYK:822080465001C0 | 2 | Non-Redundant | 2 | 2 | 0 | 1 | 1 | 1 | A80465E |
| NYK:822080465002C0 | 2 | Non-Redundant | 2 | 2 | 0 | 2 | 1 | 1 | A80465E |
| NYK:822080465002E0 | 2 | Non-Redundant | 2 | 2 | 0 | 2 | 1 | 0 | A80465E |
| NYK:822080465002U9 | 2 | Non-Redundant | 2 | 2 | 0 | 2 | 1 | 1 | A80465E |
| NYK:822080465002W3 | 2 | Non-Redundant | 2 | 2 | 0 | 2 | 1 | 1 | A80465E |
| NYK:824080465000E0 | 2 | Redundant | 2 | 4 | 0 | 0 | 1 | 0 | A80465E |
| NYK:824080465001C0 | 2 | Redundant | 2 | 4 | 0 | 1 | 1 | 1 | A80465E |
| NYK:824080465002C0 | 2 | Redundant | 2 | 4 | 0 | 2 | 1 | 1 | A80465E |
| NYK:824080465002E0 | 2 | Redundant | 2 | 4 | 0 | 2 | 1 | 0 | A80465E |
| NYK:82A080465000AD | 1 | Redundant | 2 | 2 | 0 | 0 | 1 | 1 | A80465E |
| NYK:82A080465000E0 | 1 | Redundant | 2 | 2 | 0 | 0 | 1 | 0 | A80465E |
| NYK:82A080465000K3 | 1 | Redundant | 2 | 2 | 0 | 0 | 1 | 1 | A80465E |
| NYK:82A080465000M0 | 1 | Redundant | 2 | 2 | 0 | 0 | 1 | 0 | A80465E |
| NYK:82A080465000U9 | 1 | Redundant | 2 | 2 | 0 | 0 | 1 | 1 | A80465E |
| NYK:82A080465000Y2 | 1 | Redundant | 2 | 2 | 0 | 0 | 1 | 0 | A80465E |
| NYK:82A080465001C0 | 1 | Redundant | 2 | 2 | 0 | 1 | 1 | 1 | A80465E |
| NYK:82A080465001E0 | 1 | Redundant | 2 | 2 | 0 | 1 | 1 | 0 | A80465E |
| NYK:82A080465002C0 | 1 | Redundant | 2 | 2 | 0 | 2 | 1 | 1 | A80465E |
| NYK:82A080465002E0 | 1 | Redundant | 2 | 2 | 0 | 2 | 1 | 0 | A80465E |
| NYK:82A080465002K0 | 1 | Redundant | 2 | 2 | 0 | 2 | 1 | 1 | A80465E |
| NYK:82B08046502240 | 1 | Redundant | 2 | 2 | 2 | 2 | 1 | 0 | A80465E |
| NYK:82B080465022E0 | 1 | Redundant | 2 | 2 | 2 | 2 | 1 | 0 | A80465E |
NYK:80008046000000
GCP 4000 Empty Dual Six Track
· Weight is approx. 35.59 lbs. (16.14 kgs.)
including connectors.
· Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative
Humidity
· Dual six track chassis
· NYK:8000804350001 SPI ECD module
· (16) NYK:Z610393250001 blank module cover
panels
· NYK:Z610393260001 blank display cover panel
· NYK:Z610393590001 blank SEAR cover panel
· NO other modules
· Built in DAXing, ATCS communications protocols
Lead Time
Price: $7839.00
Dual Six Track Redundant Configurations
GCP 4000 6 Track Redundant
| Spare PN | NYK:8000809032021 | NYK:8000804180001 | NYK:8000804130001 | NYK:8000804050001 | NYK:8000804850001 | NYK:8000804100001 | ||||||||
| Siemens Part Number | Tracks | Red. / Non-Red. | CPU3 | Track Module | RIO | SSCC | Display | SEAR | Config Chart | |||||
| NYK:815080460002H0 | 5 | Non-Redundant | 1 | 5 | 0 | 2 | 1 | 1 | A80460L | |||||
| NYK:815080460002V4 | 5 | Non-Redundant | 1 | 5 | 0 | 2 | 1 | 1 | A80460L | |||||
| NYK:822080460000M0 | 1 | Redundant | 2 | 2 | 0 | 0 | 1 | 0 | A80460L | |||||
| NYK:822080460000W7 | 1 | Redundant | 2 | 2 | 0 | 0 | 1 | 0 | A80460L | |||||
| NYK:822080460000Y2 | 1 | Redundant | 2 | 2 | 0 | 0 | 1 | 0 | A80460L | |||||
| NYK:822080460002C0 | 1 | Redundant | 2 | 2 | 0 | 2 | 1 | 1 | A80460L | |||||
| NYK:822080460002U9 | 1 | Redundant | 2 | 2 | 0 | 2 | 1 | 1 | A80460L | |||||
| NYK:824080460002C0 | 2 | Redundant | 2 | 4 | 0 | 2 | 1 | 1 | A80460L | |||||
| NYK:826080460000W7 | 3 | Redundant | 2 | 6 | 0 | 0 | 1 | 0 | A80460L | |||||
| NYK:826080460001C0 | 3 | Redundant | 2 | 6 | 0 | 1 | 1 | 1 | A80460L | |||||
| NYK:826080460002C0 | 3 | Redundant | 2 | 6 | 0 | 2 | 1 | 1 | A80460L | |||||
| NYK:826080460002E0 | 3 | Redundant | 2 | 6 | 0 | 2 | 1 | 0 | A80460L | |||||
| NYK:828080460000C0 | 4 | Redundant | 2 | 8 | 0 | 0 | 1 | 1 | A80460L | |||||
| NYK:828080460000W7 | 4 | Redundant | 2 | 8 | 0 | 0 | 1 | 0 | A80460L | |||||
| NYK:828080460001C0 | 4 | Redundant | 2 | 8 | 0 | 1 | 1 | 1 | A80460L | |||||
| NYK:828080460002C0 | 4 | Redundant | 2 | 8 | 0 | 2 | 1 | 1 | A80460L | |||||
| NYK:828080460002U9 | 4 | Redundant | 2 | 8 | 0 | 2 | 1 | 1 | A80460L | |||||
| NYK:82A080460002K0 | 5 | Redundant | 2 | 10 | 0 | 2 | 1 | 1 | A80460L | |||||
| NYK:82C080460000W7 | 6 | Redundant | 2 | 12 | 0 | 0 | 1 | 0 | A80460L | |||||
| NYK:82C080460002C0 | 6 | Redundant | 2 | 12 | 0 | 2 | 1 | 1 | A80460L | |||||
| NYK:82C080460002K0 | 6 | Redundant | 2 | 12 | 0 | 2 | 1 | 1 | A80460L | |||||
| NYK:82C080460002W3 | 6 | Redundant | 2 | 12 | 0 | 2 | 1 | 1 | A80460L | |||||
| NYK:82H780460092W7 | 2 | Redundant | 2 | 4 | 2 | 2 | 1 | 0 | A80460L | |||||
| NYK:82N480460122W7 | 4 | Redundant | 2 | 8 | 4 | 2 | 1 | 0 | A80460L | |||||
| Spare PN | NYK:8000809032021 | NYK:8000804180001 | NYK:8000804050001 | NYK:8000804850001 | NYK:8000804100001 | |||
| Siemens Part Number | Tracks | Red. / Non-Red. | CPU3 | Track Module | SSCC | Display | SEAR | Config Chart |
| NYK:81018090500110 | 1 | Non-Redundant | 1 | 1 | 1 | 1 | 0 | A80905D |
| NYK:81048090500116 | 4 | Non-Redundant | 1 | 4 | 1 | 1 | 1 | A80905D |
| NYK:81018090501110 | 1 | Non-Redundant | 1 | 1 | 1 | 1 | 0 | A80905D |
| NYK:81018090500111 | 1 | Non-Redundant | 1 | 1 | 1 | 1 | 1 | A80905D |
| NYK:81018090501211 | 1 | Non-Redundant | 1 | 1 | 2 | 1 | 1 | A80905D |
NYK:82028090200220
GCP 5000 Comprehensive Dual Two Track
- Weight is approx. 50.10 lbs. (22.73 kgs.)
including connectors. - Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity
Lead Time
Price: $44305.00
GCP 5000 2 Track Redundant
| Spare PN | NYK:8000809032021 | NYK:8000804180001 | NYK:8000804130001 | NYK:8000804050001 | NYK:8000804850001 | NYK:8000804100001 | |||
| Siemens Part Number | Tracks | Red. / Non-Red. | CPU3 | Track Module | RIO | SSCC | Display | SEAR | Config Chart |
| NYK:820280902000C7 | 2 | Non-Redundant | 2 | 2 | 0 | 0 | 1 | 0 | A80902C |
| NYK:820280902000F5 | 2 | Non-Redundant | 2 | 2 | 0 | 0 | 1 | 0 | A80902C |
| NYK:82028090200210 | 2 | Non-Redundant | 2 | 2 | 0 | 2 | 1 | 0 | A80902C |
| NYK:82028090200220 | 2 | Non-Redundant | 2 | 2 | 0 | 2 | 1 | 1 | A80902C |
| NYK:820380902000D3 | 1 | Redundant | 2 | 2 | 0 | 0 | 1 | 1 | A80902C |
| NYK:82038090200220 | 1 | Redundant | 2 | 2 | 0 | 2 | 1 | 1 | A80902C |
| NYK:820380902002A1 | 1 | Redundant | 2 | 2 | 0 | 2 | 1 | 1 | A80902C |
| NYK:82038090201220 | 1 | Redundant | 2 | 2 | 0 | 2 | 1 | 1 | A80902C |
| NYK:820480902002A1 | 2 | Redundant | 2 | 4 | 0 | 2 | 1 | 1 | A80902C |
| NYK:82048090201220 | 2 | Redundant | 2 | 4 | 0 | 2 | 1 | 1 | A80902C |
| NYK:820680902000C7 | 1 | Redundant | 2 | 2 | 2 | 0 | 1 | 0 | A80902C |
| NYK:820680902002C7 | 1 | Redundant | 2 | 2 | 2 | 2 | 1 | 0 | A80902C |
NYK:80008090000000
NYK:82028090000220
GCP 5000 Empty Dual Six Track
- Weight is approx. 35.59 lbs. (16.14 kgs.)
including connectors. - Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - Dual Six Track Chassis
GCP 5000 Comprehensive Dual Six Track
- Weight is approx. 66.84 lbs. (30.32 kgs.)
including connectors. - Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non- Condensing Relative Humidity - Dual Six Track Chassis
Lead Time
Price: $9624.00
Lead Time
Price: $58041.00
GCP 5000 6 Track Redundant
| Spare PN | NYK:8000809032021 | NYK:8000804180001 | NYK:8000804130001 | NYK:8000804050001 | NYK:8000804850001 | NYK:8000804100001 | |||
| Siemens Part Number | Tracks | Red. / Non-Red. | CPU3 | Track Module | RIO | SSCC | Display | SEAR | Config Chart |
| NYK:81128090000211 | 6 | Non-Redundant | 1 | 6 | 0 | 2 | 1 | 1 | A80900C |
| NYK:82018090000220 | 1 | Redundant | 2 | 2 | 0 | 2 | 1 | 1 | A80900C |
| NYK:820180900010C7 | 1 | Redundant | 2 | 2 | 0 | 0 | 1 | 0 | A80900C |
| NYK:82148090001020 | 1 | Redundant | 2 | 2 | 2 | 0 | 1 | 1 | A80900C |
| NYK:82148090001220 | 1 | Redundant | 2 | 2 | 2 | 2 | 1 | 1 | A80900C |
| NYK:821980900002C7 | 2 | Redundant | 2 | 4 | 2 | 2 | 1 | 0 | A80900C |
| NYK:823180900002C7 | 4 | Redundant | 2 | 8 | 2 | 2 | 1 | 0 | A80900C |
| NYK:82408090000210 | 5 | Non-Redundant | 2 | 5 | 1 | 2 | 1 | 0 | A80900C |
| NYK:82628090000220 | 4 | Redundant | 2 | 8 | 4 | 2 | 1 | 1 | A80900C |
| NYK:82808090000220 | 4 | Redundant | 2 | 8 | 0 | 2 | 1 | 1 | A80900C |
A13-A20 - SGCP/MS 4000, GCP 4000, GCP 5000 Series Modules
NYK:8000804030001
NYK:8000804180001
GCP CPU III Module
- Weight is approx. 1.25 lbs. (0.56 kgs.)
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - Programmable integrated circuits onboard 9V792-
A03X, 9V691-A03X and 9V789-A06X - Echelon® and communications capabilities
- (1) NYK:8000809032021 CPU III module
- (1) NYK:8000809034022 CPU III module
- (1) NYK:8000809034021 CPU III module
GCP Track Module
· Weight is approx. 1.0 lbs. (0.56 kgs.)
· Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative
Humidity
· (9) Prediction functions
Lead Time
Call for Price
Lead Time
Price: $5868.00
NYK:8000804050001
NYK:8000804850001
GCP SSCC IIIi Module
- Weight is approx. 3.6 lbs. (1.63 kgs.)
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - Isolated gate controller
- (20) Amp light controller
- GCP 4000 / 5000 Display Module
- Weight is approx. 4 lbs. (1.81 kgs.)
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - (1) onboard USB port
Lead Time
Price: $3243.00
Lead Time
Price: $3136.00
NYK:8000804060001
NYK:8000804680001
GCP Transfer Module, Wide
(For use with dual six track GCP
4000 configurations)
· Weight is approx. 0.38 lbs. (0.17 kgs.)
· Operates in -40º F to +160º F (-40ºC to +70ºC
@ up to 95% Non-Condensing Relative Humidity
GCP Transfer Module, Chassis
(For use with dual two track GCP 4000
configurations)
· Weight is approx. 1.5 lbs. (0.68 kgs.)
· Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing
Relative Humidity
Lead Time
Price: $1627.00
Lead Time
Price: $1904.00
NYK:8000804060002
NYK:8000804100001
GCP Transfer Module, Narrow
(For use with single one track SGCP / MS 4000 series)
● Weight is approx. 3 lbs. (1.36 kgs.)
● Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity
GCP SEAR IIi Module
· Weight is approx. 5.25 lbs. (2.36 kgs.)
· Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing
Relative Humidity
· Utilizes 8000-80411-0001 recorder board
Lead Time
Price: $2001.00
Lead Time
Price: $5010.00
NYK:8000804100002
NYK:8000804100003
SEAR IIi Module
· Weight is approx. 5.25 lbs. (2.36 kgs.)
· Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing
Relative Humidity
· Utilizes 8000-80411-0002 recorder board
SEAR IIi Module
· Weight is approx. 6 lbs. (2.72 kgs.)
not including cable
· Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing
Relative Humidity
· Utilizes 8000-80411-0001 recorder board
· (1) 8000-26654-0002 10’ (3.05 m) SEAR to
CRTU cable
Lead Time
Price: $4852.00
Lead Time
Price: $5060.00
NYK:8000804280001
NYK:8000804280002

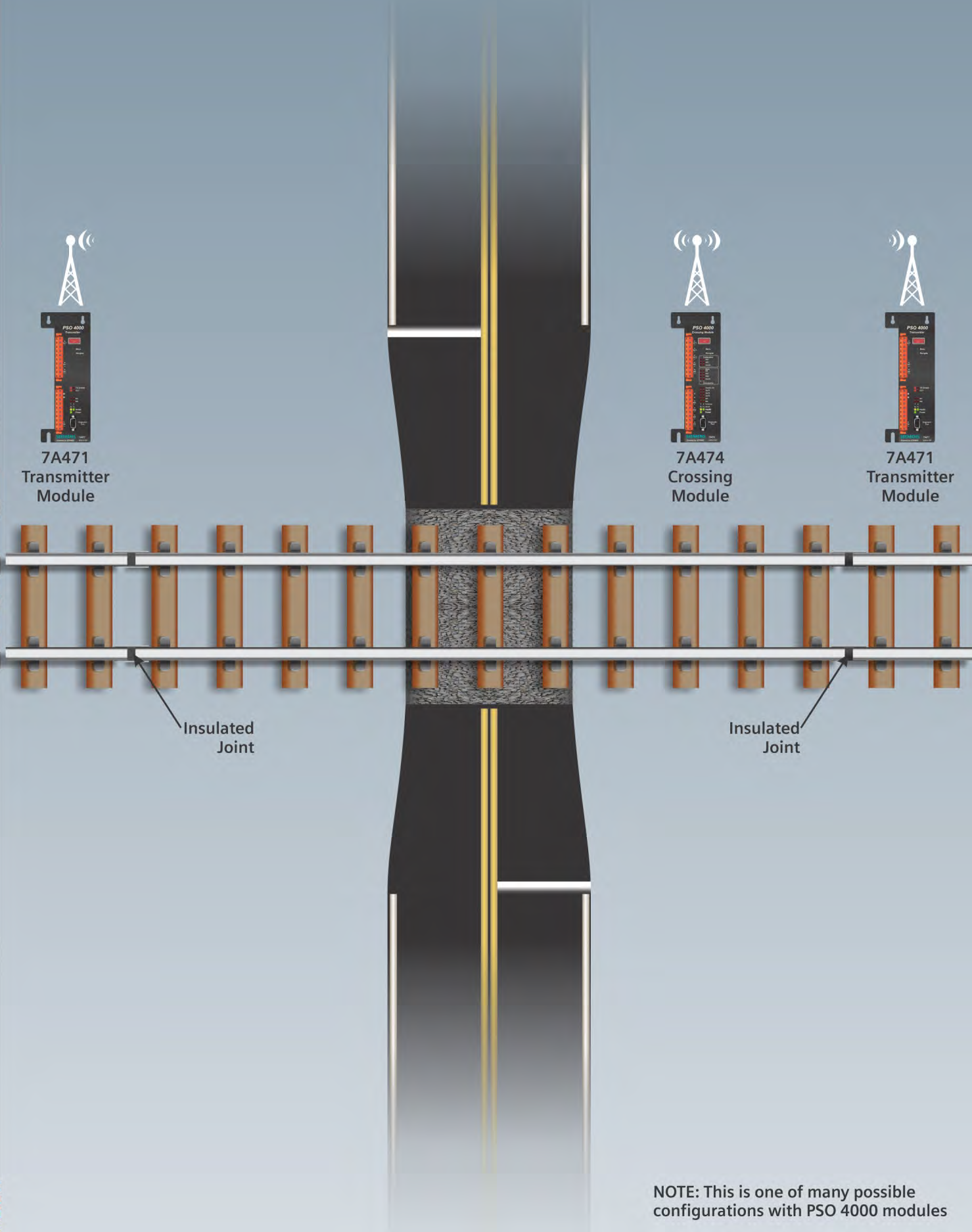

GCP Phase Shift Overlay (PSO) Module
· Weight is approx. 1.0 lbs. (0.56 kgs.)
· Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing
Relative Humidity
· Programmable integrate circuits onboard
9V386-A01X,
GCP Phase Shift Overlay (PSO) Module
· Weight is approx. 1.0 lbs. (0.56 kgs.)
· Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative
Humidity
Lead Time
Price: $5810.00
Lead Time
Price: $3585.00
NYK:8000804130001
NYK:Z610393250001
GCP Relay Input /Output (RIO) Module
- Weight is approx. 1.0 lbs. (0.56 kgs.)
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing
Relative Humidity - (4) Inputs opto-isolated, vital
- (4) Outputs opto-isolated, vital
- Output voltage 12 VDC into 500 Ω
- Relay loads 100-2000 Ω
- Cab rates 75, 120, 180, 270,420
- Isolation 2000 VAC
Blank Module Filler Plate, Narrow
- Weight is approx. 0.6 lbs. (0.27 kgs.)
Lead Time
Price: $2902.00
Lead Time
Price: $28.00
NYK:Z610393260001
NYK:Z610393590001
Blank Display Filler Plate, Wide
· Weight is approx. 0.8 lbs. (0.36 kgs.)
Blank SEAR Filler Plate
- Weight is approx. 2.4 lbs. (2.72 kgs.)
Lead Time
Price: $170.00
Lead Time
Price: $39.20
NYK:8000804350001
Serial Peripheral Interface /
· External Configuration Device
(SPI / ECD) Module
· Weight is approx. 1.30 oz (0.04 kgs.)
· (4) Megabyte memory capacity
(25) pin (DB25) male connector
· Knurled barrel screw fasteners
Lead Time
Price: $264.00
A21 - Grade Crossing Systems(EGMS Series)
Grade Crossing Control Systems Products
Wayguard®
Series
Exit Gate Management System
SIEMENS Wayguard® Exit Gate Management System
(EGMS) is designed to peform exit gate timing and
control as a part of an overall (4) Quandrant Gate -
Warning System (4QG). Utilizing self checking
inductive loop detectors to determine the presence
of vehicles within the area between the entrance gates
and exit gates also known as the Minimum Track
Clearance Distance (MTCD).
If a vehicle is detected
within the MTCD, the exit gates will not be lowered until
the vehicle clears the MTCD to avoid trapping vehicles
within the crossing.
As a backup mode, automatic changeover to timed exit
gate or exit gate fail-up mode in the event of inductive
loop failure is available through front panel programming.
Providing a touch-sensitive liquid crystal display (LCD) to
allow data entry and access to all stored data.
- Inductive Loop Operation
- (2) Levels of systems health monitoring
- Dynamic Exit Gate Operation
Grade Crossing Control Systems Products
NYK:525-0201-01
NYK:525-0201-02
4 Loop Assembly
- Weight is approx. 52.2 lbs. (16.14 kgs.) including connectors.
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing
Relative Humidity - (1) NYK:004-101-0001X Chassis
- (1) E1400S (4) Channel Presence Detector
- (1) NYK:010-101-0006 Power supply module
- (1) NYK:010-101-0002 Display module
- (1) NYK:010-101-0003 CPU module
- (1) NYK:010-101-0004 Vital input module
- (1) NYK:010-101-0009 Vital I/O module
- NO communications module
8 Loop Assembly
- Weight is approx. 52.8 lbs. (16.14 kgs.) including connectors.
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing
Relative Humidity - (1) NYK:004-101-0001X Chassis
- (2) E1400S (4) Channel Presence Detector
- (1) NYK:010-101-0006 Power supply module
- (1) NYK:010-101-0002 Display module
- (1) NYK:010-101-0003 CPU module
- (1) NYK:010-101-0004 Vital input module
- (1) NYK:010-101-0009 Vital I/O module
- NO communications module
Lead Time
Call for Price
Lead Time
Call for Price
NYK:525-0201-03
NYK:525-0201-04
12 Loop Assembly
- Weight is approx. 53.4 lbs. (16.14 kgs.) including connectors.
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - (1) NYK:004-101-0001X Chassis
- (3) E1400S (4) Channel Presence Detector
- (1) NYK:010-101-0006 Power supply module
- (1) NYK:010-101-0002 Display module
- (1) NYK:010-101-0003 CPU module
- (1) NYK:010-101-0004 Vital input module
- (1) NYK:010-101-0009 Vital I/O module
- NO communications module
16 Loop Assembly
- Weight is approx. 54.0 lbs. (16.14 kgs.) including connectors.
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - (1) NYK:004-101-0001X Chassis
- (4) E1400S (4) Channel Presence Detector
- (1) NYK:010-101-0006 Power supply module
- (1) NYK:010-101-0002 Display module
- (1) NYK:010-101-0003 CPU module
- (1) NYK:010-101-0004 Vital input module
- (1) NYK:010-101-0009 Vital I/O module
- NO communications module
Lead Time
Price: $66234.00
Lead Time
Price: $65178.00
NYK:525-0202-01
NYK:525-0202-02
4 Loop Assembly
- Weight is approx. 52.2 lbs. (16.14 kgs.) including
connectors. - Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing
Relative Humidity - (1) NYK:004-101-0001X Chassis
- (1) E1400S (4) Channel Presence Detector
- (1) NYK:010-101-0006 Power supply module
- (1) NYK:010-101-0002 Display module
- (1) NYK:010-101-0003 CPU module
- (1) NYK:010-101-0004 Vital input module
- (1) NYK:010-101-0009 Vital I/O module
- (1) NYK:010-101-0008 Communications module
8 Loop Assembly
- Weight is approx. 52.2 lbs. (16.14 kgs.) including
connectors. - Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing
Relative Humidity - (1) NYK:004-101-0001X Chassis
- (1) E1400S (4) Channel Presence Detector
- (1) NYK:010-101-0006 Power supply module
- (1) NYK:010-101-0002 Display module
- (1) NYK:010-101-0003 CPU module
- (1) NYK:010-101-0004 Vital input module
- (1) NYK:010-101-0009 Vital I/O module
- (1) NYK:010-101-0008 Communications module
Lead Time
Price: $48485.00
Lead Time
Price: $59880.00
NYK:525-0202-03
NYK:525-0202-04
12 Loop Assembly
- Weight is approx. 53.4 lbs. (16.14 kgs.)
including connectors - Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing
Relative Humidity - (1) NYK:004-101-0001X Chassis
- (1) E1400S (4) Channel Presence Detector
- (1) NYK:010-101-0006 Power supply module
- (1) NYK:010-101-0002 Display module
- (1) NYK:010-101-0003 CPU module
- (1) NYK:010-101-0004 Vital input module
- (1) NYK:010-101-0009 Vital I/O module
- (1) NYK:010-101-0008 Communications module
.
16 Loop Assembly
- Weight is approx. 54.0 lbs. (16.14 kgs.) including
connectors. - Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing
Relative Humidity - (1) NYK:004-101-0001X Chassis
- (1) E1400S (4) Channel Presence Detector
- (1) NYK:010-101-0006 Power supply module
- (1) NYK:010-101-0002 Display module
- (1) NYK:010-101-0003 CPU module
- (1) NYK:010-101-0004 Vital input module
- (1) NYK:010-101-0009 Vital I/O module
- (1) NYK:010-101-0008 Communications module
Lead Time
Price: $72571.00
Lead Time
Price: $82541.00
NYK:017-100-0001
NYK:017-101-0001
E1400S (4) Channel Presence Detector
- Weight is approx. 1.0 lbs. (0.56 kgs.)
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to- 95% Non-Condensing
Relative Humidity
P1400 (4) Channel Presence Detector
- Weight is approx. 1.0 lbs. (0.56 kgs.)
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to- 95% Non-Condensing
Relative Humidity
Lead Time
Price: $11659.00
Lead Time
Price: $6260.00
NYK:010-101-0006
NYK:010-101-0002
EGMS Power Supply Module
- Weight is approx. 1.0 lbs. (0.45 kgs.)
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to- 95% Non-Condensing
Relative Humidity
EGMS Disply Module
- Weight is approx. 2.1 lbs. (0.95kgs.)
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to- 95% Non-Condensing
Relative Humidity
Lead Time
Price: $6693.00
Lead Time
Price: $6060.00
NYK:010-101-0003
NYK:010-101-0004
EGMS CPU Module
- Weight is approx. 1.0 lbs. (0.45 kgs.)
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to- 95% Non-Condensing
Relative Humidity
EGMS Vital Input Module
- Weight is approx. 1.0 lbs. (0.45 kgs.)
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to- 95% Non-Condensing
Relative Humidity
Lead Time
Price: $6617.00
Lead Time
Price: $5693.00
| SIEMENS Part Number | Description |
| NYK:PLC-24-50 | 24’ (7.3 m) long x 50’ (15.2 m) wide |
| NYK:PLC-26-50 | 26’ (7.9 m) long x 50’ (15.2 m) wide |
| NYK:PLC-28-50 | 28’ (8.5 m) long x 50’ (15.2 m) wide |
| NYK:PLC-30-50 | 30’ (9.1 m) long x 50’ (15.2 m) wide |
| NYK:PLC-32-50 | 32’ (9.8 m) long x 50’ (15.2 m) wide |
| NYK:PLC-34-50 | 34’ (10.4 m) long x 50’ (15.2 m) wide |
| NYK:PLC-36-50 | 36’ (11.0 m) long x 50’ (15.2 m) wide |
| NYK:PLC-38-50 | 38’ (11.6 m) long x 50’ (15.2 m) wide |
| NYK:PLC-40-50 | 40’ (12.2 m) long x 50’ (15.2 m) wide |
| NYK:PLC-50-50 | 50’ (15.2 m) long x 50’ (15.2 m) wide |
| NYK:017-107-0001 | Ø3/8” 4C #18 AWG RR-418 cable, double jacketed, per linear foot |
| NYK:07-020-011 | Ø3/4” 4C #18 AWG RR-418 cable, triple jacketed, per linear foot |
| NYK:03-094-005 | Home run cable |
| SIEMENS Part Number | Description |
| NYK:03-083-003 | TB-2 Wago® terminal strip for 1 and 2 presence detectors |
| NYK:03-083-004 | TB-4 Wago® terminal strip for 3 and 4 presence detectors |
| NYK:07-020-006 | Presence detector cable harness kit |
| NYK:018-100-0001 | Aluminum foundation mounted junction box |
| NYK:018-101-0001 | Aluminum pedestal mounted junction box |
| NYK:04-004-005 | 1” NPT hub gland plate |
A29 - Grade Crossing (SSCC Series)
Grade Crossing Control Systems Products
Wayguard®
Series
Solid State Crossing Controller
The SIEMENS Wayguard® Solid State Crossing
Controller (SSCC) Series offers reliable and simple
crossing control without breakingthe bank.
All parameters are easily set using built in liquid
crystal display (LCD) screen and pushbuttons as
well as protected against unauthorized changes
using available password protection. Alternatively,
passwords can also be uploaded or downloaded
via computer. With built in logic you can control a
crossing more reliably and more cost effectively
with greater flexibility. Eliminate need for relays and
related wiring using the built in standardized logic,
which can be customized to accommodate a vast
array of crossing configurations.
- Echelon® connectivity for communicating recorder
and diagnostic information. - Programmable loss of shunt timers for each input.
- Programmable vital control inputs.
Up to (8) including (1) input for gate position. - Programmable low battery indication threshold.
- Programmable lamp flash rate.
- Optional synchronized lamp flashing of multiple
units. - Optional loss of shunt selection with configurable
timers. - Non Volatile Real-Time Clock.
- Expanded menu system includes pre-emption
output drive logic. - “SERVICE” menu option to program Out-of-Service
timers. (Available on select models) - Communications via ATCS. (Available on select
models) 5 built in test modes - Lamps Steady - Allows the maintainer to
continuously light a lamp for alignment
purposes. - Flash Lamps - Allows the maintainer to flash a
lamp to ensure it is working. - Timed Lamps- Allows the maintainer to set a timing
sequence that will flash a lamp for "X" seconds. - Timed Lamps Repeat - Allows the maintainer to
set a timing sequence that will flash a lamp for "X"
seconds after "Y" and "2Y" delay. - Activate Crossing - Allows the maintainer to activate
a crossing in a controlled manner.
Grade Crossing Control Systems Products
NYK:9000911651101
NYK:9000911601101
- Easily mountable on 19” (48.3 cm) racks.
- Weight is approx. 9.6 lbs. (4.32 kgs.)
including connectors. - Quiescent power consumption is approx. 0.75 A
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - Echelon® connectivity for communicating
recorder and
diagnostic information. - Programmable loss of shunt timers
for each input. - Programmable low battery indication
threshold. - Programmable lamp flash rate.
- (1) gate control output
- (1) bell output
- (1) pair of lamp outputs (up to 20 amp load)
- Easily mountable on 19” (48.3 cm) racks.
- Weight is approx. 11.2 lbs. (5.08 kgs.)
including connectors. - Quiescent power consumption is approx. 0.95 A
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - Echelon® connectivity for communicating
recorder and diagnostic information. - Programmable loss of shunt timers for each input.
- Programmable low battery indication threshold.
- Programmable lamp flash rate.
- (2) gate control outputs
- (2) bell outputs
- (2) pairs of lamp outputs (up to 20 amp load)
Lead Time
Price: $4993.00
Lead Time
Price: $6195.00
NYK:9000911650101
NYK:9000911600101
- Easily mountable on 23” (58.4 cm)
Mounting Rack - Weight is approx. 9.8 lbs. (4.44 kgs.)
including connectors. - Quiescent power consumption is approx. 0.75 A
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - Echelon® connectivity for communicating
recorder and diagnostic information. - Programmable loss of shunt timers for
each input. - Programmable low battery indication threshold.
- Programmable lamp flash rate.
- (1) gate control output
- (1) bell output
- (1) pair of lamp outputs (up to 20 amp load)
- Easily mountable on 23” (58.4 cm) Mounting Rack
- Weight is approx. 11.4 lbs. (5.13 kgs.) including connectors.
- Quiescent power consumption is approx. 0.95 A
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - Echelon® connectivity for communicating recorder and
diagnostic information. - Programmable loss of shunt timers for each input.
- Programmable low battery indication threshold.
- Programmable lamp flash rate.
- (2) gate control outputs
- (2) bell outputs
- (2) pairs of lamp outputs (up to 20 amp load)
Lead Time
Price: $5141.00
Lead Time
Price: $6430.00
NYK:9000911951101
NYK:9000911901101
- Easily mountable on 19” (48.3 cm) racks.
- Weight is approx. 9.6 lbs. (4.32 kgs.) including connectors.
- Quiescent power consumption is approx. 0.75 A
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - Echelon® connectivity for communicating recorder and
diagnostic information. - Programmable loss of shunt timers for each input.
- Programmable low battery indication threshold.
- Programmable lamp flash rate.
- (1) gate control output
- (1) bell output
- (1) pair of lamp outputs (up to 20 amp load)
- “Service” out of service timers
- Easily mountable on 19” (48.3 cm) racks.
- Weight is approx. 11.2 lbs. (5.08 kgs.) including connectors.
- Quiescent power consumption is approx. 0.95 A
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - Echelon® connectivity for communicating recorder and
diagnostic information. - Programmable loss of shunt timers for each input.
- Programmable low battery indication threshold.
- Programmable lamp flash rate.
- (2) gate control outputs
- (2) bell outputs
- (2) pairs of lamp outputs (up to 20 amp load)
- “Service” out of service timers
Lead Time
Price: $7103.00
Lead Time
Price: $8813.00
NYK:9000911950101
NYK:9000911900101
- Easily mountable on 23” (58.4 cm) Mounting Rack
- Weight is approx. 9.8 lbs. (4.44 kgs.) including connectors.
- Quiescent power consumption is approx. 0.75 A
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - Echelon® connectivity for communicating recorder and
diagnostic information. - Programmable loss of shunt timers for each input.
- Programmable low battery indication threshold.
- Programmable lamp flash rate.
- (1) gate control output
- (1) bell output
- (1) pair of lamp outputs (up to 20 amp load)
- “Service” out of service timers
- Easily mountable on 23” (58.4 cm) Mounting Rack
- Weight is approx. 11.4 lbs. (5.13 kgs.) including connectors.
- Quiescent power consumption is approx. 0.95 A
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - Echelon® connectivity for communicating recorder and
diagnostic information. - Programmable loss of shunt timers for each input.
- Programmable low battery indication threshold.
- Programmable lamp flash rate.
- (2) gate control outputs
- (2) bell outputs
- (2) pairs of lamp outputs (up to 20 amp load)
- “Service” out of service timers
Lead Time
Price: $7103.00
Lead Time
Price: $8813.00
NYK:9000912151101
NYK:9000912101101
- Easily mountable on 19” (48.3 cm) racks.
- Weight is approx. 9.6 lbs. (4.32 kgs.) including connectors.
- Quiescent power consumption is approx. 0.75 A
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - Echelon® connectivity for communicating recorder and
diagnostic information. - Programmable loss of shunt timers for each input.
- Programmable low battery indication threshold.
- Programmable lamp flash rate.
- (1) gate control output
- (1) bell output
- (1) pair of lamp outputs (up to 20 amp load)
- “Service” out of service timers
- Communications via ATCS available
- Easily mountable on 19” (48.3 cm) racks.
- Weight is approx. 11.2 lbs. (5.08 kgs.) including connectors.
- Quiescent power consumption is approx. 0.95 A
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - Echelon® connectivity for communicating recorder and
diagnostic information. - Programmable loss of shunt timers for each input.
- Programmable low battery indication threshold.
- Programmable lamp flash rate.
- (2) gate control outputs
- (2) bell outputs
- (2) pairs of lamp outputs (up to 20 amp load)
- “Service” out of service timers
- Communications via ATCS available
Lead Time
Price: $8239.00
Lead Time
Price: $10222.00
NYK:9000912150101
NYK:9000912100101
- Easily mountable on 23” (58.4 cm) Mounting Rack
- Weight is approx. 9.8 lbs. (4.44 kgs.) including connectors.
- Quiescent power consumption is approx. 0.75 A
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - Echelon® connectivity for communicating recorder and
diagnostic information. - Programmable loss of shunt timers for each input.
- Programmable low battery indication threshold.
- Programmable lamp flash rate.
- (1) gate control output
- (1) bell output
- (1) pair of lamp outputs (up to 20 amp load)
- “Service” out of service timers
- Communications via ATCS available
- Easily mountable on 23” (58.4 cm) Mounting Rack
- Weight is approx. 11.4 lbs. (5.13 kgs.) including connectors.
- Quiescent power consumption is approx. 0.95 A
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - Echelon® connectivity for communicating recorder and
diagnostic information. - Programmable loss of shunt timers for each input.
- Programmable low battery indication threshold.
- Programmable lamp flash rate.
- (2) gate control outputs
- (2) bell outputs
- (2) pairs of lamp outputs (up to 20 amp load)
- “Service” out of service timers
- Communications via ATCS available
Lead Time
Price: $8482.00
Lead Time
Price: $9927.00
A35 - Grade Crossing(ARGUS Series)
Grade Crossing Control Systems Products
Wayguard®
Series
Event Recorder
The SIEMENS Wayguard® Argus Event Recorder Series
offers reliable and simple comprehensive monitoring,
recording, reporting and alarm generation in one compact
simple to install, simple to use unit without breaking the
bank. Immediately reporting anomalies to the where the
client’s maintainers’ specify in order to investigate and
maintain.
Provides full monitoring, recording and reporting
functions for most standard crossing configurations
without the need for any other modules, except for
light-out detectors or other optional supported
devices (check with SIEMENS Technical Assistance
for Rail Automation Team for which other devices
are currently supported).
- Allows the railroad to have recorded proof-of-crossing
operation. The log from the recorder contains anti-
tampering information. Any editing of this log will
be obvious to an auditor. - Provides a user-friendly platform for site configuration
and log retrieval, without the need for special hardware
or software, via a USB 2.0 flash drive. - Provides notification of alarm conditions to the Wayside
Alarm Management System (WAMS) over a variety of
communication networks (check with SIEMENS
Technical Assistance for Rail Automation Team for
the networks and protocols currently supported). - Available with either SIEMENS proprietary silk
screening of predetermined events or inputs or a
non proprietary silkscreening offering generic
descriptions instead.
Grade Crossing Control Systems Products
NYK:8000803110001
NYK:8000803110003
- Weight is approx. 2.8 lbs. (1.27 kgs.)
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - Proprietary silkscreen overlay
- Basic CDL program
- (1) Ethernet port
- NO GPS capability
- NO accessory kit
- Weight is approx. 2.8 lbs. (1.27 kgs.)
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - Non proprietary silkscreen overlay
- Basic CDL program
- (1) Ethernet port
- NO GPS capability
- NO accessory kit
Lead Time
Price: $3196.00
Lead Time
Price: $3195.00
NYK:8000803110004
NYK:8000803110006
- Weight is approx. 2.8 lbs. (1.27 kgs.)
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - Proprietary silkscreen overlay
- Basic CDL program
- (1) Ethernet port
- GPS capability
- NO accessory kit
- Weight is approx. 2.8 lbs. (1.27 kgs.)
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - Non proprietary silkscreen overlay
- Basic CDL program
- (1) Ethernet port
- GPS capability
- NO accessory kit
Lead Time
Price: $3790.00
Lead Time
Price: $3788.00
| Preconfigured GPS Accessory Kits | |
Siemens Part Number | Description |
| NYK:8000267600001 | (2) 6’ (1.8 m) Antenna / Surge cables, (1) SMA/M adapter, (1) DC Arrester |
| NYK:8000267600002 | (1) 6’ (1.8 m) Antenna / Surge cable, (1) 15’ (4.6 m) Antenna / Surge cable, (1) SMA/M adapter, (1) DC Arrester |
| NYK:8000267600003 | (1) 6’ (1.8 m) Antenna / Surge cable, (1) 30’ (9.2 m) Antenna / Surge cable, (1) SMA/M adapter, (1) DC Arrester |
| NYK:8000267600004 | (1) 6’ (1.8 m) Antenna / Surge cable, (1) 50’ (15.2 m) Antenna / Surge cable, (1) SMA/M adapter, (1) DC Arrester |
| NYK:8000267600006 | (2) 15’ (4.6 m) Antenna / Surge cable, (1) SMA/M adapter, (1) DC Arrester |
| NYK:8000267600007 | (1) 15’ (4.6 m) Antenna / Surge cable, (1) 30’ (9.2 m) Antenna / Surge cable, (1) SMA/M adapter, (1) DC Arrester |
| NYK:8000267600008 | (1) 15’ (4.6 m) Antenna / Surge cable, (1) 50’ (15.2 m) Antenna / Surge cable, (1) SMA/M adapter, (1) DC Arrester |
| NYK:8000267600011 | (2) 30’ (9.2 m) Antenna / Surge cables, (1) SMA/M adapter, (1) DC Arrester |
| NYK:8000267600012 | (1) 30’ (9.2 m) Antenna / Surge cable, (1) 50’ (15.2 m) Antenna / Surge cable, (1) SMA/M adapter, (1) DC Arrester |
| NYK:8000267600016 | (2) 50’ (15.2 m) Antenna / Surge cables, (1) SMA/M adapter, (1) DC Arrester |
A38 - Grade Crossing Systems(ACM 200 Series)
Grade Crossing Control Systems Products
Wayguard®
Series
Axle Count Management System
SIEMENS Clearguard ACM 200 electronic wheel detection
equipment is a wheel detection component for use in
track vacancy detection systems using the axle counting
method.
It is preferentially used in the outdoor equipment of
the Clearguard Az S 350 U and Clearguard ACM 200
counting systems and comprises a double wheel detector
and a trackside connection box. Clearguard ZP D 43 is
the successor model to ZP 43 E and ZP 43 V.
DEK 43 double wheel detector
The DEK 43 double wheel detector is made up of a
transmitter and a receiver in separate housings, each
mounted with a reducing plate against the rail web.
Trackside connection box
The trackside connection box of the Clearguard ZP D 43
consists of a base plate and a cover which is made of
either plastic or aluminum (selectable). The base plate
supports a board module which in turn comprises a base
plate, the application-specific printed circuit board and
a protective cover.
- Connection to electronic and relay interlockings
- HTML communication for attribute configuration,
logging and diagnostics - Modular, compact hardware
- Deployment of Clearguard ZP D 43 and Clearguard
ZP 43 E/V counting heads
Grade Crossing Control Systems Products
| Siemens Part Number | Description |
| NYK:680001-0040 | ZP D 43 Wheel Detector |
| NYK:680001-0019 | 0019 ACM 200 ID Plug Module |
| NYK:680001-0083 | SIPLUS SCALANCE X208 Ethernet Switch |
| NYK:6ES57108MA31 | SIMATIC S7-300 Controller |
A39 - Grade Crossing Systems (SEAR II Series)
Grade Crossing Control Systems Products
Wayguard®
Series
Event Analyzers / Recorders
SIEMENS SEAR II Event Analyzer / Recorder
model A80273 shown for reference purposes only!
Actual unit selected may vary in mounting and features.
Railroads have a duty of care to ensure that grade
crossings operate safely. SIEMENS Wayguard®
|SEAR II Series Event Analyzer / Recorders
immediately report anomalies to the where the client’s
maintainers’ specify in order to investigate and maintain.
Offering reliable and simple comprehensive monitoring,
recording, reporting and alarm generation in one
compact simple to install, simple to use unit without
breaking the bank. Microprocessor controlled non-vital,
stand alone alarm management system designed to
provide continuous real-time general purpose status
monitoring and event recording for a wide
range of functions associated with grade crossings.
- 24 x 7 monitoring and fault reporting.
- Echelon® connectivity for communicating recorder
and diagnostic information. - Non-contact detection of flashing lamps.
(Can detect a single failure within a lamp bank
when SIEMENS Intelligent Lights Out Detector
(iLOD) is installed) - Isolated monitoring of up to 18 separate
digital points. - Isolated monitoring of 3 analog points.
(such as a battery) - Configurable dry contact outputs for remote testing.
- Configurable internal logic to discriminate faults
from normal operation. - Configurable maintainer call on real alarms.
- Can be remotely interrogated.
- Direct interface to Grade Crossing Predictors
(such as a SIEMENS Wayguard® GCP 4000
Series model) - Connects to analogue and digital expansion
modules for even larger systems. - Stores up to 150,000 events
(Up to 400,000 with extended memory module) - Intranet or internet access.
- Push alarms to nominated staff.
- Shelf or rack mountable.
Grade Crossing Control Systems Products
NYK:8000802730001
NYK:8000802730002
SEAR w/o Internal Expansion Module
- Weight is approx. 5.8 lbs. (2.63 kgs.)
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - Executive program installed
SEAR w Internal Expansion Module
- Weight is approx. 5.8 lbs. (2.63 kgs.)
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - Executive program installed
Lead Time
Price: $5220.00
Lead Time
Price: $5260.00
NYK:8000802550001
NYK:8000802580001
Analog I/O Expansion Module
- Weight is approx. 1.6 lbs. (0.73 kgs.)
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - Executive program installed
- Internally installed in SEAR II
Digital I/O Expansion Module
- Weight is approx. 5.4 lbs. (2.45 kgs.)
including connectors - Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing 2
Relative Humidity - Able to monitor up to (24) external digital inputs
- Able to monitor up to (4) external analog inputs
(including high and low voltage sensing) - Able to monitor internal temperature
- Able to monitor battery sensor functions
Lead Time
Price: $507.00
Lead Time
Price: $5958.00
NYK:8000802580002
NYK:8000802610001
Analog I/O Expansion Module
- Weight is approx. 5.1 lbs. (2.31 kgs.)
including connectors - Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - Able to monitor up to (24) external digital inputs
- Able to monitor internal temperature
- Able to monitor battery sensor functions
Analog Input Module
- Weight is approx. 5.4 lbs. (2.45 kgs.)
including connectors - Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - Able to monitor up to (4) external analog inputs
(including high and low voltage sensing)
Lead Time
Price: $3699.00
Lead Time
Price: $1905.00
NYK:8000800630001
NYK:8000802910001
GCP to Echelon® Interface Module
- Weight is approx. 2.6 lbs. (1.18 kgs.)
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity
Communications Isolator Module
- Weight is approx. 5.4 lbs. (2.45 kgs.)
including connectors - Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - Able to monitor up to (24) external digital inputs
- Able to monitor up to (4) external analog inputs
(including high and low voltage sensing) - Able to monitor internal temperature
- Able to monitor battery sensor functions
Lead Time
Price: $235.00
Lead Time
Price: $941.00
NYK:8000802760001
NYK:8000802760002
VHF Communicator
- Weight is approx. 5.1 lbs. (2.31 kgs.)
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - Able to monitor up to (24) external digital inputs
- Able to monitor internal temperature
- Able to monitor battery sensor functions
- SEAR transmit and receive indicators
VHF Communicator
- Weight is approx. 5.1 lbs. (2.31 kgs.)
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - Able to monitor up to (24) external digital inputs
- Able to monitor internal temperature
- Able to monitor battery sensor functions
- Console transmit and receive indicators
Lead Time
Price: $3063.00
Lead Time
Price: $3787.00
A43 - Grade Crossing Systems (MTSS)
Grade Crossing Control Systems Products

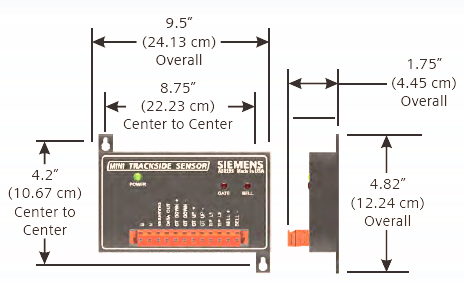

Mini Track Side Sensor
Model A80285
shown for reference purposes only!
Actual unit selected may vary in mounting and features.
SIEMENS Mini Track Side Sensor (MTSS) interfaces with
the various monitored signals via connector J1, a 12-pin,
mass-terminated Eurostyle terminal block (board header
and wiring plug), and provides LED indicators for power,
when the gate is horizontal and the bell is ringing.
NYK:8000802850001
● Easily mountable on instrument house backboards.
● Weight is approx. 1.11 lbs. (0.50 kgs.) including connectors
● Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity
Lead Time
Price: $1149.00
A44 - Grade Crossing Systems (iLOD)
Grade Crossing Control Systems Products
Intelligent Lights Out Detector
Model A80271 shown for reference purposes
only! Actual unit selected may vary in mounting
and features. Grade Crossing Systems Grade
Crossing Control Systems Products iLOD
SIEMENS Intelligent Lights Out Detector (iLOD) adds
programmable current sensing functionality to SIEMENS
SEAR II/SEAR IIi Event Analyzer / Recorders.
Including (2) current sensing Hall-effect sensors with
analog-digital conversion circuitry and it communicates
with the SIEMENS SEAR II / SEAR IIi over the
Echelon® network.
NYK:8000802710001
- Easily mountable on instrument house backboards.
- Quiescent power consumption is approx. 0.3 A @ 13.2 V, 0.4 A @ 9.0 V
- Weight is approx. 1.50 lbs. (0.68 kgs.) including connectors
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity
Lead Time
Price: $1018.00
A45 - Grade Crossing Systems (GFT II Series)
Grade Crossing Control Systems Products
Series
Ground Fault Tester
SIEMENS GFT II Model A81010 shown for
reference purposes only! Actual unit selected
may vary in mounting and features. SIEMENS
Ground Fault Tester (2 Generation)
GFT II Series can operate in two modes.
In normal mode, the GFT II constantly monitors
up to two batteries for ground faults and indicates
battery fault status to the SIEMENS Wayguard®
SEAR II Series Event Analyzer / Recorder if
connected. Information is provided to the
SEAR II as a pulsed data signal via any unused
digital input. The unit can also be placed in test mode
where a simulated ground fault is placed internally on
an isolated battery input to verify that the unit is properly
detecting faults. A separate internal circuit is used to
verify the GFT II's health, as indicated by the status of
the GFT FAIL LED on the front panel. The GFT II can
be powered by a 9-30 VDC (12 VDC nominal) operating
battery, or independently powered from a battery
being monitored.
- Monitors leakage resistance between battery terminals and
earth ground. - Can be used as a stand alone monitor or in conjunction with
SIEMENS Wayguard® SEAR II Series Event Analyzer /
Recorders for recording ground fault events. - (10) Second fault debounce circuitry.
(2) dry relay contacts to party inputs . rd . 3 - Up to (8) leakage current mode detection settings.
- Dipswitch configurable leakage thresholds.
Grade Crossing Control Systems Products
NYK:8000810100001
NYK:8000810100002
- Easily mountable on instrument house
backboards. - Quiescent power consumption is approx.
0.3 A @ 13.2 V, 0.5 A @ 9.0 V - Weight is approx. 4.0 lbs. (1.81 kgs.)
including connectors - Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - For use with either 12 V or 16 V batteries
- Alarm threshold configurable from
1 mA to 4.5 mA - NO ground integrity check feature
- Easily mountable on instrument house
backboards. - Quiescent power consumption is approx.
0.3 A @ 13.2 V, 0.5 A @ 9.0 V - Weight is approx. 4.0 lbs. (1.81 kgs.)
including connectors - Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing
Relative Humidity - For use with either 24 V or 30 V batteries
- Alarm threshold configurable from
1 mA to 4.5 mA - NO ground integrity check feature
Lead Time
Price: $3771.00
Lead Time
Price: $3253.00
A53 - Grade Crossing NBS Series
Grade Crossing Auxiliary Products
Grade Crossing®
Narrow Band Shunts
Model A62775 NBS Series Narrow Band Shunt shown
for reference purposes only! Actual unit selected may
vary in mounting and features.
10 ft (3 m) long leads SIEMENS Narrow Band Shunts
(NBS) Series introduces low impedance to a selected
narrow band of alternating current frequencies and
high impedance to direct current as well as all
alternating current frequencies outside the selected
band, thus allowing the end user to properly terminate
grade crossing approach circuits. Pre-wired internally
using either #6 AWG copper wire orErico® brand
bondstrand.
SIEMENS offers a variety of industry standard
frequencies to choose from, ranging 86 Hz to
970 Hz. Some select models offer additional
benefits such as higher than normal impedance
or being designed for use in high power
applications.
- Hermetically sealed in ABS shell casing.
- Available pre-wired internally with 10 ft (3 m)
long leads, using either #6 AWG copper wire
or #6 Erico® brand bondstrand. - Requires no specialized tuning.
Grade Crossing Auxiliary Products
Assemblies
Siemens Part Number | Frequency | High Impedance | High Power | Multi Frequency | Wire Type | Weight | |
#6 AWG Copper Wire | Erico® Bondstrand | ||||||
| NYK:6000627750086 | 86 Hz | - | - | - | X | - | 7.6 lbs (3.45 kgs) |
| NYK:6000627750114 | 114 Hz | - | - | - | X | - | 7.6 lbs (3.45 kgs) |
| NYK:6000627750156 | 156 Hz | - | - | - | X | - | 7.6 lbs (3.45 kgs) |
| NYK:6000627750211 | 211 Hz | - | - | - | X | - | 7.6 lbs (3.45 kgs) |
| NYK:6000627750285 | 285 Hz | - | - | - | X | - | 7.6 lbs (3.45 kgs) |
| NYK:6000627750348 | 348 Hz | - | - | - | X | - | 7.6 lbs (3.45 kgs) |
| NYK:6000627750430 | 430 Hz | - | - | - | X | - | 7.6 lbs (3.45 kgs) |
| NYK:6000627750525 | 525 Hz | - | - | - | X | - | 7.6 lbs (3.45 kgs) |
| NYK:6000627750645 | 645 Hz | - | - | - | X | - | 7.6 lbs (3.45 kgs) |
| NYK:6000627750790 | 790 Hz | - | - | - | X | - | 7.6 lbs (3.45 kgs) |
| NYK:6000627750970 | 970 Hz | - | - | - | X | - | 7.6 lbs (3.45 kgs) |
| NYK:6E00627750086 | 86 Hz | - | - | - | - | X | 7.6 lbs (3.45 kgs) |
| NYK:6E00627750114 | 114 Hz | - | - | - | - | X | 7.6 lbs (3.45 kgs) |
| NYK:6E00627750156 | 156 Hz | - | - | - | - | X | 7.6 lbs (3.45 kgs) |
| NYK:6E00627750211 | 211 Hz | - | - | - | - | X | 7.6 lbs (3.45 kgs) |
| NYK:6E00627750285 | 285 Hz | - | - | - | - | X | 7.6 lbs (3.45 kgs) |
| NYK:6E00627750348 | 348 Hz | - | - | - | - | X | 7.6 lbs (3.45 kgs) |
| NYK:6E00627750430 | 430 Hz | - | - | - | - | X | 7.6 lbs (3.45 kgs) |
| NYK:6E00627750525 | 525 Hz | - | - | - | - | X | 7.6 lbs (3.45 kgs) |
| NYK:6E00627750645 | 645 Hz | - | - | - | - | X | 7.6 lbs (3.45 kgs) |
| NYK:6E00627750790 | 790 Hz | - | - | - | - | X | 7.6 lbs (3.45 kgs) |
| NYK:6E00627750970 | 970 Hz | - | - | - | - | X | 7.6 lbs (3.45 kgs) |
Impedance Assemblies
Siemens Part Number | Frequency | High Impedance | High Power | Multi Frequency | Wire Type | Weight | |
#6 AWG Copper Wire | Erico® Bondstrand | ||||||
| NYK:6000627800086 | 86 Hz | - | - | - | X | - | 7.6 lbs (3.45 kgs) |
| NYK:6000627800114 | 114 Hz | - | - | - | X | - | 7.6 lbs (3.45 kgs) |
| NYK:6000627800156 | 156 Hz | - | - | - | X | - | 7.6 lbs (3.45 kgs) |
| NYK:6000627800211 | 211 Hz | - | - | - | X | - | 7.6 lbs (3.45 kgs) |
| NYK:6000627800285 | 285 Hz | - | - | - | X | - | 7.6 lbs (3.45 kgs) |
| NYK:6000627800348 | 348 Hz | - | - | - | X | - | 7.6 lbs (3.45 kgs) |
| NYK:6000627800430 | 430 Hz | - | - | - | X | - | 7.6 lbs (3.45 kgs) |
| NYK:6000627800525 | 525 Hz | - | - | - | X | - | 7.6 lbs (3.45 kgs) |
| NYK:6000627800645 | 645 Hz | - | - | - | X | - | 7.6 lbs (3.45 kgs) |
| NYK:6000627800790 | 790 Hz | - | - | - | X | - | 7.6 lbs (3.45 kgs) |
| NYK:6000627800970 | 970 Hz | - | - | - | X | - | 7.6 lbs (3.45 kgs) |
| NYK:6E00627800086 | 86 Hz | - | - | - | - | X | 7.6 lbs (3.45 kgs) |
| NYK:6E00627800114 | 114 Hz | - | - | - | - | X | 7.6 lbs (3.45 kgs) |
| NYK:6E00627800156 | 156 Hz | - | - | - | - | X | 7.6 lbs (3.45 kgs) |
| NYK:6E00627800211 | 211 Hz | - | - | - | - | X | 7.6 lbs (3.45 kgs) |
| NYK:6E00627800285 | 285 Hz | - | - | - | - | X | 7.6 lbs (3.45 kgs) |
| NYK:6E00627800348 | 348 Hz | - | - | - | - | X | 7.6 lbs (3.45 kgs) |
| NYK:6E00627800430 | 430 Hz | - | - | - | - | X | 7.6 lbs (3.45 kgs) |
| NYK:6E00627750525 | 525 Hz | - | - | - | - | X | 7.6 lbs (3.45 kgs) |
| NYK:6E00627800645 | 645 Hz | - | - | - | - | X | 7.6 lbs (3.45 kgs) |
| NYK:6E00627800790 | 790 Hz | - | - | - | - | X | 7.6 lbs (3.45 kgs) |
| NYK:6E00627800970 | 970 Hz | - | - | - | - | X | 7.6 lbs (3.45 kgs) |
High Power and Multi Frequency Assemblies
Siemens Part Number | Frequency | High Impedance | High Power | Multi Frequency | Wire Type | Weight | |
#6 AWG Copper Wire | Erico® Bondstrand | ||||||
| NYK:6000627750086 | 86 Hz | - | X | - | X | - | 7.6 lbs (3.45 kgs) |
| NYK:6000627800114 | 114 Hz | - | X | - | X | - | 7.6 lbs (3.45 kgs) |
| NYK:6000627800156 | 156 Hz | - | X | - | X | - | 7.6 lbs (3.45 kgs) |
| NYK:6000627800211 | 211 Hz | - | X | - | X | - | 7.6 lbs (3.45 kgs) |
| NYK:6000627800285 | 285 Hz | - | X | - | X | - | 7.6 lbs (3.45 kgs) |
| NYK:6000627800348 | 348 Hz | - | X | - | X | - | 7.6 lbs (3.45 kgs) |
| NYK:6000627758621 | 86 - 211 Hz | - | - | X | X | - | 7.6 lbs (3.45 kgs) |
| NYK:6000627751543 | 156 - 430 Hz | - | - | X | X | - | 7.6 lbs (3.45 kgs) |
| NYK:6000627752152 | 211 - 525 Hz | - | - | X | X | - | 7.6 lbs (3.45 kgs) |
| NYK:6000627752879 | 285 - 790 Hz | - | - | X | X | - | 7.6 lbs (3.45 kgs) |
| NYK:6000627753497 | 348 - 970 Hz | - | - | X | X | X | 7.6 lbs (3.45 kgs) |
| NYK:6E00627758621 | 86 - 211 Hz | - | - | X | - | X | 7.6 lbs (3.45 kgs) |
| NYK:6E00627751543 | 156 - 430 Hz | - | - | X | - | X | 7.6 lbs (3.45 kgs) |
| NYK:6E00627752152 | 211 - 525 Hz | - | - | X | - | X | 7.6 lbs (3.45 kgs) |
| NYK:6E00627752879 | 285 - 790 Hz | - | - | X | - | X | 7.6 lbs (3.45 kgs) |
| NYK:6E00627753497 | 348 - 970 Hz | - | - | X | - | X | 7.6 lbs (3.45 kgs) |
A59 - Grade Crossing WBS Series
Grade Crossing Auxiliary Products
Grade Crossing®
Wide Band Shunts
Model A8A076 WBS Series Wide Band Shunt
shown for reference purposes only! Actual
unit selected may vary in mounting and
features.
SIEMENS Wide Band Shunts (WBS) Series
introduces low impedance
to all frequencies of alternating current and
high impedance to direct current energy, thus
allowing the end user to properly
terminate grade crossing approach circuits.
Pre-wired internally using either #6 AWG
copper wire or Erico® brand bondstrand.
Grade Crossing Auxiliary Products
Siemens Part Number | Voltage | Lead Length | No of Bands | Wire Type | Weight | ||
| Single | Dual | #6 AWG Copper Wire | Erico® Bondstrand | ||||
| NYK:80008A0760001 | 3 V | 10 ft | X | - | X | - | 7.6 lbs (3.45 kgs) |
| NYK:80008A0760002 | 3 V | 14 ft | X | - | X | - | 7.6 lbs (3.45 kgs) |
| NYK:80008A0760011 | 20 V | 10 ft | X | - | X | - | 7.6 lbs (3.45 kgs) |
| NYK:80008A0760012 | 20 V | 14 ft | X | - | X | - | 7.6 lbs (3.45 kgs) |
| NYK:8E008A0760001 | 3 V | 10 ft | X | - | - | X | 7.6 lbs (3.45 kgs) |
| NYK:8E008A0760002 | 3 V | 14 ft | X | - | - | X | 7.6 lbs (3.45 kgs) |
| NYK:8E008A0760011 | 20 V | 10 ft | X | - | - | X | 7.6 lbs (3.45 kgs) |
| NYK:8E008A0760012 | 20 V | 14 ft | X | - | - | X | 7.6 lbs (3.45 kgs) |
| NYK:80008A0770001 | 3 V | 10 ft | X | - | X | - | 7.6 lbs (3.45 kgs) |
| NYK:80008A0770002 | 3 V | 14 ft | X | - | X | - | 7.6 lbs (3.45 kgs) |
| NYK:80008A0770011 | 20 V | 10 ft | - | X | X | - | 7.6 lbs (3.45 kgs) |
| NYK:80008A0770012 | 20 V | 14 ft | - | X | X | - | 7.6 lbs (3.45 kgs) |
| NYK:8E008A0770001 | 3 V | 10 ft | - | X | - | X | 7.6 lbs (3.45 kgs) |
| NYK:8E008A0770002 | 3 V | 14 ft | - | X | - | X | 7.6 lbs (3.45 kgs) |
| NYK:8E008A0770011 | 20 V | 10 ft | - | X | - | X | 7.6 lbs (3.45 kgs) |
| NYK:8E008A0770012 | 20 V | 14 ft | - | X | - | X | 7.6 lbs (3.45 kgs) |
A61 - Grade Crossing TJC
Grade Crossing Auxiliary Products
Grade Crossing®
Tunable Joint Couplers
Model A62875 Tunable Joint Coupler shown for
reference purposes only! Actual unit selected
may vary in mounting and features.
SIEMENS TJC Series Tunable Joint Couplers are
pre-wiredinternally using either #6 AWG copper wire
or Erico® brand bondstrand.
Grade Crossing Auxiliary Products
| Siemens Part Numbers | Frequency | Wire Type | Weight | |
#6 AWG Copper Wire | Erico® Bondstrand | |||
| NYK:6000627850086 | 86 Hz | X | - | 7.6 lbs (3.45 kgs) |
| NYK:6000627850086 | 114 Hz | X | - | 7.6 lbs (3.45 kgs) |
| NYK:6000627850156 | 156 Hz | X | - | 7.6 lbs (3.45 kgs) |
| NYK:6000627850211 | 211 Hz | X | - | 7.6 lbs (3.45 kgs) |
| NYK:6000627850285 | 285 Hz | X | - | 7.6 lbs (3.45 kgs) |
| NYK:6000627850348 | 348 Hz | X | - | 7.6 lbs (3.45 kgs) |
| NYK:6000627850430 | 430 Hz | X | - | 7.6 lbs (3.45 kgs) |
| NYK:6000627850525 | 525 Hz | X | - | 7.6 lbs (3.45 kgs) |
| NYK:6000627850645 | 645 Hz | X | - | 7.6 lbs (3.45 kgs) |
| NYK:6000627850790 | 790 Hz | X | - | 7.6 lbs (3.45 kgs) |
| NYK:6000627850970 | 970 Hz | - | X | 7.6 lbs (3.45 kgs) |
| NYK:6E00627850086 | 86 Hz | - | X | 7.6 lbs (3.45 kgs) |
| NYK:6E00627850114 | 114 Hz | - | X | 7.6 lbs (3.45 kgs) |
| NYK:6E00627850156 | 156 Hz | - | X | 7.6 lbs (3.45 kgs) |
| NYK:6E00627850211 | 211 Hz | - | X | 7.6 lbs (3.45 kgs) |
| NYK:6E00627850285 | 285 Hz | - | X | 7.6 lbs (3.45 kgs) |
| NYK:6E00627850348 | 348 Hz | - | X | 7.6 lbs (3.45 kgs) |
| NYK:6E00627850430 | 430 Hz | - | X | 7.6 lbs (3.45 kgs) |
| NYK:6E00627850525 | 525 Hz | - | X | 7.6 lbs (3.45 kgs) |
| NYK:6E00627850645 | 645 Hz | - | X | 7.6 lbs (3.45 kgs) |
| NYK:6E00627850790 | 790 Hz | - | X | 7.6 lbs (3.45 kgs) |
| NYK:6E00627850970 | 970 Hz | - | X | 7.6 lbs (3.45 kgs) |
A65 - Grade Crossing Couplers
Grade Crossing Auxiliary Products
Grade Crossing®
Miscellaneous
Model A62664 Bi-Directional Simulation Coupler
shown for reference purposes only!
Actual unit selected may vary in mounting and features.
SIEMENS Bidirectional Simulation Coupler is
designed for use atunidirectional Wayguard®
Simple Grade Crossing Predictors /Motion
Sensors (SGCP / MS) 4000 Series and
Wayguard® GradeCrossing Predictors (GCP)
4000 Series installations, obtaining the
operating benefits associated with a bidirectional
installation. Includes a narrow-band shunt, of the
same frequency as theSGCP / MS 4000 or GCP
4000 Series unit and is designed for use with coded
DC track circuits or where other audio frequencies or
AC signals are present.GCP 4000 Series units must
also set up for bidirectional operation. The bidirectional
simulation coupler must not be used with a unidirectional
which is providing a DAX start for an adjacent street.
The compact unit is housed in a brushed aluminum case
containing a single plug-in-type printed circuit board and
four toroid-wound inductors, each of which simulates a
specific track length. The inductors are wired in series
with taps provided to enable strapping of front panel
terminals for selecting approach distances (to closely
match the actual track approach) that range from 400’
(122 m) to 6,000’ (1829 m).
- Provides the benefits of a bidirectional installation
- Compatible with all Wayguard® Simple Grade Crossing
Predictors / Motion Sensors (SGCP / MS)4000 Series and
Wayguard® Grade Crossing Predictors (GCP) 4000 Series units - Adjustable to match track approach length
- Compact size can easily be wall or shelf mounted
Grade Crossing Auxiliary Products
Siemens Part Number | Frequency | Weight |
| NYK:6000626640086 | 86 Hz | 7.6 lbs (3.45 kgs) |
| NYK:6000626640114 | 114 Hz | 7.6 lbs (3.45 kgs) |
| NYK:6000626640156 | 156 Hz | 7.6 lbs (3.45 kgs) |
| NYK:6000626640211 | 211 Hz | 7.6 lbs (3.45 kgs) |
| NYK:6000626640285 | 285 Hz | 7.6 lbs (3.45 kgs) |
| NYK:6000626640348 | 348 Hz | 7.6 lbs (3.45 kgs) |
| NYK:6000626640430 | 430 Hz | 7.6 lbs (3.45 kgs) |
| NYK:6000626640525 | 525 Hz | 7.6 lbs (3.45 kgs) |
| NYK:6000626640645 | 645 Hz | 7.6 lbs (3.45 kgs) |
| NYK:6000626640790 | 790 Hz | 7.6 lbs (3.45 kgs) |
| NYK:6000626640970 | 970 Hz | 7.6 lbs (3.45 kgs) |
PSO Insulated Joint Bypass
Siemens Part Number | Frequency | Weight |
| NYK:70007A4220156 | 156 Hz | 7.6 lbs (3.45 kgs) |
| NYK:70007A4220211 | 211 Hz | 7.6 lbs (3.45 kgs) |
| NYK:70007A4220285 | 285 Hz | 7.6 lbs (3.45 kgs) |
| NYK:70007A4220348 | 348 Hz | 7.6 lbs (3.45 kgs) |
| NYK:70007A4220430 | 430 Hz | 7.6 lbs (3.45 kgs) |
| NYK:70007A4220525 | 525 Hz | 7.6 lbs (3.45 kgs) |
| NYK:70007A4220645 | 645 Hz | 7.6 lbs (3.45 kgs) |
| NYK:70007A4220790 | 790 Hz | 7.6 lbs (3.45 kgs) |
| NYK:70007A4220970 | 970 Hz | 7.6 lbs (3.45 kgs) |
| NYK:70007A4221180 | 1180 Hz | 7.6 lbs (3.45 kgs) |
| NYK:70007A4221450 | 1450 Hz | 7.6 lbs (3.45 kgs) |
| NYK:70007A4221770 | 1770 Hz | 7.6 lbs (3.45 kgs) |
| NYK:70007A4222140 | 2140 Hz | 7.6 lbs (3.45 kgs) |
| NYK:70007A4222630 | 2630 Hz | 7.6 lbs (3.45 kgs) |
| NYK:70007A4223240 | 3240 Hz | 7.6 lbs (3.45 kgs) |
| NYK:70007A4224000 | 4000 Hz | 7.6 lbs (3.45 kgs) |
Receiver, High Impedance
Siemens Part Number | Frequency | Weight |
| NYK:70007A4220156 | 156 Hz | 7.6 lbs (3.45 kgs) |
| NYK:70007A4220211 | 211 Hz | 7.6 lbs (3.45 kgs) |
| NYK:70007A4220285 | 285 Hz | 7.6 lbs (3.45 kgs) |
| NYK:70007A4220348 | 348 Hz | 7.6 lbs (3.45 kgs) |
| NYK:70007A4220430 | 430 Hz | 7.6 lbs (3.45 kgs) |
| NYK:70007A4220525 | 525 Hz | 7.6 lbs (3.45 kgs) |
| NYK:70007A4220645 | 645 Hz | 7.6 lbs (3.45 kgs) |
| NYK:70007A4220790 | 790 Hz | 7.6 lbs (3.45 kgs) |
| NYK:70007A4220970 | 970 Hz | 7.6 lbs (3.45 kgs) |
| NYK:70007A4221180 | 1180 Hz | 7.6 lbs (3.45 kgs) |
| NYK:70007A4221450 | 1450 Hz | 7.6 lbs (3.45 kgs) |
| NYK:70007A4221770 | 1770 Hz | 7.6 lbs (3.45 kgs) |
| NYK:70007A4222140 | 2140 Hz | 7.6 lbs (3.45 kgs) |
| NYK:70007A4222630 | 2630 Hz | 7.6 lbs (3.45 kgs) |
| NYK:70007A4223240 | 3240 Hz | 7.6 lbs (3.45 kgs) |
| NYK:70007A4224000 | 4000 Hz | 7.6 lbs (3.45 kgs) |
Line to Rail Transmitter
Siemens Part Number | Frequency | Weight |
| NYK:70007A4220156 | 156 Hz | 7.6 lbs (3.45 kgs) |
| NYK:70007A4220211 | 211 Hz | 7.6 lbs (3.45 kgs) |
| NYK:70007A4220285 | 285 Hz | 7.6 lbs (3.45 kgs) |
| NYK:70007A4220348 | 348 Hz | 7.6 lbs (3.45 kgs) |
| NYK:70007A4220430 | 430 Hz | 7.6 lbs (3.45 kgs) |
| NYK:70007A4220525 | 525 Hz | 7.6 lbs (3.45 kgs) |
| NYK:70007A4220645 | 645 Hz | 7.6 lbs (3.45 kgs) |
| NYK:70007A4220790 | 790 Hz | 7.6 lbs (3.45 kgs) |
| NYK:70007A4220970 | 970 Hz | 7.6 lbs (3.45 kgs) |
| NYK:70007A4221180 | 1180 Hz | 7.6 lbs (3.45 kgs) |
| NYK:70007A4221450 | 1450 Hz | 7.6 lbs (3.45 kgs) |
| NYK:70007A4221770 | 1770 Hz | 7.6 lbs (3.45 kgs) |
| NYK:70007A4222140 | 2140 Hz | 7.6 lbs (3.45 kgs) |
| NYK:70007A4222630 | 2630 Hz | 7.6 lbs (3.45 kgs) |
| NYK:70007A4223240 | 3240 Hz | 7.6 lbs (3.45 kgs) |
| NYK:70007A4224000 | 4000 Hz | 7.6 lbs (3.45 kgs) |
Line to Rail Receiver
Siemens Part Number | Frequency | Weight |
| NYK:70007A4220156 | 156 Hz | 7.6 lbs (3.45 kgs) |
| NYK:70007A4220211 | 211 Hz | 7.6 lbs (3.45 kgs) |
| NYK:70007A4220285 | 285 Hz | 7.6 lbs (3.45 kgs) |
| NYK:70007A4220348 | 348 Hz | 7.6 lbs (3.45 kgs) |
| NYK:70007A4220430 | 430 Hz | 7.6 lbs (3.45 kgs) |
| NYK:70007A4220525 | 525 Hz | 7.6 lbs (3.45 kgs) |
| NYK:70007A4220645 | 645 Hz | 7.6 lbs (3.45 kgs) |
| NYK:70007A4220790 | 790 Hz | 7.6 lbs (3.45 kgs) |
| NYK:70007A4220970 | 970 Hz | 7.6 lbs (3.45 kgs) |
| NYK:70007A4221180 | 1180 Hz | 7.6 lbs (3.45 kgs) |
| NYK:70007A4221450 | 1450 Hz | 7.6 lbs (3.45 kgs) |
| NYK:70007A4221770 | 1770 Hz | 7.6 lbs (3.45 kgs) |
| NYK:70007A4222140 | 2140 Hz | 7.6 lbs (3.45 kgs) |
| NYK:70007A4222630 | 2630 Hz | 7.6 lbs (3.45 kgs) |
| NYK:70007A4223240 | 3240 Hz | 7.6 lbs (3.45 kgs) |
| NYK:70007A4224000 | 4000 Hz | 7.6 lbs (3.45 kgs) |
Line to Rail Transmitter
Siemens Part Number | Frequency | Weight |
| NYK:70007A4220156 | 156 Hz | 7.6 lbs (3.45 kgs) |
| NYK:70007A4220211 | 211 Hz | 7.6 lbs (3.45 kgs) |
| NYK:70007A4220285 | 285 Hz | 7.6 lbs (3.45 kgs) |
| NYK:70007A4220348 | 348 Hz | 7.6 lbs (3.45 kgs) |
| NYK:70007A4220430 | 430 Hz | 7.6 lbs (3.45 kgs) |
| NYK:70007A4220525 | 525 Hz | 7.6 lbs (3.45 kgs) |
| NYK:70007A4220645 | 645 Hz | 7.6 lbs (3.45 kgs) |
| NYK:70007A4220790 | 790 Hz | 7.6 lbs (3.45 kgs) |
| NYK:70007A4220970 | 970 Hz | 7.6 lbs (3.45 kgs) |
| NYK:70007A4221180 | 1180 Hz | 7.6 lbs (3.45 kgs) |
| NYK:70007A4221450 | 1450 Hz | 7.6 lbs (3.45 kgs) |
| NYK:70007A4221770 | 1770 Hz | 7.6 lbs (3.45 kgs) |
| NYK:70007A4222140 | 2140 Hz | 7.6 lbs (3.45 kgs) |
| NYK:70007A4222630 | 2630 Hz | 7.6 lbs (3.45 kgs) |
| NYK:70007A4223240 | 3240 Hz | 7.6 lbs (3.45 kgs) |
| NYK:70007A4224000 | 4000 Hz | 7.6 lbs (3.45 kgs) |
A72 - Grade Crossing SZB Series
Grade Crossing Aux Products (cont...)
Grade Crossing®
Impedance Bonds
Model 012 SZB 20 Series Impedance Bond shown for
reference purposes only! Actual unit selected may
vary in mounting and features.
SIEMENS SZB 20 Series Impedance Bonds
are designed to permit propulsion current to
bypass insulated joints, while providing peration
and isolation of adjacent signaling track circuits.
Unique construction of copper coils constructed
from large cross sectional area copper bars,
encased in a magnetic circuit of air gapped ferrous
"C" cores. Construction exceeds magnetic
characteristics of conventional laminated
transformer cores; thereby reducing size and
weight. Coil / core assemblies are then sealed in
a protective varnish to provide a medium for heat
transfer to outside air, and to provide protection
against the rigors of the trackside environment.
Epoxy sealed versions are also available which
will withstand total immersion in seawater. Models
SZB-23 and SZB-24 are low profile design allowing
mounting above the tie level and between the rails.
Model SZB-25 is similar to the entry level model
SZB-20, except that it is higher impedance for use
with audio frequency track circuits or where minimum
attenuation of signal track circuits is required A 3000
volt AC test of insulation between all parts of electrical
circuits and other metallic parts is conducted. In ideal
conditions, the traction return current flows equally in
both rails and in each half of the bond. If under traction
fault conditions, "out of balance" occurs, the gap
prevents the core from saturating. Direct current
bonds will accept 12% unbalance current,
while maintaining 90% of the specified impedance.
- Maintenance free, weather and damage resistant design.
- Solid State. No mechanical components to breakdown.
- Designed for AC or DC propulsion.
- Available in either tunable or untuned models.
- Tested at full rated current prior to shipment.
- All housings consist of steel and/or cast iron construction.
- AREMA® Compliant.
A73 - Grade Crossing Inductors
Grade Crossing Aux Products (cont...)
Grade Crossing®
Simulated Track
Model A8V617 Simulated Track Inductor shown for reference
purposes only! Actual unit selected may vary in mounting
and features.
SIEMENS Simulated Track Inductors are used in
bidirectional installations of MS / SGCP or GCP
units, where insulated jointslocated in an approach
sometimes may prevent both termination shunts
from being installed with the same approximate length
from the MS / SGCP or GCP feed point. When using
SIEMENS multi frequency NBS Series Narrow Band
Shunts to terminate approaches, these can be installed
inline with the shunt to simulate a longer track condition
to compensate forthe difference in available length in
the shorter approach.
Grade Crossing Aux Products (cont...)
Siemens Part Number | Length of Track Simulated | Number of Turns | Inductance ± 10% (Henry) | Weight |
| NYK:8V617-0100 | 100 ft (30.5 m) | 18 | 0.00005 H | 7.6 lbs (3.45 kgs) |
| NYK:8V617-0200 | 200 ft (61.0 m) | 25 | 0.0001 H | 7.6 lbs (3.45 kgs) |
| NYK:8V617-0400 | 400 ft (121.9 m) | 35 | 0.0002 H | 7.6 lbs (3.45 kgs) |
| NYK:8V617-0600 | 600 ft (182.9 m) | 43 | 0.0003 H | 7.6 lbs (3.45 kgs) |
| NYK:8V617-0800 | 800 ft (243.8 m) | 49 | 0.0004 H | 7.6 lbs (3.45 kgs) |
| NYK:8V617-1000 | 1000 ft (304.8 m) | 55 | 0.0005 H | 7.6 lbs (3.45 kgs) |
| NYK:8V617-1200 | 1200 ft (365.8 m) | 60 | 0.0006 H | 7.6 lbs (3.45 kgs) |
| NYK:8V617-1400 | 1400 ft (426.7 m) | 65 | 0.0007 H | 7.6 lbs (3.45 kgs) |
| NYK:8V617-1600 | 1600 ft (487.7 m) | 70 | 0.0008 H | 7.6 lbs (3.45 kgs) |
| NYK:8V617-1800 | 1800 ft (548.6 m) | 74 | 0.0009 H | 7.6 lbs (3.45 kgs) |
| NYK:8V617-2000 | 2000 ft (609.6 m) | 78 | 0.0010 H | 7.6 lbs (3.45 kgs) |
| NYK:8V617-2200 | 2200 ft (670.6 m) | 82 | 0.0011 H | 7.6 lbs (3.45 kgs) |
| NYK:8V617-2400 | 2400 ft (731.5 m) | 86 | 0.0012 H | 7.6 lbs (3.45 kgs) |
| NYK:8V617-2600 | 2600 ft (792.5 m) | 89 | 0.0013 H | 7.6 lbs (3.45 kgs) |
| NYK:8V617-2800 | 2800 ft (853.4 m) | 93 | 0.0014 H | 7.6 lbs (3.45 kgs) |
| NYK:8V617-3000 | 3000 ft (914.4 m) | 96 | 0.0015 H | 7.6 lbs (3.45 kgs) |
| NYK:8V617-4000 | 4000 ft (1219.2 m) | 111 | 0.0020 H | 7.6 lbs (3.45 kgs) |
| NYK:8V617-4400 | 4400 ft (1341.1 m) | 112 | 0.0022 H | 7.6 lbs (3.45 kgs) |
| NYK:8V617-5200 | 5200 ft (1585.0 m) | 125 | 0.0026 H | 7.6 lbs (3.45 kgs) |
A75 - Grade Crossing TS Series
Grade Crossing Aux Products (cont...)
Grade Crossing®
Test Shunts

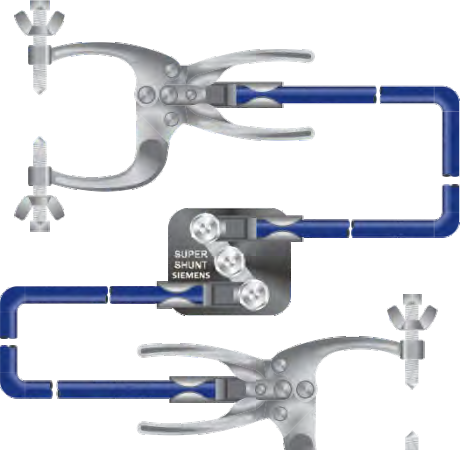

Model NYK:021500-25X Super Shunt shown for
reference purposes only! Actual unit selected
may vary in mounting and features.
SIEMENS TS Series Test Shunts are a portable track test
shunts which combines greater ease in use with positive
shunting. Toggle clamps are used for quick attachment
or removal to either the base or ball of rail. These clamps
provide a positive grip with release lever for easy
removal. Hardened steel points bite through rust
and scale for better electrical contact. Jaws are
adjustable to accommodate any size rail. Clamps of
cadmium plated steel, conductors of #6 copper cable
with neoprene jacket, and center block of compression
molded high impact plastic allow the Super Shunt to
withstand rugged field use. The center block contains
a sealed 0.06 O resistor as well as two test
links to provide open circuit, zero resistance, and
0.06 O shunting in the same unit.
Grade Crossing Aux Products (cont...)
Siemens Part Number | Shunt Type | Application | Shunt Resistance Values in Ohms | |||||||||||
Base of Rail | Ball of Rail | Locking Pliers (Base of Rail) | 0.0 | 0.06 | 0.2 | 0.25 | 0.5 | 1.0 | 1.2 | 1.3 | 1.41 | Open | ||
| NYK:021500-5X | TS-1 Shunt | X | X | X | ||||||||||
| NYK:021500-5VGX | TS-1 Shunt | X | X | X | ||||||||||
| NYK:021500-6X | TS-1B Shunt | X | X | X | ||||||||||
| NYK:021500-6VGX | TS-1 Shunt | X | X | X | ||||||||||
| NYK:021500-25X | Super Shunt | X | X | X | X | X | ||||||||
| NYK:021500-25VGX | Super Shunt | X | X | X | X | |||||||||
| NYK:021500-40X | TS-1B Shunt | X | X | X | X | |||||||||
| NYK:021500-40VGX | TS-1 Shunt | X | X | X | X | |||||||||
| NYK:021500-42X | TS-1 Shunt | X | X | X | X | |||||||||
| NYK:021500-56X | TS-1 Shunt | X | X | X | X | X | X | |||||||
| NYK:021500-57X | TS-4 Shunt | X | X | X | X | X | X | X | X | X | X | |||
A77 - Grade Crossing S60 Series
Grade Crossing Signaling Systems Products
Grade Crossing®
Series
Grade Crossing Gate Mechanisms
Model A074007 Entrance Gate Mechanism shown for
reference purposes only! Actual unit selected may
vary in mounting and features.
SIEMENS Wayguard® S-60 Series Grade Crossing Gate
Mechanisms are idea for operating grade crossing
entrance and exit barrier arms up to 40’ (12 m) in length.
Built on proven robust reputation of the legacy S-20 and
S-40 iterations, it retains a high strengt cast aluminum
housing, maintenance free bearings, reliable gear train
and rotary circuit controller. Optional Mini Trackside
Sensor (MTSS) consolidate the monitoring of barrier
position, electronic bell and tip lights to the Wayguard®
SEAR II Series Event Recorder.
- Maintenance free, weatherproof design
- Safely lock gate in any position with the patented locking bar
- On board diagnostic LEDs simplify troubleshooting
- Optional module for Bell and Gate monitoring
- A 90% spare part compatibility between the entrance
and exit gate mechanism, reduces your cost of
ownership Integrated PC board with over-speed
control - Adjustable circuit to set descend times
- Electronic auto-reset overload for motor protection
- Standard gate mechanism is equipped with (4)
arrangements. With configurations up to (7) cam
arrangements. - Maintenance operation to power down counterweights
when the gate arm is broken Single and two-wire
gate control capability - Horizontal and vertical buffers adjusted from
- outside of mechanism
- Lifting eyebolt for ease of installation
Grade Crossing Signaling Systems Products
NYK:9000255310001
NYK:8000802860002
Entrance Gate Printed Circuit Board
- Weight is approx. 3.0 lbs. (1.36 kgs.)
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to95% Non-Condensing Relative Humidity
Mini Trackside Sensor Printed Circuit Board
- Weight is approx. 0.3 lbs. (0.14 kgs.)
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to95% Non-Condensing Relative Humidity
Lead Time
Price: $800.00
Lead Time
Price: $662.00
NYK:9000255280001
Entrance Gate Printed Circuit Board
- Weight is approx. 5.0 lbs. (2.27 kgs.)
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to95% Non-Condensing Relative Humidity
Lead Time
Price: $111.00

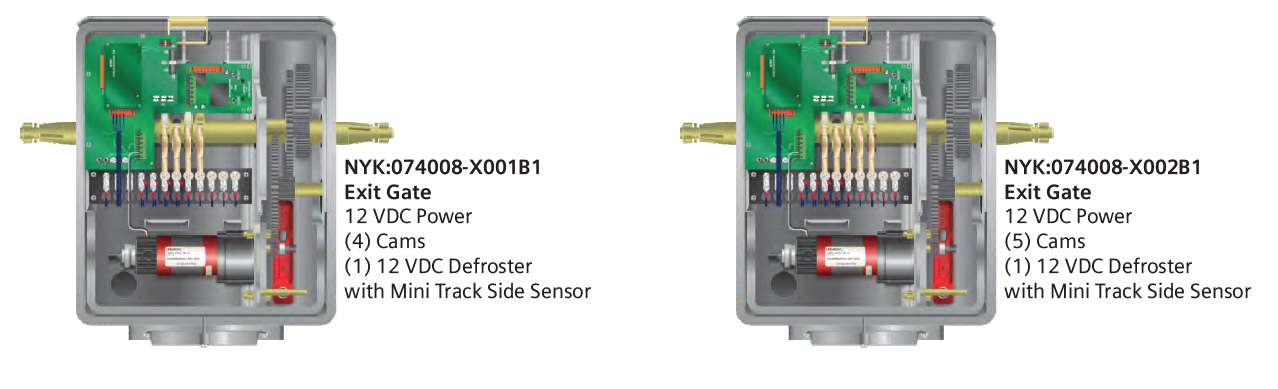

| Siemens Part Number | Power Connection | No. of Cams | Defroster | Mini Track Weight Side Sensor | Weight |
| 4 Cams | |||||
| NYK:074007-X001 | 12 VDC | (4) | (1) 12 VDC | - | 210.0 lbs (95.25 kgs) |
| NYK:074007-X001A1 | 12 VDC | (4) | (1) 12 VDC | - | 211.5 lbs (95.93 kgs) |
| NYK:074007-X001B1 | 12 VDC | (4) | (1) 12 VDC | X | 213.5 lbs (96.84 kgs) |
| NYK:074007-X001A2 | 12 VDC | (4) | (1) 12 VDC | - | 211.5 lbs (95.93 kgs) |
| NYK:074007-X001B2 | 12 VDC | (4) | (1) 12 VDC | X | 213.5 lbs (96.84 kgs) |
| NYK:074007-X001A3 | 12 VDC | (4) | (1) 12 VDC | - | 211.5 lbs (95.93 kgs) |
| NYK:074007-X001B3 | 12 VDC | (4) | (1) 12 VDC | X | 213.5 lbs (96.84 kgs) |
| 5 Cams | |||||
| NYK:074007-X002 | 12 VDC | (4) | (1) 12 VDC | - | 211.5 lbs (95.93 kgs) |
| NYK:074007-X002A1 | 12 VDC | (4) | (1) 12 VDC | - | 213.5 lbs (96.84 kgs) |
| NYK:074007-X002B1 | 12 VDC | (4) | (1) 12 VDC | X | 215.5 lbs (97.75 kgs) |
| NYK:074007-X002A2 | 12 VDC | (4) | (1) 12 VDC | - | 213.5 lbs (96.84 kgs) |
| NYK:074007-X002B2 | 12 VDC | (4) | (1) 12 VDC | X | 215.5 lbs (97.75 kgs) |
| NYK:074007-X002A3 | 12 VDC | (4) | (1) 12 VDC | - | 215.5 lbs (97.75 kgs) |
| NYK:074007-X002B3 | 12 VDC | (4) | (1) 12 VDC | X | Cell-17-6 |
| Siemens Part Number | Power Connection | No. of Cams | Defroster | Mini Track Weight Side Sensor | Weight |
| 6 Cams | |||||
| NYK:074007-X003 | 12 VDC | (7) | (1) 115 VAC | - | 213.5 lbs (96.84 kgs) |
| NYK:074007-X003A1 | 12 VDC | (7) | (1) 115 VAC | - | 215.5 lbs (97.75 kgs) |
| NYK:074007-X003B1 | 12 VDC | (7) | (1) 115 VAC | X | 217.5 lbs (98.66 kgs) |
| NYK:074007-X003A2 | 12 VDC | (7) | (1) 115 VAC | - | 215.5 lbs (97.75 kgs)) |
| NYK:074007-X003B2 | 12 VDC | (7) | (1) 115 VAC | X | 217.5 lbs (98.66 kgs) |
| NYK:074007-X003A3 | 12 VDC | (7) | (1) 115 VAC | - | 215.5 lbs (97.75 kgs) |
| NYK:074007-X003B3 | 12 VDC | (7) | (1) 115 VAC | X | 217.5 lbs (98.66 kgs) |
| 7 Cams | |||||
| NYK:074007-X004 | 12 VDC | (7) | (1) 115 VAC | - | 211.5 lbs (95.93 kgs) |
| NYK:074007-X004A1 | 12 VDC | (7) | (1) 115 VAC | - | 217.5 lbs (98.66 kgs) |
| NYK:074007-X004B1 | 12 VDC | (7) | (1) 115 VAC | X | 219.5 lbs (99.56 kgs) |
| NYK:074007-X004A2 | 12 VDC | (7) | (1) 115 VAC | - | 217.5 lbs (98.66 kgs) |
| NYK:074007-X004B2 | 12 VDC | (7) | (1) 115 VAC | X | 219.5 lbs (99.56 kgs |
| NYK:074007-X004A3 | 12 VDC | (7) | (1) 115 VAC | - | 217.5 lbs (98.66 kgs) |
| NYK:074007-X004B3 | 12 VDC | (7) | (1) 115 VAC | X | 219.5 lbs (99.56 kgs |
| Siemens Part Number | Power Connection | No. of Cams | Defroster | Mini Track Weight Side Sensor | Weight |
| 4 Cams | |||||
| NYK:074008-X001 | 12 VDC | (4) | (1) 115 VAC | - | 211.5 lbs (95.93 kgs) |
| NYK:074008-X001A1 | 12 VDC | (4) | (1) 115 VAC | - | 213.5 lbs (96.84 kgs) |
| NYK:074008-X001B1 | 12 VDC | (4) | (1) 115 VAC | X | 215.5 lbs (97.75 kgs |
| NYK:074008-X001A2 | 12 VDC | (4) | (1) 115 VAC | - | 213.5 lbs (96.84 kgs) |
| NYK:074008-X001B2 | 12 VDC | (4) | (1) 115 VAC | X | 215.5 lbs (97.75 kgs) |
| NYK:074008-X001A3 | 12 VDC | (4) | (1) 115 VAC | - | 213.5 lbs (96.84 kgs) |
| NYK:074008-X001B3 | 12 VDC | (4) | (1) 115 VAC | X | 215.5 lbs (97.75 kgs) |
| 5 Cams | |||||
| NYK:074008-X002 | 12 VDC | (5) | (1) 115 VAC | - | 213.5 lbs (96.84 kgs) |
| NYK:074008-X002A1 | 12 VDC | (5) | (1) 115 VAC | - | 215.5 lbs (97.75 kgs) |
| NYK:074008-X002B1 | 12 VDC | (5) | (1) 115 VAC | X | 217.5 lbs (98.66 kgs) |
| NYK:074008-X002A2 | 12 VDC | (5) | (1) 115 VAC | - | 215.5 lbs (97.75 kgs) |
| NYK:074008-X002B2 | 12 VDC | (5) | (1) 115 VAC | X | 217.5 lbs (98.66 kgs) |
| NYK:074008-X002A3 | 12 VDC | (5) | (1) 115 VAC | - | 215.5 lbs (97.75 kgs) |
| NYK:074008-X002B3 | 12 VDC | (5) | (1) 115 VAC | X | 217.5 lbs (98.66 kgs) |
| Siemens Part Number | Power Connection | No. of Cams | Defroster | Mini Track Weight Side Sensor | Weight |
| 6 Cams | |||||
| NYK:074008-X003 | 12 VDC | (6) | (1) 115 VAC | - | 215.5 lbs (97.75 kgs) |
| NYK:074008-X003A1 | 12 VDC | (6) | (1) 12 VDC | - | 217.5 lbs (98.66 kgs) |
| NYK:074008-X003B1 | 12 VDC | (6) | (1) 115 VAC | X | 219.5 lbs (99.56 kgs) |
| NYK:074008-X003A2 | 12 VDC | (6) | (1) 115 VAC | - | 217.5 lbs (98.66 kgs) |
| NYK:074008-X003B2 | 12 VDC | (6) | (1) 115 VAC | X | 219.5 lbs (99.56 kgs) |
| NYK:074008-X003A3 | 12 VDC | (4) | (1) 115 VAC | - | 217.5 lbs (98.66 kgs |
| NYK:074008-X003B3 | 12 VDC | (6) | (1) 115 VAC | X | 219.5 lbs (99.56 kgs) |
| 7 Cams | |||||
| NYK:074008-X004 | 12 VDC | (7) | (1) 115 VAC | - | 217.5 lbs (98.66 kgs |
| NYK:074008-X004A1 | 12 VDC | (7) | (1) 115 VAC | - | 219.5 lbs (99.56 kgs) |
| NYK:074008-X004B1 | 12 VDC | (7) | (1) 115 VAC | X | 221.5 lbs (100.47 kgs) |
| NYK:074008-X004A2 | 12 VDC | (7) | (1) 115 VAC | - | 219.5 lbs (99.56 kgs) |
| NYK:074008-X004B2 | 12 VDC | (7) | (1) 115 VAC | X | 221.5 lbs (100.47 kgs) |
| NYK:074008-X004A3 | 12 VDC | (7) | (1) 115 VAC | - | 219.5 lbs (99.56 kgs) |
| NYK:074008-X004B3 | 12 VDC | (7) | (1) 115 VAC | X | 221.5 lbs (100.47 kgs) |
NYK:074025-1X
NYK:9000255330001
S-40 Hold Clear Wheel Assembly
- Weight is approx. 16.0 lbs. (7.26 kgs.)
24 V - 12 V Power Supply
- Weight is approx. 2.0 lbs. (0.91 kgs.)
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to95% Non-Condensing Relative Humidity
Lead Time
Price: $1094.00
Lead Time
Price: $2743.00
A81 - Grade Crossing S80 Series
Grade Crossing Signaling Systems Products
Grade Crossing®
Series
Grade Crossing Gate Mechanisms
Siemens’ new S-80 Smart™ Gate Mechanism is a
quantum leap in technology over existing competitive
products. The S-80 is now fully programmable and no
longer includes mechanical cams and contacts requiring
maintenance. It also includes six digital contacts, two of
which are dedicated for gate position indication and
control of the flashing lights.
The S-80 utilizes a brushless DC motor with advanced
motor control that provides soft start/soft stop operation,
decreasing the need for periodic maintenance
while dramatically improving the life expectancy of the
entire gate assembly.
The S-80 may additionally be equipped with the
optional digitalization package offering both wireless
and Wi-Fi capability, thereby enabling wireless gate
control, local maintainer connectivity, and full
networking capability without running any additional
underground cabling. In addition, the digitalization
package offers an Automated Counterweight Assistant
feature that takes installers through a simple
counterweight calibration cycle to ensure the optimal
horizontal and vertical torques are achieved with every
installation.
Conversion from an entrance gate to an exit gate
application is done by simply moving a jumper on the
back of the control board, efficiently eliminating the
need to have two entirely different mechanisms for
these applications.
|
General Features: General Information Specification Parameters
|
 |
A85 - Grade Crossing Systems EBell Series
Grade Crossing Signaling Systems Products
Grade Crossing®
Series
Electronic Bells
Model A80301 Wayguard® EBell Series Electronic
Bell shown for reference purposes only! Actual
unit selected may vary in mounting and features.
SIEMENS Wayguard® EBell Series Electronic
Bells areinstalled at railroad crossings as part
of a complete grade crossing protection system
in conjunction with devices, such as flashing
lights and gates, to alert vehicular and
pedestrian road traffic to an approaching train.
Available Microphone Sensor allows it to be
used with any of SIEMENS grade crossing
monitoring and diagnostic systems thru use of a
microphone inside the bell which "listens" for the sound
of the bell and reports to other equipment.
When used with a SIEMENS MTSS Series Mini
Trackside Sensor coupled with a SIEMENS Wayguard®
SEAR II Series Event Analyzer / Recorder inside the
instrument house, the diagnostic information can alert the
railroad of a bell system failure.
- Maintenance free, weatherproof design
- Solid State. No mechanical components to breakdown.
- Available in either LOUD or SOFT tone volume
- Available in either FAST or SLOW tone rate.
- Available Microphone Sensor which monitors bell operation.
- Available with either Siemens or Weidmüller® brand terminal block.
Weidmüller® terminal block is not AREMA® Compliant - Able to be mounted on either 4” (114 mm) or 5” (140 mm) standard masts.
May be mounted to other size masts using available adapter mounts. - AREMA® and FCC® Compliant. On certain configurations only
Grade Crossing Signaling Systems Products
Siemens Part Number | Tone Volume | Tone Rate | Pulse Speed | Pulse Rate (per min) | Microphone Sensor | Weight |
| NYK:8000803010001 | Loud | 94 dBA @10 ft (3.0 m) | Fast | 200 | X | 15.0 lbs (6.8 kgs) |
| NYK:8000803010002 | Loud | 94 dBA @10 ft (3.0 m) | Slow | 160 | X | 15.0 lbs (6.8 kgs)7 |
| NYK:8000803010003 | Soft | 82 dBA @10 ft (3.0 m) | Fast | 200 | X | 15.0 lbs (6.8 kgs) |
| NYK:8000803010004 | Soft | 82 dBA @10 ft (3.0 m) | Slow | 160 | X | 15.0 lbs (6.8 kgs) |
| NYK:8000803011001 | Loud | 94 dBA @10 ft (3.0 m) | Fast | 200 | - | 15.0 lbs (6.8 kgs) |
| NYK:8000803011002 | Loud | 94 dBA @10 ft (3.0 m) | Slow | 160 | - | 15.0 lbs (6.8 kgs) |
| NYK:8000803011003 | Soft | 82 dBA @10 ft (3.0 m) | Fast | 200 | - | 15.0 lbs (6.8 kgs) |
| NYK:8000803011004 | Soft | 82 dBA @10 ft (3.0 m) | Slow | 160 | - | 15.0 lbs (6.8 kgs) |
A87 - Grade Crossing Systems (Mast Adapter Mounts)
Grade Crossing Signaling Systems Products
Model 035048-500X Adapter Mount shown for
reference purposes only! Actual unit selected
may vary in mounting and features.
SIEMENS Adapter Mounts are designed
of cast aluminum and are intended to
transition between one mast diameter size
and another for mounting items such as
a pinnacle or SIEMENS Wayguard®
EBell Series Electronic Bells.
Grade Crossing Signaling Systems Products
NYK:035048-500X
NYK:035063-X
Adapter Mount - From 4” (114 mm) pipe to 8” (215 mm) pipe
- Weight is approx. 6 lbs. (2.72 kgs.)
- Cast aluminum
Adapter Mount - From 4” (114 mm) pipe to 10” (275 mm) pipe
- Weight is approx. 6 lbs. (2.95 kgs.)
- Cast aluminum
Lead Time
Price: $120.00
Lead Time
Price: $182.00
NYK:035062-X
NYK:040290-X100
Adapter Mount - From 4” (114 mm) pipe to 12” (320 mm) pipe
- Weight is approx. 7 lbs. (3.18 kgs.)
- Cast aluminum
Adapter Mount - MAst Offset Bracket
- Weight is approx. 7 lbs. (2.72 kgs.)
- Cast aluminum
- Mounts to standard 4” (114 mm) or 5” (140 mm) mast
Lead Time
Price: $190.00
Lead Time
Price: $267.00
A89 - Grade Crossing Systems (Pinnacles)
Grade Crossing Signaling Systems Products
Model 035045-502 Pinnacle shown for reference purposes only!
Actual unit selected may vary in mounting and features.
SIEMENS Pinnacles are designed out of aluminum and are
intended to cap the top of a mast when the top does not have
another item such as the SIEMENS Wayguard®
Electronic Bell installed to prevent debris accumulation
inside the mast.
Grade Crossing Signaling Systems Products
NYK:035045-502
NYK:035045-11X
Standard Pinnacle
- Weight is approx. 3 lbs. (1.36 kgs.)
- Cast aluminum
- NO mounting hardware
.Standard Pinnacle
- Weight is approx. 3.5 lbs. (1.59 kgs.)
- (1) 035045-502 pinnacle
- Stainless steel hardware included
Lead Time
Price: $26.52
Lead Time
Price: $38.70
NYK:035045-502B
NYK:035045-502XEB
.Standard Pinnacle, Black
- Weight is approx. 3 lbs. (1.36 kgs.)
- Cast Aluminum
- No mounting hardware
- Powder coated BLACK
.Standard Pinnacle, Black
- Weight is approx. 3.5 lbs. (1.59 kgs.)
- (1) 0350045-502B pinnacle
- Stainless steel hardware included
Lead Time
Price: $69.70
Lead Time
Price: $72.50
NYK:035045-502
NYK:035045-11X
Standard Pinnacle, w/ Wire Chase
- Weight is approx. 3 lbs. (1.36 kgs.)
- Cast aluminum
- NO mounting hardware
- Access hole for wire chase
Standard Pinnacle, w/ Wire Chase
- Weight is approx. 3.5 lbs. (1.59 kgs.)
- (1) 035044-501 pinnacle
- Stainless steel hardware included
Lead Time
Price: $26.52
Lead Time
Price: $38.70
A93 - Grade Crossing (Mounts Sidelight Cantilevered)
Grade Crossing Signaling Systems Products
Sidelight Cantilevered
Model 041442-53X-3 Sidelight Cantilevered Mount
shown for reference purposes only!Actual unit
selected may vary in mounting and features.
SIEMENS Sidelight Cantilevered Mounts are designed
out of aluminum and are intended for allowing numerous
configurations of SIEMENS Wayguard® Flashing Light
Signal (FLX) Series lighting modules
Grade Crossing Signaling Systems Products
NYK:041442-70X
NYK:041442-26X
4” (10 cm) Mast 36” (91 cm) Offset 1 Way Version
- Weight is approx. 22.5 lbs. (10.21 kgs.)
- Aluminum construction
- Carbon steel hardware included
5” (13 cm) Mast 36” (91 cm) Offset 1 Way Version
- Weight is approx. 22.5 lbs. (10.21 kgs.)
- Aluminum construction
- Carbon steel hardware included
Lead Time
Price: $971.00
Lead Time
Price: $1056.00
NYK:041442-27X
NYK:041442-55X
4” (10 cm) Mast 42” (107 cm) Offset 1 Way Version
- Weight is approx. 29.5 lbs. (13.38 kgs.)
- Aluminum construction
- Carbon steel hardware included
5” (13 cm) Mast 36” (91 cm) Offset 2 Way Version 45°
- Weight is approx.38 lbs. (17.24 kgs.)
- Aluminum construction
- Carbon steel hardware included
Lead Time
Price: $1118.00
Lead Time
Price: $1214.00
NYK:041442-53X-1
NYK:041442-53X-2
5” (13 cm) Mast 36” (91 cm) Offset 2 Way Version 90°
- Weight is approx.38.0 lbs. (17.24 kgs.)
- Aluminum construction
- Carbon steel hardware included
- 5” (13 cm) mast mounting hardware
5” (13 cm) Mast 36” (91 cm) Offset 2 Way Version 135°
- Weight is approx.38.0 lbs. (17.24 kgs.)
- Aluminum construction
- 5” (13 cm) mast mounting hardware
Lead Time
Price: $1018.00
Lead Time
Call for Price
NYK:041442-53X-3
NYK:041442-515
5” (13 cm) Mast 36” (91 cm) Offset 2 Way Version 150°
- Weight is approx.38.0 lbs. (17.24 kgs.)
- Aluminum construction
- 5” (13 cm) mast mounting hardware
Boot
- Weight is approx. 22.5 lbs. (10.21 kgs.)
- Aluminum construction
- Carbon steel hardware included
Lead Time
Call for Price
Lead Time
Call for Price
NYK:041442-25X
Mast 36” (91 cm) Offset Extensions
- Weight is approx. 22.5 lbs. (10.21 kgs.)
- Aluminum construction
- Carbon steel hardware included
Lead Time
Call for Price
A97 - Grade Crossing System (Brackets High Wind)
Grade Crossing Signaling Systems Products
High Wind
Model 076203-28X High Wind Bracket
shown for reference purposes only!
Actual unit selected may vary in mounting
and features.
SIEMENS High Wind Brackets are designed out of
aluminum and are intended capture the barrier arm
when it is in the upright, non actuated position and
keep it in place during periods of high wind
to prevent the barrier arm from being damaged.
Grade Crossing Signaling Systems Products
NYK:259371-T10128
NYK:076203-47X
Tubular Sweep Version 4” (10 cm) mounting
- Weight is approx. 10.1 lbs. (4.58 kgs.)
- Aluminum construction
- 4” (10 cm) mast mounting hardware
Tubular Angle Version 5” (13 cm) mounting
- Weight is approx. 12.1 lbs. (5.49 kgs.)
- Aluminum construction
- 5” (13 cm) mast mounting hardware
Lead Time
Price: $261.00
Lead Time
Price: $217.00
NYK:076203-28X
NYK:076203-518X
Structural Version 4” (10 cm) mounting
- Weight is approx. 12.2 lbs. (5.53 kgs.)
- Aluminum construction
- 4” (10 cm) mast mounting hardware
Structural Version 5” (13 cm) mounting
- Weight is approx. 10.4 lbs. (4.72 kgs.)
- Aluminum construction
- 5” (13 cm) mast mounting hardware
Lead Time
Price: $909.00
Lead Time
Price: $323.00
NYK:076203-59X
NYK:076203-67X
- Weight is approx. 11 lbs. (4.99 kgs.)
- Steel construction
- Weight is approx. 3 lbs. (1.36 kgs.))
- Steel construction
Lead Time
Price: $318.00
Lead Time
Price: $400.00
A101 - Grade Crossing Systems (Cross arms and Junction Boxes)
Grade Crossing Signaling Systems Products
Junction Boxes
Model 042073-4BX Crossarm shown for reference
purposes only! Actual unit selected may vary in
mounting and features.
SIEMENS Crossarms are designed out of
aluminum and are intended for mounting
numerous configurations of SIEMENS
Wayguard® Flashing Light Signal (FLX) Series
lighting modules to the main mast of a grade
crossing assembly
Grade Crossing Signaling Systems Products

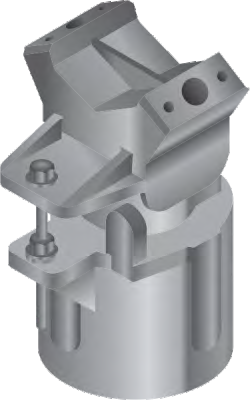

NYK:042003-18
NYK:042041
Crossarm Junction Box w/ Control Box Vents
- Weight is approx. 22 lbs. (9.97 kgs.)
- Cast aluminum
- NO cover plates
- NO hardware
Crossarm Junction Box Cover Plate
- Weight is approx. 0.27 lbs. (0.12 kgs.)
- Cast aluminum
- NO hardware
Lead Time
Price: $132.00
Lead Time
Price: $6.43
NYK:042041-X
NYK:041291
Crossarm Junction Box Cover Plate Kit
- Weight is approx. 1.4 lbs. (0.64 kgs.)
- (1) 042041 crossarm junction box cover plate
- Includes hardware
Crossarm Junction Box Gasket
- Weight is approx. 0.15 lbs. (0.07 kgs.)
- Plain fine cork
- NO hardware
Lead Time
Price: $25.90
Lead Time
Price: $2.81
NYK:041279-7
NYK:041279-500
Crossarm Junction Box 90° Lamp Mounting Extension Arm
- Weight is approx. 3 lbs. (1.36 kgs.)
- Cast aluminum
- NO hardware
- 90° angle transition
- 6.50” (16.51 cm) extension
Crossarm Junction Box 90° Lamp Mounting Extension Arm
- Weight is approx. 4 lbs. (1.81 kgs.)
- Cast aluminum
- NO hardware
- 90° angle transition
- 9.50” (24.13 cm) extension
Lead Time
Price: $63.24
Lead Time
Price: $80.58
NYK:041279-19
NYK:042027-4
Crossarm Junction Box 90° Lamp Mounting Extension Arm
- Weight is approx. 5 lbs. (2.27 kgs.)
- Cast aluminum
- NO hardware
- 90° angle transition
- 18.50” (46.99 cm) extension
Crossarm Junction Box Offset Lamp Mounting Extension Arm
- Weight is approx. 5 lbs. (2.27 kgs.)
- Cast aluminum
- NO hardware
- 7.38” (18.75 cm) x 8.44” (21.44 cm) offset transition
Lead Time
Price: $110.00
Lead Time
Price: $59.26
NYK:042027-3
NYK:041279-501
Crossarm Junction Box Offset Lamp Mounting Extension Arm
- Weight is approx. 4 lbs. (1.81 kgs.)
- Cast aluminum
- NO hardware
- 7.38” (18.75 cm) x 8.44” (21.44 cm) offset transition
Crossarm Junction Box 90° Transition
- Weight is approx. 4 lbs. (1.81 kgs.)
- Cast aluminum
- NO cover plates
- NO hardware
Lead Time
Price: $55.69
Lead Time
Price: $167.00
NYK:042006-X
NYK:042073-4BX
Crossarm Control Box Cover
- Weight is approx. 2.5 lbs. (1.13 kgs.)
- (1) 042041 crossarm junction box cover plate
- Includes hardware
Crossarm Junction Box Terminal Box Assembly
4” (10 cm) mounting
- Weight is approx. 47 lbs. (21.32 kgs.)
- (1) NYK:042003-18 - Crossarm Junction Box w/ Control Box Vents
- (1) NYK:042007-15X - 4” (10 cm) u-bolt
- (1) NYK:042006 Control box cover plate
- (2) NYK:042041 Junction box cover plates
- (2) NYK:041264-FX Threaded elbows (not shown)
- (2) NYK:041279-7 Crossarm Junction Box 90°
Lamp Mounting Extension Arm (not shown)
Lead Time
Price: $49.20
Lead Time
Price: $564.00
NYK:042073-4X01
NYK:042073-4X02
Crossarm Junction Box Terminal Box Assembly
4” (10 cm) mounting
- Weight is approx. 47 lbs. (21.32 kgs.)
- (1) NYK:042003-18 - Crossarm Junction Box w/ Control Box Vents
- (1) NYK:042007-15X - 4” (10 cm) u-bolt
- (1) NYK:042006 Control box cover plate
- (2) NYK:042041 Junction box cover plates
- (2) NYK:041264-FX Threaded elbows (not shown)
- (2) NYK:041279-7 Crossarm Junction Box 90°
- Lamp Mounting Extension Arm (not shown)
- (1) NYK:042073-01 Hardware kit with gold test nuts (not shown)
- (1) NYK:022316-6-1X Wire and terminal block kit (not shown)
Crossarm Junction Box Terminal Box Assembly
(4” (10 cm) mounting)
- Weight is approx. 45 lbs. (20.41 kgs.)
- (1) NYK:042003-18 - Crossarm Junction Box w/ Control Box Vents
- (1) NYK:042007-15X - 4” (10 cm) u-bolt
- (1) NYK:042006 Control box cover plate
- (2) NYK:042041 Junction box cover plates
- (2) NYK:041264-FX Threaded elbows (not shown)
- (2) NYK:041279-7 Crossarm Junction Box 90°
- Lamp Mounting Extension Arm (not shown)
- (1) NYK:042073-02 Hardware kit with slide links (not shown)
- (1) NYK:022316-6-1X Wire and terminal block kit (not shown)
Lead Time
Price: $785.00
Lead Time
Price: $656.00
NYK:042073-7BX
NYK:042073-7X01
Crossarm Junction Box Terminal Box Assembly
5” (13 cm) mounting
- Weight is approx. 47 lbs. (21.32 kgs.)
- (1) NYK:042003-18 - Crossarm Junction Box w/ Control Box Vents
- (1) NYK:042007-15X - 5” (13 cm) u-bolt
- (1) NYK:042006 Control box cover plate
- (2) NYK:042041 Junction box cover plates
- (2) NYK:041264-FX Threaded elbows (not shown)
- (2) NYK:041279-7 Crossarm Junction Box 90°
- Lamp Mounting Extension Arm (not shown)
Crossarm Junction Box Terminal Box Assembly
5” (13 cm) mounting
- Weight is approx. 47 lbs. (21.32 kgs.)
- (1) NYK:042003-18 - Crossarm Junction Box w/ Control Box Vents
- (1) NYK:042007-15X - 5” (13 cm) u-bolt
- (1) NYK:042006 Control box cover plate
- (2) NYK:042041 Junction box cover plates
- (2) NYK:041264-FX Threaded elbows (not shown)
- (2) NYK:041279-7 Crossarm Junction Box 90°
- Lamp Mounting Extension Arm (not shown)
- (1) NYK:042073-01 Hardware kit with gold test nuts (not shown)
- (1) NYK:022316-6-1X Wire and terminal block kit (not shown)
Lead Time
Price: $515.00
Lead Time
Price: $653.00
NYK:042073-7X01
Crossarm Junction Box Terminal Box Assembly
- (1) NYK:022316-6-1X Wire and terminal block kit (not shown)
- 5” (13 cm) mounting
- Weight is approx. 45 lbs. (20.41 kgs.)
- (1) NYK:042003-18 - Crossarm Junction Box w/ Control Box Vents
- (1) NYK:042007-15X - 5” (13 cm) u-bolt
- (1) NYK:042006 Control box cover plate
- (2) NYK:042041 Junction box cover plates
- (2) NYK:041264-FX Threaded elbows (not shown)
- (2) NYK:041279-7 Crossarm Junction Box 90°
- Lamp Mounting Extension Arm (not shown)
- (1) NYK:042073-02 Hardware kit with slide links (not shown)
- (1) NYK:022316-6-1X Wire and terminal block kit (not shown)
Lead Time
Price: $653.00
A107 - Grade Crossing Systems (FLX Series)
Grade Crossing Signaling Systems Products
Series
Flashing Light Signals
Model 042003-M122W Wayguard® Flashing
Light Signal FLX 12 shown for reference
purposes only! Actual unit selected may
vary in mounting and features.
SIEMENS Wayguard® Flashing Light Signals
FLX 12 and FLX 4000 series provide a highly
intense beam for both distant and close up viewing.
The lamp housings are of precision die-cast aluminum
construction, providing superior strength and precise
optical alignment.
SIEMENS Wayguard® Flashing Light Signals
FLX 12 employs an improved reflector and
precision lamp bracket. A precision molded plastic
reflector, with aluminized coated front surface for
exceptional light output, is reinforced by channel
at the outer rim, for additional dimensional stability. x
The reflector is essentially unbreakable in normal use.
SIEMENS Wayguard® Flashing Light Signals
FLX 4000 utilizes all of the proven designs of
the FLX 12 series with the adoption of an LED
module instead of the incandescent bulb.
Grade Crossing Signaling Systems Products
Siemens Part Number | Description | ||
| FLX-12 Series HousingCell-2-1 | |||
| NYK:042950-X | FLX-12 Housing | ||
| FLX-12 Series Lenses | |||
| NYK:040405-4730 | RED 12” Lens 20° / 32° Bullseye | ||
| NYK:040405-5230 | RED 12” Lens 30° / 15° Bullseye | ||
| NYK:040405-5030 | RED 12” Lens 70° / 0° Bullseye | ||
| FLX-12 Series Head Assemblies | |||
| NYK:042000-000180 | FLX-12 Housing w/ RED 12” Lens 30° / 15° Bullseye, 10V-25W Bulb | ||
| NYK:042000-000601 | FLX-12 Housing w/ RED 12” Lens 30° / 15° Bullseye, 10V-25W Gem Bulb | ||
| NYK:042000-000250 | FLX-12 Housing w/ RED 12” Lens 30° / 15° Bullseye, 10V-18W Bulb | ||
| NYK:042000-000689 | FLX-12 Housing w/ RED 12” Lens 30° / 15° Bullseye, 10V-18W Gem Bulb | ||
| FLX-12 Series Housing | |||
| NYK:042975-LX | FLX-4000 Housing | ||
| FLX-12 Series Head Assemblies | |||
| NYK:042975-9X | FLX-4000 Housing w/ RED 12” Gelcore® LED Module | ||
| NYK:042975-15X | FLX-4000 Housing w/ RED 12” RDG® LED Module | ||
| NYK:042975-8X | FLX-4000 Housing w/ RED 12” Dialight® LED Module | ||
Siemens Part Number | Description | ||
| FLX Series Aluminum Visors | |||
| NYK:042005-103 | Aluminum 12” Long Visor w/o Hardware | ||
| NYK:042005-103X | Aluminum 12” Long Visor w/ Hardware | ||
| FLX Series Polycarbonate Visors | |||
| NYK:042005-80 | Polyethylene 16” Long Visor w/o Hardware | ||
| NYK:042005-80X | Polyethylene 16” Long Visor w/ Hardware | ||
| FLX Series Steel Visors | |||
| NYK:042005-30 | Steel 12” Long Visor w/o Hardware | ||
| NYK:042005-30AX | Steel 12” Long Visor w/ Hardware | ||
| FLX Series Aluminum Background | |||
| NYK:042004-32 | (1) Aspect Aluminum w/o Hardware | ||
| NYK:042004-32X | (1) Aspect Aluminum w/ Hardware | ||
| FLX Series Polycarbonate Background | |||
| NYK:042004-41 | (1) Aspect Polyethylene w/o Hardware | ||
| NYK:042004-41AX | (1) Aspect Polyethylene w/ Hardware | ||
| FLX Series Steel Background | |||
| NYK:042004-30 | (1) Aspect Steel w/o Hardware | ||
| NYK:042004-30X | (1) Aspect Steel w/ Hardware | ||
Siemens Part Number | Description | ||
| FLX-12, One Way Incandescent Assemblies | |||
| NYK:042003-M121W | Main Mast Assembly | ||
| NYK:042003-A121W | Arm Assembly | ||
| NYK:042003-GM12 | Gate Assembly | ||
| NYK:042003-SL121W | Main Mast w/ Sidelight Assembly | ||
| FLX-12, Two Way Incandescent Assemblies | |||
| NYK:042003-M122W | Main Mast Assembly | ||
| NYK:042003-A122W | Arm Assembly | ||
| NYK:042003-SL122W | Main Mast w/ Sidelight Assembly | ||
| FLX-4000, One Way Incandescent Assemblies | |||
| NYK:042003-MLED121W | Main Mast Assembly | ||
| NYK:042003-ALED121W | Arm Assembly | ||
| NYK:042003-GLEDM12 | Gate Assembly | ||
| NYK:042003-SLLED121W | Main Mast w/ Sidelight Assembly | ||
| FLX-4000, Two Way Incandescent Assemblies | |||
| NYK:042003-MLED122W | Main Mast Assembly | ||
| NYK:042003-ALED122W | Arm Assembly | ||
| NYK:042003-SLLED122W | Main Mast w/ Sidelight Assembly | ||
A111 - Grade Crossing Systems (Barrier Arm Components)
Grade Crossing Signaling Systems Products
Components
Grade Crossing Signaling Systems Products
NYK:070755-34G
NYK:070755-4G
Short Counterweight Plate
- Weight is approx. 32 lbs. (14.5 kgs.)
- Hot dip galvanized steel construction
Long Counterweight Plate
- Weight is approx. 60 lbs. (27.2 kgs.)
- Hot dip galvanized steel construction
Lead Time
Price: $185.00
Lead Time
Price: $303.00
NYK:070756-7X
NYK:070925-X
Counterweight Mounting Plate
- Weight is approx. 18 lbs. (8.16 kgs.)
- Steel with yellow zinc dichromate finished
construction
Clamp and Roller Assembly
- Weight is approx. 2.5 lbs. (1.13 kgs.)
- (1) 070925-1 locking collar
- (1) 070925-2 spacer
- (1) 070925-3 bar clamp
Lead Time
Price: $177.00
Lead Time
Price: $54.97
NYK:070920-L
NYK:070920-LX
Left Hand Support Arm, Long
- Weight is approx. 32 lbs. (14.5 kgs.)
- Weight is approx. 32 lbs. (14.5 kgs.)
- Aluminum construction
Left Hand Support Arm, Long, Assembly
- Weight is approx. 45 lbs. (20.41 kgs.)
- (1) 070920-L left hand support arm, long
- (1) 070923-3 barrier arm support arm hub
- Includes hardware
Lead Time
Price: $755.00
Lead Time
Price: $944.00
NYK:070920-R
NYK:070920-RX
Right Hand Support Arm, Long
- Weight is approx. 32 lbs. (14.5 kgs.)
- Aluminum construction
Right Hand Support Arm, Long, Assembly
- Weight is approx. 45 lbs. (20.41 kgs.)
- (1) 070920-R right hand support arm, long
- (1) 070923-3 barrier arm support arm hub
- Includes hardware
Lead Time
Price: $789.00
Lead Time
Price: $1009.00
NYK:070921-L
NYK:070921-LX
Left Hand Support Arm, Short
- Weight is approx. 32 lbs. (14.5 kgs.)
- Aluminum construction
Left Hand Support Arm, Short, Assembly
- Weight is approx. 45 lbs. (20.41 kgs.)
- (1) 070921-L left hand support arm, short
- (1) 070923-3 barrier arm support arm hub
- Includes hardware
Lead Time
Price: $565.00
Lead Time
Price: $774.00
NYK:070921-R
NYK:070921-RX
Right Hand Support Arm, Short
- Weight is approx. 32 lbs. (14.5 kgs.)
- Aluminum construction
Right Hand Support Arm, Short, Assembly
- Weight is approx. 45 lbs. (20.41 kgs.)
- (1) 070921-R right rand support arm, short
- (1) 070923-3 barrier arm support arm hub
- Includes hardware
Lead Time
Price: $503.00
Lead Time
Price: $774.00
A115 Grade Crossing Systems - Signaling (Conversion Brackets)
Grade Crossing Signaling Systems Products
Model 076227 Conversion Bracket shown for
reference purposes only! Actual unit selected
may vary in mounting and features.
SIEMENS Conversion Brackets are manufactured from
stainless stee alloys to provide many years of reliable
service. The integral counter provides statistical data to
help in determining the required maintenance frequency
and activation history of each application. The conversion
bracket design features a pivot pin that rotates the
gate arm parallel to the highway so that maintenance
work can be performed from the highway shoulder, away
from traffic flows.
Grade Crossing Signaling Systems Products
NYK:076227-7X1
NYK:076203-510X
Complete Assembly w/ Cast Adapter
- Weight is approx. 87.5 lbs. (39.69 kgs.)
- Steel construction
Cast Adapter Mount w/ Mounting Pin
- Weight is approx. 17.5 lbs. (7.94 kgs.)
- Steel construction
Lead Time
Price: $689.00
Lead Time
Price: $264.00
NYK:076227-22X1
NYK:076203-501X
Complete Assembly w/ Fabricated Adapter
- Weight is approx. 95.0 lbs. (43.09 kgs.)
- Steel construction
Fabricated Adapter w/ Mounting Pin
- Weight is approx. 23.0 lbs. (10.43 kgs.)
- Steel construction
Lead Time
Price: $989.00
Lead Time
Call for Price
NYK:076215-X
NYK:076203-506X
Shear Bolt Assembly
- Weight is approx. 0.5 lbs. (0.23 kgs.)
- Silicon bronze construction
Replacement Mounting Pin
- Weight is approx. 0.5 lbs. (0.23 kgs.)
- Steel construction
Lead Time
Price: $7.20
Lead Time
Price: $68.00
Barrier Arm - Components
Siemens Part Number | Description |
| Barrier Arms, Base Section | |
| NYK:076260-8AHX | 8’ (2.4 m) Long, Aluminum, High Intensity Tape |
| NYK:076260-8AHDX | 8’ (2.4 m) Long, Aluminum, Diamond Grade Tape |
| NYK:076260-16AHX | 6’ (4.8 m) Long, Aluminum, Diamond Grade Tape |
| NYK:076260-16AHDX | 16’ (4.8 m) Long, Aluminum, Diamond Grade Tape |
| NYK:076260-16HX | 16’ (4.8 m) Long, Fiberglass, High Intensity Tape |
| NYK:076260-16HDX | 16’ (4.8 m) Long, Fiberglass, Diamond Grade Tape |
| Barrier Arms, 2nd Section | |
| NYK:076261-8HX | 8’ (2.4 m) Long, Fiberglass, High Intensity Tape |
| NYK:076261-8HDX | 8’ (2.4 m) Long, Fiberglass, Diamond Grade Tape |
| NYK:076261-12HX | 12’ (3.6 m) Long, Fiberglass, High Intensity Tape |
| NYK:076261-12HDX | 12’ (3.6 m) Long, Fiberglass, Diamond Grade Tape |
| NYK:076261-16HX | 16’ (4.8 m) Long, Fiberglass, High Intensity Tape |
| NYK:076261-16HDX | 16’ (4.8 m) Long, Fiberglass, Diamond Grade Tape |
| Barrier Arms, 3rd Section | |
| NYK:076262-8HX | 8’ (2.4 m) Long, Fiberglass, High Intensity Tape |
| NYK:076262-8HDX | 8’ (2.4 m) Long, Fiberglass, Diamond Grade Tape |
| NYK:076262-12HX | 12’ (3.6 m) Long, Fiberglass, High Intensity Tape |
| NYK:076262-12HDX | 12’ (3.6 m) Long, Fiberglass, Diamond Grade Tape |
| NYK:076262-16HX | 16’ (4.8 m) Long, Fiberglass, High Intensity Tape |
| NYK:076262-16HDX | 16’ (4.8 m) Long, Fiberglass, Diamond Grade Tape |
| Barrier Arms, 3rd Section | |
| NYK:076203-6 | 1’ (0.3 m) to 11’ (3.4 m) Sleeve, Aluminum |
| NYK:076203-4 | 12’ (3.7 m) to 24’ (7.3 m) Sleeve, Aluminum |
| NYK:076203-5 | 25’ (7.6 m) to 40’ (12.2 m) Sleeve, Aluminum |
NYK:8000802810001
NYK:8000802810002
Barrier Arm Tip Sensor
- Meets or exceeds applicable AREMA® specifications
- Weight is approx. 0.2 lbs. (0.09 kgs.)
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to95% Non-Condensing Relative Humidity
Barrier Arm Tip Sensor Assembly
- Meets or exceeds applicable AREMA® specifications
- Weight is approx. 211.5 lbs. (95.93 kgs.)
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - (1) 8000-80281-0001 barrier arm tip sensor
- (1) Z706-00258-0000 cable assembly
Lead Time
Price: $448.00
Lead Time
Price: $501.00
NYK:075955-XM694
NYK:075970-AX
Barrier Arm Tip Sensor Mounting Bracket
- Weight is approx. 0.5 lbs. (0.27 kgs.)
- (1) 075955-M694 mounting bracket
- (1) 075955-M695 drive bit
- (1) 075955-M696 self tapping screws
Barrier Arm Light Assembly
- Easily mountable on instrument house backboards.
- Quiescent power consumption is approx. 0.3 A @ 13.2 V, 0.4 A @ 9.0 V
- Weight is approx. 1.50 lbs. (0.68 kgs.) including connectors
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity
Lead Time
Price: $53.00
Lead Time
Price: $93.84
A121 - Grade Crossing Systems (Mast Bases)
Grade Crossing Signaling Systems Products
Grade Crossing Signaling Systems Products
Siemens Part Number | Description | ||
| Split Bases w/o Junction Boxes for Light Loading | |||
| NYK:041901-AX | For 4” (10.16 cm) Masts | ||
| Split Bases w/o Junction Boxes for Heavy Loading | |||
| NYK:041902-AX | For 4” (10.16 cm) Masts | ||
| NYK:041933-X | For 5” (12.70 cm) Masts | ||
| NYK:041918-X | For 8” (20.32 cm) Masts | ||
| Split Bases w/ Junction Boxes | |||
| NYK:041931-1X | For 4” (10.16 cm) Masts | ||
| NYK:041931-2X | For 5” (12.70 cm) Masts | ||
A125 - Grade Crossing Systems (WT / F Series)
Grade Crossing Signaling Systems Products
Series
Model 042003-M122W Wayguard® Flashing Light
Signal FLX 12 shown for reference purposes only!
Actual unit selected may vary in mounting and features.
SIEMENS Wayguard® Flashing Light Signals
FLX 12 and FLX 4000 series provide a highly
intense beam for both distant and close up viewing.
The lamp housings are of precision die-cast aluminum
construction, providing superior strength and
precise optical alignment.
SIEMENS Wayguard® Flashing Light Signals FLX 12
employs an improved reflector and precision lamp bracket.
A precision molded plastic reflector, with aluminized
coated front surface for exceptional light output,
is reinforced by channel at the outer rim, for
additional dimensional stability. The reflector
is essentially unbreakable in normal use.
SIEMENS Wayguard® Flashing Light Signals
FLX 4000 utilizes all of the proven designs of
the FLX 12 series with the adoption of an LED
module instead of the incandescent bulb.
Grade Crossing Signaling Systems Products
| Single Mast Configurations | |||||||
Siemens Part Number | Cantilever Arm Length | Overall Length | Clearance Height | Overall Height | Transition Platform | OSHA Ladder w/ Guard | Weight |
| NYK:071270-12XXXX | 12 ft (3.66 m) | 17 ft - 7 in (5.36 m) | 17 ft (5.18 m) | 22 ft - 4 1/2 in (5.18 m) | X | X | 1,025.0 lbs (464.9 kgs) |
| NYK:071270-14XXXX | 14 ft (4.27 m) | 19 ft - 7 in (5.97 m) | 17 ft (5.18 m) | 22 ft - 4 1/2 in (5.18 m) | X | X | 1,090.0 lbs (494.4 kgs) |
| NYK:071270-16XXXX | 16 ft (4.88 m) | 21 ft - 7 in (6.58 m) | 17 ft (5.18 m) | 22 ft - 4 1/2 in (5.18 m) | X | X | 1,155.0 lbs (523.9 kgs) |
| NYK:071270-18XXXX | 18 ft (5.49 m) | 23 ft - 7 in (7.19 m) | 17 ft (5.18 m) | 22 ft - 4 1/2 in (5.18 m) | X | X | 1,320.0 lbs (598.7 kgs) |
| NYK:071270-20XXXX | 20 ft (6.10 m) | 25 ft - 7 in (7.80 m) | 17 ft (5.18 m) | 22 ft - 4 1/2 in (5.18 m) | X | X | 1,625.0 lbs (731.1 kgs) |
| NYK:071270-22XXXX | 22 ft (6.71 m) | 27 ft - 7 in (8.41 m) | 17 ft (5.18 m) | 22 ft - 4 1/2 in (5.18 m) | X | X | 1,790.0 lbs (811.9 kgs) |
| NYK:071270-24XXXX | 24 ft (7.32 m) | 29 ft - 7 in (9.02 m) | 17 ft (5.18 m) | 22 ft - 4 1/2 in (5.18 m) | X | X | 2,090.0 lbs (948.0 kgs) |
| NYK:071270-26XXXX | 26 ft (7.92 m) | 31 ft - 7 in (9.63 m) | 17 ft (5.18 m) | 22 ft - 4 1/2 in (5.18 m) | X | X | 2,170.0 lbs (984.3 kgs) |
| NYK:071270-28XXXX | 28 ft (8.53 m) | 33 ft - 7 in (10.24 m) | 17 ft (5.18 m) | 22 ft - 4 1/2 in (5.18 m) | X | X | 2,360.0 lbs (1,070.5 kgs) |
| NYK:071270-30XXXX | 30 ft (9.14 m) | 35 ft - 7 in (10.85 m) | 17 ft (5.18 m) | 22 ft - 4 1/2 in (5.18 m) | X | X | 2,494.0 lbs (1,131.3 kgs) |
| Single Mast Configurations | |||||||
Siemens Part Number | Cantilever Arm Length | Overall Length | Clearance Height | Overall Height | Transition Platform | OSHA Ladder w/ Guard | Weight |
| NYK:071270-32XXXX | 32 ft (9.75 m) | 37 ft - 7 in (11.46 m) | 17 ft (5.18 m) | 22 ft - 4 1/2 in (5.18 m) | X | X | 2,790.0 lbs (1,265.5 kgs) |
| NYK:071270-34XXXX | 34 ft (10.36 m)) | 39 ft - 7 in (12.07 m) | 17 ft (5.18 m) | 22 ft - 4 1/2 in (5.18 m) | X | X | 2,850.0 lbs (1,292.7 kgs) |
| NYK:071270-36XXXX | 36 ft (10.97 m) | 41 ft - 7 in (12.68 m) m) | 17 ft (5.18 m) | 22 ft - 4 1/2 in (5.18 m) | X | X | 2,975.0 lbs (1,349.4 kgs) |
| NYK:071270-38XXXX | 38 ft (11.58 m) | 43 ft - 7 in (13.29 m) | 17 ft (5.18 m) | 22 ft - 4 1/2 in (5.18 m) | X | X | 3,010.0 lbs (1,365.3 kgs) |
| NYK:071270-40XXXX | 40 ft (11.58 m) | 45 ft - 7 in (13.90 m) | 17 ft (5.18 m) | 22 ft - 4 1/2 in (5.18 m) | X | X | 3,100.0 lbs (1,406.1 kgs) |
B1 - Wayside System (GEO® Series)
Wayside Control Systems Products
Trackguard®
Series
Model A53510 Trackguard® GEO® Geographic
Signaling System shown for reference purposes
only! Actual unit selected may vary
in mounting and features.
SIEMENS Trackguard® GEO® Geographic
Signaling System is a vital microprocessor-
controlled system that generates an electronic
DC coded track circuit and operates intermediate
signal locations and single or multiple
switch interlocking. It is available as a color-
light system and will operate in cab signal territory.
Compatible with Electro Code 4, Electro Code 4/4
Plus, Electro Code 2, Genrakode™, and E-Code™.
With the addition of a SIEMENS Wayguard®
SEAR II Series Event analyzer / Recorder and a
Wayside Communications Package (WCP)
module, it will interface with all of the major codeline
protocols including ATCS. Supporting coded track
applications, coded line applications, and vital radio
based signaling. Vital network applications are
supported via spread-spectrum radio, Echelon®,
RS-232, and RS-422.
- Using Standard Boolean Logic with the GEO®
Configuration Suite (GCS) which has been
enhanc/ed to provide users with the option to
write their own signaling logic equations in
boolean format. Users may also produce a
relay diagram plot of the boolean logic and
print this as a PDF file. Users no longer need
to use the existing GEO® GOL libraries and
geographic signaling logic; they can write their
own logic in traditional boolean format and
print the relay equivalent circuits. The
resulting MCF will run with the existing GEO®
CPU2+ MEFs.
- Object based logic with the GEO®
Configuration Suite (GCS) The GEO®
Configuration Suite is a Windows® based
design tool used to program the GEO® unit
for specific applications. In the GCS, each
signal function (signal head, turnout, etc.) is
represented by a unique icon or Geographic
Signaling "Object". Each object represents
the rules of signaling for that object.
The complete signal system is assembled by the
CPU based on which "objects" are used and how
they are interconnected GCS is available on CD-ROM - System design can be performed by the user or can
be supplied by SIEMENS.
Wayside Control Systems Products
NYK:9000535110001
NYK:9000535140001
Empty Two Track Extended
- Used for two track extended wayside applications
- Weight is approx. 26.1 lbs. (11.84 kgs.) including
connectors. - Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - Two track extended chassis
- (1) NYK:8000804380001 SPI ECD module
- (8) NYK:Z610393250001 blank module cover
panels - NO other modules
Empty Three Track Extended
- Used for three track extended wayside applications
- Weight is approx. 28.5 lbs. (12.93 kgs.) including connectors.
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - Three track extended chassis
- (1) NYK:8000804380001 SPI ECD module
- (9) NYK:Z610393250001 blank module cover panels
- NO other modules
Lead Time
Price: $3348.00
Lead Time
Price: $3180.00
NYK:93125351323003
NYK:8000804030002
Comprehensive Three Track Extended
- Used for three track extended wayside applications
- Weight is approx. 34.1 lbs. (15.47 kgs.) including connectors.
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - Three track extended chassis
- (1) NYK:8000804380001 SPI ECD module
- (1) NYK:8000804030002 CPU II module
- (3) NYK:9000532850001 Track modules, standard power
- (2) NYK:9000532840001 Colorlight modules
- (3) NYK:Z610393250001 blank module cover panels
- NO other modules
Non Appliance CPU II+ Module
· Weight is approx. 1.25 lbs. (0.56 kgs.)
· Operates in -40º F to +160º F (-40ºC to +70ºC) @ up to
· 95% Non-Condensing Relative Humidity
· Programmable integrate circuits onboard 9V732-A03X,
· 9V733-A03X, 9V789-A05X and 9V691-A03X
· Echelon® and communications capabilities
Lead Time
Price: $29908.00
Lead Time
Price: $5263.00
NYK:8000804030003
NYK:9000532840001
Appliance CPU II+ Module
· Weight is approx. 1.25 lbs. (0.56 kgs.)
· Operates in -40º F to +160º F (-40ºC to +70ºC) @ up to
· 95% Non-Condensing Relative Humidity
· Programmable integrate circuits onboard 9V884-A03X,
· 9V691-A03X, 9V883-A03X and 9V789-A06X
· Echelon® and communications capabilities
Colorlight Lamp Module
- Weight is approx. 1.0 lbs. (0.56 kgs.)
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative
Humidity - (2) Inputs opto-isolated, vital
- (1) Output opto-isolated, vital
- (2) Lamp drivers at 25 watts
- Input voltage 9.0-16.0 VDC 13.6 VDC Nominal
- Cab rates 75, 120, 180, 270,420
- Isolation 2000 VAC
Lead Time
Call for Price
Lead Time
Price: $1566.00
NYK:9000532850001
NYK:8000804130001
Track Module, Standard Power
- Weight is approx. 1.0 lbs. (0.56 kgs.)
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity
Relay Input /Output (RIO) Module
- Weight is approx. 1.0 lbs. (0.56 kgs.)
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - (4) Inputs opto-isolated, vital
- (4) Outputs opto-isolated, vital
- Output voltage 12 VDC into 500 Ω
- Relay loads 100-2000 Ω
- Cab rates 75, 120, 180, 270,420
- Isolation 2000 VAC
Lead Time
Price: $2175.00
Lead Time
Price: $2902.00
NYK:8000804380001
NYK:8000804380002
External Configuration Device (ECD Plus) Module
- Weight is approx. 1.30 oz.. (0.04 kgs.)
External Configuration Device (ECD Plus) Module
- Weight is approx. 1.30 oz.. (0.04 kgs.)
Lead Time
Price: $281.00
Lead Time
Price: $222.00
NYK:9000506920002
NYK:Z610395850001
Universal Local Control Panel
- Neuron® Echelon® 10 MHZ
- Echelon® LonTalk® port for maintenance
- Easily mountable on standard relay racks, instrument house backboards or can even be shelf mounted
- Weight is approx. 4.6 lbs. (2.09 kgs.)
- Operates in -40º F to +160º F (-40ºC to +70ºC) @ up to 95% Non-Condensing Relative Humidity
- Solid state design
- Input power 9 VDC - 16 VDC
Top Mounting Bracket, Keyhole
- Weight is approx. 1.6 lbs. (0.73 kgs.)
- Steel construction
Lead Time
Price: $4680.00
Lead Time
Price: $182.00
NYK:Z610395850002
NYK:Z610395850002
Bottom Mounting Bracket, Slotted
- Weight is approx. 1.6 lbs. (0.73 kgs.)
- Steel construction
Top Mounting Bracket, Slotted
- Weight is approx. 1.6 lbs. (0.73 kgs.)
- Steel construction
Lead Time
Price: $182.00
Lead Time
Price: $182.00
NYK:9000535110001
Empty Two Track Extended
- Used for two track extended wayside applications
- Weight is approx. 26.1 lbs. (11.84 kgs.) including connectors.
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - Two track extended chassis
- (1) NYK:8000804380001 SPI ECD module
- (8) NYK:Z610393250001 blank module cover panels
- NO other modules
Lead Time
Price: $3348.00
B9 - Wayside Systems (VIU Series)
Wayside Signaling Systems Products
Trackguard®
Series
Vital Interface Units
Model A80540 Trackguard® VIU Series Vital Interface Unit
shown for reference purposes only!
Actual unit selected may vary in mounting and features.
SIEMENS Trackguard® VIU Series Vital Interface
Unit is a general purpose programmable logic
controller. The VIU can monitor the state of its
inputs, control vital outputs, perform logic functions and
generate vital communications messages to report its
status or the status of devices connected to it. The
primary purpose of the VIU- 16i/8i is to control wayside
signal lamps by using current sensors or by controlling
the lamp voltage (AC or DC).
- Radio frequency rate of up to 2.7 Mbps.
- Integrated IP Connectivity.
- Built-in keypad and display for configuration, troubleshooting and diagnostics.
- Standard USB interface allows download of event logs and configuration
information or upload of executive and application software. - Access from a laptop using standard web browser.
- Consolidated event logging for distributed / networked units.
- User programmable (Boolean Logic), generic lamp/ switch monitoring
application for all locations. - Use to interface locomotive-based equipment to wayside equipment
to allow for display of signal aspects in-cab.
Wayside Signaling Systems Products
NYK:80008055000110
NYK:80008055500110
VIU 8i Module w/o Relay I/O Module
- Weight is approx. 3 lbs. (1.36 kgs.)
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - Integrated IP Connectivity
(8) digital inputs .. (2) digital outputs - (1) NYK:8000805200001 GPS Module
(Installed Internally) - NO Relay I/O Module
- NO Mounting Plate
VIU 16i Module w/ Relay I/O Module
- Weight is approx. 3 lbs. (1.36 kgs.)
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - Integrated IP Connectivity
- (16) digital inputs
- (4) digital outputs
- (1) NYK:8000805200001 GPS Module
(Installed Internally) - (1) NYK:8000805330001 Relay I/O Module
(Installed Internally) - NO Mounting Plate
Lead Time
Price: $9707.00
Lead Time
Price: $16367.00
NYK:80008055500111
NYK:8000805260001
VIU 16i Module w/ Relay I/O Module
- Weight is approx. 3 lbs. (1.36 kgs.)
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - Integrated IP Connectivity
(16) digital inputs - (4) digital outputs
- (1) NYK:8000805200001 GPS Module
(Installed Internally) - (1) NYK:8000805330001 Relay I/O Module
(Installed Internally) - (1) NYK:Z620396190001 Mounting Plate
VIU-CAT Module w/o Relay I/O Module
- Weight is approx. 3 lbs. (1.36 kgs.)
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - Integrated IP Connectivity
- Able to transmit and receive PSO information
- (4) digital inputs
- (4) digital outputs
- (1) NYK:8000805200001 GPS Module
(Installed Internally) - NO Relay I/O Module
- (1) NYK:Z620396190001 Mounting Plate
Lead Time
Price: $9452.00
Lead Time
Price: $21320.00
B21 - Wayside Systems (PTC Series)
Wayside Communications Systems Products
Trackguard®
Series

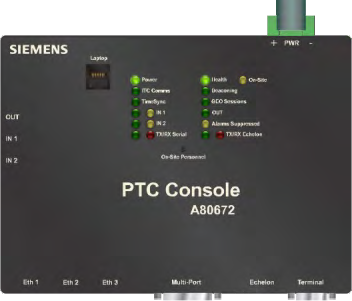

SIEMENS Trainguard® PTC Console Positive Train
Controlconsole unit is an electronic wayside
monitoring unit which can be configured for a
variety of applications including Positive Train
Control (PTC) enabled equipment.
Inputs include:
(1) ethernet laptop port
(3) ethernet network ports
(2) RS-232 serial ports
(1) Echelon® network port
LEDs provide status of unit at a glance. An
optional Vital I/O module is available within the
console with (2) vital input channels and (1)
vital output channel. Unit is well suited for “Dark
Territory Switch Monitoring” and can be used as a low
cost monitor for a switch point or other wayside
hazard that PTC monitoring. Allows for remote
monitoring, consolidated logging, log access as
well as maintainer interface of Positive Train Control
(PTC) equipment when used in conjunction with a
PTC Enabled Trackguard® GEO® unit.
- Provides Network Time Protocol (NTP) functionality.
- Provides consolidated logging for PTC enabled
Trackguard® GEO® units. - Ability to run vital logic, non-vital logic as well
as customizable CDL functionality thus
supporting Simple Network Management
Protocol (SNMP) message trapping. - Contains dual 400 MHZ processors, with up to
(8) GB of onboard flash memory per processor. - Allows for remote monitoring, even in Dark Territory
locations. - Optional internal A80611 GPS I/O wifi adapter c
ard available.
Wayside Communications Systems Products
NYK:8000806720000
NYK:8000806720001
PTC Condole Unit w/o GPS
- Weight is approx. 4.3 lbs. (1.95 kgs.)
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - Dual 400 MHZ processors
- Flash memory expandable up to 8 GB
- No GPS I/O wifi adapter card
- NO vital application software loaded
- NO Mounting Plate
PTC Condole Unit w/o GPS
- Weight is approx. 6.3 lbs. (2.86 kgs.)
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - Dual 400 MHZ processors
- Flash memory expandable up to 8 GB
- No GPS I/O wifi adapter card
- NO vital application software loaded
- (1) NYK:Z610398070001 mounting Plate
Lead Time
Price: $5737.00
Lead Time
Price: $6045.00
NYK:8000806720010
NYK:8000806720011
PTC Condole Unit w/ GPS
- Weight is approx. 4.3 lbs. (1.95 kgs.)
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - Dual 400 MHZ processors
- Flash memory expandable up to 8 GB
- Vital application software loaded
- NO Mounting Plate
- (1) NYK:8000806110001 GPS I/O wifi adapter card
PTC Condole Unit w/ GPS
- Weight is approx. 6.3 lbs. (1.95 kgs.)
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - Dual 400 MHZ processors
- Flash memory expandable up to 8 GB
- NO vital application software loaded
- (1) NYK:Z610398070001 mounting Plate
- (1) NYK:8000806110001 GPS I/O wifi adapter card
Lead Time
Price: $5770.00
Lead Time
Price: $6412.00
B24 - Wayside Signaling Systems Products
Wayside Control Systems Products
Trackguard®
Series
Wayside Signaling System
SIEMENS Trackguard® WayConneX™ Wayside
Control System is a vital microprocessor controlled
system that generates an electronic DC coded track
circuit and operates intermediate signal locations
and single or multiple switch interlockings.
It is available as a color-light or search-light
system and will operate in cab signal territory.
It provides built-in PTC compatibility and systems
management as well as compatibility with
Genrakode™, ECode™ and MicroTrax®.
All modules are interchangeable between units and all
modules are designed- to be “hot-swappable”.
With the addition of a SIEMENS Wayguard® SEAR II
Series Event Analyzer / Recorder and a SIEMENS
Wayside Communications Package (WCP) module,
system will interface with all of the major codeline
protocols including Advanced Train Control System
(ATCS).
Vital network applications are supported using SIEMENS
Ethernet Spread Spectrum Radio (ESSR) or Echelon®.
A new configuration tool known as the WayConneX™
Configuration Tool (WCCT) has been created to allow
users to create their own Boolean signaling logic.
The tool allows the user to see the relay equivalent
circuits of the Boolean logic as it is being developed\
and also provides a logic simulation capability
which allows the user to animate the relay
contacts and coils as the change state.
WayConneX™ Wayside Control System (3) track
extended
chassis includes new modules, such as;
· CPU III module
· WayTraX™ module
· PSO-E module.
WayConneX™ Configuration Tool (WCCT)
provides a simple graphical user interface
which allows users:
· To specify which modules are in the system
and how they are
configured, and as well as which I/O points
on the modules will be used.
· To define the PTC messages generated by the
WCX.
· To create vital communications channels between
WCX's.
· To specify interface to non-vital controller system
(SEAR II).
The tool allows the user to add field configurable timers
and Boolean properties, and to specify which ones
are included in he systems Unique Check Number (UCN).
B25 - Wayside Communications Systems Products
Wayside Communications Systems Products
Wayside
Modules

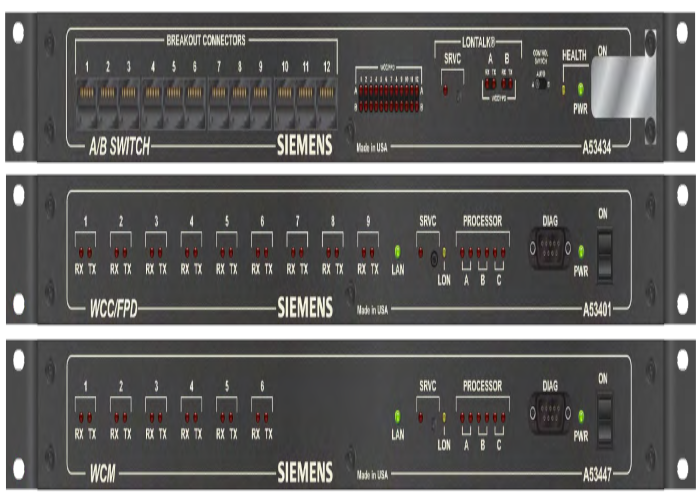

Model A53434 AB Switch shown for reference purposes only!
Actual unit selected may vary in mounting and features.
SIEMENS AB Switch, (53434 Series) is a general
purpose device used to provide RS-232 redundant
switching for office and field applications. It is
normally used in conjunction with two of
SIEMENS 9-port Wayside
Communications Controller / Field
Protocol Device, WCC/FPD's (53401 Series) to provide
redundant communication with code lines.
SIEMENS AB Switch and the two connected SIEMENS
WCC/FPD units communicate via an Echelon® (LonTalk®)
LAN. The AB Switch is constantly checking the health of
the the WCC/FPD's and if any problem is detected with
the primary unit, the AB Switch automatically switches
all lines to the backup unit. The AB Switch utilizes
magnetically-latched relays for line control. In the unlikely
event that the AB Switch should fail, the relays will
remain latched in the current state and the on-line WCC/FPD
unit will continue to operate without interruption. Once the
relays are latched in the failed state, a switchover is not
possible until the AB Switch is once again operational.
SIEMENS Wayside Communications Controller/Field Protocol
Devices, WCC/FPD's (53401 Series) is a general purpose
communications controller and protocol converter for use in
communications systems. It is configured for use through the
localdiagnostic port and/or remotely via dial-up or LAN/WAN
connections. The unit is fully compatible with SIEMENS
ASERVER & WCC MAINT. Utilities, and can be diagnosed
and monitored remotely. Multiple units can be clustered
together to perform front end processing and Cluster
Controller functionally.
Wayside Communications Systems Products
NYK:9000534340001
NYK:9000534010101
AB Switch Module
- Neuron® Echelon® 10 MHZ
- Echelon® LonTalk® port for maintenance
Easily mountable on standard - relay racks, instrument house backboards or can
even be shelf mounted - Weight is approx. 4.6 lbs. (2.09 kgs.)
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - (12) RS-232 ports
- Solid state design
- Provides automatic fail detection and switch over
operation for primary to backup
(When used in conjunction with the WCC/FPD) - Input power 9 VDC - 16 VDC
- (12) inputs
- (12) outputs
- NO cable routing bracket
Packet Switch Module
- Echelon® LonTalk® port for maintenance
- Easily mountable on standard relay racks,
instrument house backboards or can even
be shelf mounted - Weight is approx. 4.6 lbs. (2.09 kgs.)
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - Solid state design
- Input power 30 VDC - 80 VDC
Supported protocols: ATCS Spec 200, X.25,
HDLC-LAPB/LAPD/UI, Genisys/PRCCI,
Flexicode, 504/506/514, Datatrain, J&K,
E2, MCS1/MCS2/HDP-3
SCS-128 and 2000 A&B
Lead Time
Call for Price
Lead Time
Price: $6317.00
NYK:9000534470001
Wayside Communications Module
- Echelon® LonTalk® port for maintenance
- Easily mountable on standard relay racks,
instrument house backboards or can even
be shelf mounted - Weight is approx. 4.6 lbs. (2.09 kgs.)
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - Solid state design
- Input power 10 VDC - 30 VDC
- Power consumption 10 W
- (8) inputs
- (8) outputs
Lead Time
Price: $2789.00
B29 - Wayside Communications Systems (WAMS)
Wayside Communications Systems Products
Wayside Alarm Management System
SIEMENS Wayside Alarm Management System (WAMS)
manages data collected from event recorders supporting
railroad operations.
WAMS Status Manager application collects data from
the network and notifies users with e-mail, cell phone
text messages, and FAX. Users can use WebWAMS
to log into WAMS system remotely and check the
status of railroad wayside locations.
WAMS supports federally-mandated inspection of
railroad wayside equipment by automating many
inspection steps and by providing a secure,
on-line process for handling inspection reports.
Real time monitoring and complete status
documenting at your finger tips. WAMS is
an invaluable operations and maintenance
tool and a cost effective management resource.
B30 - Wayside Communications Systems (OCG)
Wayside Communications Systems Products
Office Communications Gateway
SIEMENS Office Communications Gateway (OCG) is a
standalone executable program that runs on the
Windows® operating system.
It was designed to bring the ATCS over IP and NMS
functionality of the Siemens Wayside Cluster
Controller (WCC) to the PC platform. OCG adds
diversity and scalability to Advanced Train
Control System (ATCS) networks, providing
an open-ended means to control large systems
with no investment in hardware other than the
PC Workstation/Server.
OCG provides the interface between the Office
Dispatch System and the Field Code Line
Network for ATCS networks. OCG is functionally
identical to the Siemens Wayside Communications
Controller (WCC), with the exception of the serial
interface protocols, as OCG is an IP based system.
OCG is capable of controlling more Front End
Processor (FEP) (HUB/LCT) processes than the
WCC. In its current release, OCG supports up to
(32) simultaneous FEP processes while the
WCC supports up to (3) FEP processes. OCG
is backward compatible with WCC clusters, and
may be freely integrated into existing systems,
intermixing with conventional WCCs as part of
a migration strategy.
Appropriately configured individual codelines
are quickly and easily transferred from the WCC
to OCG (and back) using the SIEMENS suite of
network management utilities (Aserver/WCCMaint).
OCG will run HUB and Line Control Task (LCT)
processes in any combination .
B31 - Wayside Communications Systems (WCM Series)
Wayside Communications Systems Products
Series
Wayside Communications Manager
Model A53475 WCM Series Wayside Communication
Manager shown for reference purposes only!
Actual unit selected may vary in mounting and
features. SIEMENS Wayside Communications
Manager (WCM) allows end users to consolidate
multiple communication and signaling devices
operating on public and private communications
networks into a centralized communications system.
Providing simple user interfaces for monitoring and
configuration. For control point applications, the WCM
provides a minimal signal input capability with built-in
logic execution which can be communicated over the
user's network. As a communication protocol converter
the WCM supports a wide range of modern and legacy
communication protocols and provides inter-message
protocol conversion communications. As a message
router, the WCM provides configurable and automatic
routing capabilities within many different kinds of
networks as well as provides network redundancy support.
- Communication protocols suite for both Positive Train Control
(PTC) and Advanced Train Control System (ATCS) based radios
for interoperability. - Supports multiple ethernet and serial interfaces to
interconnect to wayside devices - Integrates seamlessly with existing Centralized Traffic Control
(CTC) systems, Network Management System (NMS) tools and
Simple Network Management Protocol (SNMP) based
architecture. - Provides a complete migration path to PTC while leveraging
existing assets - Unmatched connectivity options to data radios
Wayside Communications Systems Products
NYK:9000534750001
NYK:9000534770001
Wayside Communications Manager
- Converts Echelon® messages to ethernet messages
- Easily mountable on standard relay racks, instrument house
backboards or can even be shelf mounted - Weight is approx. 8.3 lbs. (3.76 kgs.)
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - Input voltage 9 VDC to 32 VDC, isolated, reverse polarity
- (4) Ethernet ports
(1) DB-25 RS-232 / RS-422 Sync / Async ports .. (8) digital inputs
Power Interface Module
- Weight is approx. 1.4 lbs. (0.63 kgs.)
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity
Lead Time
Price: $9456.00
Lead Time
Price: $612.00
B33 - Wayside Communications Systems (WCP Series)
Wayside Communications Systems Products
Series
Wayside Communications Package
WCP Series Wayside Communications shown for reference purposes only!
Actual unit selected may vary in mounting and features.
- Separate CPU II, DC / DC Converter and Radio
modules provided to simplify system maintenance
issues and provide for more flexible installation
options - RS-232 / RS422 connection option on two client ports
- High-speed (1.2Mb/s) client LAN port allows WCP
CPU II to directly connect to other vital and non-vital
I/O modules concurrently - Front-panel push-button configuration no laptop needed
during routine maintenance - Outbound RSSI reading provides additional system
information of signal strength at WCP location - Optional on-board ladder-logic processing for
code system applications - Protocol emulation and conversion of many industry
standard code-line protocols - Full non-volatile event log built in with hardware
real-time clock - Full duplexer operation at 4800 baud using
GMSK direct FM signaling with extensive error detection
and correction
Wayside Communications Systems Products
NYK:9000531050001
NYK:9000531050002
WCP CPU Module
- Converts Echelon® messages to ethernet messages
- Easily mountable on standard relay racks, instrument house
backboards or can even be shelf mounted - Weight is approx. 4.6 lbs. (2.09 kgs.)
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - Quiescent power consumption is approx. 295 mA @ 13.8 V
- Input voltage 10 VDC to 36 VDC
- (2) RS-232 25 pin connectors
- (1) DB-9 9 pin connector
- (1) 09500 cable
WCP CPU Module
- Converts Echelon® messages to ethernet messages
- Easily mountable on standard relay racks, instrument house
backboards or can even be shelf mounted - Weight is approx. 4.6 lbs. (2.09 kgs.)
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - Quiescent power consumption is approx. 295 mA @ 13.8 V
- Input voltage 10 VDC to 36 VDC
- (2) RS-232 25 pin connectors
(1) DB-9 9 pin connector - (1) No Cables
Lead Time
Price: $4073.00
Lead Time
Price: $4161.00
NYK:9000531060001
NYK:9000531060004
WCP DC / DC Converter w/ Floating Grounding
- Easily mountable on standard relay racks,
instrument house
backboards or can even be shelf mounted - Weight is approx. 8 lbs. (3.62 kgs.) including
connectors - Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - Input voltage 12 VDC
- Output voltage 13.8 VDC
- Power rating 150 W maximum
WCP DC / DC Converter w/ Floating Grounding
- Easily mountable on standard relay racks, instrument house
backboards or can even be shelf mounted - Weight is approx. 8 lbs. (3.62 kgs.) including connectors
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - Input voltage 10 VDC to 36 VDC
- Output voltage 13.8 VDC
- Power rating 200 W maximum
Lead Time
Call for Price
Lead Time
Call for Price
NYK:900053412100B
NYK:900053412100C
WCP Radio
- Easily mountable on standard relay racks, instrument house
backboards or can even be shelf mounted - Weight is approx. 9.4 lbs. (4.26 kgs.) including connectors
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - Input voltage 10 VDC to 36 VDC
(1) twist connector for radio .. 935.8875 MHz transmit channel - 896.8875 MHz receive channel
- MDS SD9 radio
- (1) Z706-00275-0000 radio coax cable
- (1) Z801-08475-0004 antenna cable (4’ (1.2 m) long)
WCP Radio
- Easily mountable on standard relay racks, instrument house
backboards or can even be shelf mounted - Weight is approx. 9.4 lbs. (4.26 kgs.) including connectors
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - Input voltage 10 VDC to 36 VDC
- (1) twist connector for radio
- 935.8875 MHz transmit channel
- 896.8875 MHz receive channel
- MDS SD9 radio
- (1) Z706-00275-0000 radio coax cable
- (1) Z801-08474-0010 antenna cable (10’ (3 m) long)
Lead Time
Call for Price
Lead Time
Call for Price
NYK:900053412100D
NYK:900053412200D
WCP Radio
- Easily mountable on standard relay racks, instrument house
backboards or can even be shelf mounted - Weight is approx. 9.4 lbs. (4.26 kgs.) including connectors
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - Input voltage 10 VDC to 36 VDC
- (1) twist connector for radio
- 935.8875 MHz transmit channel
- 896.8875 MHz receive channel
- MDS SD9 radio
- (1) Z706-00275-0000 radio coax cable
- NO antenna cable
WCP Radio
- Easily mountable on standard relay racks, instrument house
backboards or can even be shelf mounted - Weight is approx. 9.4 lbs. (4.26 kgs.) including connectors
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - Input voltage 10 VDC to 36 VDC
- (1) twist connector for radio
- 935.9375 MHz transmit channel
- 896.9375 MHz receive channel
- MDS SD9 radio
- (1) Z706-00275-0000 radio coax cable
- NO antenna cable
Lead Time
Call for Price
Lead Time
Call for Price
NYK:900053412500B
NYK:900053412500C
WCP Radio
- Easily mountable on standard relay racks, instrument house
backboards or can even be shelf mounted - Weight is approx. 9.4 lbs. (4.26 kgs.) including connectors
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - Input voltage 10 VDC to 36 VDC
- (1) twist connector for radio
- 936.9375 MHz transmit channel
- 897.9375 MHz receive channel
- MDS SD9 radio
- (1) Z706-00275-0000 radio coax cable
- (1) Z801-08475-0004 antenna cable (4’ (1.2 m) long)
WCP Radio
- Easily mountable on standard relay racks, instrument house
backboards or can even be shelf mounted - Weight is approx. 9.4 lbs. (4.26 kgs.) including connectors
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - Input voltage 10 VDC to 36 VDC
- (1) twist connector for radio
- 936.9375 MHz transmit channel
- 897.9375 MHz receive channel
- MDS SD9 radio
- (1) Z706-00275-0000 radio coax cable
- (1) Z801-08474-0010 antenna cable (10’ (3 m) long)
Lead Time
Call for Price
Lead Time
Call for Price
NYK:900053412500D
NYK:900053412600D
WCP Radio
- Easily mountable on standard relay racks, instrument house
backboards or can even be shelf mounted - Weight is approx. 9.4 lbs. (4.26 kgs.) including connectors
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Co - ndensing Relative Humidity
- Input voltage 10 VDC to 36 VDC
- (1) twist connector for radio
- 936.9375 MHz transmit channel
- 897.9375 MHz receive channel
- MDS SD9 radio
- (1) Z706-00275-0000 radio coax cable
NO antenna cable
WCP Radio
- Easily mountable on standard relay racks, instrument house
backboards or can even be shelf mounted - Weight is approx. 9.4 lbs. (4.26 kgs.) including connectors
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - Input voltage 10 VDC to 36 VDC
- (1) twist connector for radio
- 936.9875 MHz transmit channel
- 897.9875 MHz receive channel
- MDS SD9 radio
- (1) Z706-00275-0000 radio coax cable
- NO antenna cable
Lead Time
Call for Price
Lead Time
Call for Price
Siemens Part Number | Description | Weight |
| WCP Antenna Kits | ||
| NYK:Z913000010000 | Yagi antenna - 6061/T6 aluminum element - N type female connectors - 12.6 dBi (10.5 dBd) Gain . - 928 MHz to 956 MHz - Vertical / Horizontal Polarization - 1.5:1 VSWR | 8.4 lbs. (3.81 kgs.) |
| NYK:Z801084680000 | Antenna mast mount, 90 degree. - Accommodates masts up to Ø2.38” | 6.4 1. (2.90 kgs.) |
| NYK:Z801084690000 | Antenna mast mount, 90 degree. - Accommodates masts from Ø1.5” to Ø3.5” | 6.4 lbs. (2.90 kgs.) |
| WCP Antenna Surge Arresters | ||
| NYK:Z803227100000 | Bulkhead Mounting - Meets or exceeds applicable IEC® 60529 IP65 specifications - 5/8-24 screw type connectors - 125 MHz - 1000Hz - 1.1:1 VSWR . - 20kA ANSI® C62.1 8/20 µs waveform . - Weatherproof | 2 lbs. (0.91 kgs.) |
| NYK:Z803227220000 | Hardware Kit for Z803-22710-0000 | N/A |
| NYK:Z935000060000 | Coaxial RF cable, Ø1/2” 50 Ω, foam dielectric | N/A |
| NYK:Z935000080000 | Coaxial RF cable, Ø7/8” 50 Ω, foam dielectric | N/A |
| NYK:9000265610001 | Coaxial RF cable, 50 Ω, foam dielectric, mini UHF male to type N male, Ø1/2” X 4’ (1.2 m) long | N/A |
| NYK:Z801084740000 | Coaxial RF cable, 50 Ω, foam dielectric, mini UHF male to type N male, Ø1/2” X 10’ (3 m) long | N/A |
B41 - Wayside Communication Systems (I / O Modules)
Wayside Communications Systems Products
Model A53101 I / O Module shown for reference
purposes only! Actual unit selected may vary
in mounting and features.
SIEMENS Bipolar I/O module supplies
eight bipolar outputs to replace an LCS unit
and to drive existing final stick relays.
A total of 14 unipolar indication inputs
are also available. The module is controlled by
an on-board Echelon® Neuron™ LAN and
delivered to the bipolar outputs either
continuously or in pulsed format (configurable).
Opto-isolated read-back circuits verify
delivery of each input. All inputs and outputs
are also fully optically isolated to prevent
common-mode problems and to enhance their
ability to withstand voltage surges.
Inputs are sensed at a configurable rate and
the module generates an indication message via
LonTalk™ each time a change of state
occurs. A programmable indication hold-off
time allows interlocking circuits to stabilize before
the change-of-state message is generated. The
module provides an indication battery output
(KINDIS) that can be fed into the input circuits
to allow the unit to sense input circuit relay
contact states. Additional LonTalk™ messages
supported include recheck, diagnostics, configuration
control, and error status updates.
- Bipolar outputs for final stick relays
- Front panel LED status indicators are
provided for each I/O circuit for ease
of maintenance and troubleshooting. - Input/Output termination points and
interface to the module are accomplished
via a top-mounted, removable plug connector.
Configuration data for the module is retained
in a user-programmable EEPROM device
located in the connector. This allows the module
to be replaced during maintenance
without the need for reconfiguration. - The module operates directly from the signal
battery and 2,000 volts rms isolation is provided
by the transformer-coupled LonTalk™ interface. - Unipolar outputs for interface or vital relay drive.
It essentially identical to the Bipolar I/O module
except that a total of (30) unipolar circuits are
supplied. The circuits can be allocated
for any combination of inputs and outputs. - Relay outputs, while sharing roughly the same
physical characteristics as the bipolar and unipolar
I/O modules, the relay output module contains 15
individually controllable, nonvital relays that provide
contact options that can be jumpered to
provide a combination of Form A and Form C outputs. - The module is available with either latched or
non-latched relays. Latched relays remain in the
previously-set state position and are unaffected
by equipment restarts or power failure. - A latched relay module is typically used to
drive vital signal control relays.
Wayside Communications Systems Products
NYK:9000531020001
Bipolar I/O Module (12 V version)
- Easily mountable on standard relay racks, instrument house
backboards or can even be shelf mounted - Weight is approx. 8.2 lbs. (3.72 kgs.) including connectors
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - Input voltage 9 VDC to 30 VDC
- Open collector voltage
- Up to (30) unipolar outputs in groups of (8)
- Up to (30) unipolar inputs in groups of (8)
- Utilizes 9000-53004-0001 I/O Card
Lead Time
Price: $5263.00
B43 - Wayside Signaling Systems(CLS-20R Series)
Wayside Signaling Systems Products
Series
Colorlight Signaling Systems
CLS-20R Colorlight Assembly for (2) Aspects shown for
reference purposes only! Actual unit selected may vary
in mounting and features.
SIEMENS CLS-20R color light signals have a
rear-serviceable optical module which includes
both inner and outer doublet lenses, as well as
the prefocused lamp and socket. Both outer
and inner lenses can be inspected, cleaned or
replaced without going around to the front of the
signal. The background and visor remain in place
on the signal housing so the optical module is
small, light in weight and easily handled.
The optical module assembly is built with a
precision die cast aluminum body and lamp
mounting.
This assures that the optics will remain rigidly
aligned during servicing and light output will be
maintained. Doors are interlocked to prevent
opening any door that may give less restrictive
indication from light entering an open door.
This maintains the convenience of individual
doors without the possibility of displaying an
improper aspect during servicing. The outer
housing is black painted precision die
cast aluminum and provides space for
AREMA® binding post type terminal blocks,
resistors or transformers.
Wayside Signaling Systems Products
| Siemens Part Number | Description |
| CLS-20R Housing | |
| NYK:044600-01X | CLS-20R Housing |
| CLS-20R Lenses and Lighting Modules | |
| NYK:044054-40 | Clear 40° Deflection Lens |
| NYK:044054 | Clear Center Deflection Lens |
| NYK:044603-L12-R | RED LED 12VDC Lighting Module |
| NYK:044603-L12-G | GREEN LED 12VDC Lighting Module |
| NYK:044603-L12-Y | YELLOW LED 12VDC Lighting Module |
| NYK:044603-L12-L | LUNAR LED 12VDC Lighting Module |
| CLS-20R Rods | |
| NYK:044036-1 | Locking Rod (1) Aspect |
| NYK:044036-2 | Locking Rod (2) Aspect |
| NYK:044036 | Locking Rod (3) Aspect |
| NYK:044006-1X | Clamp On Sighting Tool (Requires NYK:044008-1X lifting bracket. See Page B31) |
| NYK:044004 | Lampholder Post |
| NYK:044005 | Lampholder Slide |
| NYK:042019-10 | Bulb Socket |
Visors
Siemens Part Number | Description |
| CLS-20R Aluminum Visors | |
| NYK:042005-107 | Aluminum 6 3/8” Long Visor w/o Hardware |
| NYK:042005-107X | Aluminum 6 3/8” Long Visor w/ Hardware |
| NYK:044018 | Aluminum 12” Long Visor w/o Hardware |
| NYK:044018-X | Aluminum 12” Long Visor w/ Hardware |
| CLS-20R Polycarbonate Visors | |
| NYK:042005-19 | Polycarbonate 6 3/8” Long Visor w/o Hardware |
| NYK:042005-19X | Polycarbonate 6 3/8” Long Visor w/ Hardware |
| NYK:042005-147 | Polycarbonate 16” Long Visor w/o Hardware |
| NYK:042005-147X | Polycarbonate 16” Long Visor w/ Hardware |
| CLS-20R Steel Visors | |
| NYK:042005-35 | Steel 6 3/8” Long Visor w/o Hardware |
| NYK:042005-35X | Steel 6 3/8” Long Visor w/ Hardware |
| NYK:042005-30 | Steel 12” Long Visor w/o Hardware |
| NYK:042005-30AX | Steel 12” Long Visor w/ Hardware |
Snowshields
Siemens Part Number | Description |
| CLS-20R Aluminum Background | |
| NYK:042005-130 | (1) Aspect Aluminum w/o Hardware |
| NYK:042005-130X | (1) Aspect Aluminum w/ Hardware |
| NYK:042005-131 | (2) Aspect Aluminum w/o Hardware |
| NYK:042005-131X | (2) Aspect Aluminum w/ Hardware |
| NYK:042005-130 | (3) Aspect Aluminum w/o Hardware |
| NYK:042005-130X | (3) Aspect Aluminum w/ Hardware |
| CLS-20R Steel Snowshields | |
| NYK:042005-128 | (1) Aspect Steel w/o Hardware |
| NYK:042005-128X | (1) Aspect Steel w/ Hardware |
| NYK:042005-125 | (2) Aspect Steel w/o Hardware |
| NYK:042005-125X | (2) Aspect Steel w/ Hardware |
| NYK:042005-115 | (3) Aspect Steel w/o Hardware |
| NYK:042005-115X | (3) Aspect Steel w/ Hardware |
BackGrounds
Siemens Part Number | Description |
| CLS-20R Aluminum Background | |
| NYK:044021-5 | (1) Aspect Aluminum w/o Hardware |
| NYK:044021-X | (1) Aspect Aluminum w/ Hardware |
| NYK:044020-7 | (2) Aspect Aluminum w/o Hardware |
| NYK:044020-X | (2) Aspect Aluminum w/ Hardware |
| NYK:044019-11 | (3) Aspect Aluminum w/o Hardware |
| NYK:044019-X | (3) Aspect Aluminum w/ Hardware |
| CLS-20R Polycarbonate Background | |
| NYK:044021-4 | (1) Aspect Polycarbonate w/o Hardware |
| NYK:044021-1X | (1) Aspect Polycarbonate w/ Hardware |
| NYK:044020-6 | (2) Aspect Polycarbonate w/o Hardware |
| NYK:044020-1X | (2) Aspect Polycarbonate w/ Hardware |
| NYK:044019-10 | (3) Aspect Polycarbonate w/o Hardware |
| NYK:044019-1X | (3) Aspect Polycarbonate w/ Hardware |
| CLS-20R Steel Background | |
| NYK:044021-6 | (1) Aspect Steel w/o Hardware |
| NYK:044021-2X | (1) Aspect Steel w/ Hardware |
| NYK:044020-8 | (2) Aspect Steel w/o Hardware |
| NYK:044020-2X | (2) Aspect Steel w/ Hardware |
| NYK:044019-12 | (3) Aspect Steel w/o Hardware |
| NYK:044019-2X | (3) Aspect Steel w/ Hardware |
NYK:042005-134
NYK:042005-135
CLS-20R, Visor Brace
- Weight is approx. 0.38 lbs. (0.17 kgs.)
- Aluminum construction
- NO mounting hardware
CLS-20R, Visor Brace Angle
- Weight is approx. 0.20 lbs. (0.09 kgs.)
- Aluminum construction
- NO mounting hardware
Lead Time
Price: $48.60
Lead Time
Price: $20.50
NYK:042077-500X
NYK:044603-9GX
Hardware Kit for Visors, Snowshields and Backgrounds
- Weight is approx. 0.5 lbs. (0.23 kgs.)
- (8) 002590-TEJ mach truss head bolt
- (4) 023832 AAR clamp nuts
- (4) 023834 AAR beveled washers
CLS-20R, Lens Bracket
- Weight is approx. 5.0 lbs. (2.27 kgs.)
- Aluminum construction
- NO mounting hardware
Lead Time
Price: $3.26
Lead Time
Price: $262.00
NYK:044607-BX
NYK:042258-2
CLS Blackout Lens Kit
- Weight is approx. 0.3 lbs. (0.13 kgs.)
- Includes blackout lens and gasket
CLS Anti Phantom Screen Lens
- Weight is approx. 0.5 lbs. (0.23 kgs.)
Lead Time
Price: $96.50
Lead Time
Price: $22.50
NYK:044008-1X
NYK:044603-1RX
CLS-20R Module Lifting Bracket
- Weight is approx. 1.6 lbs. (0.73 kgs.)
- Aluminum construction
- NO mounting hardware
Lens Bracket Assembly
- Weight is approx. 5.0 lbs. (2.27 kgs.)
- Aluminum construction
- NO mounting hardware
Lead Time
Price: $39.88
Lead Time
Price: $301.00
NYK:044011-14X
NYK:044011-5X
Top of Mast Bracket
- Weight is approx. 15.5 lbs. (7.03 kgs.)
- Aluminum construction
- Includes mounting hardware
Top of Mast Bracket
- Weight is approx. 15.5 lbs. (7.03 kgs.)
- Aluminum construction
- Includes mounting hardware
Lead Time
Price: $810.00
Lead Time
Price: $689.00
NYK:044011-4X
Top of Mast Bracket
- Weight is approx. 15.5 lbs. (7.03 kgs.)
- Aluminum construction
- Includes mounting hardware
Lead Time
Price: $636.00
B51 - Wayside Wireless Pole Line Products
Wayside Wireless Pole Line Products
Wayside®
Series

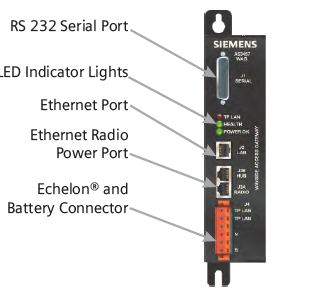

Wireless Access Gateway
Model A53355 ESSR Series Ethernet Spread Spectrum Radio
shown for reference purposes only!
Actual unit selected may vary in mounting and features.
SIEMENS WAG Series Wireless Access Gateway offers
a reliable and simple method of attaching legacy
field devices to your corporate WAN without
breaking the bank. WAG Series converts
Echelon® messages to industry standard ethernet
messages. This connectivity allows
the WAG to communicate to ethernet networks
through other wireless pole line products such as the
HD / Link module and the Ethernet Spread Spectrum
Radio (ESSR). WAG Series connects vital and non-vital field
equipment using industry standard protocols and off the
shelf IT hardware.
• Echelon®, ethernet and serial communications media converter
• Isolated from battery supply
• Advanced Train Control Systems (ATCS) Specification 200,
Version 4.0 Communications Systems Architecture addressable
for intelligent message routing
• Connects communications between various Grade Crossing
• Control Systems Products such as Grade Crossing Predictor
(GCP) series, Intelligent Lights Out Detectors (iLod) and
Analyzer / Event Recorders (SEAR II) series to
Wayside Wireless Pole Line Products such as
HD / Link Module and Ethernet Spread Spectrum Radios
(ESSR)WAG Series units can be configured individually
utilizing Microsoft® HyperTerminal, or can be configured
globally over network utilizing Telnet software.
Embedded configuration tools and simple to use
menu selections make it easy to set up,
run diagnostics and create detailed
operational logs either locally or remotely.
Wayside Wireless Pole Line Products
NYK:9000534570002
- Converts Echelon® messages to ethernet messages
- Easily mountable on standard relay racks, instrument house
backboards or can even be shelf mounted when removing
included mounting bracket - Weight is approx. 4 lbs. (1.81 kgs.) including connectors
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - (1) RS 232 Serial Port at 115 Kbps transfer rate
- (1) Ethernet radio port at 100 Mbps transfer rate
- (1) Echelon® port at 1.25 Mbps transfer rate
- 12 VDC, 60 Hz power voltage
- ATCS Specification 200, Version 4.0
(Type 3 or Type 7) addressability - Includes network converter module
Lead Time
Price: $3003.00
B53 - Wayside Wireless Pole Line (ESSR Series)
Wayside Wireless Pole Line Products
Series
Ethernet Spread Spectrum Radios
Model A53355 ESSR Series Ethernet Spread Spectrum Radio
shown for reference purposes only!
Actual unit selected may vary in mounting and features.
SIEMENS ESSR Series Ethernet Spread Spectrum
Radio Series offers the ability to establish point
to point, point to multipoint, linear, tree and
roaming networks without the expense, labor
and time involved in installing cables.
ESSR Series connects vital and non-vital field
equipment using industry standard protocols
and off the shelf IT hardware. Can be used as
a stand alone direct connection through
ethernet protocols or as a bridge to serial or
Echelon® connections when used in
conjunction with a
SIEMENS WAG Series Wireless Access
Gateway unit.
Able to join multiple segment networks across
multiple channels without the concern of
interfering with each other. Able to access
data logs as well as configure networks easily
either through a laptop connected to any
node or monitor locations with SNMP
based systems.
- Radio frequency rate of up to 2.7 Mbps
- Secure RF protocols for vital train control systems
- Intelligent routing for vital, high and normal priority
level messages - Low latency messaging for critical point to point
applications - Intelligent tools for spectrum and network analysis
- Single hop ranges of up to 80 km with clear line of
sight
ESSR Series units can be configured individually
for data rate and minimum received signal level
to suit application requirements.
Can also be configured to accommodate the time
division duplex cycle time to optimize network
throughput and latency.
ESSR Series units can be deployed one node at
a time and can be extended at any time by adding
additional nodes. Encased in a weather resistant
housing that allows the ESSR Series unit to be
mounted in close proximity to transmission
antenna without the concern of RF loss due to
long, expensive cabling.
Wayside Wireless Pole Line Products
Siemens Part Number | Signal Bandwidth | Options | Mounting Bracket | Power Source | Channel Blocking | Encryption Type | Firmware Configuration | |||
DES 56 | AES 128 | ATC | TDD | Cluster Hub | ||||||
| NYK:9000533550001 | 4.6 MHz | Tree | V Pole | X | X | |||||
| NYK:9000533550002 | 4.6 MHz | V Pole | X | X | ||||||
| NYK:9000533550003 | 4.6 MHz | V Pole | X | X | X | |||||
| NYK:9000533550004 | 4.6 MHz | Tree | V Pole | X | X | |||||
| NYK:9000533550005 | 4.6 MHz | V Pole | X | X | ||||||
| NYK:9000533550006 | 4.6 MHz | V Pole | AC Inserter Euro Cord | X | ||||||
| NYK:9000533550007 | 4.6 MHz | Tree/RM | V Pole | X | X | |||||
| NYK:9000533550008 | 4.6 MHz | V Pole | X | X | X | |||||
| NYK:9000533550013 | AC Inserter Euro Cord | V Pole | X | X | ||||||
| NYK:9000533550014 | V Pole | X | X | |||||||
| NYK:9000533550015 | V Pole | X | X | |||||||
| NYK:9000533550016 | V Pole | X | X | X | ||||||
| NYK:9000533550009 | V Pole | X | ||||||||
| NYK:9000533550010 | V Pole | X | ||||||||
| NYK:9000533550011 | Tree | V Pole | AC Inserter US Cord | X | X | X | ||||
| NYK:9000533550012 | V Pole | X | X | X | ||||||
| NYK:9000533550017 | DC Inserter w/ Pigtail | X | X | |||||||
| NYK:9000533550018 | Tree | V Pole | AC Inserter Euro Cord | X | X | X | ||||
| NYK:9000533550019 | Tree/RM | V Pole | AC Inserter Euro Cord | X | X | X | X | |||
| NYK:9000533550020 | AC Inserter Euro Cord | X | X | X | ||||||
| NYK:9000533550021 | AC Inserter Euro Cord | X | X | |||||||
| NYK:9000533550022 | X | X | ||||||||
| NYK:9000533550023 | X | X | ||||||||
| NYK:9000533550024 | DC Inserter w/ Pigtail | X | X | |||||||
B55 - Wayside Wireless Pole (HD Link Modules)
Wayside Wireless Pole Line Products
Model A53201 HD Link Module shown for
reference purposes only! Actual unit selected
may vary in mounting and features.
SIEMENS HD Link™ is designed to
used in conjunction with a Ethernet Spread
Spectrum Radio (ESSR), in order to function
in a communications network system as a
vital I/O unit. An HD Link™ system provides
the capability to read the state of a vital input
at one location, typically a relay contact, and use
this input state to drive a vital output, typically
a relay coil, at the same or another location.
Wayside Wireless Pole Line Products
NYK:9000532010008
NYK:9000532010014
- Weight is approx. 4 lbs. (1.81 kgs.)
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - (8) I/O circuits
- NO serial EPROM
- Weight is approx. 4 lbs. (1.81 kgs.)
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - (4) I/O circuits
- (1) 9000-53122-0001 serial EPROM
Lead Time
Price: $6356.00
Lead Time
Price: $4797.00
NYK:9000532010018
- Weight is approx. 4 lbs. (1.81 kgs.)
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - (4) I/O circuits
- (1) 9000-53122-0001 serial EPROM
Lead Time
Price: $5868.00
C1 - Track Circuit Systems (PSO 4000)
Track Circuit Systems Products
Clearguard®
Series
Series Overlay Track Circuit Modules
PSO 4000 Series Phase Shift Overlay Track
Circuit Modules shown for reference
purposes only! Actual unit selected may
vary in mounting and features.
SIEMENS Clearguard® PSO 4000 Series Phase Shift
Overlay Track Circuit Modules provides track
occupancy information for a train detection system.
They offer a reliable and secure, microprocessor based,
vital system for use in a variety of complex installations.
They are able to differentiate between its operation
signal and all other signals present on the track
is due to the non-symmetrical coded modulation
and receiver decoding techniques which ensure that the
systems is immune to random or foreign AM, FM and
beat signals.
- Vital processor based
- Available in Transmitter, Receiver, Transceiver
and Crossing Modules - Programmable for all common PSO II and III,
AFTAC and METRA carrier channels - Internally programmable pick-up and drop delay
times - PSO channels compatible with existing PSO-II
and PSO-III equipment - Program selectable modulation codes “A,” “C,”
(8 bit) “D” “E” and “F” (16 bit) - Ability to dynamically select codes via vital
inputs or ATCS interface
Track Circuit Systems Products
NYK:70007A4710001
NYK:70007A4730001
Transmitter Module
- Weight is approx. 6.1 lbs. (2.77 kgs.) including
connectors. - Quiescent power consumption is approx. 0.85 A @ 9 V
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 90% Non-Condensing Relative Humidity - Frequency stability is ±0.01% (Hz) of the selected frequency
- Frequency modulation with 8 bit serial address
- Track transmitter load 25 Ω
- Track receiver load 250 Ω
- Relay coil resistance 400 Ω - 1,000 Ω
- Input power supply can be 9VDC, 12VDC (nominal) or 16.5VDC
- Power supply ripple is 1.0VDC Peak to Peak maximum
- (2) Vital inputs
Receiver Module
- Weight is approx. 6.1 lbs. (2.77 kgs.) including connectors.
- Quiescent power consumption is approx. 0.85 A @ 9 V
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 90% Non-Condensing Relative Humidity - Frequency stability is ±0.01% (Hz) of the selected frequency
- Frequency modulation with 8 bit serial address
- Track transmitter load 25 Ω
- Track receiver load 250 Ω
- Relay coil resistance 400 Ω - 1,000 Ω
- Input power supply can be 9VDC, 12VDC (nominal) or 16.5VDC
- Power supply ripple is 1.0VDC Peak to Peak maximum
- (2) Vital inputs
- (3) Vital relay outputs
Lead Time
Price: $2920.00
Lead Time
Price: $2979.00
NYK:70007A4750001
NYK:70007A4740001
Transceiver Module
- Weight is approx. 6.1 lbs. (2.77 kgs.) including connectors.
- Quiescent power consumption is approx. 0.85 A @ 9 V
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 90% Non-Condensing Relative Humidity - Frequency stability is ±0.01% (Hz) of the selected frequency
- Frequency modulation with 8 bit serial address
- Track transmitter load 25 Ω
- Track receiver load 250 Ω
- Relay coil resistance 400 Ω - 1,000 Ω
- Input power supply can be 9VDC, 12VDC (nominal) or 16.5VDC
- Power supply ripple is 1.0VDC Peak to Peak maximum
- (2) Vital inputs
- (3) Vital relay outputs
Crossing Module
- Weight is approx. 6.1 lbs. (2.77 kgs.) including connectors.
- Quiescent power consumption is approx. 0.85 A @ 9 V
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 90% Non-Condensing Relative Humidity - Frequency stability is ±0.01% (Hz) of the selected frequency
- Frequency modulation with 8 bit serial address
- Track transmitter load 25 Ω
- Track receiver load 250 Ω
- Relay coil resistance 400 Ω - 1,000 Ω
- Input power supply can be 9VDC, 12VDC (nominal) or 16.5VDC
- Power supply ripple is 1.0VDC Peak to Peak maximum
- (2) Vital inputs
- (3) Vital relay outputs
Lead Time
Price: $4597.00
Lead Time
Price: $8893.00
C5 - Track Circuit Systems (IPITC Series)
Track Circuit Systems Products
Clearguard®
Series
Intelligent Processor Island Track Circuit Module
Model A71150 Clearguard® IPITC Series Intelligent
Processor Island Track Circuit Module shown for
reference purposes only! Actual unit selected may
vary in mounting and features.
SIEMENS Clearguard® IPITC Series Intelligent
Processor Island Track Circuit Module provides
a stand alone island circuit solution at grade crossings.
Unit is a single board, microprocessor based,
multi-frequency, modulated, short range (120’
- 350’ [37 - 107m]) track occupancy
detector.
Designed to detect poor shunting conditions and
provides a simple automated process for track
circuit calibration. Module is frequency
programmable via an on board jumper and
the operating program is contained in a flash
memory device on board.
Direct replacement for legacy Short Modulated
Track Circuit (SMTC) series.
Track Circuit Systems Products
NYK:7000711500001
Microprocessor based
- Weight is approx. 5.0 lbs. (2.27 kgs.)
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - 9 - 16.5 VDC Input voltage
- 550mA VDC Input current (nominal)
- 0.1 Amp Transmitter output current (maximum)
- Field selectable frequencies: 2.14 kHz, 2.63 kHz, 3.24 kHz, 4.00 kHz,
4.90 kHz, 5.90 kHz, 7.10 kHz, 8.30 kHz,
10.0 kHz, 11.5 kHz, 13.2 kHz, 15.2 kHz,
17.5 kHz and 20.2 kHz
Lead Time
Price: $4077.00
C9 - Track Circuit Systems (SE-3 Series)
Track Circuit Systems Products
Clearguard®
Series
Steady Energy Phase Selective Track Circuit Modules
Model A44904 SE-3 Series Steady Energy Phase Selective
Track Circuit Module shown for reference purposes only!
Actual unit selected may vary in mounting and features.
SIEMENS Clearguard® SE-3 Series Steady
Energy Phase Selective Track Circuit Modules
provides a solution where traction or other
severe electromagnetic interference conditions
could interfere with signaling circuits. Designed
to detect train presence and/or broken rail
conditions in electric traction territory, or where
high levels of induced AC interference occur.
They can be used in conjunction with impedance
bonds for traction current return or with either
balanced or unbalanced (single rail) track circuits
using insulated joints without impedanc bonds.
They are solid state and requires no regular
maintenance. They are a passive component
design, utilizing no active electronic circuits.
- Available in (8) configurations;
- Rejects all AC traction frequencies
- No active internal electronics
- Compatible with coded cab signal systems
- Mutually compatible with audio frequency track circuits
- Code reset option resets the track feed to steady energy after
the block is cleared.
Track Circuit Systems Products
NYK:400044926060X
NYK:400044904833X
SE-3 60Hz Receiver Module
- Meets or exceeds applicable AREMA® specifications
- Weight is approx. 14.0 lbs. (6.35 kgs.) including hardware
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - 91.7 Hz receiving frequency
- (1) pair DC outputs (to track relay)
- (1) pair local inputs (to inverter)
- (1) pair track inputs (to track transformer)
- 40° ± 20° Phase angle relationship
- 200 - 500 mΩ shunting sensitivity
SE-3 60Hz Receiver Module
- Meets or exceeds applicable AREMA® specifications
- Weight is approx. 14.0 lbs. (6.35 kgs.) including hardware
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - 91.7 Hz receiving frequency
- (1) pair DC outputs (to track relay)
- (1) pair local inputs (to inverter)
- (1) pair track inputs (to track transformer)
- 40° ± 20° Phase angle relationship
- 200 - 500 mΩ shunting sensitivity
Lead Time
Price: $11087.00
Lead Time
Price: $9250.00
NYK:400044930917X
NYK:400044901100RX
SE-3 91.7Hz Receiver Module
- Meets or exceeds applicable AREMA® specifications
- Weight is approx. 14.0 lbs. (6.35 kgs.) including hardware
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - 91.7 Hz receiving frequency
- (1) pair DC outputs (to track relay)
- (1) pair local inputs (to inverter)
- (1) pair track inputs (to track transformer)
- 40° ± 20° Phase angle relationship
- 200 - 500 mΩ shunting sensitivity

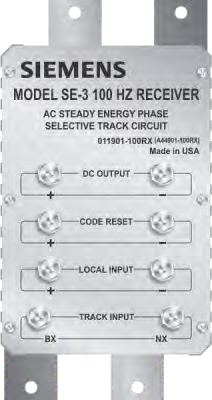

SE-3 100Hz Receiver Module with Code Reset
- Meets or exceeds applicable AREMA® specifications
- Weight is approx. 14.0 lbs. (6.35 kgs.) including hardware
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity
100 Hz receiving frequency - (1) pair DC outputs (to track relay)
- (1) pair local inputs (to inverter)
- (1) pair track inputs (to track transformer)
- (1) pair code reset outputs (to code recognition system)
- 40° ± 20° Phase angle relationship
- 200 - 500 mΩ shunting sensitivity
Lead Time
Price: $14155.00
Lead Time
Price: $8124.00
NYK:400044901100RX
NYK:400044930917RX
SE-3 100Hz Receiver Module
- Meets or exceeds applicable AREMA® specifications
- Weight is approx. 14.0 lbs. (6.35 kgs.) including hardware
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity
100 Hz receiving frequency - (1) pair DC outputs (to track relay)
- (1) pair local inputs (to inverter)
- (1) pair track inputs (to track transformer)
- 40° ± 20° Phase angle relationship
- 200 - 500 mΩ shunting sensitivity
SE-3 91.7Hz Receiver Module with Code Reset
- Meets or exceeds applicable AREMA® specifications
- Weight is approx. 14.0 lbs. (6.35 kgs.) including hardware
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - 91.7 Hz receiving frequency
- (1) pair DC outputs (to track relay)
- (1) pair local inputs (to inverter)
- (1) pair track inputs (to track transformer)
- (1) pair code reset outputs (to code recognition system)
- 40° ± 20° Phase angle relationship
- 200 - 500 mΩ shunting sensitivity
Lead Time
Price: $8124.00
Lead Time
Call for Price
NYK:400044901100X
SE-3 100Hz Receiver Module
- Meets or exceeds applicable AREMA® specifications
- Weight is approx. 14.0 lbs. (6.35 kgs.) including hardware
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - 100 Hz receiving frequency
- (1) pair DC outputs (to track relay)
- (1) pair local inputs (to inverter)
- (1) pair track inputs (to track transformer)
- 40° ± 20° Phase angle relationship
- 200 - 500 mΩ shunting sensitivity
Lead Time
Price: $8370.00
C13 - Track Circuit Systems (ST Series)
Track Circuit Systems Products
Series
Track Feed Reactors
Model A44903 ST-7 Series Track Feed
Reactorshown for reference purposes
only!
Actual unit selected may vary in mounting
and features. SIEMENS ST Series Track
Feed Reactors varies the amount of phase
shift desired in the track circuit. Available
in (3) models with varying inductance loads
to accommodate wide variety of track design
needs.
Track Circuit Systems Products
NYK:400044903000X
NYK:400044909000X
ST-7 Track Feed Reactor
- Meets or exceeds applicable AREMA® specifications
- Weight is approx. 6.5 lbs. (2.95 kgs.) including hardware
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - 0.09 mH - 2.0 mH inductance
ST-7 Track Feed Reactor
- Meets or exceeds applicable AREMA® specifications
- Weight is approx. 6.5 lbs. (2.95 kgs.) including hardware
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - 1.8 mH - 5.7 mH inductance
Lead Time
Price: $2066.00
Lead Time
Price: $1873.00
NYK:400044906000X
ST-7 Track Feed Reactor
- Meets or exceeds applicable AREMA® specifications
- Weight is approx. 6.5 lbs. (2.95 kgs.) including hardware
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - 4.4 mH - 14.1 mH inductance
Lead Time
Price: $2235.00
C17 - Track Circuit Systems (SOTC Series)
Track Circuit Systems Products
Clearguard®
Series
Series Overlay Track Circuit Modules
Model A7A190 SOTC Series Overlay
Track Circuit Module shown for
reference purposes only!
Actual unit selected may vary in mounting and
features. SIEMENS Clearguard® SOTC Series
Overlay Track Circuit modules are an adjustable
length audio frequency track circuit intended
primarily for obtaining release of electrically locked
switches (through a normally deenergized external
relay) by occupying the main track immediately
ahead of the switch points. Compact design is
available in (3) frequencies and except for
primary arresters, no external surge protection
devices are required.
Track Circuit Systems Products
NYK:70007A19026.0
Meets or exceeds applicable AREMA® specifications
- Weight is approx. 4.0 lbs. (1.81 kgs.) including hardware
- Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity - 26.0 KHz
Lead Time
Call for Price
D1 - Foundation Products (Anchor Bolts)
Foundation Products
Poured In Ground
Model A131702 Anchor Bolt shown for reference
purposes only! Actual unit selected may vary in
mounting and features. Anchor Bolts Poured In
Ground
SIEMENS Anchor Bolts are of steel construction,
galvanized to help prevent corrosion. All assemblies
listed include one galvanized steel wrought washer
and hex nut.
Foundation Products
Hook Type Anchor Bolts
Siemens Part Number | Overall Length | Overall Height | Threaded Length A | Threaded Pitch | Barrel Diameter | Weight |
| NYK:131702-4X | 9 in (22.86 cm) | 4 1/4 in (10.80 cm) | 3 in (7.62 cm) | 3/4-10 | 3/4 in (1.91 cm) | 0.7 lbs (0.32 kgs) |
| NYK:131702-18X | 9 1/2 in (24.13 cm) | 4 in (10.16 cm) | 3 in (7.62 cm) | 3/4-10 | 3/4 in (1.97 cm) | 0.6 lbs (0.27 kgs) |
| NYK:131702-1X | 12 in (30.48 cm) | 4 1/4 in (10.80 cm) | 3 in (7.62 cm) | 1/2-13 | 1/2 in (1.27 cm) | 1.2 lbs (0.54 kgs) |
| NYK:131702-2X | 12 in (30.48 cm) | 4 1/4 in (10.80 cm) | 3 in (7.62 cm) | 3/4-10 | 3/4 in (1.97 cm) | 3/4 in (1.97 cm) |
| NYK:131702-3X | 12 in (30.48 cm) | 4 1/4 in (10.80 cm) | 3 in (7.62 cm) | 1-8 | 1 in (2.54 cm) | 1.8 lbs (0.82 kgs) |
| NYK:131702-6X | 16 in (40.64 cm) | 4 3/8 in (10.80 cm) | 3 in (7.62 cm) | 3/4-10 | 3/4 in (1.97 cm) | 1.8 lbs (0.82 kgs) |
| NYK:131702-7X | 16 in (40.64 cm) | 4 3/8 in (10.80 cm) | 3 in (7.62 cm) | 1-8 | 1 in (2.54 cm) | 2.0 lbs (0.91 kgs) |
| NYK:131702-15X | 18 in (25.72 cm) | 4 in (10.16 cm) | 3 in (7.62 cm) | 3/4-10 | 3/4 in (1.97 cm) | 2.0 lbs (0.91 kgs) |
| NYK:131702-10X | 20 in (50.80 cm) | 4 in (10.16 cm) | 1 1/2 in (3.81 cm) | 1/2-13 | 1/2 in (1.27 cm) | 1.8 lbs (0.82 kgs) |
| NYK:131702-14X | 24 in (60.96 cm) | 4 in (10.16 cm) | 3 in (7.62 cm) | 3/4-10 | 3/4 in (1.97 cm) | 2.2 lbs (0.99 kgs) |
| NYK:131702-26X | 36 in (91.44 cm) | 5 3/8 in (13.67 cm) | 5 1/2 in (13.97 cm) | 1-8 | 1 in (2.54 cm) | 3.6 lbs (1.63 kgs) |
| NYK:131702-19X | 36 in (91.44 cm) | 4 in (10.16 cm) | 2 in (5.08 cm) | 1 1/4-7 | 1 1/4 in (3.15 cm) | 3.2 lbs (1.45 kgs) |
| NYK:131702-11X | 42 in (106.68 cm) | 4 in (10.16 cm) | 2 in (5.08 cm) | 1 1/4-7 | 1 1/4 in (3.15 cm) | 3.6 lbs (1.63 kgs) |
| NYK:131702-48X | 42 in (106.68 cm) | 6 in (15.24 cm) | 6 1/2 in (16.51 cm) | 1 1/2-6 | 1 1/2 in (3.81 cm) | 4.2 lbs (1.91 kgs) |
| NYK:131702-96X | 54 in (137.16 cm) | 6 in (15.24 cm) | 6 1/2 in (16.51 cm) | 1 1/2-6 | 1 1/2 in (3.81 cm) | 5.5 lbs (2.49 kgs) |
| NYK:131702-16X | 60 in (152.40 cm) | 4 in (10.16 cm) | 2 in (5.08 cm) | 1-8 | 1in (2.54 cm) | 4.2 lbs (1.91 kgs) |
| NYK:131702-13X | 60 in (152.40 cm) | 6 in (15.24 cm) | 5 1/2 in (13.97 cm) | 1-8 | 1in (2.54 cm) | 6.2 lbs (2.81 kgs) |
| NYK:131702-22X | 74 in (187.96 cm) | 6 3/8 in (16.21 cm) | 3 1/2 in (8.89 cm) | 1 1/4-7 | 1 1/4 in (3.15 cm) | 5.5 lbs (2.49 kgs) |
| NYK:131702-23X | 74 in (187.96 cm) | 6 3/8 in (16.21 cm) | 8 in (20.32 cm) | 1 1/4-7 | 1 1/4 in (3.15 cm) | 11.2 lbs (5.08 kgs) |
| NYK:131702-21X | 87 in (220.98 cm) | 4 in (10.16 cm) | 2 in (5.08 cm) | 1 1/4-7 | 1 1/4 in (3.15 cm) | 8.4 lbs (3.81 kgs) |
| NYK:131702-20X | 120 in (304.80 cm) | 6 in (15.24 cm) | 5 1/2 in (13.97 cm) | 1-8 | 1in (2.54 cm) | 12.2 lbs (5.5 kgs) |
Siemens Part Number | Overall Length | Overall Height | Threaded Length A | Threaded Pitch | Barrel Diameter | Weight |
| NYK:131702-4X | 45 1/4 in (114.94 cm) | 2 1/4 in (5.72 cm) | 1 in (2.54 cm) | 1-8 | 1 in (2.54 cm) | 4.2 lbs (1.91 kgs) |
| NYK:131702-18X | 57 1/4 in (145.42 cm) | 2 1/4 in (5.72 cm) | 1 in (2.54 cm) | 1-8 | 1 in (2.54 cm) | 5.6 lbs (2.54 kgs) |
| NYK:131702-1X | 69 1/4 in (175.90 cm) | 2 1/4 in (5.72 cm) | 1 in (2.54 cm) | 1/2-13 | 1/2 in (1.27 cm) | 6.6 lbs (2.99 kgs) |
| NYK:131702-3X | 81 1/4 in (206.38 cm) | 2 1/4 in (5.72 cm) | 1 in (2.54 cm) | 1-8 | 1 in (2.54 cm) | 7.4 lb (3.36 kgs) |
D5 - Signal Foundation Products
Foundation Products
Structural
Model A035903 Structural Foundation - Square Type
shown for reference purposes only!
Actual unit selected may vary in
mounting and features.
SIEMENS Structural foundations are constructed of
2 1/2” X 2 1/2” x 1/4” steel angle and 1/4” inch steel plate
welded together, then galvanize finished for durability.
Wayside signal foundations have 3/4"-10 X 2 3/4” long
mounting bolts and will accommodate 8” X 8”,
6 3/4” X 6-3/4” and 6” X 8” inch bolt spacings.
Flashing Light Signal foundations have 3/4"-10 X 2 3/4”
long mounting bolts and will accommodate
9 1/2” X 9 1/2” and 11 11/16” X 11 11/16” inch bolt
spacings.
Also, they are equipped with cable riser assemblies
which provide a protective wire chase to either the
split or junction box type base.
Foundation Products
NYK:035903-911-1X
NYK:035903-911-3X
Pier Foundation 48” (121.92 cm) Tall w/ Riser
● Weight is approx. 155.0 lbs. (70.31 kgs.)
● Sturdy steel construction
● (1) 035908-1X Cable riser assembly
Pier Foundation 60” (152.40 cm) Tall w/ Riser
● Weight is approx. 240.0 lbs. (108.86 kgs.)
● Sturdy steel construction
● (1) 035908-1X Cable riser assembly
Lead Time
Price: $3286.00
Lead Time
Price: $1665.00
NYK:035903-200X
NYK:035903-500X
Pier Foundation 48” (121.92 cm) Tall w/ Riser
● Weight is approx. 155.0 lbs. (70.31 kgs.)
● Sturdy steel construction
● (1) 035908-1X Cable riser assembly
Pyramid Foundation 60” (152.40 cm) Tall w/ Riser
● Weight is approx. 250.0 lbs. (113.40 kgs.)
● Sturdy steel construction
● (1) 035908-1X Cable riser assembly
Lead Time
Price: $3149.00
Lead Time
Price: $2391.00
NYK:035800-2X
NYK:035900-X
Triangle Pier Foundation 48” (121.92 cm) Tall
● Weight is approx. 60.0 lbs. (27.22 kgs.)
● Sturdy steel construction
Block Pier Foundation 48” (121.92 cm) Tall
● Weight is approx. 124.0 lbs. (56.25 kgs.)
● Sturdy steel construction
Lead Time
Call for Price
Lead Time
Price: $1397.00
E1 - Electromechanical Power Products (CXP3)
Electromechanical Power Products
Series
Track Circuit Uninterruptible Power Supply
Model A44350 shown for reference
purposes only! Actual unit selected
may vary in mounting and
features.
SIEMENS Track Circuit Uninterruptible Power Supply
(CXP-3) offers a track feed transformer, a power
transfer relay and a standby inverter all in a single
compact housing.
When used as part of a Type C track circuit, the
CXP-3 acts as a track feed transformer and is
operated utilizing 115 VAC input power.
When unforseen AC power interruptions occur,
the CXP-3 converts standby battery power to output
voltage matching the same RMS value as the output
would see under normal operating conditions.
The standby inverter is activated through the internal
power transfer relay, which is triggered AC power is lost
and operates at high efficiency (88% at half power) to
maximize run time on battery life.
The operating frequency is maintained to within 1 Hz
of nominal power consumption under any normal voltage,
load or temperature condition.
Surge protection for solid state circuitry consists of
(7) separate stages, including metal oxide varistors
(MOV’s), transorbs, zeners, inductors and capacitors.
All electronic components are isolated from chassis and
outputs are isolated from the operating battery.
NYK:400044350006X
● Meets or exceeds applicable AREMA®
specifications on recommended
practices regarding 3000 VAC
breakdown voltage.
● Easily mountable on standard relay
racks, instrument house backboards
or can even be shelf mounted when
removing included mounting bracket
● Weight is approx. 15 lbs. (6.80 kgs.)
including connectors
● Operates in -40º F to +160º F (-40ºC
to +70ºC) @ up to
95% Non-Condensing Relative
Humidity
●6.3 VAC 3.5 Amp power supply
● (1) 15 Amp battery fuse
● (1) 1.5 Amp line fuse
● (4) Output battery connections
● 115 VAC Input connection
● 12 VDC Input connection
Lead Time
Price: $3150.00
E3 - Electromechanical Power Products (ST-200-1)
Electromechanical Power Products
Series
Track Transformers
Model A44562 ST-200-1 Series Track Transformer
shown for reference purposes only! Actual unit
selected may vary in mounting and features.
SIEMENS ST-200-1 Track Transformer
is a 200 VA, 60 Hz to 250 Hz transformer,
developed for use with Siemens SE-3 Track
Circuits.
It may also be used as a general purpose
step up, or step down transformer for many
applications. It has a two terminal track
winding which will accept or deliver up to
12 volts (16 amps). The two terminal receiver
winding is isolated from the former,
and will accept or deliver up to 120 volts
(1.6 amps). The ST-200-1 is mounted in an
aluminum extruded housing, which
provides excellent heat transfer from the
windings, and also allows flexibility in mounting.
Tab brackets located in slots in the extrusion,
allow mounting directly to a relay rack, where
the transformer mounts in the same space as
an ST-2 relay frame footprint.
Tab brackets can be easily relocated for
backboard or shelf mounting as well.
Terminals are the standard AREMA® post type,
rather than the commercial spade type.
Call For Availability
E5 - Electromechanical Power Products (ST-400)
Electromechanical Power Products
Series
Signal / Track Transformers
Model A44560
shown for reference purposes only!
Actual unit selected may vary in mounting and features.
SIEMENS ST-400 Signal / Track Transformer is a 400
VA, 60 Hz to200 Hz transformer, developed for use
with SIEMENS SE-3 Track Circuits.
It may also be used as a general purpose step
up, or step dow transformer for many applications.
It has a two terminal track winding which will accept
or deliver up to 12 volts (16 amps).
The two terminal receiver winding is isolated from
the former, and will accept or deliver up to 120 volts
(1.6 amps). The ST-400 is mounted in an aluminum
extruded housing, which provides excellent heat
transfer from the windings, and also allows
flexibility in mounting. Tab brackets located in
slots in the extrusion, allow mounting directly to a
relay rack, where the transformer mounts in the
same space as an ST-2 relay frame footprint.
Tab brackets can be easily relocated for backboard
or shelf mounting as well. Terminals are the standard
AREMA® post type, rather than the commercial
spade type.
Assemblies and Dimensions
Siemens Part Number | Output Voltage | Primary Tap / Voltage Amperage | Secondary Tap / Voltage Amperage | Hertz | Weight |
| NYK:010560-X | 396 VA Max. | 120 VAC / 1.65 A | 18 VAC, 11.0 A | 50 / 200 | 27.0 lbs (12.25 kgs.) |
| NYK:010560-X-1 | 396 VA Max. | 120 VAC / 1.65 A | 18 VAC, 11.0 A | 50 / 200 | 20.0 lbs (9.07 kgs.) |
| NYK:010560-X-2 | 400 VA Max. | 120 VAC / 3.30 A | 18 VAC, 22.0 A | 60 / 200 | 27.0 lbs (12.25 kgs.) |
E7 - Electromechanical Power Products (SLT Series)
Electromechanical Power Products
Series
Fixed Signal Lighting Transformers

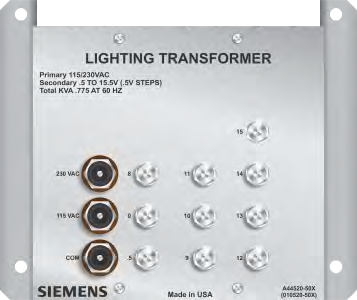

Model A44520 SLT Series Fixed Signal Lighting
Transformershown for reference purposes only!
Actual unit selected may vary in mounting and
features.
SIEMENS Fixed Lighting Transformers (SLT Series)
are available in two models of 20 and 50 amperes.
Secondary voltage taps are provided for 1 to 15.5 VAC.
Excellent voltage regulation is assured through use of
heavy cores and windings. These transformers may
be shelf, backboard, or relay rack mounted.
Terminals are the standard AREMA® post type,
rather than the commercial spade type.
SLT Fixed Signal Lighting Transformers
Siemens Part Number | Primary Voltage | Secondary Voltage | Output Amperage | Weight |
| NYK:400044520020X | 115 / 230 VAC | 1 - 15.5 VAC | 20 A | 15.0 lbs (6.80 kgs.) |
| NYK:400044520050X | 115 / 230 VAC | 1 - 15.5 VAC | 50 A | 27.0 lbs (12.25 kgs.) |
E9 - Electromechanical Power Products (LT Series)
Electromechanical Power Products
Series
Lighting Transformers
Model A44599 LT Series Lighting Transformer
shown for reference purposes only!
Actual unit selected may vary in mounting
and features.
SIEMENS Lighting Transformers (LT Series)
are availablein two models of 20 and 50 amperes.
Secondary voltage taps are provided for 1 to 15.5 VAC.
Excellent voltage regulation is assured through
use of heavy cores and windings. These transformers
may be shelf, backboard, or relay rack mounted.
Terminals are the standard AREMA® post type,
rather than the commercial spade type.
LT Series - Lighting Transformers
Siemens Part Number | Primary Voltage | Secondary Voltage | Output Amperage | Weight |
| NYK:400044599106X | 115 VAC | 0.2 - 13.5 VAC | 5 A | 4.0 lbs. (1.81 kgs.) |
| NYK:400044599110X | 115 VAC | 4.0 - 24.0 VAC | 50 A | 4.0 lbs. (1.81 kgs.) |
E11 - Electromechanical Power Products (SJ Series)
Electromechanical Power Products
Series
Battery Chargers
Model A04863 SJ Series Battery Charger shown
for reference purposes only! Actual unit selected
may vary in mounting and features.
SIEMENS Battery Charger (SJ) Series offers
long term, reliable charge maintenance of lead
acid and nickle cadmium (NiCad) batteries and
are ideally suited where remote installation,
extreme temperatures and minimal maintainer
involvement is expected.
● (2) Battery selection modes
Lead Acid or Nickle Cadmium (NiCad)
● (2) Operation modes
Constant Current or Constant Voltage
● Float voltage can be adjusted with the
battery connected. (When in Constant
Voltage mode)
● Pushbutton to display voltage on demand
● LED indicators and digital display
● Supplied with transient suppression
devices across the input and output
terminals
SJ Series - Battery Chargers
Siemens Part Number | Primary Voltage (VAC) | Output Voltage (VDC) | Output Current | Current Limit | Cell Selection Range | Weight |
| NYK:Z927048610000 | 8.2 A @ 115 4.1 A @ 230 | 10.0 - 18.8 (Lead Acid) 6.5 - 19.0 (NiCad) | 20 A | 21.5 (± 5%) | 5-8 (Lead Acid) 15-12 (NiCad) | 27.0 lbs (12.25 kgs.) |
| NYK:Z927048630030 | 24.6 A @ 115 12.3 A @ 230 | 22.0 - 42.4 (Lead Acid) 27.7 - 41.0 (NiCad) | 30 A | 32.0 (± 5%) | 5-8 (Lead Acid) 15-12 (NiCad) | 60.0 lbs (27.22 kgs.) |
| NYK:Z927048630040 | 16.4 A @ 115 8.2 A @ 230 | 10.0 - 18.9 (Lead Acid) 6.5 - 19.0 (NiCad | 40 A | 43.0 (± 5%) | 5-8 (Lead Acid) 15-12 (NiCad) | 45.0 lbs (20.41 kgs.) |
| Optional Accessories | ||||||
Siemens Part Number | Description | |||||
| NYK:052619-1 | Lagdown brace | |||||
| NYK:3250775319 | Temperature probe with 12’ (3.66 m) cable | |||||
| NYK:3250775328 | Temperature probe with 15’ (4.57 m) cable | |||||
E13 - Electromechanical Stabilization (Air Gap Arresters)
Electromechanical Stabilization Products
Clearview®
Electrical Circuits (Standard Duty)

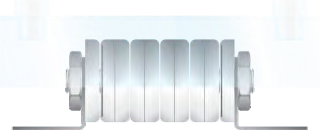

Model A44485 Clearview® Air Gap Arrester
shown for reference purposes only!
Actual unit selected may vary in mounting and features.
SIEMENS Clearview® Air Gap Arresters for
Electrical Circuits (Standard Duty) have a
significant safety factor against shorting
because of the open tooth discharge point
electrode design. Operating on 0-50 VDC for
use on all low voltage signal circuits
and 0-175 VAC for 115 VAC power circuits.
Unit has a consistent breakdown voltage of
700 - 1000 volts. Clearly marked with
CLEARVIEW stamped on the mounting leg for
identification and protected with a clear lexan cap.
Easily mounts to racks, panels and/or bars due to
the standard 2 3/8” mounting centers
Electromechanical Stabilization Products
NYK:Z820000140000
NYK:400044485036X
Clear Air Gap Arrester Cover
· Meets or exceeds applicable AREMA®
specifications
· Weight is approx. 0.2 lbs. (0.09 kgs.)
including connectors
· Clear lexan construction
Air Gap Arrester Basic Assembly w/o Cover w/ Buss Connector
● Meets or exceeds applicable AREMA® specifications
● Weight is approx. 0.5 lbs. (0.23 kgs.) including connectors
● Operates in -40º F to +160º F (-40ºC to +70ºC) @ up to
95% Non-Condensing Relative Humidity
● NO protective cap
● (1) Clearview® discharge unit
● (1) set mounting legs
● (1) NYK:023839-3 connector buss link
● (2) NYK:023832 AAR clamp nuts
Lead Time
Price: $1.12
Lead Time
Price: $43.30
NYK:40004448528AX
NYK:400044485028X
Air Gap Arrester Basic Assembly w/ Cover
● Meets or exceeds applicable AREMA® specifications
● Weight is approx. 0.7 lbs. (0.32 kgs.) including connectors
● Operates in -40º F to +160º F (-40ºC to +70ºC) @ up to
95% Non-Condensing Relative Humidity
● (1) NYK:Z820000140000 clear lexan protective cap
● (1) Clearview® discharge unit
● (1) set mounting legs
Air Gap Arrester Basic Assembly w/ Cover and Buss Connector
● Meets or exceeds applicable AREMA® specifications
● Weight is approx. 1.0 lbs. (0.45 kgs.) including connectors
● Operates in -40º F to +160º F (-40ºC to +70ºC) @ up to
95% Non-Condensing Relative Humidity
● (1) NYK:Z820000140000 clear lexan protective cap
● (1) Clearview® discharge unit
● (1) set mounting legs
● (1) NYK:023839-3 connector buss link
● (2) NYK:023832 AAR clamp nuts
Lead Time
Price: $39.90
Lead Time
Price: $41.10
NYK:40004448528X1
NYK:400044485031X
Air Gap Arrester Basic Assembly w/ Cover and
Buss Connector
● Meets or exceeds applicable AREMA®
specifications
● Weight is approx. 1.0 lbs. (0.45 kgs.) including
connectors
● Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity
● (1) NYK:Z820000140000 clear lexan protective
cap
● (1) Clearview® discharge unit
● (1) set mounting legs
● (1) NYK:023839-2 connector buss link
● (2) NYK:023832 AAR clamp nuts
Air Gap Arrester Basic Assembly w/ (2) Post Bakelite Base
● Meets or exceeds applicable AREMA® specifications
● Weight is approx. 2.0 lbs. (0.91 kgs.) including connectors
● Operates in -40º F to +160º F (-40ºC to +70ºC) @ up to
95% Non-Condensing Relative Humidity
● (1) NYK:Z820000140000 clear lexan protective cap
● (1) Clearview® discharge unit
● (1) set mounting legs
● (1) NYK:023839-3 connector buss link
● (4) NYK:023831 AAR binding nuts
● (6) NYK:023834 AAR beveled washers
● (2) NYK:023832 AAR clamp nuts
● (1) NYK:Z820000300000 molded bakelite base
Lead Time
Price: $39.60
Lead Time
Price: $48.60
NYK:400044485032X
NYK:400044485033X
Air Gap Arrester Basic Assembly w/ (2) Post Porcelain Base
● Meets or exceeds applicable AREMA® specifications
● Weight is approx. 2.2 lbs. (1.00 kgs.) including connectors
● Operates in -40º F to +160º F (-40ºC to +70ºC) @ up to
95% Non-Condensing Relative Humidity
● (1) NYK:Z820000140000 clear lexan protective cap
● (1) Clearview® discharge unit
● (1) set mounting legs
● (1) NYK:023839-3 connector buss link
● (4) NYK:023831 AAR binding nuts
● (6) NYK:023834 AAR beveled washers
● (2) NYK:023832 AAR clamp nuts
● (1) NYK:400044485005X porcelain base
Air Gap Arrester Basic Assembly w/ (3) Post Porcelain Base
● Meets or exceeds applicable AREMA® specifications
● Weight is approx. 2.6 lbs. (1.18 kgs.) including connectors
● Operates in -40º F to +160º F (-40ºC to +70ºC) @ up to
95% Non-Condensing Relative Humidity
● (1) NYK:Z820000140000 clear lexan protective cap
● (1) Clearview® discharge unit
● (1) set mounting legs
● (1) NYK:023839-3 connector buss link
● (6) NYK:023831 AAR binding nuts
● (6) NYK:023834 AAR beveled washers
● (2) NYK:023832 AAR clamp nuts
● (1) NYK:4000-44485-005X porcelain base
Lead Time
Price: $102.00
Lead Time
Price: $94.90
E17 - Electromechanical Stabilization (Air Gap Arresters Heavy Duty)
Electromechanical Stabilization Products
Clearview®
Electrical Circuits (Heavy Duty)
Model A44485 Clearview® Air Gap Arrester
shown for reference purposes only!
Actual unit selected may vary in mounting and features.
SIEMENS Clearview® Air Gap Arresters for Electrical
Circuits (Heavy Duty) have a significant safety factor
against shorting because of the discharge unit has
circular rather than point discharge electrodes.
Operating on 0-50 VDC for use on all low voltage
signal circuits and 0-175 VAC for 115 VAC power
circuits. Unit has a consistent breakdown voltage
of 700 - 1000 volts. Clearly marked with CLEARVIEW
HD stamped on the mounting leg for identification
and protected with a clear lexan cap. Easily
mounts to racks, panels and/or bars due to the
standard 2 3/8” mounting centers.
Electromechanical Stabilization Products
NYK:400044585001X
NYK:400044585003X
Air Gap Arrester Heavy Duty Assembly w/ Cover
● Meets or exceeds applicable AREMA®
specifications
● Weight is approx. 0.7 lbs. (0.32 kgs.) including
connectors
● Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity
● (1) NYK:Z820000140000 Clear lexan protective cap
● (1) Clearview® heavy duty discharge unit
● (1) set mounting legs
Air Gap Arrester Heavy Duty Assembly w/ (2)
Post Bakelite Base
● Meets or exceeds applicable AREMA®
specifications
● Weight is approx. 2.0 lbs. (0.91 kgs.)
including connectors
● Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity
● (1) NYK:Z820000140000 Clear lexan protective
cap
● (1) Clearview® heavy duty discharge unit
● (1) set mounting legs
● (1) NYK:023839-3 connector buss link
● (4) NYK:023831 AAR binding nuts
● (6) NYK:023834AAR beveled washers
● (2) NYK:023832 AAR 14-24 clamp nuts
● (1) NYK:Z820000300000 molded
bakelite base
Lead Time
Price: $82.00
Lead Time
Price: $121.00
NYK:400044585004X
NYK:400044585005X
Air Gap Arrester Heavy Duty Assembly w/ Hardware
● Meets or exceeds applicable AREMA®
specifications
● Weight is approx. 2.0 lbs. (0.91 kgs.) including
connectors
● Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity
● (1) NYK:Z820000140000 clear lexan protective cap
● (1) Clearview® heavy duty discharge unit
● (1) set mounting legs
● (4) NYK:023831 AAR binding nuts
● (4) NYK:023834 AAR beveled washers
● (2) NYK:023832 AAR clamp nuts
Air Gap Arrester Heavy Duty Assembly w/ Hardware
● Meets or exceeds applicable AREMA®
specifications
● Weight is approx. 2.0 lbs. (0.91 kgs.)
including connectors
● Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity
● (1) NYK:Z820000140000 clear lexan
protective cap
● (1) Clearview® heavy duty discharge unit
● (1) set mounting legs
● (6) NYK:023831 AAR binding nuts
● (6) NYK:023834 AAR beveled washers
● (2) NYK:023832 AAR clamp nuts
Lead Time
Price: $138.00
Lead Time
Price: $128.00
E19 - Electromechanical Stabilization (Air Gap Arresters Communication Circuits)
Electromechanical Stabilization Products
Clearcomm®
Communication Circuits (Standard Duty)
Model A44485 Clearcomm®
Air Gap Arrester shown for reference
purposes only! Actual unit selected
may vary in mounting and features.
SIEMENS Clearcomm® Air Gap Arrester
for Communication Circuits have a significant
safety factor against shorting because of the
open tooth discharge point electrode design.
Operating on 0-50 VDC for use on all low
voltage signal circuits and 0-175 VAC
for 115 VAC power circuits. Unit has a
consistent breakdown voltage of 700 -
1000 volts. Clearly marked with
CLEARCOMM stamped on the
mounting leg for identification and
protected with a clear lexan cap.
Easily mounts to racks, panels and/or
bars due to the standard 2 3/8” mounting
centers.
Electromechanical Stabilization Products
NYK:400044485054X
NYK:400044485050X
Air Gap Arrester Basic Assembly w/o Cover (Communications)
● Meets or exceeds applicable AREMA® specifications
● Weight is approx. 0.5 lbs. (0.23 kgs.) including connectors
● Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity
● NO protective cap
● (1) Clearcomm® discharge unit
● (1) set mounting legs
● (1) NYK:023839-3 connector buss link
● (2) NYK:023832 AAR clamp nuts
Air Gap Arrester Basic Assembly w/ Cover and
Buss Connector (Communications)
● Meets or exceeds applicable AREMA® specifications
● Weight is approx. 0.5 lbs. (0.23 kgs.) including connectors
● Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity
● (1) NYK:Z820000140000 clear lexan protective cap
● (1) Clearcomm® discharge unit
● (1) set mounting legs
● (1) NYK:023839-3 connector buss link
● (2) NYK:023832 AAR clamp nuts
Lead Time
Price: $98.20
Lead Time
Price: $66.30
NYK:40004448550X1
NYK:400044485051X
Air Gap Arrester Basic Assembly w/ Cover and
Buss Connector (Communications)
● Meets or exceeds applicable AREMA®
specifications
● Weight is approx. 1.0 lbs. (0.45 kgs.)
including connectors
● Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity
● (1) NYK:Z820000140000 clear lexan protective cap
● (1) Clearcomm® discharge unit
● (1) set mounting legs
● (1) NYK:023839-2 connector buss link
● (2) NYK:023832 AAR 14-24 clamp nuts
Air Gap Arrester Basic Assembly w/ (2) Post
Bakelite Base (Communications)
● Meets or exceeds applicable AREMA®
specifications
● Weight is approx. 2.0 lbs. (0.91 kgs.)
including connectors
● Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity
● (1) NYK:Z820000140000 clear lexan protective cap
● (1) Clearcomm® discharge unit
● (1) set mounting legs
● (4) NYK:023831 AAR binding nuts
● (6) NYK:023834 AAR beveled washers
● (2) NYK:023832 AAR clamp nuts
● (1) NYK:Z820000300000 molded bakelite base
Lead Time
Price: $114.00
Lead Time
Price: $79.30
NYK:400044485053X
Air Gap Arrester Basic Assembly w/ (3) Post
Porcelain Base (Communications)
● Meets or exceeds applicable AREMA®
specifications
● Weight is approx. 2.6 lbs. (1.18 kgs.)
including connectors
● Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity
● (1) NYK:Z820000140000 clear lexan protective cap
● (1) Clearcomm® discharge unit
● (1) set mounting legs
● (1) NYK:023839-3 connector buss link
● (6) NYK:023831 AAR binding nuts
● (6) NYK:023834 AAR beveled washers
● (2) NYK:023832 AAR clamp nuts
● (1) NYK:400044485005X porcelain base
Lead Time
Price: $96.49
E23 - Electromechanical Stabilization (Air Gap Equalizers)
Electromechanical Stabilization Products
Clearview®
Electrical Circuits (Standard Duty)
Model A44700 Clearview® Air Gap Equalizer
shown for reference purposes only!
Actual unit selected may vary in mounting and features.
SIEMENS Clearview® Air Gap Equalizer is a
closed circuit shunt type protector for use on
up to 24 VDC circuits with a minimum
resistance of 1000 Ω. Clearly marked with
EQUALIZER stamped on the mounting leg for
identification and protected with a red lexan
cap. Easily mounts to racks, panels and/or
bars due to the standard 2 3/8” mounting
centers. Sealed equalizer designs are also
available for when equipment has the
potential to be exposed to moisture.
Electromechanical Stabilization Products
NYK:400044700007X
NYK:40004470001AX
Air Gap Equalizer Basic Assembly w/o Cover w/ Hardware
● Meets or exceeds applicable AREMA®
specifications
● Weight is approx. 0.5 lbs. (0.23 kgs.)
including connectors
● Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity
● NO protective cap
● (1) Equalizer discharge unit
● (1) set mounting legs
● (1) NYK:023839-3 connector buss link
● (2) NYK:023832 AAR clamp nuts
Air Gap Equalizer Basic Assembly w/ Cover
● Meets or exceeds applicable AREMA®
specifications
● Weight is approx. 0.7 lbs. (0.32 kgs.) including
connectors
● Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity
● (1) NYK:Z820000280000 red lexan protective cap
● (1) Equalizer discharge unit
● (1) set mounting legs
Lead Time
Price: $35.10
Lead Time
Price: $34.20
NYK:400044700001X
NYK:40004470001X1
Air Gap Equalizer Basic Assembly w/ Cover and Hardware
● Meets or exceeds applicable AREMA®
specifications
● Weight is approx. 1.0 lbs. (0.45 kgs.)
including connectors
● Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity
● (1) NYK:Z820000280000 red lexan protective cap
● (1) Equalizer discharge unit
● (1) set mounting legs
● (2) NYK:023832 AAR clamp nuts
● (1) NYK:023839-3 connector buss link
Air Gap Equalizer Basic Assembly w/ Cover and Hardware
● Meets or exceeds applicable AREMA®
specifications
● Weight is approx. 1.0 lbs. (0.45 kgs.) including
connectors
● Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity
● (1) NYK:Z820000280000 red lexan protective cap
● (1) Equalizer discharge unit
● (1) set mounting legs
● (1) NYK:023839-2 connector buss link
● (2) NYK:023832 AAR clamp nuts
Lead Time
Price: $33.70
Lead Time
Price: $49.30
NYK:400044700005X
NYK:400044700002X
Air Gap Equalizer Basic Assembly w/ (2) Post
Bakelite Base
● Meets or exceeds applicable AREMA®
specifications
● Weight is approx. 2.0 lbs. (0.91 kgs.)
including connectors
● Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity
● (1) NYK:Z820000280000 red lexan protective cap
● (1) Equalizer discharge unit
● (1) set mounting legs
● (4) NYK:023831 AAR binding nuts
● (6) NYK:023834 AAR beveled washers
● (2) NYK:023832 AAR clamp nuts
● (1) NYK:Z820000300000 molded bakelite base
Air Gap Equalizer Basic Assembly w/ (2) Post
Porcelain Base
● Meets or exceeds applicable AREMA®
specifications
● Weight is approx. 2.2 lbs. (1.00 kgs.) including
connectors
● Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity
● (1) NYK:Z820000280000 red lexan protective cap
● (1) Equalizer discharge unit
● (1) set mounting legs
● (4) NYK:023831 AAR binding nuts
● (6) NYK:023834 AAR beveled washers
● (2) NYK:023832 AAR clamp nuts
● (1) NYK:40004421708X1 porcelain base
Lead Time
Price: $43.50
Lead Time
Price: $83.30
NYK:400044700033X
NYK:400044700032X
Rope Equalizer 3 5/8”
● Meets or exceeds applicable AREMA®
specifications
● Weight is approx. 0.7 lbs. (0.32 kgs.) including
connectors
● Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative
Humidity
● NO protective cap
● (1) Equalizer discharge unit
● (1) 023839-3 connector buss link
● (1) 10 AWG blue wire
● (2) 024628-17F terminal rings
Rope Equalizer 3 3/4”
● Meets or exceeds applicable AREMA®
specifications
● Weight is approx. 0.7 lbs. (0.32 kgs.)
including connectors
● Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative
Humidity
● NO protective cap
● (1) Equalizer discharge unit
● (1) mounting clip
● (1) 10 AWG blue wire
● (2) 024628-17F terminal rings
Lead Time
Price: $32.80
Lead Time
Price: $71.60
NYK:400044700031X
NYK:400044700021X
Rope Equalizer 8 1/2”
● Meets or exceeds applicable AREMA®
specifications
● Weight is approx. 0.7 lbs. (0.32 kgs.)
including connectors
● Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative
Humidity
● NO protective cap
● (1) Equalizer discharge unit
● (1) mounting clip
● (1) 10 AWG blue wire
● (2) 024628-17F terminal rings
Blade Equalizer 2 1/2”
● Meets or exceeds applicable AREMA®
specifications
● Weight is approx. 0.7 lbs. (0.32 kgs.)
including connectors
● Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative
Humidity
● 2000 Ω resistance minimum
● NO protective cap
● (2) Equalizer discharge units
● (1) pair SA mounting legs
Lead Time
Price: $71.60
Lead Time
Price: $34.90
NYK:400044700046X
Blade Equalizer 2 1/2”
● Meets or exceeds applicable AREMA®
specifications
● Weight is approx. 0.7 lbs. (0.32 kgs.)
including connectors
● Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing
Relative Humidity
● 2000 Ω resistance minimum
● NO protective cap
● (2) Equalizer discharge units
● (1) pair SE mounting legs
Lead Time
Price: $43.20
E31 - Electromechanical Stabilization (701-1)
Electromechanical Stabilization Products
Series
AC Power Line Protectors
Model A29245 701-1 Series AC Power Line
Protector shown for reference purposes only!
Actual unit selected may vary in mounting
and features.
SIEMENS AC Power Line Protector, model 701-1
is a shunt type heavy duty arrester for AC power
lines. Applied across the incoming AC power leads,
this unit is designed to shunt the surge and recover
to normal under full AC power. No fuses or
disconnects are required to protect this arrester. For
supply transformers up to 1 KVA at 115 VAC, the
transformer provides adequate series reactance to
limit follow-through current. For capacities greater
than 1 KVA at 115 VAC, two 701-1 protectors must
be used in series to limit current so that the
protectors can recover after a surge.
This unit has a 1000 V breakdown between its
terminals. SIEMENS AC Power Line Protector, model
701-1, can be furnished either as a single unit for
mounting on 3-1/8 inch centers, or mounted on
bakelite base. The Model 701-1 protector is the
same protector as used on the AC Line Surge
Protection Networks; therefore, this unit may be used
as a direct replacement part for those networks.
For 230 VAC systems, two 701-1 protectors must
be used in series.
Electromechanical Stabilization Products
NYK:4000447010000
NYK:400044701001X
Discharge Unit
● Weight is approx. 0.6 lbs. (0.27 kgs.)
● 115 VAC protection
Discharge Unit w/ Cover
● Weight is approx. 1.3 lbs. (0.27 kgs.)
● 115 VAC protection
● (1) NYK:4000447010000 discharge unit
● (1) NYK:022701-4 plastic cap
Lead Time
Price: $89.60
Lead Time
Price: $122.00
NYK:400044701002X
NYK:400044701029X
Discharge Unit w/ Cover and (2) Post Bakelite Base
● Weight is approx. 3.6 lbs. (1.63 kgs.)
● 115 VAC protection
● (1) NYK:4000447010000 discharge units
● (1) NYK:022701-4 plastic cap
● (1) NYK:Z820000310000 bakelite terminal block base
Discharge Unit w/ Cover
● Weight is approx. 1.3 lbs. (0.27 kgs.)
● 115 VAC protection
● (1) NYK:4000447010000 discharge unit
● (1) NYK:022701-4 plastic cap
Lead Time
Price: $139.00
Lead Time
Price: $69.67
E35 - Electromechanical Systems Electromechanical Stabilization Products
Electromechanical Stabilization Products
SSSP
Series
Solid State Surge Protectors
Model A44817 Series
shown for reference purposes only!
Actual unit selected may vary in
mounting and features.
SIEMENS SSP Series is a closed circuit shunt type
protector designed to trigger at the marked
specified voltage to provide the desired
protection for solid state equipment.
Maximum steady state voltage (DC) will “clamp”
on higher voltages after triggering.
Electromechanical Stabilization Products
Siemens Part Number | Trigger Voltage | DIAC(s) | TRIAC(s) | RECTIFIER(s) / DIODE(s) | Included bake-light base and associated hardware | Weight | |
| NYK:400044817000X | 20v | (1) HS-20 | (1) PT230 | (4) MR754 | - | 0.6 lbs (0.27 kgs) | |
| NYK:400044817001X | 30v | (1) 1N5761A | (1) PT230 | (4) MR754 | - | 0.6 lbs (0.27 kgs) | |
| NYK:400044817002X | 40v | (1) HS-20 | (1) PT230 | (2) IN4746A | - | 0.6 lbs (0.27 kgs) | |
| NYK:400044817003X | 50v | (1) 1N5761A | (1) PT230 | (2) IN4746A | - | 0.6 lbs (0.27 kgs) | |
| NYK:400044817004X | 100v | 1) 1N5761A | (1) PT230 | (4) MR754 (2) IN4760A | - | 0.6 lbs (0.27 kgs) | |
| NYK:400044817005X | 200v | (1) HS-20 | (1) PT230 | (4) MR754 (2) IN5593B | - | 0.6 lbs (0.27 kgs) | |
| NYK:400044817006X | 300v | (1) HS-20 | (1) PT630 | (4) MR754 (2) IN5593B | - | 0.6 lbs (0.27 kgs) | |
| NYK:400044817007X | 400v | (1) HS-20 | (1) PT630 | (4) MR754 (2) IN5593B | - | 0.6 lbs (0.27 kgs) | |
| NYK:400044818000X | 20v | (1) HS-20 | (1) PT230 | (4) MR754 | X | 1.8 lbs (0.82 kgs) | |
| NYK:400044818001X | 30v | (1) 1N5761A | (1) PT230 | (4) MR754 | X | 1.8 lbs (0.82 kgs) | |
| NYK:400044818002X | 40v | (1) HS-20 | (1) PT230 | 2) IN4746A | X | 1.8 lbs (0.82 kgs) | |
| NYK:400044818003X | 50v | (1) 1N5761A | (1) PT230 | (2) IN4746A | X | 1.8 lbs (0.82 kgs) | |
| NYK:400044818004X | 100v | (1) 1N5761A | (1) PT230 | (4) MR754 (2) IN4760A | X | 1.8 lbs (0.82 kgs) | |
| NYK:400044818005X | 200v | (1) HS-20 | (1) PT230 | (4) MR754 (2) IN5593B | X | 1.8 lbs (0.82 kgs) | |
| NYK:400044818006X | 300v | (1) HS-20 | (1) PT630 | (4) MR754 (2) IN5593B | X | 1.8 lbs (0.82 kgs) | |
| NYK:400044818007X | 400v | (1) HS-20 | (1) PT630 | (4) MR754 (2) IN5593B | X | 1.8 lbs (0.82 kgs) | |
E39 - Electromechanical Stabilization (SP-17)
Electromechanical Stabilization Products
Series
Solid State Battery Line Surge Protectors
Model A44804 Solid State Battery Line Surge
Protector shown for reference purposes only!
Actual unit selected may vary in mounting
and features.
SIEMENS SP-17 Solid State Battery Line Surge
Protector Series is designed to provide solid
state equipment protection for devices
using DC power and to provide protection
against AC power line surges. Enclosed in gray
plastic resin housing with cover and comes
equipped with AAR binding posts, beveled
washers an binding nuts for quick and simple
installation. Designed with either a 18 VDC or
32 VDC TranZorb diode. Battery TM wires must be
at least 12 gauge or larger or a fuse must be used in
conjunction to prevent possible damage. Some
models also are equipped with an equalizer for
maximum equipment protection of
18V and 1.5A maximum.
Electromechanical Stabilization Products
NYK:40004480405AX
NYK:40004480405BX
SP17-2A Battery System Model
● Weight is approx. 2.6 lbs. (1.18 kgs.)
● 18 VDC maximum
● 1.5 Amp current maximum
● 1.1 Ω resistance per line
● 550 μH per line
● (1) 18 volt TranZorb 5KE20 diode TM
● (1) NYK:400044700001X equalizer
SP17-2B Battery System Model
● Weight is approx. 2.6 lbs. (1.18 kgs.)
● 32 Amp VDC maximum
● 1.5 Amp current maximum
● 1.1 Ω resistance per line
● 550 μH per line
● (1) 32 volt TranZorb 1.5KE36A diode TM
● (1) NYK:400044700001X equalizer
Lead Time
Price: $317.00
Lead Time
Price: $199.00
E41 - Electromechanical Stabilization (SP-18)
Electromechanical Stabilization Products
Series
Solid State Battery Line Surge Protectors
Model A44805 Solid State Battery Line Surge
Protector shown for reference purposes only!
Actual unit selected may vary in mounting
and features.
SIEMENS SP-18 Solid State Battery Line Surge
Protector Series is designed to provide solid state
equipment protection for devices using DC power
and to provide protection against AC power line
surges. Enclosed in gray plastic resin housing
with cover and comes equipped with AAR binding
posts, beveled washers and binding nuts for quick
and simple installation. Designed with either a 2
18 VDC or 32 VDC TranZorb diode. Battery TM
wires must be at least 12 gauge or larger or a
fuse must be used in conjunction to prevent
possible damage. Some models also are
equipped with an equalizer for maximum
equipment protection of 18V and
1.5A maximum.
Electromechanical Stabilization Products
NYK:40004480500AX
NYK:40004480500BX
SP18-1A Battery System Model
● Weight is approx. 1.6 lbs. (0.73 kgs.)
● 18 VDC maximum
● 5 Amp current maximum
● 0.35 Ω resistance per line
● 185 μH per line
● (1) 18 volt TranZorb 5KE20 Diode
SP18-1B Battery System Model
● Weight is approx. 1.6 lbs. (0.73 kgs.)
● 32 VDC maximum
● 5 Amp current maximum
● 0.35 Ω resistance per line
● 185 μH per line
● (1) 32 volt TranZorb 1.5KE36A Diode
Lead Time
Price: $238.00
Lead Time
Price: $237.00
NYK:40004480504AX
NYK:40004480504BX
SP18-2A Battery System Model
● Weight is approx. 2.6 lbs. (1.18 kgs.)
● 18 VDC maximum
● 5 Amp current maximum
● 0.35 Ω resistance per line
● 185 μH per line
● (1) 18 volt TranZorb 5KE20 Diode TM
● (1) NYK:400044700001X equalizer
SP18-2B Battery System Model
● Weight is approx. 2.6 lbs. (1.18 kgs.)
● 32 VDC maximum
● 5 Amp current maximum
● 0.35 Ω resistance per line
● 185 μH per line
● (1) 32 volt TranZorb 1.5KE36A Diode TM
● (1) NYK:400044700001X equalizer
Lead Time
Price: $277.00
Lead Time
Price: $274.00
E43 - Electromechanical Stabilization (SP-19)
Electromechanical Stabilization Products
Series
Solid State Battery Line Surge Protectors
Model A44806 Solid State Battery Line Surge
Protector shown for reference purposes only!
Actual unit selected may vary in mounting
and features.
SIEMENS SP-19 Solid State Battery Line Surge
Protector Series is designed to provide solid
state equipment protection for devices using
DC power and to provide protection against
AC power line surges. Enclosed in gray plastic
resin housing with cover and comes equipped
with AAR binding posts, beveled washers and
binding nuts for quick and simple installation.
Designed with either a 18 VDC or 32 VDC
TranZorb diode. Battery TM wires must be at
least 12 gauge or larger or a fuse must be used
in conjunction to prevent possible damage.
Some models also are equipped with an equalizer
for maximum equipment protection of
18V and 1.5A maximum.
Electromechanical Stabilization Products
NYK:40004480600AX
NYK:40004480603AX
SP19-1A Battery System Model
● Weight is approx. 1.6 lbs. (0.73 kgs.)
● 18 VDC maximum
● 10 Amp current maximum
● 0.02 Ω resistance per line
● 18 μH per line
● (1) 18 volt TranZorb 5KE20 Diode
SP19-2A Battery System Model
● Weight is approx. 2.6 lbs. (1.18 kgs.)
● 18 VDC maximum
● 10 Amp current maximum
● 0.02 Ω resistance per line
● 18 μH per line
● (1) 18 volt TranZorb 5KE20 Diode TM
● (1) NYK:400044700001X equalizer
Lead Time
Price: $291.00
Lead Time
Price: $288.00
NYK:40004480603BX
SP19-2B Battery System Model
● Weight is approx. 2.6 lbs. (1.18 kgs.)
● 32 VDC maximum
● 10 Amp current maximum
● 0.02 Ω resistance per line
● 18 μH per line
● (1) 32 volt TranZorb 1.5KE36A Diode TM
● (1) NYK:400044700001X equalizer
Lead Time
Price: $285.00
E45 - Electromechanical Stabilization (SP-20)
Electromechanical Stabilization Products
Series
Solid State AC Power Surge Protectors
Model A44807 AC Power Surge Protector
shown for reference purposes only!
Actual unit selected may vary in mounting and features.
SIEMENS SP-20 Solid State AC Power Surge Protector
Series is designed to provide solid state equipment
protection for devices using DC power and to provide
protection against AC power line surges. Enclosed in
gray plastic resin housing with cover and comes
equipped with AAR binding posts, beveled washers and
binding nuts for quick and simple installation.
Designed with either a 18 VDC or 32 VDC TranZorb
diode. Battery TM wires must be at least 12 gauge or
larger or a fuse must be used in conjunction to prevent
possible damage. Some models also are equipped with
an equalizer for maximum equipment protection of
18V and 1.5A maximum.
Electromechanical Stabilization Products
NYK:40004480700AX
NYK:40004480700BX
SP20-2 AC Line Model
● Weight is approx. 1.6 lbs. (0.73 kgs.)
● 115 VAC maximum
● 20 Amp current maximum
● 0.01 Ω resistance per line
● 18 μH per line
SP20-3 AC Line Model
● Weight is approx. 1.6 lbs. (0.73 kgs.)
● 230 VAC maximum
● 20 Amp current maximum
● 0.01 Ω resistance per line
● 18 μH per line
Lead Time
Price: $234.00
Lead Time
Price: $241.00
NYK:40004480706AX
NYK:40004480707AX
SP20-2A AC Line Model
● Weight is approx. 2.9 lbs. (1.32 kgs.)
● 115 VAC maximum
● 20 Amp current maximum
● 0.01 Ω resistance per line
● 18 μH per line
● (1) NYK:400044701001X AC power line protector
SP20-3A AC Line Model
● Weight is approx. 3.8 lbs. (1.72 kgs.)
● 230 VAC maximum
● 20 Amp current maximum
● 0.01 Ω resistance per line
● 18 μH per line
● (2) NYK:400044701002X AC power
line protectors
Lead Time
Price: $293.00
Lead Time
Price: $427.00
E49 - Electromechanical Stabilization (SP-21)
Electromechanical Stabilization Products
Series
Solid State Code Line Surge Protectors
Model A44808 AC Power Surge Protector
shown for reference purposes only!
Actual unit selected may vary in mounting and features.
SIEMENS SP-21 Solid State Code Line Surge Protector
Series is designed to provide solid state equipment
protection for communication devices. Enclosed in gray
plastic resin housing with cover and comes equipped with
AAR binding posts, beveled washers and binding nuts
for quick and simple installation. Connection wires must
be at least 12 gauge or larger to prevent possible
damage. Some models also are equipped with either a
Clearview® Air Gap Arresters for Electrical Circuits
or Clearview® Air Gap Arresters for Communication
Circuits as wellas a SSP-11 Solid State Surge
Protectors.
Electromechanical Stabilization Products
NYK:400044808005X
NYK:400044808006X
SP21-2 Code Line Model
● Weight is approx. 1.6 lbs. (0.73 kgs.)
● 400 VDC maximum
● 20 Amp current maximum
● 0.01 Ω resistance per line
● 18 μH per line
● (1) NYK:400044817001X 30V solid state protector
SP21-3 Code Line Model
● Weight is approx. 3.8 lbs. (1.72 kgs.)
● 400 VDC maximum
● 20 Amp current maximum
● 0.01 Ω resistance per line
● 18 μH per line
● (1) NYK:400044817001X 30V solid
state protector
● (1) NYK:40004448528AX arrester
Lead Time
Price: $400.00
Lead Time
Price: $421.00
NYK:400044808010X
SP21-5 Code Line Model
● Weight is approx. 3.8 lbs. (1.72 kgs.)
● 400 VDC maximum
● 20 Amp current maximum
● 0.01 Ω resistance per line
● 18 μH per line
● (1) NYK:400044817002X 40V solid
state protector
● (1) NYK:40004448528AX arester
Lead Time
Price: $352.00
E51 - Electromechanical Stabilization (SP-24)
Electromechanical Stabilization Products
Series
Solid State Battery Line Surge Protectors
Model A44811 Solid State Battery Line Surge Protector
shown for reference purposes only!
Actual unit selected may vary in mounting and features.
SIEMENS SP-24 Solid State Battery Line Surge
Protector Series isdesigned to provide solid state
equipment protection for devices using DC power and
to provide protection against AC power line surges.
Enclosed in cream white steel housing with cover and
comes equipped with AAR binding posts, beveled
washers and binding nuts for quick and simple
installation. Designed with either a 18 VDC or 32 VDC
TranZorb diode. Battery TM wires must be at least
12 gauge or larger or a fuse must be used in
conjunction to prevent possible damage.
Some models also are equipped with an equalizer
for maximum equipment protection of
18V and 25A maximum.
Electromechanical Stabilization Products
NYK:40004481104AX
NYK:40004481104BX
SP24-1A Battery System Model
● Weight is approx. 2.4 lbs. (1.09 kgs.)
● 18 VDC maximum
● 25 Amp current maximum
● 0.006 Ω resistance per line
● 8 μH per line
● (1) 18 volt TranZorb 5KE20 Diode
SP24-1B Battery System Model
● Weight is approx. 2.4 lbs. (1.09 kgs.)
● 32 VDC maximum
● 25 Amp current maximum
● 0.006 Ω resistance per line
● 8 μH per line
● (1) 32 volt TranZorb 1.5KE36A Diode
Lead Time
Price: $359.00
Lead Time
Price: $360.00
NYK:40004481105AX
NYK:40004481105BX
SP24-2A Battery System Model
● Weight is approx. 3.8 lbs. (1.72 kgs.)
● 18 VDC maximum
● 25 Amp current maximum
● 0.006 Ω resistance per line
● 8 μH per line
● (1) 18 volt TranZorb 5KE20 Diode TM
● (1) NYK:400044700001X equalizer
SP24-2B Battery System Model
● Weight is approx. 3.8 lbs. (1.72 kgs.)
● 32 VDC maximum
● 25 Amp current maximum
● 0.006 Ω resistance per line
● 8 μH per line
● (1) 32 volt TranZorb 1.5KE36A Diode TM
● (1) NYK:400044700001X equalizer
Lead Time
Price: $386.00
Lead Time
Price: $387.00
E53 - Electromechanical Stabilization (SP-15 and SP-26)
Electromechanical Stabilization Products
Series
Solid State Track Circuit Surge Protectors
Model A44814 Solid State Battery Line Surge Protector
shown for reference purposes only!
Actual unit selected may vary in mounting and features.
SIEMENS SP-15 and SP-26 Solid State Track Circuit
Surge Protector Series is esigned to provide solid
state equipment protection for track circuit devices.
Enclosed in gray plastic resin housing with cover
and comes equipped with AAR binding posts,
beveled washers and binding nuts for quick and
simple installation. Connection wires must be at
least 12 gauge or larger to prevent possible
damage. Some models also are equipped with a
Clearview® Air Gap Equalizer or a SSP-11
Solid State Surge Protectors.
Electromechanical Stabilization Products
NYK:400044802000X
NYK:400044814000X
SP15-1 Track Circuit Model
● Weight is approx. 0.6 lbs. (0.27 kgs.)
● 5 VDC maximum
● 20 Amp current maximum
● 0.01 Ω resistance per line
● 18 μH per line
SP26-2 Track Circuit Model
● Weight is approx. 0.6 lbs. (0.27 kgs.)
● 5 VDC maximum
● 25 Amp current maximum
● 0.01 Ω resistance per line
● 8 μH per line
Lead Time
Price: $111.00
Lead Time
Price: $430.00
NYK:400044814006X
NYK:400044814007X
SP26-6 Track Circuit Model
● Weight is approx. 0.6 lbs. (0.27 kgs.)
● 5 VDC maximum
● 25 Amp current maximum
● 0.01 Ω resistance per line
● 8 μH per line
● (1) NYK:400044700001X equalizer
SP26-2-50 Track Circuit Model
● Weight is approx. 1.6 lbs. (0.73 kgs.)
● 5 VDC maximum
● 25 Amp current maximum
● 0.01 Ω resistance per line
● 8 μH per line
Lead Time
Price: $396.00
Lead Time
Price: $431.00
NYK:400044814008X
SP26-2 Track Circuit Model
● Weight is approx. 1.6 lbs. (0.73 kgs.)
● 5 VDC maximum
● 25 Amp current maximum
● 0.01 Ω resistance per line
● 8 μH per line
Lead Time
Price: $629.00
E57 - Electromechanical Stabilization (Resistance Units)
Electromechanical Stabilization Products
Fixed and Adjustable
Model A029602 Adjustable Resistance Unit shown
for reference purposes only! Actual unit
selected may vary in mounting and features.
SIEMENS Fixed Resistance Units employ the
same materials and construction used in the
adjustable types. A metal tag attached to
one post gives specifications of the unit.
All units are 100% tested for resistance.
The tolerance is +10, -0% of the rated value.
This is the same range as a + 5% resistor,
except that each unit is guaranteed to have
a nominal value not below the rated value.
A fiber guard for protection against touching
of adjacent units, and a spacer for use where
excessive heating occurs, are available.
Safetran adjustable and Fixed Resistance
Units are marked in AREMA® wattage,
specified in Manual Part 14.2.15.
Maximum temperatures rise of hottest
part of resistor body is 1800° C (3560° F)
above ambient temperature.
SIEMENS Adjustable Resistance Units provide a sliding
contact with resistance graduations. The resistance wire
is made of a corrosion resistant alloy, and has an
electrically resistant oxide coating which prevents
shorts from incidental contact of wires.
The wire is wound around a patented porcelain base
with grooves for locating the windings.
The wire is attached to the terminal posts by a
washer and (2) nuts located inside the porcelain block.
A stainless steel channel type bridge, used to insure
against bowing and consequent loss of contact pressure,
is marked in ten equal divisions of the total range of
adjustment, to facilitate settings and recording of critical
circuits. The bridge is marked with minimum and
maximum resistance values as well.
The stainless steel contact assembly has two stainless
steel springs, one of which is mounted between the sliding
member and the double contact, keeping pressure on the
contact, so the circuit is always closed under spring
pressure, while making adjustment.
A Hex-head screw passes through both springs
to exert direct pressure on the double contact, allowing
it to lock the sliding assembly in place on the bridge.
Electromechanical Stabilization Products
Resistance Units - Fixed and Adjustable
Siemens Part Number | Resistance Range ± 10% | Current | Turns | Length | Type | Weight | |
| Fixed | Adj | ||||||
| NYK:029602-1X | 0.068 Ω - 0.630 Ω | 8.89 A | N/A | N/A | - | X | 0.92 lbs (0.42 kgs) |
| NYK:029602-2X | 0.085 Ω - 0.800 Ω | 3.97 A | N/A | N/A | - | X | 0.92 lbs (0.42 kgs) |
| NYK:029602-3X | 0.106 Ω - 1.000 Ω | 3.87 A | N/A | N/A | - | X | 0.92 lbs (0.42 kgs) |
| NYK:029602-4X | 0.136 Ω - 1.300 Ω | 3.40 A | N/A | N/A | - | X | 0.92 lbs (0.42 kgs) |
| NYK:029602-5X | 0.172 Ω - 1.600 Ω | 3.06 A | N/A | N/A | - | X | 0.92 lbs (0.42 kgs) |
| NYK:029602-6X | 0.213 Ω - 2.000 Ω | 2.74 A | N/A | N/A | - | X | 0.92 lbs (0.42 kgs) |
| NYK:029602-7X | 0.270 Ω - 2.500 Ω | 2.45 A | N/A | N/A | - | X | 0.92 lbs (0.42 kgs) |
| NYK:029602-8AX | 0.340 Ω - 3.000 Ω | 2.24 A | N/A | N/A | - | X | 0.92 lbs (0.42 kgs) |
| NYK:029602-51X | 0.170 Ω - 0.700 Ω | - | N/A | N/A | - | X | 0.92 lbs (0.42 kgs) |
| NYK:029602-51X | 0.035 Ω - 1.500 Ω | - | N/A | N/A | - | X | 0.92 lbs (0.42 kgs) |
| NYK:029603-1X | 0.380 Ω - 4.000 Ω | 1.94 A | N/A | N/A | - | X | 0.92 lbs (0.42 kgs) |
| NYK:029603-2X | 0.482 Ω - 5.000 Ω | 1.73 A | N/A | N/A | - | X | 0.92 lbs (0.42 kgs) |
| NYK:029603-3X | 0.605 Ω - 6.300 Ω | 1.54 A | N/A | N/A | - | X | 0.92 lbs (0.42 kgs) |
| NYK:029603-4X | 0.770 Ω - 8.000 Ω | 1.37 A | N/A | N/A | - | X | 0.92 lbs (0.42 kgs) |
| NYK:029603-5X | 0.960 Ω - 10.000 Ω | 1.22 A | N/A | N/A | - | X | 0.92 lbs (0.42 kgs) |
| NYK:029603-6X | 1.220 Ω - 12.500 Ω | 1.09 A | N/A | N/A | - | X | 0.92 lbs (0.42 kgs) |
| NYK:029603-7X | 1.530 Ω - 16.000 Ω | 0.97 A | N/A | N/A | - | X | 0.92 lbs (0.42 kgs) |
| NYK:029603-8X | 1.700 Ω - 17.000 Ω | 0.94 A | N/A | N/A | - | X | 0.92 lbs (0.42 kgs) |
| NYK:029603-9X | 2.120 Ω - 22.000 Ω | 0.83 A | N/A | N/A | - | X | 0.92 lbs (0.42 kgs) |
Resistance Units - Fixed and Adjustable
Siemens Part Number | Resistance Range ± 10% | Current | Turns | Length | Type | Weight | |
| Fixed | Adj | ||||||
| NYK:029603-10X | 2.120 Ω - 22.000 Ω | 0.73 A | N/A | N/A | - | X | 0.92 lbs (0.42 kgs) |
| NYK:029603-11X | 4.270 Ω - 44.000 Ω | 0.65 A | N/A | N/A | - | X | 0.92 lbs (0.42 kgs) |
| NYK:029603-12X | 4.270 Ω - 44.000 Ω | 0.58 A | N/A | N/A | - | X | 0.92 lbs (0.42 kgs) |
| NYK:029603-13X | 5.400 Ω - 56.000 Ω | 0.52 A | N/A | N/A | - | X | 0.92 lbs (0.42 kgs) |
| NYK:029603-14X | 6.750 Ω - 70.000 Ω | 0.46 A | N/A | N/A | - | X | 0.92 lbs (0.42 kgs) |
| NYK:029603-15X | 8.500 Ω - 87.000 Ω | 0.42 A | N/A | N/A | - | X | 0.92 lbs (0.42 kgs) |
| NYK:029603-16X | 10.800 Ω - 111.000 Ω | 0.37 A | N/A | N/A | - | X | 0.92 lbs (0.42 kgs) |
| NYK:029603-22X | 1.480 Ω - 20.000 Ω | 1.58 A | N/A | N/A | - | X | 0.92 lbs (0.42 kgs) |
| NYK:029603-23X | 1.530 Ω - 16.000 Ω | 0.87 A | N/A | N/A | - | X | 0.92 lbs (0.42 kgs) |
| NYK:029603-25X | 16.5000 Ω - 221.000 Ω | 0.26 A | N/A | N/A | - | X | 0.92 lbs (0.42 kgs) |
| NYK:029603-26X | 22.200 Ω - 300.000 Ω | 0.22 A | N/A | N/A | - | X | 0.92 lbs (0.42 kgs) |
| NYK:029604-1X | 0.19 Ω | 8.89 A | 6 | N/A | - | X | 0.92 lbs (0.42 kgs) |
| NYK:029604-2X | 0.50 Ω | 5.48 A | 18 | N/A | - | X | 0.92 lbs (0.42 kgs) |
| NYK:029604-3X | 1.50 Ω | 3.87 A | 18 | N/A | - | X | 0.92 lbs (0.42 kgs) |
| NYK:029604-4X | 1.20 Ω | 3.54 A | 23 | N/A | - | X | 0.92 lbs (0.42 kgs) |
| NYK:029604-5X | 2.00 Ω | 2.74 A | 26 | N/A | - | X | 0.92 lbs (0.42 kgs) |
| NYK:029604-6X | 2.50 Ω | 2.45 A | 29 | N/A | - | X | 0.92 lbs (0.42 kgs) |
| NYK:029604-7X | 3.00 Ω | 2.24 A | 35 | N/A | - | X | 0.92 lbs (0.42 kgs) |
| NYK:029604-8X | 6.00 Ω | 1.58 A | 44 | N/A | - | X | 0.92 lbs (0.42 kgs) |
| NYK:029604-9X | 8.30 Ω | 1.34 A | 49 | N/A | - | X | Cell-22-8 |
| NYK:029604-10X | 3.50 Ω | 2.07 A | 41 | N/A | - | X | Cell-23-8 |
| NYK:029604-11X | 0.40 Ω | 5.26 A | 14 | N/A | - | X | Cell-24-8 |
E61 - Electromechanical Stabilization Products(Surge Protection Panels)
Electromechanical Stabilization Products
Model A44883 Surge Protection Panel shown for
reference purposes only! Actual unit selected
may vary in mounting and features.
SIEMENS manufactures a number of surge suppression
panels for both general and specific applications. The
44883 Series of vertical surge panels is available in a
variety of configurations to meet specific client
requirements. Each panel in this series is silkscreened
to anticipate a variety of general purpose applications,
but does not come equipped with any Clearview® Air
Gap Arrester or Equalizers. SIEMENS A80026
Series of track and battery surge panels is also
available in a variety of configurations to meet specific
client requirements. However each panel in this series
does come equipped with Clearview® Air Gap Arrester
or Equalizers. SIEMENS A91170 and A91181 lighting
panels provide external I/O primary surge protection for
grade crossing gate controller circuitry. Both have built
in secondary surge protection for all external I/O.or
body is 1800° C (3560° F) above ambient temperature.
Electromechanical Stabilization Products
NYK:400044883152X1
NYK:400044883149X1
General Purpose Panel (Blank)
● 5052-H32 Aluminum Alloy
● Weight is approx. 3.2 lbs. (1.45 kgs.)
including hardware
General Purpose Panel (12 Positions)
● 5052-H32 Aluminum Alloy
● Weight is approx. 4.2 lbs. (1.91 kgs.)
including hardware
Lead Time
Price: $525.00
Lead Time
Price: $554.00
NYK:400044883199X1
NYK:400044883201X1
General Purpose Panel (16 Positions)
● 5052-H32 Aluminum Alloy
● Weight is approx. 4.7 lbs. (2.13 kgs.)
including hardware
General Purpose Panel (Signal Panel)
● 5052-H32 Aluminum Alloy
● Weight is approx. 9.2 lbs. (4.17 kgs.)
including hardware
● Full length 1 1/2” slotted duct system
Lead Time
Price: $653.00
Lead Time
Price: $1931.00
NYK:400044883145X1
NYK:400044883170X1
General Purpose Panel (20 Positions)
● 5052-H32 Aluminum Alloy
● Weight is approx. 5.2 lbs. (13.21 kgs.)
including hardware
General Purpose Panel (Blank w/ Slotted Duct)
● 5052-H32 Aluminum Alloy
● Weight is approx. 4.2 lbs. (1.91 kgs.)
including hardware
● Full length 1 1/2” slotted duct system
Lead Time
Price: $1970.00
Lead Time
Price: $701.00
NYK:400044883177X1
NYK:8000800260031
General Purpose Panel (14 Positions w/ Slotted Duct)
● 5052-H32 Aluminum Alloy
● Weight is approx. 4.7 lbs. (2.13 kgs.)
including hardware
● Full length 1 1/2” slotted duct system
Battery and (1) Track Panel
● 5052-H32 Aluminum Alloy
● Weight is approx. 6.5 lbs. (2.95 kgs.)
including hardware
Lead Time
Price: $1384.00
Lead Time
Price: $1069.00
NYK:8000800260003
NYK:8000800260022
Battery and (1) Track Panel
● 5052-H32 Aluminum Alloy
● Weight is approx. 6.5 lbs. (2.95 kgs.)
including hardware
(1) Track Panel
● 5052-H32 Aluminum Alloy
● Weight is approx. 4.2 lbs. (1.91 kgs.)
including hardware
● Isolated gate control
Lead Time
Price: $4003.00
Lead Time
Price: $635.00
NYK:8000800490001
NYK:9000911700001
DC Enhancer Panel
● 5052-H32 Aluminum Alloy
● Weight is approx. 10.2 lbs. (25.91 kgs.)
including hardware
● Improved track shunting in dark territory
Common Gate Control Panel
● 5052-H32 Aluminum Alloy
● Weight is approx. 3.2 lbs. (1.45 kgs.)
including hardware
Lead Time
Price: $6975.00
Lead Time
Price: $1974.00
NYK:9000911700002
NYK:9000911810001
Common Gate Control Panel
● 5052-H32 Aluminum Alloy
● Weight is approx. 4.2 lbs. (1.91 kgs.)
including hardware
Isolated Gate Control Panel
● 5052-H32 Aluminum Alloy
● Weight is approx. 10 lbs. (4.54 kgs.)
including hardware
Lead Time
Price: $1813.00
Lead Time
Price: $3073.00
NYK:9000911810002
Isolated Gate Control Panel
● 5052-H32 Aluminum Alloy
● Weight is approx. 10 lbs. (4.54 kgs.)
including hardware
Lead Time
Price: $1879.00
Terminal Block Assemblies
| Siemens Number | Overall Length | Post Center to Center | Base Material | No of Posts | Hardware Included |
| NYK:40004421712X1 | 3.34” (8.48 cm) | 1.00” (2.54 cm) | Porcelain | 2 | - |
| NYK:400044217012X | 3.34” (8.48 cm) | 1.00” (2.54 cm) | Porcelain | 2 | X |
| NYK:40004421708X1 | 3.34” (8.48 cm) | 2.38” (6.05 cm) | Porcelain | 2 | - |
| NYK400044217008X | 3.34” (8.48 cm) | 2.38” (6.05 cm) | Porcelain | 2 | X |
| NYK40004421703X1 | 6.00” (15.24 cm) | 5.13” (13.03 cm) | Porcelain | 2 | - |
| NYK400044217003X | 6.00” (15.24 cm) | 5.13” (13.03 cm) | Porcelain | 2 | X |
| Type 390 1” Square Terminal Blocks | |||||
| NYK:023390-5-1X | 1.00” (2.54 cm) | N/A | Bakelite | 1 | - |
| NYK:023390-5-2X | 2.00” (5.08 cm) | 1.00” (2.54 cm) | Bakelite | 2 | - |
| NYK:023390-5-3X | 3.00” (7.62 cm) | 1.00” (2.54 cm) | Bakelite | 3 | - |
| NYK:023390-5-4X | 4.00” (10.16 cm) | 1.00” (2.54 cm) | Bakelite | 4 | - |
| NYK:023390-5-5X | 5.00” (12.70 cm) | 1.00” (2.54 cm) | Bakelite | 5 | - |
| NYK:023390-5-6X | 6.00” (15.24cm) | 1.00” (2.54 cm) | Bakelite | 6 | - |
| NYK:023390-5-7X | 7.00” (17.78 cm) | 1.00” (2.54 cm) | Bakelite | 7 | - |
| NYK:023390-5-8X | 8.00” (20.32 cm) | 1.00” (2.54 cm) | Bakelite | 8 | - |
| NYK:023390-5-9X | 9.00” (22.86 cm) | 1.00” (2.54 cm) | Bakelite | 9 | - |
| NYK:023390-5-10X | 10.00” (25.40 cm) | 1.00” (2.54 cm) | Bakelite | 10 | - |
| NYK:023390-5-11X | 11.00” (27.94 cm) | 1.00” (2.54 cm) | Bakelite | 11 | - |
| Type 274 Rounded (2) Post Wide Terminal Block | |||||
| NYK:023374-24X | 1 Row, 2 Posts each row | Bakelite | 2 | - | |
| NYK:023374-23X | 1 Row, 2 Posts each row | Bakelite | 2 | X | |
| NYK:023374-40X | 2 Rows, 2 Posts each row | Bakelite | 4 | - | |
| NYK:023374-503X | 2 Rows, 2 Posts each row | Bakelite | 4 | X | |
| NYK:023374-501X | 2 Rows, 6 Posts each row | Bakelite | 6 | - | |
| NYK:023374-21X | 2 Rows, 6 Posts each row | Bakelite | 6 | X | |
| 13 Way Terminal Block | |||||
| NYK:051883-26X2 | w/o Hardware | ||||
| NYK:051883-26X1 | w/ Hardware | ||||
| 14 Way Terminal Block | |||||
| NYK:051883-18X2 | w/o Hardware | ||||
| NYK:051883-18X1 | w/ Hardware | ||||
F1 - Relay Products
Relay Products
Relay Products
Manufacturer’s Cross Reference
Siemens Part Number | Contact Arrangement | Relay Type | Collective Coil Resistance (measured in Ohms) | Ansaldo® STS Part Number (Formerly Branded As Union Switch and Signal) | Alstom® Part Number (Formerly Branded As General Railway Signal) |
| US2:400000 | 6FB Silver/Carbon (Standard Duty) | ST-1, Single Base Non Biased Neutral Regular Release Regular Pickup | 500 Ohms | N/A | A62-262 |
| US2:400001 | 6FB Silver/Carbon (Standard Duty) | ST-1, Single Base Non Biased Neutral Regular Release Regular Pickup | 84 Ohms | N/A | A62-295 |
| US2:400002 | 4FB Silver/Carbon 2F Silver/Carbon 1B Silver (Standard Duty) | ST-1, Single Base Non Biased Neutral Regular Release Regular Pickup | 1800 Ohms | N/A | A62-318 |
| US2:400003 | 4FB Silver/Carbon 2F Silver/Carbon 1B Silver (Standard Duty) | ST-1, Single Base Non Biased Neutral Regular Release Regular Pickup | 900 Ohms | N/A | A62-308 |
| US2:400004 | 4FB Silver/Carbon 2F Silver/Carbon 1B Silver (Standard Duty) | ST-1, Single Base Non Biased Neutral Regular Release Regular Pickup | 500 Ohms | N/A | A62-277 |
| US2:400005 | 6FB Silver/Carbon (Standard Duty) | ST-1, Single Base Non Biased Neutral Regular Release Regular Pickup | 500 Ohms | N/A | A62-741 |
| US2:400006 | 4F Silver/Carbon 2B Silver (Standard Duty) | ST-1, Single Base Non Biased Neutral Regular Release Regular Pickup | 350 Ohms | N/A | A62-300 |
| US2:400007 | 4FB Silver/Carbon 2F Silver/Carbon 1B Silver (Standard Duty) | ST-1, Single Base Non Biased Neutral Regular Release Regular Pickup | 350 Ohms | N/A | A62-306 |
| US2:400008 | 4FB Silver/Carbon 2F Silver/Carbon 1B Silver (Standard Duty) | ST-1, Single Base Non Biased Neutral Regular Release Regular Pickup | 500 Ohms | N/A | N/A |
Siemens Part Number | Contact Arrangement | Relay Type | Collective Coil Resistance (measured in Ohms) | Ansaldo® STS Part Number (Formerly Branded As Union Switch and Signal) | Alstom® Part Number (Formerly Branded As General Railway Signal) |
| US2:400010 | 6FB Silver/Carbon (Standard Duty) | ST-1, Single Base Non Biased Neutral Regular Release Regular Pickup | 4 Ohms | N/A | A62-261 |
| US2:400011 | 6FB Silver/Carbon (Standard Duty) | ST-1, Single Base Non Biased Neutral Regular Release Regular Pickup | 4 Ohms | N/A | A62-276 |
| US2:400012 | 4FB Silver/Carbon 2F Silver/Carbon 1B Silver (Standard Duty) | ST-1, Single Base Non Biased Neutral Regular Release Regular Pickup | 1,8 Ohms | N/A | A62-275 |
| US2:400013 | 4FB Silver/Carbon 2F Silver/Carbon 1B Silver (Standard Duty) | ST-1, Single Base Non Biased Neutral Regular Release Regular Pickup | 1.8 Ohms | N/A | A62-260 |
| US2:400014 | 4FB Silver/Carbon 2F Silver/Carbon 1B Silver (Standard Duty) | ST-1, Single Base Non Biased Neutral Regular Release Regular Pickup | 50 Ohms | N/A | A62-315 |
| US2:400015 | 6FB Silver/Carbon (Standard Duty) | ST-1, Single Base Non Biased Neutral Regular Release Regular Pickup | 100 Ohms | N/A | A62-319 |
| US2:400016 | 4F Silver/Carbon 2B Silver (Standard Duty) | ST-1, Single Base Non Biased Neutral Regular Release Regular Pickup | 450/450 Ohms | N/A | N/A |
| US2:400017 | 4FB Silver/Carbon 2F Silver/Carbon 1B Silver (Standard Duty) | ST-1, Single Base Non Biased Neutral Regular Release Regular Pickup | 900 Ohms | N/A | A62-296 |
| US2:400020 | 4FB Silver/Carbon 2F Silver/Carbon 1B Silver (Standard Duty) | ST-1, Single Base Non Biased Neutral Regular Release Regular Pickup | 500 Ohms | N/A | A62-310 |
Manufacturer’s Cross Reference
Siemens Part Number | Contact Arrangement | Relay Type | Collective Coil Resistance (measured in Ohms) | Ansaldo® STS Part Number (Formerly Branded As Union Switch and Signal) | Alstom® Part Number (Formerly Branded As General Railway Signal) |
| US2:400021 | 2FB Silver/Carbon (Standard Duty) 2B Silver (Heavy Duty) | ST-1, Single Base Lamp Control Regular Release Regular Pickup | 200 Ohms | N/A | A62-205 |
| US2:400022 | 4FB Silver/Carbon 2F Silver/Carbon 1B Silver (Heavy Duty) | ST-1, Single Base Non Biased Neutral Regular Release Regular Pickup | 900 Ohms | N/A | A62-311 |
| US2:400023 | 6FB SCdO (Heavy Duty) | ST-1, Single Base Non Biased Neutral Regular Release Regular Pickup | 500 Ohms | N/A | A62-580 |
| US2:400025 | 4FB SCdO (Heavy Duty) | ST-1, Single Base Switch Control Neutral Regular Release Regular Pickup | 500 Ohms | N/A | A62-427 |
| US2:400026 | 6FB Silver/Carbon (Heavy Duty) | ST-1, Single Base Non Biased Neutral Regular Release Regular Pickup | 500 Ohms | N/A | N/A |
| US2:400027 | 4FB Silver/Carbon 2F Silver/Carbon 1B Silver (Heavy Duty) | ST-1, Single Base Non Biased Neutral Regular Release Regular Pickup | 350 Ohms | N/A | A62-309 |
| US2:400028 | 6FB Silver/Carbon (Standard Duty) | ST-1, Single Base Non Biased Neutral Regular Release Regular Pickup | 60 Ohms | N/A | A62-557 |
| US2:400029 | 4FB Silver 2F Silver 1B Silver (Heavy Duty) | ST-1, Single Base Non Biased Neutral Regular Release Regular Pickup | 500 Ohms | N/A | N/A |
| US2:400030 | 2FB Silver/Carbon 3F Silver/Carbon 3B Silver (Standard Duty) | ST-1, Single Base Non Biased Neutral Regular Release Regular Pickup | 28.5 Ohms | N/A | **A62-325 |
Siemens Part Number | Contact Arrangement | Relay Type | Collective Coil Resistance (measured in Ohms) | Ansaldo® STS Part Number (Formerly Branded As Union Switch and Signal) | Alstom® Part Number (Formerly Branded As General Railway Signal) |
| US2:400031 | 6FB Silver/Carbon (Standard Duty) | ST-1, Single Base Non Biased Neutral Regular Release Regular Pickup | 84 Ohms | N/A | **A62-305 |
| US2:400070 | 6FB Silver/Carbon (Standard Duty) | ST-1, Single Base Non Biased Neutral Regular Release Regular Pickup | 135/60 Ohms | N/A | **A62-335 |
| US2:400100 | 4FB Silver/Carbon 2F Silver/Carbon 1B Silver (Standard Duty) | ST-1, Single Base Non Biased Neutral Regular Release Regular Pickup | 220 Ohms | N/A | A62-345 |
| US2:400101 | 4FB Silver/Carbon 2F Silver/Carbon 1B Silver (Standard Duty) | ST-1, Single Base Non Biased Neutral Regular Release Regular Pickup | 300 Ohms | N/A | A62-341 |
| US2:400102 | 4FB Silver/Carbon 2F Silver/Carbon 1B Silver (Standard Duty) | ST-1, Single Base Non Biased Neutral Regular Release Regular Pickup | 230 Ohms | N/A | **A62-340 |
| US2:400200 | 6FB Silver/Carbon (Standard Duty) | ST-1, Single Base Non Biased Neutral Regular Release Regular Pickup | 194 Ohms | N/A | A62-360 |
| US2:400210 | 6FB Silver/Carbon (Standard Duty) | ST-1, Single Base Non Biased Neutral Regular Release Regular Pickup | 194 Ohms | N/A | A62-359 |
| US2:400211 | 4FB Silver/Carbon 2F Silver/Carbon 1B Silver (Standard Duty) | ST-1, Single Base Non Biased Neutral Regular Release Regular Pickup | 194 Ohms | N/A | A62-357 |
| US2:400212 | 4FB Silver/Carbon 2F Silver/Carbon 1B Silver (Standard Duty) | ST-1, Single Base Non Biased Neutral Regular Release Regular Pickup | 194 Ohms | N/A | A62-358 |
Manufacturer’s Cross Reference
Siemens Part Number | Contact Arrangement | Relay Type | Collective Coil Resistance (measured in Ohms) | Ansaldo® STS Part Number (Formerly Branded As Union Switch and Signal) | Alstom® Part Number (Formerly Branded As General Railway Signal) |
| US2:400213 | 2FB Silver/Carbon (Standard Duty) | ST-1, Single Base Non Biased Neutral Slow Release Regular Pickup | 460 Ohms | N/A | A62-353 |
| US2:400220 | 2F Silver/Carbon 4B Silver (Standard Duty) | ST-1, Single Base Non Biased Neutral Regular Release Regular Pickup | 80 Ohms | N/A | A62-380 |
| US2:400221 | 2FB Silver/Carbon (Standard Duty) | ST-1, Single Base Non Biased Neutral Slow Release Regular Pickup | 24 Ohms | N/A | A62-365 |
| US2:400300 | 4FB Silver/Carbon (Standard Duty) | ST-1, Single Base Non Biased Neutral Regular Release Regular Pickup | 450/.12 Ohms | N/A | N/A |
| US2:400301 | 6FB Silver/Carbon (Standard Duty) | ST-1, Single Base Non Biased Neutral Regular Release Regular Pickup | 450/.2 Ohms | N/A | N/A |
| US2:400302 | 4FB Silver/Carbon (Standard Duty) | ST-1, Single Base Non Biased Neutral Regular Release Regular Pickup | 450/.069 Ohms | N/A | N/A0 |
| US2:400303 | 4FB Silver/Carbon (Standard Duty) | ST-1, Single Base Non Biased Neutral Regular Release Regular Pickup | .24 Ohms | N/A | N/A |
| US2:400305 | 4FB Silver/Carbon (Standard Duty) | ST-1, Single Base Non Biased Neutral Regular Release Regular Pickup | 450/.45 Ohms | N/A | N/A |
| US2:400400 | 4FB Silver/Carbon 2F Silver/Carbon 1B Silver (Standard Duty) | ST-1, Single Base Non Biased Neutral Slow Release Slow Pickup | 194 Ohms | N/A | A62-350 |
Siemens Part Number | Contact Arrangement | Relay Type | Collective Coil Resistance (measured in Ohms) | Ansaldo® STS Part Number (Formerly Branded As Union Switch and Signal) | Alstom® Part Number (Formerly Branded As General Railway Signal) |
| US2:400500 | 6FB Silver/Carbon (Standard Duty) | ST-1, Single Base Biased Neutral Regular Release Regular Pickup | 500 Ohms | N/A | A62-125 |
| US2:400500-1 | 6FB Silver/Carbon (Standard Duty) | ST-1, Single Base Biased Neutral Regular Release Regular Pickup | 2000 Ohms | N/A | N/A |
| US2:400501 | 6FB Silver/Carbon (Standard Duty) | ST-1, Single Base Biased Neutral Regular Release Regular Pickup | 63 Ohms | N/A | A62-140 |
| US2:400502 | 4FB Silver/Carbon 2F Silver/Carbon 1B Silver (Standard Duty) | ST-1, Single Base Biased Neutral Regular Release Regular Pickup | 500 Ohms | N/A | A62-122 |
| US2:400503 | 2FB Silver/Carbon 4F Silver/Carbon 2B Silver (Standard Duty) | ST-1, Single Base Biased Neutral Regular Release Regular Pickup | 1000 Ohms | N/A | A62-552 |
| US2:400504 | 4FB Silver/Carbon 2F Silver Carbon 1B Silver (Standard Duty) | ST-1, Single Base Biased Neutral Regular Release Regular Pickup | 100 Ohms | N/A | A62-126 |
| US2:400505 | 6FB Silver (Heavy Duty) | ST-1, Single Base Biased Neutral Regular Release Regular Pickup | 500 Ohms | N/A | N/A |
| US2:400506 | 4FB Silver/Carbon 2F Silver/Carbon 1B Silver (Heavy Duty) | ST-1, Single Base Biased Neutral Regular Release Regular Pickup | 500 Ohms | N/A | N/A |
| US2:400506-1 | 4FB Silver/Carbon 2FSilver/Carbon 1B Silver (Heavy Duty) | ST-1, Single Base Biased Neutral Regular Release Regular Pickup | 200 Ohms | N/A | N/A |
Manufacturer’s Cross Reference
Siemens Part Number | Contact Arrangement | Relay Type | Collective Coil Resistance (measured in Ohms) | Ansaldo® STS Part Number (Formerly Branded As Union Switch and Signal) | Alstom® Part Number (Formerly Branded As General Railway Signal) |
| US2:400507 | 5F Silver/Carbon 4B Silver (Standard Duty) | ST-1, Single Base Biased Neutral Regular Release Regular Pickup | 4 Ohms | N/A | A62-637 |
| US2:400508 | 5F Silver/Carbon 4B Silver (Standard Duty) | ST-1, Single Base Biased Neutral Regular Release Regular Pickup | 1 Ohms | N/A | A62-639 |
| US2:400509 | 2FB Silver/Carbon 4F Silver/Carbon 2B Silver (Heavy Duty) | ST-1, Single Base Biased Neutral Regular Release Regular Pickup | 2100 Ohms | N/A | A62-665 |
| US2:400509-M | 2FB Silver/Carbon 4F Silver/Carbon 2B Silver (Heavy Duty) | ST-1, Single Base Biased Neutral Regular Release Regular Pickup | 2100 Ohms | N/A | N/A |
| US2:400509-K | 2FB Silver/Carbon 4F Silver/Carbon 2B Silver (Heavy Duty) | ST-1, Single Base Biased Neutral Regular Release Regular Pickup | 2100 Ohms | N/A | N/A |
| US2:400510 | 4FB Silver/Carbon 2F Silver/Carbon 1B Silver (Standard Duty) | ST-1, Single Base Biased Neutral Regular Release Regular Pickup | 2 Ohms | N/A | A62-120 |
| US2:400511 | 4FB Silver/Carbon (Standard Duty) | ST-1, Single Base Biased Neutral | .5 Ohms | N/A | A62-118 |
| US2:400512 | 6FB Silver/Carbon (Standard Duty) | ST-1, Single Base Biased Neutral Regular Release Regular Pickup | 2 Ohms | N/A | A62-654 |
| US2:400513 | 2FB Silver/Carbon 3F Silver/Carbon 3B Silver (Standard Duty) | ST-1, Single Base Biased Neutral Regular Release Regular Pickup | 1000 Ohms | N/A | A62-722 |
Siemens Part Number | Contact Arrangement | Relay Type | Collective Coil Resistance (measured in Ohms) | Ansaldo® STS Part Number (Formerly Branded As Union Switch and Signal) | Alstom® Part Number (Formerly Branded As General Railway Signal) |
| US2:400515 | 5F Silver/Carbon 4B Silver (Standard Duty) | ST-1, Single Base Biased Neutral * | .5 Ohms | N/A | A62-633 |
| US2:400516 | 6FB Silver/Carbon (Standard Duty) | ST-1, Single Base Biased Neutral Regular Release Regular Pickup | 800 Ohms | 322500-702 | N/A |
| US2:400517 | 4FB Silver/Carbon (Standard Duty) | ST-1, Single Base Biased Neutral ** | 200 Ohms | N/A | N/A |
| US2:400518 | 4FB Silver/Carbon (Standard Duty) | ST-1, Single Base Biased Neutral ** | 2 Ohms | N/A | N/A |
| US2:400519 | 2FB Silver/Carbon 4F Silver/Carbon 2B Silver (Standard Duty) | ST-1, Single Base Biased Neutral Regular Release Regular Pickup | 2100 Ohms | N/A | N/A |
| US2:400520 | 2F SCdO 2B SCdO Mag Blowout (Extra Heavy Duty) | ST-1, Single Base Biased Neutral *** | 500 Ohms | N/A | A62-429 |
| US2:400520-1 | 2F SCdO 2B SCdO Mag Blowout (Extra Heavy Duty) | ST-1, Single Base Biased Neutral Regular Release Regular Pickup *** | 1000 Ohms | N/A | N/A |
| US2:400521 | 6FB Silver/Carbon (Standard Duty) | ST-1, Single Base Biased Neutral Regular Release Regular Pickup | 4 Ohms | N/A | A62-682 |
| US2:400522 | 4FB Silver/Carbon 2F Silver/Carbon 1B Silver (Standard Duty) | ST-1, Single Base Biased Neutral Regular Release Regular Pickup | .5 Ohms | N/A | A62-646 |
Manufacturer’s Cross Reference
Siemens Part Number | Contact Arrangement | Relay Type | Collective Coil Resistance (measured in Ohms) | Ansaldo® STS Part Number (Formerly Branded As Union Switch and Signal) | Alstom® Part Number (Formerly Branded As General Railway Signal) |
| US2:400523 | 2F SCdO Mag Blowout (Extra Heavy Duty) 1F SCdO 2B SCdO | ST-1, Single Base Biased Neutral Regular Release Regular Pickup | 500 Ohms | N/A | N/A |
| US2:400524 | 4FB Silver 2F Silver 1B Silver (Heavy Duty)) | ST-1, Single Base Biased Neutral Regular Release Regular Pickup | 500 Ohms | N/A | N/A |
| US2:400525 | 4FB Silver/Carbon 2F Silver/Carbon 1B Silver (Heavy Duty) | ST-1, Single Base Biased Neutral Regular Release Regular Pickup | 375 Ohms | N/A | A62-131 |
| US2:400526 | 2FB Silver/Carbon 4F Silver/Carbon 2B Silver/Carbon (Heavy Duty) | ST-1, Single Base Biased Neutral Regular Release Regular Pickup | 100 Ohms | N/A | A62-608 |
| US2:400527 | 6FB Silver/Carbon (Standard Duty) | ST-1, Single Base Biased Neutral Regular Release Regular Pickup | 100 Ohms | N/A | A62-543 |
| US2:400528 | 6FB Silver/Carbon (Standard Duty)) | ST-1, Single Base Biased Neutral Regular Release Regular Pickup | 400 Ohms | 322500-701 | A62-360 |
| US2:400529 | 6FB Silver/Carbon (Standard Duty) | ST-1, Single Base Biased Neutral Regular Release Regular Pickup | 400 Ohms | 322505-701 | A62-359 |
| US2:400530 | 6FB Silver/Carbon (Standard Duty) | ST-1, Single Base Biased Neutral Slow Release Regular Pickup | 194 Ohms | 322503-702 | A62-357 |
| US2:400531 | 4FB Silver/Carbon 2F Silver/Carbon 1B Silver (Standard Duty) | ST-1, Single Base Biased Neutral Regular Release Regular Pickup | 750 Ohms | N/A | A62-132 |
Siemens Part Number | Contact Arrangement | Relay Type | Collective Coil Resistance (measured in Ohms) | Ansaldo® STS Part Number (Formerly Branded As Union Switch and Signal) | Alstom® Part Number (Formerly Branded As General Railway Signal) |
| US2:400532 | 6FB Silver/Carbon (Standard Duty) | ST-1, Single Base Non Biased Neutral Regular Release Regular Pickup | 2 Ohms | 322501-701 | N/A |
| US2:400533 | 6FB Silver/Carbon (Standard Duty) | ST-1, Single Base Biased Neutral Regular Release Regular Pickup | 250 Ohms | N/A | A62-549 |
| US2:400534 | 6FB Silver/Carbon (Standard Duty) | ST-1, Single Base Biased Neutral Regular Release Regular Pickup | 1 Ohms | N/A | **A62-550 |
| US2:400535 | 4FB Silver/Carbon 2F Silver/Carbon 1B Silver (Standard Duty)) | ST-1, Single Base Biased Neutral Regular Release Regular Pickup | 63 Ohms | N/A | **A62-130 |
| US2:400540 | 6FB Silver/Carbon (Standard Duty) | ST-1, Single Base Biased Neutral Regular Release Slow Pickup | 800 Ohms | N/A | N/A |
| US2:400559 | 2FB Silver/Carbon 6F Silver (Heavy Duty) | ST-1, Single Base Biased Neutral Regular Release Regular Pickup | 2100 Ohms | N/A | N/A |
| US2:400600 | 2B Silver Mag Blowout (Extra Heavy Duty) | ST-1, Single Base Switch Overload Rating 12A High Volt Machine | .068/1225 Ohms | N/A | A62-432 |
| US2:400601 | 2CBO Silver/Carbon (Extra Heavy Duty) | ST-1, Single Base Switch Overload Rating 18A Low Volt Machine | .064/135 Ohms | N/A | A62-430 |
| US2:400602 | 2CBO Silver/Carbon (Extra Heavy Duty) | ST-1, Single Base Switch Overload 11.5A | .068/220 Ohms | N/A | A62-545 |
Manufacturer’s Cross Reference
Siemens Part Number | Contact Arrangement | Relay Type | Collective Coil Resistance (measured in Ohms) | Ansaldo® STS Part Number (Formerly Branded As Union Switch and Signal) | Alstom® Part Number (Formerly Branded As General Railway Signal) |
| US2:400604 | 2CBO Silver/Carbon (Extra Heavy Duty) | ST-1, Single Base Switch Overload Rating 7.5A | .125/135 Ohms | N/A | N/A |
| US2:400605 | 2CBO Silver/Carbon (Extra Heavy Duty) | ST-1, Single Base Switch Overload Rating 12A High Voltage Machine | .064/135 Ohms | N/A | A62-431 |
| US2:400605-1 | 2CBO Silver/Carbon (Extra Heavy Duty) | ST-1, Single Base Switch Overload Regular Release Regular Pickup | .064/540 Ohms | N/A | N/A |
| US2:400700 | 4FB SCdO (Standard Duty) | ST-1, Single Base Flasher | 60 Ohms | N/A | A62-577 |
| US2:400700-XX | 4FB SCdO (Standard Duty) | ST-1, Single Base Flasher | 240 Ohms | N/A | N/A |
| US2:400700-1X | 4FB SCdO (Standard Duty) | ST-1, Single Base Flasher | 240 Ohms | N/A | N/A |
| US2:400700-7X | 4FB SCdO (Standard Duty)) | ST-1, Single Base Flasher | 60 Ohms | N/A | A62-197 |
| US2:400800 | 6FB Silver (Heavy Duty) | ST-1, Single Base Power Transfer Neutral Regular Release Regular Pickup | 100/100 Ohms | N/A | A62-406 |
| US2:400800-X | 6FB Silver (Heavy Duty) | ST-1, Single Base Power Transfer Neutral Regular Release Regular Pickup | 194 Ohms | N/A | N/A |
Siemens Part Number | Contact Arrangement | Relay Type | Collective Coil Resistance (measured in Ohms) | Ansaldo® STS Part Number (Formerly Branded As Union Switch and Signal) | Alstom® Part Number (Formerly Branded As General Railway Signal) |
| US2:400801 | 6FB Silver/Carbon (Heavy Duty) | ST-1, Single Base Power Transfer Neutral Regular Release Regular Pickup | 100/100 Ohms | N/A | A62-579 |
| US2:400801-X | 6FB Silver/Carbon (Heavy Duty) | ST-1, Single Base Power Transfer Neutral Regular Release Regular Pickup | 100/100 Ohms | N/A | N/A |
| US2:400802 | 6FB Silver (Heavy Duty) | ST-1, Single Base Power Transfer Neutral Regular Release Regular Pickup | 100/100 Ohms | N/A | A62-579 |
| US2:400802-X | 6FB Silver (Heavy Duty) | ST-1, Single Base Power Transfer Neutral Regular Release Regular Pickup | Neutral Regular Release Regular Pickup 100/100 Ohms | N/A | N/A |
| US2:400900 | 4FB Silver/Carbon 2F Silver/Carbon 1B Silver (Standard Duty) | ST-1, Single Base Non Biased Neutral Regular Release Regular Pickup | 230 Ohms | N/A | **A62-340 |
| US2:400901 | 2NR Silver/Platinum (Standard Duty) | ST-1, Single Base Magnetic Stick Regular Pickup | 26/26 Ohms | N/A | N/A |
| US2:400904 | 4NR Silver/Carbon (Standard Duty) | ST-1, Single Base Magnetic Stick Regular Pickup | 7 Ohms | N/A | N/A |
| US2:400950 | 2FG Tungsten 2F Silver/Platinum 2B Tungsten (Standard Duty) | ST-1, Single Base Code Responsive | 200 Ohms | N/A | N/A |
| US2:400951 | 4FB Tungsten (Standard Duty) | ST-1, Single Base Code Responsive | 80 Ohms | N/A | A62-622 |
Manufacturer’s Cross Reference
Siemens Part Number | Contact Arrangement | Relay Type | Collective Coil Resistance (measured in Ohms) | Ansaldo® STS Part Number (Formerly Branded As Union Switch and Signal) | Alstom® Part Number (Formerly Branded As General Railway Signal) |
| US2:400952 | 2NR Silver/Platinum (Standard Duty) | Platinum (Standard Duty) ST-1, Single Base Code Responsive | 22/22 Ohms | N/A | A62-600 |
| US2:400953 | 2FB Tungsten 2FB Silver/Platinum (Standard Duty) | ST-1, Single Base Code Responsive | 80 Ohms | N/A | A62-598 |
| US2:400954 | 4FB Silver/Tungsten (Standard Duty) | ST-1, Single Base Code Responsive | 80 Ohms | N/A | N/A |
| US2:400955 | 4FB Silver/Platinum (Standard Duty) | ST-1, Single Base Code Responsive | N/A | A62-157 | |
| US2:400957 | 2FB Tungsten 2FB Silver/Platinum (Standard Duty) | ST-1, Single Base Code Responsive | 200 Ohms | N/A | A62-595 |
| US2:450000 | 12FB Silver/Carbon (Standard Duty) | ST-1, Single Base Neutral Regular Release Regular Pickup | 500 Ohms | N/A | N/A |
| US2:450001 | 8FB Silver/Carbon 2F Silver/Carbon Silver/Carbon (Extra Heavy Duty) | ST-1, Single Base Neutral Regular Release Regular Pickup | 350 Ohms | N/A | N/A |
| US2:450200 | 12FB Silver/Carbon (Heavy Duty) | ST-2, Double Base Neutral Slow Release Regular Pickup | 260 Ohms | N/A | N/A |
| US2:450300 | 8FB Silver/Carbon 4F Silver/Carbon 2B Silver (Heavy Duty) | ST-2, Double Base Biased Neutral Regular Release Slow Pickup | 800 Ohms | N/A | N/A |
Manufacturer’s Cross Reference
Siemens Part Number | Contact Arrangement | Relay Type | Collective Coil Resistance (measured in Ohms) | Ansaldo® STS Part Number (Formerly Branded As Union Switch and Signal) | Alstom® Part Number (Formerly Branded As General Railway Signal) |
| US2:450500 | 12FB Silver/Carbon (Standard Duty) | ST-2, Double Base Biased Neutral Regular Release Regular Pickup | 350 Ohms | N/A | A62-150 |
| US2:450501 | 8FB Silver/Carbon 4F Silver/Carbon 2B Silver (Standard Duty) | ST-2, Double Base Biased Neutral Regular Release Regular Pickup | 350 Ohms | N/A | A62-145 |
| US2:450502 | 8FB Silver/Carbon 4F Silver//Carbon 2B Silver (Standard Duty) | ST-2, Double Base Biased Neutral Regular Release Regular Pickup | 800 Ohms | N/A | N/A |
| US2:450900 | 6NR Silver/Carbon (Heavy Duty) | ST-2, Double Base Polar Regular Release Regular Pickup | 250Ohms | N/A | A62-609 |
| US2:450901 | 8FB Silver/Carbon (Heavy Duty) | ST-2, Double Base Polar Regular Release Regular Pickup | 500 Ohms | N/A | A62-391 |
| US2:450902 | 4NR Silver/Carbon 2FB Silver/Carbon 2F Silver (Heavy Duty) | ST-2, Double Base Polar Regular Release Regular Pickup | 250 Ohms | N/A | A62-585 |
| US2:450992 | 4F Silver/Carbon 4B Silver (Standard Duty) | ST-2, Double Base Vane Track Relay | Track .524 Ohms Local 144 Ohms | N/A | A62-547 |
| US2:450993 | 4F Silver/Carbon 4B Silver (Standard Duty) | ST-2, Double Base Vane Track Relay | Track .4 Ohms Local 144 Ohms | N/A | A62-597 |
| US2:450994 | 2F Silver/Carbon 2B Silver (Standard Duty) | ST-2, Double Base Vane Track Relay | Track 5 Ohms Local 144 Ohms | N/A | A62-548 |
| US2:450994-N | 2F Silver/Carbon 2B Silver (Standard Duty) | ST-2, Double Base Vane Track Relay | Track 5 Ohms Local 144 Ohms | N/A | N/A |
F2 - ST Series Vital Relays
Relay Products
Series
Vital Relays
SIEMENS ST-1 frame relay shown for reference
purposes only! Actual unit selected may vary in
mounting and features. SIEMENS ST Series
Vital Relays are compact plug-in circuit switching
elements housed within a clear polycarbonate
case for use in modern railway systems. These
relays incorporate the required control
characteristics as well as operating security for this
application. ST-1 and ST-2 relays fit into size 1
and 2 sockets already in use commonly throughout
the industry and select models are interchangeable
with other manufacturers’ existing types of relays
as well.
Each relay carries a relay registration plate unique
to that specific type. Sockets have like indexing pins
to ensure insertion of the proper relay for each circuit
function. All contact and coil connections are brought
out through the base of the relay as spring prongs.
The socket has wedge shaped plug insulators with flat
metal terminals on both the upper and lower surfaces.
Relays are guided into the socket by two rods so that
each pair of prongs engage their respective socket
terminals, making a firm, low resistance contact.
The socket terminals are available in either the solder
or crimp types. Terminals are easily removed from the
back of the socket for making wiring changes without
unplugging the relay.
- Available in both ST-1 and ST-2 frame sizes
- Mounts easily in existing socket bases
- All ferrous metal parts are nickle plated
- All contacts are rated for 4 Amps / 30 Volts
- Meets or exceeds all applicable AREMA®
specifications - Contact support springs are phosphorous
bronze, molded in phenolic blocks. Relays are
provided with space for three such blocks. - Normally open or front contacts are fine silver
to silver impregnated carbon - Normally closed or back contacts are
fine silver to fine silver. - Regular, heavy duty, extra heavy duty;
tungsten, and magnetic arc suppressed
contacts are available. - Heavy armature provides for positive
drop-away. - Highly efficient magnetic structure, making
routine calibration quick and easy.
Relay Products
Neutral Relay, Regular Release and Regular Pickup
Siemens Part Number | Contact Arrangement | Relay Type | Drop Away Current | Pickup / Working Current | Resistance/ Tolerance | Relay Register Plate | Weight |
| US2:400000 | 6FB 4 A @ 30 V Standard Duty | ST-1 Line | 5.7 mA 2.85 V Minimum | 12.1 mA 6.05 V Maximum | 10 - 12 VDC (2) Coils @ 250 O ± 5% Resistance | 1 - 2 - 9 - 14 | 8.0 lbs (3.63 kgs) |
| US2:400001 | 6FB 4 A @ 30 V Standard Duty | ST-1 Line | 8.4 mA 0.71 V Minimum | 19.5 mA 1.64 V Maximum | 25 - 30 VDC (2) Coils @ 42 ? ± 5% Resistance Each Coil | 1 - 2 - 12 - 32 | 8.0 lbs (3.63 kgs) |
| US2:400002 | 4FB Silver/Carbon 2F Silver/Carbon 1B Silver (Standard Duty) | ST-1 Line | 1.5 mA 2.70 V Minimum | 4.7 mA 8.46 V Maximum | 10 - 12 VDC (2) Coils @ 900 ? ± 5% Resistance Each Coil | 1 - 2 - 22 - 27 | 8.0 lbs (3.63 kgs) |
| US2:400003 | 4FB Silver/Carbon 2F Silver/Carbon 1B Silver (Standard Duty) | ST-1 Line | 4.0 mA 3.60 V Minimum | 8.4 mA 7.56 V Maximum | 10 - 12 VDC (2) Coils @ 450 O ± 5% Resistance Each Coil | 1 - 2 - 3 - 11 | 8.0 lbs (3.63 kgs) |
| US2:400004 | 4FB Silver/Carbon 2F Silver/Carbon 1B Silver (Standard Duty) | ST-1 Line | 5.7 mA 2.85 V Minimum | 12.1 mA 6.05 V Maximum | 10 - 12 VDC (2) Coils @ 250 O ± 5% Resistance Each Coil | 1 - 2 - 3 - 11 | 8.0 lbs (3.63 kgs) |
| US2:400005 | 6FB Silver/Carbon (Standard Duty) | ST-1 Line | 4.8 mA 2.40 V Minimum | 15.7 mA 7.85 V Maximum | 10 - 12 VDC (2) Coils @ 250 O ± 5% Resistance Each Coil | 1 - 4 - 6 - 15 | 8.0 lbs (3.63 kgs) |
| US2:400006 | 4F Silver/Carbon 2B Silver (Standard Duty) | ST-1 Line | 4.5 mA 1.58 V Minimum | 8.6 mA 3.01 V Maximum | 10 - 12 mADC (2) Coils @ 175 O ± 5% Resistance Each Coil | 1 - 2 - 11 - 30 | 8.0 lbs (3.63 kgs) |
| US2:400007 | 4FB Silver/Carbon 2F Silver/Carbon 1B Silver (Standard Duty) | ST-1 Line | 6.2 mA 2.17 V Minimum | 13.7 mA 4.80 V Maximum | 10 - 12 VDC (2) Coils @ 175 O ± 5% Resistance Each Coil | 1 - 2 - 3 - 11 | 8.0 lbs (3.63 kgs) |
| US2:400008 | 4FB Silver/Carbon 2F Silver/Carbon 1B Silver (Standard Duty) | ST-1 Line | 5.4 mA 2.70 V Minimum | 12.1 mA 6.05 V Maximum | 7.60 VDC (2) Coils @ 250 O ± 5% Resistance Each Coil | 1 - 3 - 9 - 30 | 8.0 lbs (3.63 kgs) |
Neutral Relay, Regular Release and Regular Pickup
Siemens Part Number | Contact Arrangement | Relay Type | Drop Away Current | Pickup / Working Current | Resistance/ Tolerance | Relay Register Plate | Weight |
| US2:400010 | 6FB 4 A @ 30 V Standard Duty | ST-1 Track | 52.0 mA 0.21 V Minimum | 89.0 mA 0.36 V Maximum | 100 - 120 mADC (2) Coils @ 2 O ± 5% Resistance Each Coil | 1 - 2 - 3 - 26 | 8.0 lbs (3.63 kgs) |
| US2:400011 | 4FB - 2F - 1B 4 A @ 30 V Standard Duty | ST-1 Track | 52.0 mA 0.21 V Minimum | 89.0 mA 0.36 V Maximum | 100 - 120 mADC (2) Coils @ 2 O ± 5% Resistance Each Coil | 1 - 2 - 3 - 15 | 8.0 lbs (3.63 kgs) |
| US2:400012 | 4FB - 2F - 1B 4 A @ 30 V Standard Duty | ST-1 Track | 75.0 mA 0.14 V Minimum | 130.0 mA 0.24 V Maximum | 150 - 160 mADC (2) Coils @ 0.09 O ± 5% Resistance Each Coil | 1 - 2 - 3 - 15 | 8.0 lbs (3.63 kgs) |
| US2:400013 | 6FB 4 A @ 30 V Standard Duty | ST-1 Track | 78.0 mA 0.14 V Minimum | 130 mA 0.24 V Maximum | 150 - 160 mADC (2) Coils @ 0.9 O ± 5% Resistance Each Coil | 1 - 2 - 3 - 26 | 8.0 lbs (3.63 kgs) |
| US2:400015 | 4FB - 2F - 1B 4 A @ 30 V Standard Duty | ST-1 Track | 10.5 mA 1.05 V Minimum | 19.2 mA 1.92 V Maximum | 10 - 12 mADC (2) Coils @ 50 O ± 5% Resistance Each Coil | 1 - 2 - 3 - 15 | 8.0 lbs (3.63 kgs) |
| US2:400017 | 6FB 4 A @ 30 V Standard Duty | ST-1 Track | 4.0 mA 3.60 V Minimum | 8.4 mA 7.56 V Maximum | 10 - 12 VDC (2) Coils @ 450 O ± 5% Resistance Each Coil | 1 - 2 - 9 - 14 | 8.0 lbs (3.63 kgs) |
| US2:400020 | 4FB - 2F - 1B 15 A @ 30 V Heavy Duty | ST-1 Track | 5.7 mA 2.85 V Minimum | 12.1 mA 6.05 V Maximum | 10 - 12 VDC (2) Coils @ 250 O ± 5% Resistance Each Coil | 1 - 2 - 15 - 31 | 8.0 lbs (3.63 kgs) |
| US2:400022 | 4FB - 2F - 1B 15 A @ 30 V Heavy Duty | ST-1 Track | 4.0 mA 3.60 V Minimum | 9.2 mA 8.28 V Maximum | 10 - 12 VDC (2) Coils @ 450 O ± 5% Resistance Each Coil | 1 - 2 - 3 - 11 | 8.0 lbs (3.63 kgs) |
| US2:400023 | 6FB 15 A @ 30 V Heavy Duty | ST-1 Track | 3.4 mA 1.70 V Minimum | 16.5 mA 8.25 V Maximum | 10 - 12 VDC (2) Coils @ 250 O ± 5% Resistance Each Coil | 1 - 3 - 9 - 23 | 8.0 lbs (3.63 kgs) |
Neutral Relay, Regular Release and Regular Pickup
Siemens Part Number | Contact Arrangement | Relay Type | Drop Away Current | Pickup / Working Current | Resistance/ Tolerance | Relay Register Plate | Weight |
| US2:400026 | 6FB 15 A @ 30 V Heavy Duty | ST-1 Line | 4.0 mA 3.60 V Minimum | 9.2 mA 8.28 V Maximum | 10 - 12 VDC (2) Coils @ 450 Ω ± 5% Resistance Each Coil | 1 - 2 - 5 - 11 | 8.0 lbs (3.63 kgs) |
| US2:400027 | 4FB - 2F - 1B 15 A @ 30 V Heavy Duty) | ST-1 Line | 6.2 mA 2.17 V Minimum | 13.6 mA 4.76 V Maximum | 10 - 12 VDC (2) Coils @ 175 Ω ± 5% Resistance Each Coil | 1 - 2 - 15 - 31 | 8.0 lbs (3.63 kgs) |
| US2:400028 | 6FB 4 A @ 30 V Standard Duty | ST-1 Line | 14.7 mA 0.88 V Minimum | 33.0 mA 1.98 V Maximum | 25 - 30 VDC (2) Coils @ 30 Ω ± 5% Resistance Each Coil | 1 - 2 - 9 - 14 | 8.0 lbs (3.63 kgs) |
| US2:400029 | 4FB - 2F - 1B 15 A @ 30 V Heavy Duty | ST-1 Line | 5.7 mA 2.85 V Minimum | 12.1 mA 6.05 V Maximum/A | 10 - 12 VDC (2) Coils @ 250 Ω ± 5% Resistance Each Coil | 10 - 15 - 20 - 22 | 8.0 lbs (3.63 kgs) |
| US2:400030 | 2FB - 3F - 3B 4 A @ 30 V Standard Duty | ST-1 Line | 95.0 mA 2.70 V Minimum | 163.0 mA 4.65 V Maximum | 6 VDC (2) Coils @ 900 Ω ± 5% Resistance Each Coil | 1 - 4 - 9 - 11 | 8.0 lbs (3.63 kgs) |
| US2:400031 | 4FB - 2F - 1B 4 A @ 30 V Standard Duty | ST-1 Line | 8.4 mA 0.71 V Minimum | 19.5 mA 1.64 V Maximum | 25 - 30 VDC (2) Coils @ 42 Ω ± 5% Resistance Each Coil | 1 - 2 - 3 - 11 | 8.0 lbs (3.63 kgs) |
| US2:400070 | 4F Silver/Carbon 2B Silver (Standard Duty) | ST-1 Line | 36.0 mA Minimum | 114 mA Maximum | 10 - 12 VDC (2) Coils @ 65 Ω ± 5% Resistance Each Coil | 1 - 5 - 7 - 32 | 8.0 lbs (3.63 kgs) |
| US2:450000 | 12FB 4 A @ 30 V Standard Duty | ST-1 Line | 7.1 mA 3.55 V Minimum | 11.4 mA 5.70 V Maximum | 10 - 12 VDC (2) Coils @ 250 Ω ± 5% Resistance Each Coil | 1 - 2 - 4 - 33 | 8.0 lbs (3.63 kgs) |
| US2:450001 | 8FB - 2F 4 A @ 30 V Extra Heavy Duty | ST-1 Line | 11.4 mA 3.76 V Minimum | 29.4 mA 9.70 V Maximum | 10 - 12 VDC (2) Coils @ 165 Ω ± 5% Resistance Each Coil | 1 - 2 - 10 - 12 | 8.0 lbs (3.63 kgs) |
Neutral Relay, Regular Release and Slow Pickup
Siemens Part Number | Contact Arrangement | Relay Type | Drop Away Current | Pickup / Working Current | Resistance/ Tolerance | Relay Register Plate | Weight |
| US2:400100 | 6FB 4 A @ 30 V Standard Duty | ST-1 Line | 20.0 mA 4.40 V Minimum | 41.0 mA 9.00 V Maximum | 10 - 12 VDC (1) Coil @ 220 O ± 5% Resistance | 1 - 2 - 5 - 24 | 8.0 lbs (3.63 kgs) |
| US2:400101 | 4FB - 2F - 1B 4 A @ 30 V Standard Duty | ST-1 Line | 16.0 mA 4.80 V Minimum | 34.0 mA 10.20 V Maximum | 10 - 12 VDC (1) Coil @ 300 O ± 5% Resistance | 1 - 2 - 11 - 33 | 8.0 lbs (3.63 kgs) |
Neutral Relay, Slow Release and Regular Pickup
Siemens Part Number | Contact Arrangement | Relay Type | Drop Away Current | Pickup / Working Current | Resistance/ Tolerance | Relay Register Plate | Weight |
| US2:400014 | 4FB - 2F - 1B 4 A @ 30 V Standard Duty | ST-1 Line | 13 mA 0.65 V Minimum | 33.5 mA 1.68 V Maximum | 50 mADC (2) Coils @ 25 Ω ± 5% Resistance Each Coil | 1 - 2 - 22 - 23 | 8.0 lbs (3.63 kgs) |
| US2:400200 | 4FB 4 A @ 30 V Standard Duty | ST-1 Line | 5.0 mA 0.97 V Minimum | 31.0 mA 6.00 V Maximum | 10 - 12 VDC (1) Coil @ 194 Ω ± 5% Resistance | 1 - 2 - 10 - 25 | 8.0 lbs (3.63 kgs) |
| US2:400210 | 6FB 4 A @ 30 V Standard Duty | ST-1 Line | 9.2 mA 1.78 V Minimum | 35.0 mA 6.80 V Maximum | 10 - 12 VDC (1) Coil @ 194 Ω ± 5% Resistance | 1 - 2 - 4 - 23 | 8.0 lbs (3.63 kgs) |
| US2:400211 | 4FB - 2F - 1B 4 A @ 30 V Standard Duty | ST-1 Line | 9.2 mA 1.78 V Minimum | 35.0 mA 6.80 V Maximum | 10 - 12 VDC (1) Coil @ 194 Ω ± 5% Resistance | 1 - 2 - 12 - 14 | 8.0 lbs (3.63 kgs) |
| US2:400212 | 4FB - 2F - 1B 4 A @ 30 V Standard Duty | ST-1 Line | 5.4 mA 1.05 V Minimum | 33.5 mA 6.50 V Maximum | 10 - 12 VDC (1) Coil @ 194 Ω ± 5% Resistance | 1 - 2 - 11 - 17 | 8.0 lbs (3.63 kgs) |
| US2:400213 | 2FB 4 A @ 30 V Standard Duty | ST-1 Line | 1.4 mA 0.64 V Minimum | 14.0 mA 6.44 V Maximum | 10 - 12 VDC (1) Coil @ 460 Ω ± 5% Resistance | 1 - 2 - 16 - 28 | 8.0 lbs (3.63 kgs) |
| US2:400220 | 2F - 4B 4 A @ 30 V Standard Duty | ST-1 Line | 6.5 mA 0.50 V Minimum | 24.0 mA 1.90 V Maximum | 10 - 12 VDC (2) Coils @ 80 Ω ± 5% Resistance Each Coil | 1 - 2 - 9 - 10 | 8.0 lbs (3.63 kgs) |
| US2:400221 | 2FB 4 A @ 30 V Standard Duty | ST-1 Line | 6.0 mA 0.14 V Minimum | 23.0 mA 0.55 V Maximum | Special Voltage (2) Coils @ 12 Ω ± 5% Resistance Each Coil | 1 - 3 - 4 - 25 | 8.0 lbs (3.63 kgs) |
| US2:450200 | 12FB 4 A @ 30 V Standard Duty | ST-1 Line | 11.4 mA 2.96 V Minimum | 23.1 mA 6.01 V Maximum | 10 - 12 VDC (2) Coils @ 260 Ω ± 5% Resistance Each Coil | 1 - 3 - 6 - 24 | 8.0 lbs (3.63 kgs) |
Neutral Lamp Control Relay, Regular Release and Regular Pickup
Siemens Part Number | Contact Arrangement | Relay Type | Drop Away Current | Pickup / Working Current | Resistance/ Tolerance | Relay Register Plate | Weight |
| US2:400016 | 2FB - 5F - 1B 20 A @ 16 V Heavy Duty | ST-1 Lamp Control | 4.0 mA 3.60 V Minimum | 9.2 mA 8.25 V Maximum | 12 VDC (2) Coils @ 220 Ω ± 5% Resistance Each Coil | 1 - 3 - 19 - 21 | 8.0 lbs (3.63 kgs) |
| US2:400021 | 2B 15 A @ 30 V Heavy Duty 2FB 4 A @ 30 V Standard Duty | ST-1 Lamp Control | 6.5 mA 1.3 V Minimum | 19.0 mA 3.80 V Maximum | 10 - 12 VDC (2) Coils @ 100 Ω ± 5% Resistance Each Coil | 1 - 2 - 24 - 28 | 8.0 lbs (3.63 kgs) |
Neutral Light Out Relay, Regular Release and Regular Pickup
Siemens Part Number | Contact Arrangement | Relay Type | Drop Away Current | Pickup / Working Current | Resistance/ Tolerance | Relay Register Plate | Weight |
| US2:400300 | 4FB 4 A @ 30 V Standard Duty | ST-1 Light Out | 6.1 mA Minimum w/o Rectifier | 11.5 mA Maximum w/o Rectifier | 10 - 12 VDC / VAC w/ Rectifier (2) Coils @ 450 / 0.12 Ω ± 5% Resistance Each Coil | 1 - 2 - 22 - 25 | 8.0 lbs (3.63 kgs) |
| US2:400301 | 6FB 4 A @ 30 V Standard Duty | ST-1 Light Out | 8.0 mA Minimum w/o Rectifier | 16.0 mA Maximum w/o Rectifier | 10 - 12 VDC / VAC w/ Rectifier (2) Coils @ 450 / 0.20 Ω ± 5% Resistance Each Coil | 1 - 2 - 8 - 28 | 8.0 lbs (3.63 kgs) |
| US2:400302 | 4FB 4 A @ 30 V Standard Duty | ST-1 Light Out | 6.1 mA Minimum w/o Rectifier | 11.5 mA Maximum w/o Rectifier | 10 - 12 VDC / VAC w/ Rectifier (2) Coils @ 450 / 0.07 Ω ± 5% Resistance Each Coil | 1 - 2 - 24 - 32 | 8.0 lbs (3.63 kgs) |
| US2:400303 | 4FB 4 A @ 30 V Standard Duty | ST-1 Light Out | 360 mA Minimum w/o Rectifier | 630 mA Maximum w/o Rectifier | 10 - 12 VDC / VAC w/ Rectifier (2) Coils @ 0.12 Ω ± 5% Resistance Each Coil | 1 - 2 - 15 - 18 | 8.0 lbs (3.63 kgs) |
| US2:400305 | 4FB 4 A @ 30 V Standard Duty | ST-1 Light Out | 6.1 mA Minimum w/o Rectifier | 13.6 mA Maximum w/o Rectifier | 10 - 12 VDC / VAC w/ Rectifier (2) Coils @ 450 / 0.45 Ω ± 5% Resistance Each Coil | 1 - 4 - 12 - 15 | 8.0 lbs (3.63 kgs) |
| US2:400300-1X | External rectifier stack assembly for Neutral Light Out Relay assemblies (Includes hardware) | ||||||
Biased Neutral, Regular Release and Regular Pickup
Siemens Part Number | Contact Arrangement | Relay Type | Drop Away Current | Pickup / Working Current | Resistance/ Tolerance | Relay Register Plate | Weight |
| US2:400500 | 6FB 4 A @ 30 V Standard Duty | ST-1 Line | 5.5 mA 2.75 V Minimum | 12.1 mA 6.05 V Maximum | 10 - 12 VDC (2) Coils @ 250 Ω ± 5% Resistance Each Coil | 1 - 2 - 4 - 13 | 8.0 lbs (3.63 kgs) |
| US2:400500-1 | 6FB 4 A @ 30 V Standard Duty | ST-1 Line | 5.5 mA 2.75 V Minimum | 12.1 mA 6.05 V Maximum | 24 VDC (2) Coils @ 1000 Ω ± 5% Resistance Each Coil | 1 - 2 - 4 - 13 | 8.0 lbs (3.63 kgs) |
| US2:400501 | 6FB 4 A @ 30 V Standard Duty | ST-1 Line | 14.0 mA 0.88 V Minimum | 30.5 mA 1.92 V Maximum | Special Voltage (2) Coils @ 31.5 Ω ± 5% Resistance Each Coil | 1 - 2 - 4 - 13 | 8.0 lbs (3.63 kgs) |
| US2:400502 | 4FB - 2F - 1B 4 A @ 30 V Standard Duty | ST-1 Line | 5.5 mA 2.75 V Minimum | 12.1 mA 6.05 V Maximum | 10 - 12 VDC (2) Coils @ 250 Ω ± 5% Resistance Each Coil | 1 - 2 - 7 - 25 | 8.0 lbs (3.63 kgs) |
| US2:400503 | 2FB - 4F - 2B 4 A @ 30 V Standard Duty | ST-1 Line | 4.1 mA 4.10 V Minimum | 8.8 mA 8.80 V Maximum | 12 - 16 VDC (2) Coils @ 500 Ω ± 5% Resistance Each Coil | 1 - 2 - 12 - 20 | 8.0 lbs (3.63 kgs) |
| US2:400504 | 4FB - 2F - 1B 4 A @ 30 V Standard Duty | ST-1 Line | 13.0 mA 1.30 V Minimum | 26.0 mA 2.60 V Maximum | 12 - 16 VDC (2) Coils @ 50 Ω ± 5% Resistance Each Coil | 1 - 2 - 7 - 25 | 8.0 lbs (3.63 kgs) |
| US2:400505 | 6FB 15 A @ 30 V Heavy Duty | ST-1 Line | 5.5 mA 2.75 V Minimum | 12.1 mA 6.05 V Maximum | 10 - 12 VDC (2) Coils @ 250 Ω ± 5% Resistance Each Coil | 1 - 2 - 4 - 13 | 8.0 lbs (3.63 kgs) |
| US2:400506 | 4FB - 2F - 1B 15 A @ 30 V Heavy Duty | ST-1 Line | 5.5 mA 2.75 V Minimum | 12.1 mA 6.05 V Maximum | 10 - 12 VDC (2) Coils @ 250 Ω ± 5% Resistance Each Coil | 1 - 2 - 7 - 25 | 8.0 lbs (3.63 kgs) |
| US2:400506-1 | 4FB - 2F - 1B 15 A @ 30 V Heavy Duty | ST-1 Line | 5.5 mA 2.75 V Minimum | 12.1 mA 6.05 V Maximum | 10 - 12 VDC (2) Coils @ 1000 Ω ± 5% Resistance Each Coil | 1 - 2 - 7 - 25 | 8.0 lbs (3.63 kgs) |
Biased Neutral, Regular Release and Regular Pickup
Siemens Part Number | Contact Arrangement | Relay Type | Drop Away Current | Pickup / Working Current | Resistance/ Tolerance | Relay Register Plate | Weight |
| US2:400507 | 6FB 4 A @ 30 V Standard Duty | ST-1 Line | 82.0 mA 0.33 V Minimum | 126.0 mA 0.50 V Maximum | 175 - 200 V (2) Coils @ 2 O ± 5% Resistance Each Coil | 1 - 3 - 10 - 27 | 8.0 lbs (3.63 kgs) |
| US2:400508 | 6FB Silver/Carbon (Standard Duty) | ST-1 Line | 243.0 mA 0.12 V Minimum | 374 mA 0.19 V Maximum | 400 - 450 V (2) Coils @ 1 O ± 5% Resistance Each Coil | 1 - 3 - 10 - 30 | 8.0 lbs (3.63 kgs) |
| US2:400509 | 4FB Silver/Carbon 2F Silver/Carbon 1B Silver (Standard Duty) | ST-1 Line | 2.7 mA 5.67 V Minimum | 5.8 mA 12.18 V Maximum | 14 - 42 VDC (2) Coils @ 1050 O ± 5% Resistance Each Coil | 1 - 3 - 9 - 14 | 8.0 lbs (3.63 kgs) |
| US2:400509M | 4FB Silver/Carbon 2F Silver/Carbon 1B Silver (Standard Duty) | ST-1 Line | 2.90 mA 6.09 V Minimum | 5.5 mA 11.59 V Maximum | 14 - 42 VDC (2) Coils @ 1050 O ± 5% Resistance Each Coil | 1 - 3 - 9 - 14 | 8.0 lbs (3.63 kgs) |
| US2:400510 | 4FB Silver/Carbon 2F Silver/Carbon 1B Silver (Standard Duty) | ST-1 Line | 73.0 mA 0.15 V Minimum | 158.0 mA 0.32 V Maximum | 175 - 200 mADC (2) Coils @ 1 O ± 5% Resistance Each Coil | 1 - 4 - 5 - 6 | 8.0 lbs (3.63 kgs) |
| US2:400511 | 6FB Silver/Carbon (Standard Duty) | ST-1 Line | 256.0 mA 0.13 V Minimum | 365.0 mA 0.18 V Maximum | 400 - 450 mADC (2) Coils @ 1 O ± 5% Resistance Each Coil | 1 - 2 - 7 - 25 | 8.0 lbs (3.63 kgs) |
| US2:400512 | 6FB 4 A @ 30 V Heavy Duty | ST-1 Line | 73.0 mA 0.15 V Minimum | 158.0 mA 0.32 V Maximum | 175 - 200 mADC (2) Coils @ 1 O ± 5% Resistance Each Coil | 1 - 2 - 5 - 33 | 8.0 lbs (3.63 kgs) |
| US2:400513 | 2FB - 3F - 3B 4 A @ 30 V Heavy Duty | ST-1 Line | 4.3 mA 4.30 V Minimum | 8.8 mA 8.80 V Maximum | 12 -32 VDC (2) Coils @ 200 O ± 5% Resistance Each Coil | 1 - 2 - 12 - 21 | 8.0 lbs (3.63 kgs) |
| US2:400515 | 5F - 4B 4 A @ 30 V Heavy | ST-1 Line | 256.0 mA 0.13 V Minimum | 365.0 mA 0.18 V Maximum | 400 - 450mADC (2) Coils @ 1 O ± 5% Resistance Each Coil | 1 - 2 - 7 - 25 | 8.0 lbs (3.63 kgs) |
Biased Neutral Switch Overload, Regular Release and Regular Pickup
Siemens Part Number | Contact Arrangement | Relay Type | Drop Away Current | Pickup / Working Current | Resistance/ Tolerance | Relay Register Plate | Weight |
| US2:400600 | 2B Extra Heavy Duty Magnetic Blowout | ST-1 | 5.0 mA 1225 Ω Coil 6.10 V Maximum | Special Voltage (1) Coil @ 1225 Ω ± 5% Resistance | 1 - 2 - 5 - 23 | 8.0 lbs (3.63 kgs) | |
| US2:400601 | 2CBO 4 A @ 30 V Standard Duty | ST-1 | 18.0 mA 135 Ω Coil 2.43 V Maximum | 70.0 mA 135 Ω Coil 9.45 V Maximum | Special Voltage (1) Coil @ 135 Ω ± 5% Resistance | 1 - 3 - 7 - 10 | 8.0 lbs (3.63 kgs) |
| US2:400602 | 2CBO 4 A @ 30 V Standard Duty | ST-1 | 18.0 mA 220 Ω Coil 3.96 V Maximum | 70.0 mA 220 Ω Coil 15.40 V Maximum | Special Voltage (1) Coil @ 220 Ω± 5% Resistance | 1 - 2 - 11 - 26 | 8.0 lbs (3.63 kgs) |
| US2:400604 | 2CBO 4 A @ 30 V Standard Duty | ST-1 | 18.0 mA 135 Ω Coil 2.43 V Maximum | 70.0 mA 135 Ω Coil 9.45 V Maximum | Special Voltage (1) Coil @ 135 Ω ± 5% Resistance | 1 - 3 - 7 - 30 | 8.0 lbs (3.63 kgs) |
| US2:400605 | 2CBO 4 A @ 30 V Standard Duty | ST-1 | 10.0 mA 135 Ω Coil 1.35 V Maximum | 40.0 mA 135 Ω Coil 5.40 V Maximum | Special Voltage (1) Coil @ 135 Ω ± 5% Resistance | 1 - 3 - 7 - 9 | 8.0 lbs (3.63 kgs) |
| US2:400605-1 | 2CBO 4 A @ 30 V Standard Duty | ST-1 | 5.0 mA 540 Ω Coil 2.70 V Maximum | 35.0 mA 540 Ω Coil 18.90 V Maximum | Special Voltage (1) Coil @ 540 Ω ± 5% Resistance | 1 - 3 - 7 - 9 | 8.0 lbs (3.63 kgs) |
Biased Neutral Relay, Regular Release and Regular Pickup
Siemens Part Number | Contact Arrangement | Relay Type | Drop Away Current | Pickup / Working Current | Resistance/ Tolerance | Relay Register Plate | Weight |
| US2:400527 | 6FB 4 A @ 30 V Standard Duty | ST-1 Line | 13.0 mA 1.30 V Minimum | 26.0 mA 2.60 V Maximum | 10 - 12 VDC (2) Coils @ 200 Ω ± 5% Resistance Each Coil | 2 - 4 - 18 - 23 | 8.0 lbs (3.63 kgs) |
| US2:400528 | 6FB 4 A @ 30 V Standard Duty | ST-1 Line | 5.7 mA 2.30 V Minimum | 13.2 mA 5.30 V Maximum | 10 - 12 VDC (2) Coils @ 200 Ω ± 5% Resistance Each Coil | 2 - 4 - 18 - 23 | 8.0 lbs (3.63 kgs) |
| US2:400529 | 4FB 15 A @ 30 V Heavy Duty 2FB 4 A @ 30 V Standard Duty | ST-1 Line | 5.7 mA 2.30 V Minimum | 13.2 mA 5.30 V Maximum | 10 - 12 VDC (2) Coils @ 250 Ω ± 5% Resistance Each Coil | 2 - 4 - 13 - 22 | 8.0 lbs (3.63 kgs) |
| US2:400531 | 4FB - 2F - 1B 4 A @ 30 V Standard Duty | ST-1 Line | 3.9 mA 2.93 V Minimum | 8.4 mA 6.30 V Maximum | 10 - 12 VDC (2) Coils @ 375 Ω ± 5% Resistance Each Coil | 1 - 2 - 7 - 25 | 8.0 lbs (3.63 kgs) |
| US2:400532 | 6FB 4 A @ 30 V Standard Duty | ST-1 Line | 132.0 mA 0.26 V Minimum | 250.0 mA 0.50 V Maximum | 400 - 450 mADC (2) Coils @ 1 Ω ± 5% Resistance Each Coil | 2 - 4 - 19 - 21 | 8.0 lbs (3.63 kgs) |
| US2:400533 | 6FB 4 A @ 30 V Standard Duty | ST-1 Line | 7.9 mA 1.97 V Minimum | 16.8 mA 4.20 V Maximum | 10 - 12 VDC (2) Coils @ 125 Ω ± 5% Resistance Each Coil | 1 - 2 - 4 - 13 | 8.0 lbs (3.63 kgs) |
| US2:400534 | 6FB 4 A @ 30 V Standard Duty | ST-1 Line | 116.0 mA 0.12 V Minimum | 225.0 mA 0.23 V Maximum | 275 - 300 mADC (2) Coils @ 0.5 Ω ± 5% Resistance | 1 - 2 - 4 - 13 | 8.0 lbs (3.63 kgs) |
| US2:400535 | 4FB - 2F - 1B 4 A @ 30 V Standard Duty | ST-1 Line | 14.0 mA 0.88 V Minimum | 30.5 mA 1.92 V Maximum | 10 - 12 VDC (2) Coils @ 125 Ω ± 5% Resistance Each Coil | 1 - 2 - 7 - 25 | 8.0 lbs (3.63 kgs) |
| US2:400559 | 2FB - 6F 4 A @ 30 V Heavy Duty | ST-1 Line | 2.7 mA 5.67 V Minimum | 5.8 mA 12.18 V Maximum | 14 - 42 VDC (2) Coils @ 1050 Ω ± 5% Resistance Each Coil | 1 - 4 - 13 - 21 | 8.0 lbs (3.63 kgs) |
Biased Neutral Relay, Regular Release and Regular Pickup
Siemens Part Number | Contact Arrangement | Relay Type | Drop Away Current | Pickup / Working Current | Resistance/ Tolerance | Relay Register Plate | Weight |
| US2:400516 | 6FB 4 A @ 30 V Standard Duty | ST-1 Track | 4.0 mA 3.20 V Minimum | 8.8 mA 7.04 V Maximum | 10 - 12 VDC (2) Coils @ 400 Ω ± 5% Resistance Each Coil | 1 - 3 - 4 - 15 | 8.0 lbs (3.63 kgs) |
| US2:400517 | 4FB 4 A @ 30 V Standard Duty | ST-1 Track | 4.5 mA 9.00 V Minimum | 6.0 mA 12.00 V Maximum | 18 - 24 V (2) Coils @ 1000 Ω ± 5% Resistance Each Coil | 1 - 2 - 10 - 24 | 8.0 lbs (3.63 kgs) |
| US2:400518 | 4FB 4 A @ 30 V Standard Duty | ST-1 Track | 4.0 mA 3.20 V Minimum | 8.8 mA 7.04 V Maximum | 10 - 12 VDC (2) Coils @ 400 Ω ± 5% Resistance Each Coil | 1 - 3 - 23 - 24 | 8.0 lbs (3.63 kgs) |
| US2:400519 | 2FB - 4F - 2B 4 A @ 30 V Standard Duty | ST-1 Track | 2.7 mA 5.67 V Minimum | 5.8 mA 12.18 V Maximum | 14 - 42 VDC (2) Coils @ 1050 Ω ± 5% Resistance Each Coil | 1 - 3 - 9 - 14 | 8.0 lbs (3.63 kgs) |
| US2:400521 | 6FB 4 A @ 30 V Standard Duty | ST-1 Track | 49.0 mA 0.20 V Minimum | 109.0 mA 0.44 V Maximum | Special Voltage (2) Coils @ 4 Ω ± 5% Resistance Each Coil | 1 - 4 - 6 - 8 | 8.0 lbs (3.63 kgs) |
| US2:400522 | 4FB - 2F - 1B 4 A @ 30 V Standard Duty | ST-1 Track | 243.0 mA 0.12 V Minimum | 374.0 mA 0.19 V Maximum | 175 - 200 mADC (2) Coils @ 1 Ω ± 5% Resistance Each Coil | 1 - 4 - 5 - 6 | 8.0 lbs (3.63 kgs) |
| US2:400524 | 4FB - 2F - 1B 4 A @ 30 V Standard Duty | ST-1 Track | 5.5 mA 2.75 V Minimum | 12.1 mA 6.05 V Maximum | 10 - 12 VDC (2) Coils @ 250 Ω ± 5% Resistance Each Coil | 1 - 2 - 7 - 25 | 8.0 lbs (3.63 kgs) |
| US2:400525 | 4FB - 2F - 1B 4 A @ 30 V Standard Duty | ST-1 Track | 5.9 mA 2.21 V Minimum | 12.6 mA 4.73 V Maximum | 10 - 12 VDC (2) Coils @ 187.5 Ω ± 5% Resistance Each Coil | 1 - 2 - 7 - 25 | 8.0 lbs (3.63 kgs) |
| US2:400526 | 2FB - 4F - 2B 4 A @ 30 V Standard Duty | ST-1 Track | 13.0 mA 1.30 V Minimum | 26.0 mA 2.60 V Maximum | 10 - 12 VDC (2) Coils @ 50 Ω ± 5% Resistance Each Coil | 1 - 3 - 9 - 27 | 8.0 lbs (3.63 kgs) |
Biased Neutral Relay, Regular Release and Slow Pickup (Code Responsive)
Siemens Part Number | Contact Arrangement | Relay Type | Drop Away Current | Pickup / Working Current | Resistance/ Tolerance | Relay Register Plate | Weight |
| US2:400540 | 6FB 4 A @ 30 V Standard Duty | ST-1 Line | 6.5 mA 5.20 V Minimum | 11.9 mA 9.52 V Maximum | 10 - 12 VDC (2) Coils @ 200 Ω ± 5% Resistance Each Coil | 1 - 3 - 11 - 22 | 8.0 lbs (3.63 kgs) |
| Biased Neutral Relay, Slow Release and Regular Pickup | |||||||
| US2:400530 | 6FB 4 A @ 30 V Standard Duty | ST-1 Line | 6.0 mA 1.16 V Minimum | 26.0 mA 5.04 V Maximum | 10 - 12 VDC (2) Coils @ 194 Ω ± 5% Resistance Each Coil | 1 - 2 - 12 - 18 | 8.0 lbs (3.63 kgs) |
| Biased Neutral Switch Control Relay, Regular Release and Regular Pickup | |||||||
| US2:400520 | 2F - 2B 15 A @ 30 V Extra Heavy Duty Magnetic Blowout | ST-1 Line | 7.6 mA 3.80 V Minimum | 19.0 mA 9.5 V Maximum | 10 - 12 VDC (2) Coils @ 250 Ω ± 5% Resistance Each Coil | 1 - 2 - 12 - 22 | 8.0 lbs (3.63 kgs) |
| US2:400520-1 | 2F - 2B 15 A @ 30 V Extra Heavy Duty Magnetic Blowout | ST-1 Line | 7.6 mA 3.80 V Minimum | 19.0 mA 9.5 V Maximum | 10 - 12 VDC (2) Coils @ 500 Ω ± 5% Resistance Each Coil | ||
| US2:400523 | 2F 15 A @ 30 V Extra Heavy Duty Magnetic Blowout 1F - 2B 4 A @ 30 V Standard Duty | ST-1 Line | 7.6 mA 3.80 V Minimum | 19.0 mA 9.5 V Maximum | 10 - 12 VDC (2) Coils @ 250 Ω ± 5% Resistance Each Coil | 10 - 12 - 22 - 26 | 8.0 lbs (3.63 kgs) |
| Flasher | |||||||
| US2:400700 | 4FB SCdO (Standard Duty) | ST-1 Line | 60 Ω | 1 - 3 - 8 - 10 | 8.0 lbs (3.63 kgs) | ||
| US2:400700-X | 4FB SCdO (Standard Duty) | ST-1 Line | 240 Ω | 1 - 3 - 8 - 10 | 8.0 lbs (3.63 kgs) | ||
| US2:400700-1X | 4FB SCdO (Standard Duty) | ST-1 Line | 240 Ω | 1 - 3 - 8 - 10 | 8.0 lbs (3.63 kgs) | ||
| US2:400700-7X | 4FB SCdO (Standard Duty) | ST-1 Line | 60 Ω | 1 - 3 - 8 - 10 | 8.0 lbs (3.63 kgs) | ||
Code Responsive
Siemens Part Number | Contact Arrangement | Relay Type | Resistance/ Tolerance | Relay Register Plate | Weight |
| US2:400950 | 2FG Tungsten, 2F Silver/Platinum 2B Tungsten (Standard Duty) | ST-1 Line | 200 O ± 5% Resistance Each Coil | 1 - 3 - 9 - 28 | 8.0 lbs (3.63 kgs) |
| US2:400951 | 4FB Tungsten (Standard Duty) | ST-1 Line | 22 O ± 5% Resistance Each Coil | 1 - 2 - 9 - 17 | 8.0 lbs (3.63 kgs) |
| US2:400952 | 2NR Silver/Platinum (Standard Duty) | ST-1 Line | 80 O ± 5% Resistance Each Coil | 1 - 3 - 9 - 25 | 8.0 lbs (3.63 kgs) |
| US2:400953 | 2FB Tungsten, 2FB Silver/Platinum (Standard Duty) | ST-1 Line | 80 O ± 5% Resistance Each Coil | 1 - 3 - 9 - 24 | 8.0 lbs (3.63 kgs) |
| US2:400954 | 4FB Silver/Tungsten (Standard Duty) | ST-1 Line | 80 O ± 5% Resistance Each Coil | 1 - 3 - 4 - 33 | 8.0 lbs (3.63 kgs) |
| US2:400955 | 4FB Silver/Platinum (Standard Duty) | ST-1 Line | 80 O ± 5% Resistance Each Coil | 1 - 3 - 4 - 33 | 8.0 lbs (3.63 kgs) |
| US2:400956 | 2F Tungsten, 2B Silver/Platinum (Standard Duty) | ST-1 Line | 80 O ± 5% Resistance Each Coil | 1 - 2 - 18 - 29 | 8.0 lbs (3.63 kgs) |
| US2:400957 | 2FB Tungsten. 2FB Silver/Platinum | ST-1 Line | 80 O ± 5% Resistance Each Coil | 1 - 3 - 9 - 28 | 8.0 lbs (3.63 kgs) |
Vane Track
Siemens Part Number | Contact Arrangement | Relay Type | Resistance/ Tolerance | Relay Register Plate | Weight |
| US2:450992 | 4F Silver/Carbon 4B Silver (Standard Duty) | ST-2, Double Base Vane Track Relay | Track .524 Ω Local 144 Ω | 25 - 26- 27 - 30 | 11.0 lbs (4.99 kgs) |
| US2:450993 | 4F Silver/Carbon 4B Silver (Standard Duty) | ST-2, Double Base Vane Track Relay | Track .4 Ω Local 67 Ω | 25 - 26- 29 - 32 | 11.0 lbs (4.99 kgs) |
| US2:450994 | 2F Silver/Carbon 2B Silver (Standard Duty) | ST-2, Double Base Vane Track Relay | Track 5 Ω Local 144 Ω | 25 - 26- 27 - 31 | 11.0 lbs (4.99 kgs) |
| US2:450994-N | 2F Silver/Carbon 2B Silver (Standard Duty) | ST-2, Double Base Vane Track Relay | Track 5Ω Local 144 Ω | 25 - 26- 27 - 31 | 11.0 lbs (4.99 kgs) |
| Power Transfer | |||||
| US2:400800 | 6FB Silver (Heavy Duty) | ST-1, Power Transfer | 100/100 Ω | 1 - 2 - 6 - 16 | 8.0 lbs (3.63 kgs) |
| US2:400800-X | 6FB Silver (Heavy Duty) | ST-1, Power Transfer | 100/100 Ω | 1 - 3 - 9 - 17 | 8.0 lbs (3.63 kgs) |
| US2:400801 | 6FB Silver (Heavy Duty) | ST-1, Power Transfer | 100/100 Ω | 1 - 2 - 11 - 15 | 8.0 lbs (3.63 kgs) |
| US2:400801-X | 6FB Silver (Heavy Duty) | ST-1, Power Transfer | 100/100 Ω | 1 - 2 - 11 - 15 | 8.0 lbs (3.63 kgs) |
| US2:400802 | 6FB Silver (Heavy Duty) | ST-1, Power Transfer | 100/100 Ω | 1 - 2 - 11 - 15 | 8.0 lbs (3.63 kgs) |
| US2:400802-X | 6FB Silver (Heavy Duty) | ST-1, Power Transfer | 100/100 Ω | 1 - 2 - 11 - 15 | 8.0 lbs (3.63 kgs) |
| Magnetic Stick | |||||
| US2:400900 | 4NR Silver/Carbon (Standard Duty) | ST-1, Magnetic Stick | 500 Ω | 1 - 3 - 4 - 16 | 8.0 lbs (3.63 kgs) |
| US2:400901 | 2NR Silver/Platinum (Standard Duty) | ST-1, Magnetic Stick | 26/26 Ω | 1 - 3 - 25 | 8.0 lbs (3.63 kgs) |
| US2:400904 | 4NR Silver/Carbon (Standard Duty) | ST-1, Magnetic Stick | 7 Ω | 1 - 3 - 5 - 20 | 8.0 lbs (3.63 kgs) |
NYK:27E805
NYK:27E809
Relay Socket Base
- Weight is approx. 1.2 lbs. (0.54 kgs.)
- Made from black phenolic compound
- NO socket terminal inserts
- NO hold down studs
- NO test posts
- NO terminals
Relay Socket Base Basic Assembly
- Weight is approx. 1.2 lbs. (0.54 kgs.)
- Made from black phenolic compound
- (11) NYK:420000-61 Socket Terminal Inserts
- NO hold down studs
- NO test posts
- NO terminals
Lead Time
Price: $8.30
Lead Time
Price: $31.60
NYK:420000-40X
NYK:420000-41X
Relay Socket Base Assembly
- Weight is approx. 1.4 lbs. (0.64 kgs.) not including base
- (1) NYK:27E809 Relay Socket Base Assembly
- (1) NYK:42000-40X1 socket hardware kit
- (1) NYK:15S373 hold down stud
Relay Socket Base Assembly
- Weight is approx. 1.4 lbs. (0.64 kgs.) not including base
- (1) NYK:420000-40X Relay Socket Base Assembly
- (1) NYK:420000-49X #20-16 crimp terminal
Lead Time
Price: $104.00
Lead Time
Price: $120.00
NYK:420000-43X
NYK:420000-75X
Relay Socket Base Assembly
- Weight is approx. 1.4 lbs. (0.64 kgs.) not including base
- Made from black phenolic compound
- (1) NYK:420000-40X Relay Socket Base Assembly
- (1) NYK:420000-50X #14-10 crimp terminal
Relay Socket Base Assembly
- Weight is approx. 1.5 lbs. (0.68 kgs.)
- Made from black phenolic compound
- (1) NYK:420000-40X Relay Socket Base Assembly
- (1) NYK:420000-46X test post kit
Lead Time
Price: $115.00
Lead Time
Price: $114.00
NYK:420000-77X
NYK:420000-78X
Relay Socket Base Assembly
- Weight is approx. 1.6 lbs. (0.73 kgs.)
- (1) NYK:420000-40X Relay Socket Base Assembly
- (1) NYK:420000-48X Solder terminal
- (1) NYK:420000-46X test post kit
Relay Socket Base Assembly
- Weight is approx. 1.6 lbs. (0.73 kgs.)
- (1) NYK:420000-40X Relay Socket Base Assembly
- (1) NYK:420000-50X #14-10 crimp terminal
- (1) NYK:420000-46X test post kit
Lead Time
Price: $115.00
Lead Time
Price: $151.00
NYK:420000-61
NYK:420000-48
Socket Terminal Insert
- Weight is approx. 2 oz. (0.06 kgs.) not including base
- Made from black polycarbonate
- Used to secure relay to relay base
- (9) typically required for ST1 style relay,
(18) typically required for ST2 style relay
Terminal Solder Tab
- Weight is approx. 2 oz. (0.06 kgs.) not including base
- Made from 24 ga phosphorus bronze
- Folded tabs for soldering
Lead Time
Price: $3.80
Lead Time
Price: $2.14
NYK:420000-49
NYK:420000-50
Terminal Crimping Tab
- Weight is approx. 2 oz. (0.06 kgs.) not including base
- Made from 24 ga phosphorus bronze
- Loop tabs for crimping
- accepts 16 - 20 AWG
Terminal Crimping Tab
- Weight is approx. 2 oz. (0.06 kgs.) not including base
- Made from 24 ga phosphorus bronze
- Loop tabs for crimping
- accepts 10 - 14 AWG
Lead Time
Price: $2.24
Lead Time
Price: $3.80
G1 - Locomotive Systems Products
Locomotive Systems Products
Rubbish
HOT Series
Head of Train Device console model shown for reference
purposes only! Actual unit selected may vary in mounting
and features.
SIEMENS Head Of Train (HOT) units are available in
either a cab mounted model or an integrated model.
The integrated HOT unit is intended for integration into
pre-existing locomotive cab electronics such as the
General Electric® IFC systems or EMD® / Rockwell®
ICE or FIRE systems.
The cab mounted HOT Telemetry unit is intended for
application to the top of the locomotive control stand
or other suitable locations. Siemens also offers a
model that serves as a direct replacement for the
Ansaldo STS® Digitair® console mounted unit.
Both series of HOT units, when used with a SIEMENS
End Of Train (EOT) unit, will provide the locomotive
engineer with important information regarding the
operation of the train. These conditions include
brake pipe pressure (PSI) and various status conditions.
All HOT units will also process EOT / HOT communications
tests, armament requests, and emergency
brake commands resulting from an emergency
switch activation or external emergency input.
- Built-in status indicators for arming, communications, motion
detection, highly visible marker (HVM), brakes and batteries. - Built-in keypad and display for configuration,
troubleshooting and diagnostics. - Able to process End Of Train / Head Of Train communications
tests, armament requests and emergency braking commands. - Fully supports standard AAR protocols.
- Provides ability to be used as both an internal and /
or external event recorder.
NYK:V3467
NYK:V3451/R2
· Weight is approx. 6 lbs. (2.72 kgs.) including
mounting foot
· Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing
Relative Humidity
· 10.00” (25.40 cm) Wide x 9.25” (23.50 cm) c
Deep x 4.25” (10.80 cm) Tall
· Includes Ritron® dual band radio
· (1) QP-52321 mounting plate
Integrated Unit
● Weight is approx. 3 lbs. (1.36 kgs.)
including mounting foot
● Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity
● 2.5” (6.35 cm) Wide x 11.25” (28.58 cm) Deep
x 9.0” (22.86 cm) Tall
● Includes Ritron® dual band radio
● NO mounting plate
● NYK:QP-16371 PUMP® software
update program
● Bootloader firmware
● Application firmware
Lead Time
Price: $5855.00
Lead Time
Price: $5392.00
NYK:V3452/R2
Integrated Unit
● Weight is approx. 3 lbs. (1.36 kgs.)
including mounting foot
● Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity
● 2.5” (6.35 cm) Wide x 11.25” (28.58 cm)
Deep x 9.0” (22.86 cm) Tall
● Includes Ritron® dual band radio
● NO mounting plate
● NYK:QP-16371 PUMP® software
update program
● Bootloader firmware
● Application firmware
Lead Time
Price: $3464.00
G5 - Locomotive Systems Products (EOT Series)
Locomotive Systems Products
Series
End of Train Devices
Head of Train Device console model shown for
reference purposes only! Actual unit selected
may vary in mounting
and features.
SIEMENS End of Train Devices is available with or
withou EOT Phone Home service.
When used in conjunction with the SIEMENS Head
of Train Device (HOT) it provides information to the
locomotive engineer about the operational conditions
/ statuses of the train. Some of the statuses include:
● Brake pipe pressure (psi)
● Arming Status (Emergency feature enabled or
disabled)
● Communication Status (Good / Comm-Loss,
rear-to-front or front-to-rear)
● Motion Detection (Moving or stopped)
● High Visibility Marker (HVM) Status (On, off
or defective)
● Brake value (Normal, emergency or defective)
● Battery State Status (Good, low or dead)
● Battery Charge Status ( % depleted, in charge
units)
● Single, Push-Button Operation
● Single-LED Visibility Marker
● Cellular Data Service with Over-the-Air Upgrades
● 8 Watt Narrow-Band Radio with Waiver on Annual Calibration
● Internal Event Recorder and GPS Reciever
● Enclosed Antenna and AEI Tag
Maintenance and Dimensions
Siemens Part Number | End of Train Device Maintenance Parts |
| NYK:QP-35056 | Dump Pilot Valve |
| NYK:QP35057 | APG Control Valve |
| NYK:59208 | APG Assembly |
| NYK:52616 | Clamp Nut Bar |
| NYK:59062 | Latch Handle |
| NYK:61013 | Electronic Interface Module |
| NYK:62174 | Power Module |
| NYK:62176/PC | Clamp Assembly |
| NYK:65105/ORG | Orange Enclosure |
| NYK:65105/RED | Red Enclosure |
| NYK:65106/ORG | Orange Enclosure Cover |
| NYK:65106/RED | Red Enclosure Cover |
| NYK:QP-52516 | Mounting Bracket |
| NYK:QP-70312 | Chassis Harness |
G9 - Locomotive Systems Products(EOT Phone Home)
Locomotive Systems Products
Service
SIEMENS End of Train (EOT) Phone Home solution is
a subscription based Telemetry Management Software
as a Service (SaaS) application that is designed to support
multiple manufacturers and empowers railroad operations
personnel to efficiently deploy, monitor, track, maintain
and manage End of Train (EOT) devices ubiquitously with
the ease of a browser based interface.
It has an intuitive user interface that quickly enables even the
most casual user to rapidly become proficient in accessing
information relative to their interest. Advanced users will also
appreciate the ability to perform their tasks with ease utilizing
innovative capabilities such as:
● Locating missing EOT devices and providing mapped
directions
● Tracing travel paths and tracking trains
(as a backup to other systems)
● Configuration management of advanced settings
● Track and trace of device maintenance upgrades
● Disabling devices that are lost or misappropriated
● Billing for device utilization by other railroads
● Automated reporting for optimizing device utilization
Most knowledge users are familiar with web browsers
and as such, the Phone Home solution is validated to
support the latest versions of Microsoft® Internet
Explorer®, Google® Chrome®, and Apple® Safari®,
which reduces training costs and provides IT
departments a robust environment for
managing version control and security policies.
● Color coded Key Performance Indicators (KPIs) for EOT status.
● Clustering to efficiently manage map real-estate.
● Paste link feature for proficient collaboration.
● Multiple map base layers for visualizing mapping features.
● Hyperlinked status bar for current quick scroll view of common
EOT statuses.
● Search options dialog box for effortless queries.
● Saved searches feature for rapid retrieval of common queries.
● Run History Report function with multiple file formats.
G11 - Locomotive Systems Products (HOT / EOT)
Locomotive Systems Products
Series
Repeater Modules
Model NYK:Q3442 HOT / EOT Series Repeater Module
shown for reference purposes only! Actual software
may vary in mounting and features.
SIEMENS HOT / EOT Series Repeaters are designed
to assist communications between SIEMENS
Head of Train (HOT) and SIEMENS End of Train
(EOT) transceivers where the transmission /
reception of these devices may be impeded by
other transceivers. Supports AAR standard
transmission protocol on frequency pairs
457.9375 MHz and 452.9375 MHz and are
designed to operate without any user input needed.
Once initialized, LED indicators on the front of the
unit provide indications of operating status.
Locomotive Systems Products
NYK:Q3440/R
NYK:Q3442
Integrated Unit
● Weight is approx. 7 lbs. (3.18 kgs.) including mounting plate
● Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity
● 2.7” (6.86 cm) Wide x 13.34” (33.88 cm) Deep x 9.2” (23.69 cm) Tall
● Includes 457.9375 MHz and 452.9375 MHz VHF Ritron® radios
● (1) NYK:52316 mounting plate
● (1) NYK:70126/RR antenna cable
● (1) NYK:70145/8 antenna cable
Integrated Unit for General Electric® IFC,
tm tm EMD/Rockwell® ICE or FIRE systems.
● Weight is approx. 7 lbs. (3.18 kgs.) including mounting plate
● Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity
● 2.7” (6.86 cm) Wide x 13.34” (33.88 cm) Deep x 9.2” (23.69 cm) Tall
● Includes 457.9375 MHz and 452.9375 MHz UHF Ritron® radios
● (1) NYK:52316 Mounting plate
● (2) NYK:06966 antenna cables
Lead Time
Call for Price
Lead Time
Price: $5160.00
G13 - Locomotive Systems Products(Testing Units)
Locomotive Systems Products
Model NYK:Q1400 Testing Unit shown for reference purposes
only! Actual software may vary in mounting and features.
SIEMENS Locomotive Testing Units provide an
array of diagnostic, testing and recording capabilities.
This allows maintainers to perform necessary
mandated testing and servicing of equipment
in actual environments. Units are encased in
durable Pelican® brand case for years of rugged
Assistance for Rail Automation Team
for further details.
Locomotive Systems Products
NYK:Q1230
NYK:Q1400
Basic Recorder / Tester Unit
● Weight is approx. 10 lbs. (4.53 kgs.) including
mounting plate
● Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity
● 16.0” (40.64 cm) Wide x 13.1” (32.27 cm)
Deep x 6.90” (17.53 cm) Tall
● Simple 1 button testing
● Tests recording devices in actual operating
environments
● Encased in durable Pelican® brand case
Speed Test Unit
● Weight is approx. 3 lbs. (1.36 kgs.) including
mounting foot
● Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity
● 16.0” (40.64 cm) Wide x 13.1” (32.27 cm) Deep
x 6.90” (17.53 cm) Tall
● Simulates speeds from 0 mph (0 kph) to 100
mph (160 kph)
● Simulates frequencies from 15 Hz to 4000 Hz
● Axle drive outputs can be set to 20p, 60p, 120p,
247p or 249p
● Wheel size diameter can be set from
Ø 37.0” (93.98 cm) to 50” (127.00 cm)
● Encased in durable Pelican® brand case
Lead Time
Price: $3825.00
Lead Time
Price: $5558.00
NYK:Q3431/NB
NYK:Q3433/NB
EOT / HOT Testing Unit
● Weight is approx. 11 lbs. (3.18 kgs.) including
mounting plate
● Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity
● 16.0” (40.64 cm) Wide x 13.1” (32.27 cm) Deep x
6.90” (17.53 cm) Tall
● Tests HOT and EOT devices in actual operating
environments
● Meets or exceeds annual Federal Railroad
Administration calibration
requirements without removing HOT devices from
locomotives
● Provides a Pass / Fail indication for radio
frequencies, deviations and
signal strengths
● 120 VAC or 12 VDC operation
● Encased in durable Pelican® brand case
EOT / HOT Testing Unit
● Weight is approx. 11 lbs. (3.18 kgs.) including
mounting plate
● Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity
● 16.0” (40.64 cm) Wide x 13.1” (32.27 cm) Deep x
6.90” (17.53 cm) Tall
● Tests HOT and EOT devices in actual operating
environments
● Meets or exceeds annual Federal Railroad
Administration
calibration requirements without removing
HOT devices from
locomotives
● Provides a Pass / Fail indication for radio
frequencies,
deviations and signal strengths
● 120 VAC or 12 VDC operation
● Encased in durable Pelican® brand case
Lead Time
Price: $6199.00
Lead Time
Price: $9826.00
NYK:D3005H15-A01
ATC Tester Unit
● Weight is approx. 3 lbs. (1.36 kgs.) including
mounting foot
● Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity
● 16.0” (40.64 cm) Wide x 13.1” (32.27 cm) Deep x
6.90” (17.53 cm) Tall
Lead Time
Price: $28334.00
G17 - Locomotive Systems Products (Axle Drives)
Locomotive Systems Products
Model Q1165 Axle Drive shown for reference purposes only!
Actual software may vary in mounting and features.
SIEMENS Axle Drives feature solid cast aluminum housing
and dual internal bearings for longevity. They can be
supplied with either 20 or 60 electrical pulses per wheel
revolution.
The dual bearing configuration virtually eliminates any failures
due to excessive stresses from the unsprung axle as the
locomotive traverses either rough road crossings or bad joints.
These situations can cause premature fatigue on single
bearing model axle drives and therefore failures with a critical
component of the event recording or speed indicating system.
A direct replacement for most 20 or 60 pole axle drives in use
today, and can be supplied with any length paddle assembly
needed by the using railroad including a “peg” drive for some
axle applications.
Optional Universal Axle Drive Paddle is constructed with a
high tech thermal molded plastic and is a one size fits all
solution. Supplied in standard 10” (25.4 cm) length and
pre-marked and pre-drilled for easy field modification to
field sizes of either 7.5” (19.05 cm) or 3.5” (8.89 cm) long.
Locomotive Systems Products
NYK:Q1123
NYK:Q1124
20 Pulses Per Minute
● Weight is approx. 9 lbs. (4.08 kgs.)
● Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity
● 6.13” (15.57 cm) Wide x 8.13” (20.32 cm) Deep x
9.72” (24.69 cm) Tall
● Cast aluminum housing
● Dual bearing configuration
● NO paddle axle drive shaft assembly
● NO PEG drive shaft assembly
● NO cables
20 Pulses Per Minute w/ Paddle Axle Drive Assembly
● Weight is approx. 9.8 lbs. (4.45 kgs.)
● Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity
● 6.13” (15.57 cm) Wide x 17.50” (44.45 cm)
Deep x 9.72” (24.69 cm) Tall
● Cast aluminum housing
● (1) NYK:Q1123 Axle Drive (20 Pulses Per Minute)
assembly
● (1) NYK:QP-52170 Paddle Axle Drive Assembly
● NO PEG drive shaft assembly
● NO cables
Lead Time
Price: $1478.00
Lead Time
Price: $1771.00
NYK:Q1126
NYK:Q1164
20 Pulses Per Minute w/ PEG Axle Drive Assembly
● Weight is approx. 9.4 lbs. (4.26 kgs.)
● Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity
● 6.13” (15.57 cm) Wide x 8.38” (21.29 cm)
Deep x 9.72” (24.69 cm) Tall
● Cast aluminum housing
● (1) NYK:Q1123 Axle Drive (20 Pulses Per Minute)
assembly
● NO paddle axle drive assembly
● (1) NYK:52272 Peg Drive Assembly
● NO Cables
60 Pulses Per Minute w/ Paddle Axle Drive
Shaft Assembly
● Weight is approx. 9.8 lbs. (4.45 kgs.)
● Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity
● 6.13” (15.57 cm) Wide x 17.50” (44.45 cm)
Deep x 9.72” (24.69 cm) Tall
● Cast aluminum housing
● (1) NYK:Q1163 Axle Drive (60 Pulses Per Minute)
assembly
● (1) NYK:QP-52170 Paddle Axle Drive Shaft
Assembly
● NO PEG drive shaft assembly
● NO cables
Lead Time
Price: $1311.00
Lead Time
Price: $1801.00
NYK:Q1163
NYK:52508/20P
60 Pulses Per Minute
● Weight is approx. 9 lbs. (4.08 kgs.)
● Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity
● 6.13” (15.57 cm) Wide x 8.13” (20.32 cm)
Deep x 9.72” (24.69 cm) Tall
● Cast aluminum housing
● Dual bearing configuration
● NO paddle axle drive shaft assembly
● NO PEG drive shaft assembly
● NO cables
Axle Drive Shaft Assembly for 20 Pulses Per Minute
● Weight is approx. 2 lbs. (0.91 kgs.)
● Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity
Lead Time
Price: $1432.00
Lead Time
Price: $231.00
NYK:52508/60P
NYK:52272
Axle Drive Shaft Assembly for 60 Pulses Per Minute
● Weight is approx. 2 lbs. (0.91 kgs.)
● Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity
Paddle Axle Drive Shaft Assembly for 20 Pulses Per Minute
● Weight is approx. 2 lbs. (0.91 kgs.)
● Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity
● Pre-marked and pre-drills to field modify for either
a 7.5” (19.05 cm) or 3.5” (8.89 cm) long
Lead Time
Price: $284.00
Lead Time
Price: $79.15
NYK:52272
PEG Drive Shaft Assembly for 20 Pulses Per Minute
● Weight is approx. 1 lbs. (0.45 kgs.)
● Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity
Lead Time
Price: $79.15
G21 - Locomotive Systems Products (Axle Generator)
Locomotive Systems Products
Axle Generator shown for reference purposes only!
Actual unit selected may vary in mounting and features.
SIEMENS Axle Generator uses internal speed sensors to
count pulses related to specific gear rotations. Speed
data is relayed to the onboard computer for determination
of potential overspeed conditions. It contains (3) magnetic
reluctance type speed sensors. The first two sensors are
driven from a 60 tooth gear and the remaining sensor is
driven from a 40 tooth gear. Other configurations may be
available that are not listed. Please contact the SIEMENS
Technical Assistance for Rail Automation
Team for further details.
Locomotive Systems Products
NYK:D600001-A01
● Meets or exceeds applicable AREMA®
specifications on
recommended practices regarding 3000 VAC
breakdown voltage.
● Easily mountable on standard relay racks,
instrument house backboards or can even
be shelf mounted
when removing included mounting bracket
● Weight is approx. 15 lbs. (6.80 kgs.) including
connectors
● Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity
6.3 VAC 3.5 Amp power supply
● (1) 15 Amp battery fuse
● (1) 1.5 Amp line fuse
● (4) Output battery connections
● 115 VAC Input connection
● 12 VDC Input connection
Call for Accessories
| Optional Accessories | |
| Part Number | Description |
| NYK:D1365H01-A12 | Junction box |
| NYK:B600010-A01 | Spline assembly |
Lead Time
Price: $4686.00
G23 - Locomotive Systems Products (Code Rate Generators / Decoders)
Locomotive Systems Products
Generators / Decoders
Code Rate Generator / Decoder shown for reference
purposes only! Actual unit selected may vary in
mounting and features.
SIEMENS Code Rate Generator is a microprocessor
based unit used to drive code following relays. The
unit generates various code rates depending on model.
An integrated LED flashes at the generated code rate.
The attached mounting plate can be supplied with
different dimensions to match various relay mounting
patterns.
● Solid state design that replaces older relays
● Vital design ensures that transmitted code is
never greater than the one selected
● Stainless steel enclosure, hardware and
mounting plate
● Utilizes industry standard AAR terminals
Locomotive Systems Products
NYK:D243H01-A01
NYK:D887H01-A01
Code Rate Generator
● Weight is approx. 4 lbs. (1.81 kgs.)
● Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity
8 VDC - 15 VDC voltage range
● Current sinking outputs
● 250 mA nominal input current (neglecting load current)
● Open drain FET output load
● Outputs rated at 0.75A @ 12 V
● Generates code rates 50, 75, 120, 180, 270 and 420
Code Rate Generator
● Weight is approx. 4 lbs. (1.81 kgs.)
● Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity
8 VDC - 15 VDC voltage range
● Current sinking outputs
● 250 mA nominal input current (neglecting load current)
● Open drain FET output load
● Outputs rated at 0.75A @ 12 V
● Generates code rates 75, 120, and180
Lead Time
Price: $779.00
Lead Time
Price: $4802.00
G25 - Locomotive Systems Products (Odometers)
Locomotive Systems Products
Model NYK:Q1860 Odometer shown for reference
purposes only! Actual unit selected may vary in
mounting and features.
SIEMENS Odometer is a self-contained
module for permanently recording vehicle
mileage. Vehicle mileage, in 1 mile increments
to 9,999,999 miles on Q1860 model
(1 kilometer increments to 9,999,999
kilometers on Q1860/M model) is continuously
displayed on the integrated and back-lit Liquid
Crystal Display (LCD). Accumulated mileage is
stored in 10 mile (10 kilometer) increments in
non-volatile memory for permanent recording.
Installation consists of physically mounting the
electronics enclosure and completing the wiring
the to power and the axle alternator of the vehicle.
The serial communication interface, a standard
DB-9 computer connector, allows various operating
parameters to be changed including the axle
alternator poles per revolution, wheel diameter and
initial mileage setting.
Locomotive Systems Products
NYK:Q1860
NYK:Q1860/M
● Weight is approx. 4 lbs. (1.81 kgs.)
● Operates in -40º F to +160º F (-40ºC to +70ºC)2
@ up to 95% Non-Condensing Relative Humidity
● Measures in MPH
● Weight is approx. 4 lbs. (1.81 kgs.)
● Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity
● Measures in MPH
Lead Time
Price: $2522.00
Lead Time
Price: $2801.00
G27 - Locomotive Systems Products (QSI Series)
Locomotive Systems Products
Locomotive
Dual Range Locomotive Speed Indicators
Model NYK:Q1830 Speed Indicator shown for
reference purposes only! Actual unit selected
may vary in mounting and features.
SIEMENS QSI Series Dual Range Locomotive Speed
Indicators are a complete line of locomotive speed
indicators in both English and Metric versions.
The speed indicators all offer the accuracy and
reliability only 100% digital components can
provide.
Designed for simple retrofitting, units are available
in single and dual display configurations with integrated
odometer and accelerator functions.
Foot pattern and cable arrangement allows for a
bolt for bolt, pin for pin replacement of existing analog
electronic speed indicators.
It can operate from any number of end of axle electronic
axle drives, and accepts industry standard (20)
and (60) pulses per revolution inputs.
Encased in a rugged aluminum shell and utilizing
minimum cab space the speed indicator is able to provide
an output to the locomotive magnet valve when the
vehicle matches or goes over the overspeed setting of
the unit.
- Built-in accelerometer capable of displaying the
acceleration and deceleration of the locomotive
in either SAE or Metric speed measurements. - Built-in odometer able to display increments
and decrements of travel based on the direction
of the locomotive providing true net distance from
any movement. - Built-in dual display allows for viewing for either
/ or train engineer and / or conductor points of view. - Built-in overspeed alert which will drive a
standard Salem® SA-812A magnet valve (or
equivalent). - Rugged solid state segment display, thus no
meter movements to wear out or break. - Built-in penalty alerter light / horn interface to
existing devices. (on select models only) - Built-in (4) position dimmer control for ease
of reading in any ambient lighting condition. - Available Vigilance Alerter System
activation output. (on select models only)
Locomotive Systems Products
SPEED Indicators Assemblies
| SIEMENS Part Number | Speed Preset | Speed Readout | Adjustable Wheel Size | Alerter Activation Output | Overspeed Range | Recovery Delay |
| NYK:Q1810 | None | English Only | 36 mm- 42 mm | None | 5 mph - 99 mph | 30 sec |
| NYK:Q1810-74 | 74 mph | English Only | 36 mm- 42 mm | None | 5 mph - 99 mph | 30 sec |
| NYK:Q1810/M-120 | 120 kph | English Only | 36 mm- 42 mm | None | 5 mph - 99 mph 8 kph - 159 kph | 30 sec |
| NYK:Q1812 | None | English Only | 36 mm- 42 mm | Vigilance | 5 mph - 99 mph | 30 sec |
| NYK:Q1812-69 | 69 mph | English Only | 36 mm- 42 mm | Vigilance | 5 mph - 99 mph | 30 sec |
| NYK:Q1818-74 | 74 mph | English Only | 36 mm- 42 mm | Vigilance | 5 mph - 99 mph | 30 sec |
| NYK:Q1818-80 | 80 mph | English Only | 36 mm- 42 mm | Vigilance | 5 mph - 99 mph | 30 sec |
| NYK:Q1820 | None | English Only | 36 mm- 42 mm | Vigilance | 5 mph - 99 mph | 30 sec |
| NYK:Q1820-45 | 45 mph | English Only | 36 mm- 42 mm | Vigilance | 5 mph - 99 mph | 30 sec |
| NYK:Q1820-71 | 71 mph | English Only | 36 mm- 42 mm | Vigilance | 5 mph - 99 mph | 30 sec |
| NYK:Q1820-74 | 74 mph | English Only | 36 mm- 42 mm | Vigilance | 5 mph - 99 mph | 30 sec |
| NYK:Q1820-80 | 80 mph | English Only | 36 mm- 42 mm | Vigilance | 5 mph - 99 mph | 30 sec |
| NYK:Q1821 | None | English Only | 36 mm- 42 mm | Vigilance | 8 kph - 160 kph | 30 sec |
| NYK:Q1830 | None | English Only | 36 mm- 42 mm | Vigilance | 5 mph - 99 mph | 1 sec |
| NYK:Q1830-10 | 10 mph | English Only | 36 mm- 42 mm | Vigilance | 5 mph - 99 mph | 1 sec |
| NYK:Q1830-69 | 69 mph | English Only | 36 mm- 42 mm | Vigilance | 5 mph - 99 mph | 1 sec |
| NYK:Q1830-74 | 74 mph | English Only | 36 mm- 42 mm | Vigilance | 5 mph - 99 mph | 1 sec |
Cables Speed Indicators
| Speed Indicator Power Cable (20) Pole | |
SIIEMENS Part Number | Description |
| NYK:Q9011/10B | 10’ (3 m) long, 90° “B” Break |
| NYK:Q9011/10C | 10’ (3 m) long, 90° “C” Break |
| NYK:Q9011/15B | 15’ (4.5 m) long, 90° “B” Break |
| NYK:Q9011/15C | 15’ (4.5 m) long, 90° “C” Break |
| NYK:Q9011/20B | 20’ (6 m) long, 90° “B” Break |
| NYK:Q9011/20C | 20’ (6 m) long, 90° “C” Break |
| Speed Indicator Power Cable (60) Pole | |
SIIEMENS Part Number | Description |
| NYK:Q9012/10B | 10’ (3 m) long, 90° “B” Break |
| NYK:Q9012/10C | 10’ (3 m) long, 90° “C” Break |
| NYK:Q9012/15B | 15’ (4.5 m) long, 90° “B” Break |
| NYK:Q9012/15C | 15’ (4.5 m) long, 90° “C” Break |
| NYK:Q9012/15C | 20’ (6 m) long, 90° “B” Break |
| NYK:Q9012/20C | 20’ (6 m) long, 90° “C” Break |
| Speed Indicator / Alerter Interface Cables | |
SIIEMENS Part Number | Description |
| NYK:Q9038/15C | 15’ (4.5 m) long, 90° “C” Break |
| NYK:Q9038/25C | 25’ (7.5 m) long, 90° “C” Break |
| NYK:Q9038/30C | 30’ (9 m) long, 90° “C” Break |
G31 - Locomotive Systems Products (Universal Interface Panels)
Locomotive Systems Products
Panels
Model NYK:Q1250 Universal Interface Panel
shown for reference purposes only!
Actual unit selected may vary in mounting and features.
SIEMENS Universal Interface Panels are a self
contained, microprocessor driven device which
translates input signals from traction motor
speed sensors to industry standard (and user
selectable) wheel rotation frequencies.
Designed to replace existing locomotive
mechanical axle drive assemblies with solid state
sensors and by physically locating the sensors
inside the locomotive; increased mechanical
reliability is obtained.
Each of two (2) input, processing and output
stages electrically independent; hence, the
existing locomotive scheme for providing
redundant speed input signals is maintained.
Provides outputs to other locomotive borne
devices which control the authority for movement
along the right-of-way, the output accuracy of the
QUIP is within 1% of the input signal over the
entire 10 HZ to 10KHz range on all output
channels.
Failure modes for the Universal Interface Panel
have been investigated through the use of Failure
Mode Effects Analysis (FMEA) techniques for
hardware, software and the interaction between
these components. Any failure from any source,
will be detected and provide relay output of the
fault condition to any externally connected device.
● Adjustable overspeed function
● 74 VDC Power
● 30 second overspeed recovery delay
● (1) 20 pole output
● (1) 60 pole output
● (1) 1:500 pole output
Locomotive Systems Products
SIEMENS Part Number | Preset |
| NYK:Q1250 | None |
| NYK:Q1251 | 128 PPWR |
| NYK:Q1253 | 249 PPWR |
| NYK:Q1254 | 128 PPWR |
| NYK:Q1260 | 249 PPWR |
G33 - Locomotive Systems Products (Ditch Lights)
Locomotive Systems Products
Model NYK:Q2014 Ditch Light shown for reference
purposes only! Actual unit selected may vary in
mounting and features.
SIEMENS Ditch Lights are a complete lighting system to
retrofit existing on-board locomotive lights which provides
additional visibility during night time operation as well as
additional protection at grade crossings. Available in
either a 32Vdc or 5Vdc versions and powered by an
external lighting controller.
Whenever the headlight of the lead locomotive is placed
in the high beam position, the ditch lights are constantly
illuminated.
Whenever speeds are greater than 8 mph (13 kph),
whenever the locomotive horn is blown, or when the
manual mushroom switch pendant is pressed, the Ditch
Lights enter into an alternating wig / wag flashing
pattern at 1 second intervals.
Additionally, the lights will continue to flash for
approximately 30 seconds before they are extinguished.
Available ditch light brackets can be used for precise
aiming of the ditch lights according to railroad
specifications.
Locomotive Systems Products
NYK:Q2014/30V
NYK:Q2014/75V
Type 1 - 30 V
● Weight is approx. 7 lbs. (3.18 kgs.)
● Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity
● Type 1 assembly
● Requires 30 V Bulb
Type 1 - 75 V
● Weight is approx. 7 lbs. (3.18 kgs.)
● Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity
● Type 1 assembly
● Requires 75 V Bulb
Lead Time
Price: $571.00
Lead Time
Price: $565.00
NYK:Q2015/30V
NYK:Q2015/75V
Type 2 - 30 V
● Weight is approx. 7 lbs. (3.18 kgs.)
● Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity
● Type 1 assembly
● Requires 30 V Bulb
Type 2 - 75 V
● Weight is approx. 7 lbs. (3.18 kgs.)
● Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity
● Type 1 assembly
● Requires 75 V Bulb
Lead Time
Price: $1148.00
Lead Time
Price: $1148.00
NYK:Q2030C
Ditch Light Controller
● Weight is approx. 8.2 lbs. (3.72 kgs.)
● Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity
● Controls up to (4) @ up to 75 V bulbs
● 10 second wig / wag timing
● 8 mph trigger for lights
Lead Time
Price: $3236.00
G37 - Locomotive Systems Products (Heater Ground Relays)
Locomotive Systems Products
Model NYK:D3676H01 Heater Ground
Relay shown for reference purposes only!
Actual unit selected may vary in
mounting and features.
SIEMENS Heater Ground Relays
provide dual channel fault current
monitoring protection for heater
systems. Able to be reset
automatically with programmable
trip threshold settings. Contains
both internal and external trip
indicators. Available in either a
600 VDC or 750 VDC version.
Locomotive Systems Products
Call For Availability
G40 - Locomotive Systems Products (MPBI)
Locomotive Systems Products
Multiple Penalty Brake Interface
SIEMENS Multiple Penalty Brake Interface (MPBI)
in intended to provide a vital “AND” function to
allow multiple train control system's penalty brake
outputs access to a single penalty brake
input to the brake system.Train Control Systems
The MPBI device provides support for the various
train control systems in use today:
● Siemens Cab Signaling System (ATC / ACSES)
● Alstom® ITCS® / X-ITCS® Cab Signaling System
● Ansaldo STS® MicroCad® Cab Signaling System
● Wabtec® I-ETMS™
The MPBI provides railroads with a safe and
convenient way to connect their various Positive
Train Control (PTC) systems on board their
vehicles tao the single penalty brake.
● Solid-state LED Indicators
● Lamp Test Pushbutton
● Microprocessor Based
● Vital Design
● Up to 4 Inputs
● Multiple Cutout Options
● Source of Penalty Indicators
MPBI
SIEMENS Part Number | Description |
| NYK:D7715H03-A01 | Penalty Brake Cutout Switch |
| NYK:D7715H04-A01 | Penalty Brake Indicator |
| NYK:D7715H03-A01 | Penalty Brake Interface Module |
G41 - Locomotive Systems Products (Maintenance Key Switch)
Locomotive Systems Products
Key Switch
Model NYK:C655H01-A02 Maintenance Key
Switch shown for reference purposes only!
Actual unit selected may vary in mounting
and features.
SIEMENS Maintenance Key Switch provides exceptional
maintenance security and safety in a single compact
lightweight aluminum design. Locking cylinder is
surrounded by a strong electro-less nickle plated steel
body for added security.
The locking cylinders are designed to be “self-cleaning”,
sweeping out dirt and grit when operated by controlled
keys that are only available to the railroad.
Key retaining design traps the key in the padlock
so that it cannot be removed when in the ON position
NYK:C655H01-A02
● Weight is approx. 3.0 lbs. (1.36 kgs.)
● Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity
● (2) NO and (2) NC contacts, 15A
● 15A
● 125 VAC
● Connection by AAR terminals
Lead Time
Price: $1295.00
G42 - Locomotive Systems Products (GPS Onboard Monitoring Unit)
Locomotive Systems Products
Monitoring Unit
Model NYK:D1563H18-A01 GPS Onboard Monitoring Unit
shown for reference purposes only!
Actual unit selected may vary in mounting and features.
SIEMENS GPS Onboard Monitoring Unit works by continually
comparing satellite-derived coordinates to coordinates in the
cab system’s onboard database. Database mapping and
interface services are also available.
NYK:D1563H18-A01
● Weight is approx. 3.0 lbs. (1.36 kgs.)
● Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity
Lead Time
Price: $6766.00
G43 - Locomotive Systems Products (Track Receiver Junction Box)
Locomotive Systems Products
Junction Box
Model NYK:D1365H01-A01 Track Receiver Junction
Box shown for reference purposes only!
Actual unit selected may vary in mounting
and features.
SIEMENS Track Receiver Junction Boxes
are used to wire a pair of track receivers in
a series-aiding configuration, providing a
single-cable run to the equipment
enclosure.
NYK:D1365H01-A01
● Weight is approx. 22.0 lbs. (9.98 kgs.)
● Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity
Lead Time
Price: $1400.00
G44 - Locomotive Systems Products (Aspect Display Units)
Locomotive Systems Products
Aspect Display Unit shown for reference purposes
only! Actual unit selected may vary in mounting
and features.cAspect Display Units
Federal Railroad Administration (FRA)
Positive Train Control (PTC) Type approved for
Northeast Corridor (NEC)
SIEMENS Aspect Display Unit (ADU) provides a primary
visual interface between a train’s vehicle operator and
the cab signaling systems. The ADU’s rugged design is
suitable for use onboard any type of vehicle. The ADU’s
microprocessor combines indications from industry
standard positive train control protection systems such
as Automatic Train Control (ATC) and Advanced Civil
Speed Enforcement System (ACSES) in order to
present their required respective data concisely thru
the ADU onboard display.
The ADU connects serially to either ATC system
directly or third-party ATC systems thru a separate
ATC Interface Unit (AIU).
Solid state LED indicators provide reliable, long lasting color
with high visibility in all lighting conditions, including on bright
sunny days. Alphanumeric display creates an environment
for easily reading aspects from multiple railroads as well as
important message information. Display automatically dims
when necessary to handle varying environmental lighting
conditions. Built in Sonalerts draw vehicle operator’s
attention to the ADU when needed to advise of changes
in speed information displayed.
G45 - Locomotive Systems Products (Locomotive Power Supplies)
Locomotive Systems Products
Model NYK:D1517H01-A01 Locomotive Power Supply
shown for reference purposes only!
Actual unit selected may vary in mounting and features.
Locomotive Systems Products
NYK:D1517H01-A01
NYK:D5600H01-A01
ACSES Radio Power Supply
● Weight is approx. 2.8 lbs. (1.27 kgs.)
● Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity
● 13.6 VDC output set pointa
32 VDC
● Weight is approx. 4.3 lbs. (1.95 kgs.)
● Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity
Lead Time
Price: $4157.00
Lead Time
Price: $3612.00
NYK:D1567H08-A01
NYK:D5600H01-A02
36 VDC
● Weight is approx. 2.8 lbs. (1.27 kgs.)
● Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity
12 VDC (CTV)
● Weight is approx. 4.3 lbs. (1.95 kgs.)
● Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity
Lead Time
Price: $4182.00
Lead Time
Price: $3817.00
G48 - Locomotives Products Systems (Q2518)
Locomotive Systems Products
Locomotive Alerter System Controller
SIEMENS Q518 Locomotive Alerter System Controller
provides a Locomotive Engineer reset timer which
assures the locomotive crew is attentive to the
operation of the locomotive at all times.
Unit is used in conjunction with the SIEMENS Q2505
Alerter Light / Horn unit or SIEMENS QSI Series
Speed Indicators to provide visual and audible
signals to the locomotive crew.
In the event that the crew is unable to continue to
operate the locomotive, and have not responded to the
alerter system visual and audible alarms, the alerter
system will initiate a penalty brake application of the
train brakes. Under normal operating conditions, the
alerter system does not interfere with the customary
activities of the engineer since the alerter system is reset
by all of the train crew operated locomotive controls.
● Provides full redundancy by incorporating (2)
microprocessors to not only monitor all inputs to
the unit but also control half of the
units visual indicators and (1) of the (2) audible horns.
● Provides Speed Dependent Timing Cycle
which allows the locomotive speed signal to vary
unit’s timing cycle. As the
speed of the locomotive increases, the timing
cycle decreases.
● Includes Body on Board (BOB) function which requires
one (1) acknowledgment by locomotive crew of the
visual and audible alarm indications before the system
will increase the timing cycle above its most restrictive
setting. This ensures that a minimum distance will be
traveled if the locomotive brakes are released without
a crew member on board that is capable of operating
the locomotive.
● Includes Repetitive Reset Disable which monitors
the manual reset switch input for the presence of
repetitive inputs. Any mechanical or electrical means
of providing repetitive resets to the manual reset switch
input will not be processed as a valid timing or alarm
cycle reset.
● Features a self test mode, allowing railroad maintenance
personnel to quickly evaluate all functions and reset inputs.
● Features a modular design, which allows each component
of the unit to be changed quickly, when required.
G49 - Locomotives Products Systems (Decelerometer)
Locomotive Systems Products
Model NYK:D1563H18-A01 Decelerometer shown for
reference purposes only! Actual unit selected may
vary in mounting and features.
G49 Locomotive Systems Products
SIEMENS Decelerometer are a solid state design, vital,
microprocessor-controlled device used to determine a
vehicle’s deceleration rate.
Designed using fail-safe principles to ensure that
deceleration rate cannot be erroneously obtained.
These include both Class I hardware/software and
Class II hardware principles. Depending on model
Interfacing can be accomplished using any of the
following (3) methods:
● Serial Peripheral Interface (SPI)
Industry standard serial interface requiring
implementation of software communications
protocol.
● Asynchronous Serial Interface (ASI) Industry
standard RS-485 protocol.
● 32 Volt DC Isolated Output
Isolated 32 VDC appears across the device’s
two brake rate output pins when the deceleration
rate is achieved.
Locomotive Systems Products
Call for Availability
G51 - Locomotives Systems Products (CHMM Series)
Locomotive Systems Products
Series
Crash Hardened Memory Modules
Model NYK:Q1603 CHMM Series Crash Hardened
Memory Moduleshown for reference purposes only!
Actual unit selected may vary in mounting and
features.
SIEMENS Crash Hardened Memory Module
(CHMM Series) is an external memory back-up
device designed to interface with an existing
on-board event recorder.
The purpose of the CHMM is to store data
recorded by the event recorder and to protect
that data under certain extraordinary conditions.
● Meets all FRA 49 CFR 229 Appendix D requirements for
locomotive crashworthy event recorder memory
● Compact design maximizes mounting options on all locomotives
● (4) ethernet ports and (6) functional serial ports for external
equipment interface
● Inputs in EMP Class C or D
● USB and Ethernet download capable
● Scalable storage up to 128 GB
Locomotive Systems Products
G53 - Locomotives Systems Products (Locomotive Event Recorders)
Locomotive Systems Products
Event Recorders
Model NYK:Q1046 Locomotive Event Recorder shown for
reference purposes only! Actual unit selected may vary in
mounting and features.
SIEMENS Locomotive Event Recorders provides the
Locomotive Engineer with the ability to record the
overall operation of a locomotive.
A minimum of 48 hours of recorded data is stored in
non-volatile flash Random Access Memory (RAM).
As the memory is filled to capacity, the oldest data is
overwritten with newly acquired data.
No batteries are required to retain recorded data
in the event recorder.
A lithium battery located inside the event recorder
enclosure powers the internal real time clock.
The battery is only used when locomotive battery
power is not available and has a life of approximately
five (5) years.
All electrical connections to the event recorder are
terminated at a series of Amphenol MS (military style)
connectors. Pre-assembled wiring harnesses for
connecting the locomotive electrical signals to
the event recorder are provided with the system.
The event recorder integrates the electronic recorder
and air line connections in a NEMA 4 style water-
resistant enclosure. A separate air brake system
monitor and the associated interconnecting wiring
are eliminated.
Locomotive Systems Products
NYK:Q1040E
NYK:Q1044E
● Weight is approx. 18 lbs. (8.16 kgs.)
● Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity
● Type 40 Enclosure
● With Direct Brake
● Weight is approx. 18 lbs. (8.16 kgs.)
● Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity
● Type 44 Enclosure
● With Direct Brake
Lead Time
Price: $7120.00
Lead Time
Price: $5805.00
NYK:Q1046E
NYK:Q1050E
● Weight is approx. 18 lbs. (8.16 kgs.)
● Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity
● Type 46 Enclosure
● With Direct Brake
● Weight is approx. 18 lbs. (8.16 kgs.)
● Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity
● Type 50 Enclosure
● With Direct Brake
Lead Time
Price: $5202.00
Lead Time
Price: $5705.00
NYK:Q1067E
NYK:Q1029
● Weight is approx. 18 lbs. (8.16 kgs.)
● Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity
● Type 67 Enclosure
● With Pump
● Weight is approx. 18 lbs. (8.16 kgs.)
● Operates in -40º F to +160º F (-40ºC to +70ºC)
@ up to 95% Non-Condensing Relative Humidity
● Type 29 Enclosure
● With Camera Interface
Lead Time
Price: $5903.00
Lead Time
Price: $10635.00
G56 - Locomotives Systems Products (Event Recorder)
Locomotive Systems Products
Locomotive
CMM / EDAP / COMBINED
SIEMENS Locomotive Event Recorder is an FRA
fully compliant, configurable alerter / recorder
leveraging decades of experiencein event recorder
development in North America and Europe.
It is designed to fit all freight locomotive and transit
vehicle applications, with models targeting legacy
and new locomotive architectures and housed
within an IP65 sealed enclosure.
It contains various communications ports
(RS232/422/485 serial, 10/100 and 10/100/1000
ethernet and USB 3.0) as well as selectable ranges
on analog inputs and selectable filtering and
debouncing on digital outputs. Inputs and outputs
are isolated on all except legacy replacement
versions.
Available with integrated manifold (with (3) analog
pressure sensors and (5) digital pressure switches)
or connector to support external manifold.
Easy front panel customization allows new variant
versions to be quickly created to match existing
legacy cabling and connectors within existing
locomotives.
Drop-in replacement units are backward-compatible
with legacy Quantum event recorders for easy retrofitting.
LDARS compatible models are configured in EDAP only,
CMM only, and EDAP / CMM combined versions.
● Data recorder with optional, integrated crashworthy
memory. (32) GB standard expandable to (256) GB
● Interfaces for discrete and networked data
collection from onboard systems.
● Option for storage of digitized video data with
integrated CMM.
● EDAP ONLY VERSION provides standalone unit to
interface with discrete onboard subsystems and
send information to standalone CMM in accordance
with the LDARS specification.
● CMM ONLY VERSION provides standalone unit to
communicate with networked onboard subsystems
to send information to integrated CMM in accordance
with the LDARS specification
● EDAP / CMM COMBINED VERSION provides unit to
interface with discrete and networked onboard
subsystems to send information to integrated CMM
in accordance with LDARS specifications
● Equipped with a full featured data playback and
analysis tool (DAREC) with advanced user-defined
functionality.
● Configurable integrated alerter function allows
implementation of any user-defined Vigilance Alerter
System algorithms.
● Available MVB bus interface (Optional)
Locomotive Systems Products
SIEMENS now offers a variety of new product offerings to address a multitude of client centric needs.
Please contact the SIEMENS Technical Assistance for Rail Automation Team to discuss details about your
specific design application requirements.
H1 - Instrument Housing Products(Instrument Houses)
Instrument Housing Products
Model A058400 Instrument House shown for
reference purposes only! Actual unit selected
may vary in mounting and features.
SIEMENS Instrument Houses are available in several
sizes and configurations. Available in welded
aluminum or steel shell construction with doors
that can be completely removed or locked
at 90° open position with included hooks and
locking rods. Doors can be designed in a
variety of arrangements.
● Meets or exceeds applicable AREMA® specifications
● Available in multiple standard sizes from 4’ (1.22m) x 4’ (1.22m)
to 8’ (2.44m) x 8’ (2.44m)
(other sizes may be available upon client request)
● Adjustable legs are for leveling of foundations
● Interior aerial outlet standard
● Interior ground terminal plate standard
● Interior light standard
● Exterior generator outlet standard
● Medium density fiberboard interior finished panels painted with
fire retardant paint
● Ventilation louvers equipped with covers to reduce possible pests
● Steel shell variants are painted with primer and finish coated with
aluminized paint
● Customizable interior configurations including wire chases,
insulation, equipment racks / shelves and environmental control
systems to host any client desired power and control components
Instrument Housing Products
Instrument Houses Assemblies
SIEMENS Part Number | Dimensions | Material | Weight | |||
| Width | Depth | Height | Alumunum | Steel | ||
| 4’ x 4’ Houses | ||||||
| NYK:058400-44-XX | 4 ft (1.22 m) | 4 ft (1.22 m) | ft 7 5/8 in (2.63 m) | X | - | 750.0 lbs (340.19 kgs) |
| NYK:051600-44-XX | 4 ft (1.22 m) | 4 ft (1.22 m) | 8 ft 7 5/8 in (2.63 m) | - | X | 920.0 lbs (417.31 kgs) |
| 4’ x 6’ Houses | ||||||
| NYK:058400-46-XX | 4 ft (1.22 m) | 6 ft (1.83 m) | 8 ft 7 5/8 in (2.63 m) | X | - | 950.0 lbs (430.91 kgs) |
| NYK:051600-46-XX | 4 ft (1.22 m) | 6 ft (1.83 m) | 8 ft 7 5/8 in (2.63 m) | - | X | 1,220.0 lbs (553.38 kgs) |
| 6’ x 6’ Houses | ||||||
| NYK:058400-66-XX | 6 ft (1.83 m) | 6 ft (1.83 m) | 8 ft 9 3/4 in (2.69 m) | X | - | 1,150.0 lbs (521.63 kgs) |
| NYK:051600-66-XX | 6 ft (1.83 m) | 6 ft (1.83 m) | 8 ft 9 3/4 in (2.69 m) | - | X | 2,020.0 lbs (916.26 kgs) |
| 6’ x 8’ Houses | ||||||
| NYK:058400-68-XX | 6 ft (1.83 m) | 8 ft (2.44 m) | 8 ft 9 3/4 in (2.69 m) | - | X | 1,350.0 lbs (612.35 kgs) |
| NYK:051600-68-XX | 6 ft (1.83 m) | 8 ft (2.44 m) | 8 ft 9 3/4 in (2.69 m) | X | - | 2,420.0 lbs (1,097.69 kgs) |
| 8’ x 8’ Houses | ||||||
| NYK:058400-88-XX | 8 ft (2.44 m) | 8 ft (2.44 m) | 9 ft 10 in (2.99 m) | X | - | 1,550.0 lbs X (703.07 kgs) |
| NYK:051600-88-XX | 8 ft (2.44 m) | 8 ft (2.44 m) | 9 ft 10 in (2.99 m) | - | X | 2,820.0 lbs (1,279.13 kgs) |
H3 - Instrument Housing Products(Instrument Cases)
Instrument Housing Products
Model A545210 Instrument Case shown for reference
purposes only! Actual unit selected may vary in
mounting and features.
SIEMENS Instrument Cases are available in several
sizes and configurations. Available in welded
aluminum or steel shell construction with doors
that can be completely removed or locked
at 90° open position with included hooks and
locking rods. Doors can be designed in a
variety of arrangements.
● Meets or exceeds applicable AREMA® specifications
● Available in multiple standard sizes from 41” (1.04 m)
to 81” (5.08 m) wide( other sizes may be available upon
client request)
● Interior aerial outlet standard
● Interior ground terminal plate standard
● Interior light standard
● Exterior generator outlet standard
● Ventilation louvers equipped with covers to reduce
possible pests
● Steel shell variants are painted with primer and finish
coated with
aluminized paint
● Customizable interior configurations including
wire chases, insulation, equipment racks /
shelves and environmental control systems to
host any client desired power and control
components
Instrument Housing Products
Instrument Cases Assemblies
SIEMENS Part Number | Dimensions | Material | Weight | |||
| Width | Depth | Height | Aluminum | Steel | ||
| 41” Wide Cases | ||||||
| NYK:545210-410000 | 3 ft 5 in (1.04 m) | 2 ft (0.61 m) | 5 ft 1 3/4 in (1.57 m) | X | - | 245.0 lbs (111.13 kgs) |
| NYK:567200-410000 | 3 ft 5 in (1.04 m) | 2 ft (0.61 m) | 5 ft 1 3/4 in (1.57 m) | - | X | 380.0 lbs (172.37 kgs) |
| NYK:545110-410000 | 3 ft 5 in (1.04 m) | 2 ft (0.61 m) | 6 ft 2 3/4 in (1.90 m) | X | - | 265.0 lbs (120.20 kgs) |
| NYK:567100-410000 | 3 ft 5 in (1.04 m) | 2 ft (0.61 m) | 6 ft 2 3/4 in (1.90 m) | - | X | 410.0 lbs (185.97 kgs) |
| 60” Wide Cases | ||||||
| NYK:545210-600000 | 5 ft (1.52 m) | 2 ft (0.61 m) | 5 ft 1 3/4 in (1.57 m) | X | - | 325.0 lbs (147.42 kgs) |
| NYK:567200-600000 | 5 ft (1.52 m) | 2 ft (0.61 m) | 5 ft 1 3/4 in (1.57 m) | - | X | 460.0 lbs (208.65 kgs) |
| NYK:545110-600000 | 5 ft (1.52 m) | 2 ft (0.61 m) | 6 ft 2 3/4 in (1.90 m) | X | - | 365.0 lbs (165.56 kgs) |
| NYK:567100-600000 | 5 ft (1.52 m) | 2 ft (0.61 m) | 6 ft 2 3/4 in (1.90 m) | - | X | 490.0 lbs (222.26 kgs) |
| 81” Wide Cases | ||||||
| NYK:545210-810000 | 6 ft 9 in (2.06 m) | 2 ft (0.61 m) | 5 ft 1 3/4 in (1.57 m) | X | - | 525.0 lbs (238.14 kgs) |
| NYK:567200-810000 | 6 ft 9 in (2.06 m) | 2 ft (0.61 m) | 5 ft 1 3/4 in (1.57 m) | - | X | 560.0 lbs (254.01 kgs) |
| NYK:545110-810000 | 6 ft 9 in (2.06 m) | 2 ft (0.61 m) | 6 ft 2 3/4 in (1.90 m) | X | - | 545.0 lbs (247.21 kgs) |
| NYK:567100-810000 | 6 ft 9 in (2.06 m) | 2 ft (0.61 m) | 6 ft 2 3/4 in (1.90 m) | - | X | 620.0 lbs (281.23 kgs) |
H5 - Instrument Housing Products (Pedestal Mounted Junction Boxes)
Instrument Housing Products
Junction Boxes
Model A091463 Pedestal Mount
Junction Box shown for reference
purposes only! Actual unit selected
may vary in mounting and features.
SIEMENS Pedestal Mounted box assemblies are
available in several sizes and configurations.
Cast iron box construction provides weathertight
rugged protection against the elements while
providing flexibility to place pedestal virtually
anywhere.
Instrument Housing Products
NYK:093313-7
NYK:093463-11
● Weight is approx. 26.0 lbs. (11.79 kgs.)
● Ø 2 7/8” (7.30 cm) pipe on Ø 7 1/2” (19.05 cm)
base,14 1/2” (36.83 cm) long
● Weight is approx. 36.0 lbs. (16.33 kgs.)
● Ø 2 7/8” (7.30 cm) pipe on Ø 7 1/2” (19.05 cm) base,
20” (50.80 cm) long
Lead Time
Call for Price
Lead Time
Call for Price
NYK:093463-89
NYK:093463-X3
● Weight is approx. 38.0 lbs. (17.24 kgs.)
● Ø 2 7/8” (7.30 cm) pipe on Ø 7 1/2” (19.05 cm)
base, 20” (50.80 cm) long
● Wire chase boot opening
● Weight is approx. 48.0 lbs. (16.33 kgs.)
● Ø 2 7/8” (7.30 cm) pipe on Ø 7 1/2” (19.05 cm)
base, 30” (76.20 cm) long
Lead Time
Price: $395.00
Lead Time
Price: $424.00
NYK:091313-BX
NYK:091626-BX
● Weight is approx. 14.0 lbs. (6.35 kgs.)
● Ø 5 3/4” (14.61 cm) x 8” (20.32 cm) tall,
Type 313 round terminal box design
● Integral base coupler to mount to Series
One pedestals
● Neoprene gasket
● NO terminal blocks
● Weight is approx. 16.0 lbs. (7.26 kgs.)
● 6 3/8” (16.19 cm) Wide x 5 5/8” (14.29 cm)
Deep x 3 3/4” (9.53 cm) Tall
Type 626 rectangular terminal box design
(7” (17.78 cm) overall with mounting feet)
● (2) 007326 1/2” NPT cord grips
● Integral base coupler to mount to Series
One pedestals
● Neoprene gasket
● NO terminal blocks
Lead Time
Price: $221.00
Lead Time
Price: $763.00
NYK:093374-4
NYK:093374-26
● Weight is approx. 26.0 lbs. (11.79 kgs.)
● Ø 3 1/2” (8.89 cm) pipe on Ø 8 1/2” (21.59 cm)
base, 14 1/2” (36.83 cm) long
● Weight is approx. 26.0 lbs. (11.79 kgs.)
● Ø 3 1/2” (8.89 cm) pipe on Ø 8 1/2” (21.59 cm) base,
20 3/4” (52.71 cm) long
Lead Time
Call for Price
Lead Time
Call for Price
NYK:093374-27
NYK:091428-CBX
● Weight is approx. 26.0 lbs. (11.79 kgs.)
● Ø 3 1/2” (8.89 cm) pipe on Ø 8 1/2” (21.59 cm) base,
26 3/4” (67.95 cm) long
● Wire chase boot opening
● Weight is approx. 26.0 lbs. (11.79 kgs.)
including hardware
● 10” (25.4 cm) Wide x 7” (17.78 cm)
Deep x 4 1/2” (2.04 cm) Tall
Type 428 rectangular terminal box design
(12” 3/4 (32.39 cm) Wide x 7 3/4” (19.69 cm)
Deep x 13” (33.02 cm) Tall
overall with hardware and integral base coupler)
● Integral base coupler to mount to Series
Four pedestals
● Neoprene gasket
● NO terminal blocks
Lead Time
Price: $865.00
Lead Time
Call for Price
NYK:091428-1ABX
● Weight is approx. 34.0 lbs. (15.88 kgs.)
● 10” (25.4 cm) Wide x 7” (17.78 cm)
Deep x 4 1/2” (2.04 cm) Tall
Type 428 rectangular terminal box design
(11” (27.94 cm) Wide x 10 3/16” (25.88 cm)
Deep x 9” (22.86 cm) Tall
overall with turn clasp, hinges and
integral base coupler)
● Integral base coupler to mount to Series
Four pedestals
● Neoprene gasket
● NO terminal blocks
Lead Time
Price: $910.00
H11- Instrument Housing Products (Battery Trays and Racks)
Instrument Housing Products
Model A058400 Instrument House shown for reference purposes
only! Actual unit selected may vary in mounting and features.
SIEMENS Battery Trays are constructed for superior
stability and rugged use. Made of plywood to prevent
possible battery charge leakage. Then all joints are
sealed with waterproof silicon beading in case of any
type of spill or leakage inside the tray. Next they are
coated with one of numerous specified finishes to
prevent damage. Finally a diamond pattern tread
anti slip traction matting is installed.
● Available in multiple lengths
● 3/4” Plywood decking and sides
● 1 1/2” (40 mm) x 1 1/2” (40 mm) (nominal) support rails
● Red oxide primer standard
● Silicon sealed waterproofed joints
● Various interior finishes available
Standard options
- Gray, white and black color
- Fire retardant latex, black acid resistance or
water based enamel coating
● Diamond pattern tread anti slip traction matting
Instrument Housing Products
NYK:170999-2
NYK:170999-1
- Weight is approx. 8 lbs. (3.63 kgs.)
- 38” (96.50 cm) Wide x 8 1/8” (20.64 cm) Deep x 2 1/2” (6.35 cm) Tall
- 3/4” Plywood flooring
- Red oxide primer and black acid resistant finish
- (3) Support rails
- Weight is approx. 10 lbs. (4.54 kgs.)
- 44” (111.76 cm) Wide x 8 1/8” (20.64 cm) Deep x 2 1/2” (6.35 cm) Tall
- 3/4” Plywood flooring
- Red oxide primer and black acid resistant finish
- (3) Support rails
Lead Time
Price: $171.00
Lead Time
Price: $180.00
NYK:170999-3
NYK:170999-4
- Weight is approx. 12 lbs. (5.44 kgs.) including hardware
- 48” (121.92 cm) Wide x 8 3/8” (21.27 cm) Deep x 2 1/2” (6.35 cm) Tall
- 3/4” Plywood flooring
- Red oxide primer and black acid resistant finish
(Other finishes available upon request) - Diamond pattern tread anti slip traction matting
- (3) Support rails
- Weight is approx. 16 lbs. (7.26 kgs.) including hardware
- 55” (139.70 cm) Wide x 8 3/8” (21.27 cm) Deep x 2 1/2” (6.35 cm) Tall
- 3/4” Plywood flooring
- Red oxide primer and black acid resistant finish
(Other finishes available upon request) - Diamond pattern tread anti slip traction matting
- (3) Support rails
Lead Time
Price: $795.00
Lead Time
Price: $814.00
NYK:170999-7
NYK:170999-6
- Weight is approx. 6 lbs. (2.72 kgs.) including hardware
- 26” (66.04 cm) Wide x 9 1/2” (24.13 cm) Deep x 2 1/2” (6.35 cm) Tall
- 3/4” Plywood flooring
- Red oxide primer and black acid resistant finish
(Other finishes available upon request) - Diamond pattern tread anti slip traction matting
- (3) Support rails
- Weight is approx. 24 lbs. (10.89 kgs.) including hardware
- 68” (172.72 cm) Wide x 9 1/2” (24.13 cm) Deep x 2 1/2” (6.35 cm) Tall
- 3/4” Plywood flooring
- Red oxide primer and black acid resistant finish
(Other finishes available upon request) - Diamond pattern tread anti slip traction matting
- (4) Support rails
Lead Time
Price: $415.00
Lead Time
Price: $958.00
NYK:051639-78X
NYK:051640-52X1
- Weight is approx. 6 lbs. (2.72 kgs.) including hardware
- 30 1/4” (76.84 cm) Wide x 10 1/4” (26.04 cm) Deep x 3 15/16” (10.02 cm) Tall
- 3/4” Plywood flooring
- Red oxide primer and black acid resistant finish
- Aluminum support bracing
- (1) Tier
- Weight is approx. 10 lbs. (4.54 kgs.) including hardware
- 60 1/4” (153.04 cm) Wide x 10 1/4” (26.04 cm) Deep x 3 15/16” (10.02 cm) Tall
- 3/4” Plywood flooring
- Red oxide primer and black acid resistant finish
- Aluminum support bracing
- (1) Tier
Lead Time
Price: $414.00
Lead Time
Price: $619.00
H15 - Instrument Housing Products(Apparatus Boxes)
Instrument Housing Products
Model A151504 Apparatus Box shown for reference
purposes only!Actual unit selected may vary in
mounting and features.
SIEMENS Apparatus Boxes assemblies are available in
several sizes and configurations. Cast iron or aluminum
box construction provides weathertight rugged
protection against the elements while providing
flexibility to place virtually anywhere. The careful
machining of these castings assures proper alignment
of covers to housings. Gaskets are located
between the cover and box to provide a weathertight seal.
Available for use with these boxes are a variety of
connectors, adapter plates, outlets, and ventilators.
Equipment to be used in these boxes, such as
terminals, arresters,resistors, etc., may be found in their
appropriate sections of this catalog. Terminal boards of
3/4 inch wood, mounted in bottom of box, can be
supplied for mounting of equipment.
Instrument Housing Products
NYK:151504-201A
NYK:151504-201X
Apparatus Box 5” (12.70 cm) X 6” (15.24 cm)
(Empty)
● Weight is approx. 10.6 lbs. (4.81 kgs.)
● (1) NYK:151504-201A apparatus box
● (1) NYK:132136-T11672 3 position switch
Apparatus Box 5” (12.70 cm) X 6” (15.24 cm)
(Empty w/ Pushbutton)
● Weight is approx. 11.9 lbs. (5.40 kgs.)
● (1) NYK:151504-201A apparatus box
● (1) NYK:025100-X100 start pushbutton
Lead Time
Price: $2812.00
Lead Time
Price: $3119.00
NYK:151504-204X
NYK:151504-X258
Apparatus Box 5” (12.70 cm) X 6” (15.24 cm)
(Empty w/ Pushbutton and 2 Position Lever Switch)
● Weight is approx. 12.6 lbs. (5.72 kgs.)
● (1) NYK:151504-201A apparatus box
● (1) NYK:025100-X101, 2 position lever switch
● (1) NYK:026160-37 black pushbutton
● (1) NYK:026160-38 red pushbutton
Apparatus Box 5” (12.70 cm) X 6” (15.24 cm)
(Empty w/ Pushbutton and 2 Position Signal Switch)
● Weight is approx. 12.4 lbs. (5.62 kgs.)
● (1) NYK:151504-201A apparatus box
● (1) NYK:132136-T11672 3 position switch
Lead Time
Price: $3109.00
Lead Time
Price: $2723.00
NYK:151504-X261
NYK:151504-X260
Apparatus Box 5” (12.70 cm) X 6” (15.24 cm)
(Empty w/ 3 Position Key Switch)
● Weight is approx. 12.4 lbs. (5.62 kgs.)
● (1) NYK:151504-201A apparatus box
● (1) NYK:151525-X29, 3 way key switch
5.00” (12.70 cm) X 6” (15.24 cm)
Apparatus Box with 2 Way Key Switch
● Weight is approx. 12.4 lbs. (5.62 kgs.)
● (1) NYK:151504-201A apparatus box
● (1) NYK:151525-X30, 2 way key switch
Lead Time
Price: $1809.00
Lead Time
Price: $1559.00
H19 - Instrument Housing Products (Relay Bars and Shelves)
Instrument Housing Products
Model A560024 Relay Bars shown for reference
purposes only! Actual unit selected may vary
in mounting and features.
SIEMENS Relay Bars and Shelves are
constructed out of steel strips and allow for
mounting of relays or components virtually
anywhere in any instrument house or case.
Relay Bars and Shelves
Instrument Housing
Instrument Housing Products
NYK:560024-1
NYK:560024-1X
Relay bar for 41” (1.04 m) Wide Cases
● Weight is approx. 4 lbs. (1.81 kgs.)
● 7/8” x 1” formed steel angle
● Gray enamel finish
Relay bar for 41” (1.04 m) Wide Cases w/ Hardware
● Weight is approx. 6 lbs. (2.72 kgs.)
● (1) NYK:0560024-1
● Includes hardware (not shown)
Lead Time
Price: $27.02
Lead Time
Price: $54.70
NYK:560024-2
NYK:420000-54X
Relay bar for 60” (1.52 m) Wide Cases
● Weight is approx. 3 lbs. (1.36 kgs.)
● 7/8” x 1” formed steel angle
● Gray enamel finish
Relay Shelf, (1) ST-1 Relay
● Weight is approx. 2.2 lbs. (1.00 kgs.)
● Includes hardware
Lead Time
Price: $29.10
Lead Time
Price: $109.00
NYK:420000-55X
NYK:420000-56X
Relay Shelf, (2) ST-1 Relay
● Weight is approx. 3.0 lbs. (1.36 kgs.)
● Includes hardware
Relay Shelf, (4) ST-1 Relay
● Weight is approx. 5.2 lbs. (2.36 kgs.)
● Includes hardware
Lead Time
Price: $143.00
Lead Time
Price: $159.00
H23 - Instrument Housing Products (Environmental Control Systems)
Instrument Housing Products
Various Environmental Control System components
shown for reference purposes only! Actual unit
selected may vary in mounting and features.
SIEMENS has a full line of heating, air conditioning and
ventilatiosystems for virtually any instrument house
design. Air Conditioning Systems for instrument
houses are of high quality, featuring high BTU
output with minimum operating costs. A change-over
thermostat is used, to insure proper transfer from
air conditioning to heating and vice versa. A weather
hood of steel or aluminum, depending on the type
of house, is provided to protect the air conditioner
and insure longer life of the unit. Heating systems
feature protected and efficient cast aluminum
heating grids and directional louvered cover for
circulation of warm air and even distribution.
Instrument Housing Products
NYK:051620-38X
NYK:051894-35AX
Heater 240V, 1,500W, w/ fan and frame
● Weight is approx. 8 lbs. (3.63 kgs.)
● 10.00” (25.4 cm) X 12.50” (31.75 cm) X 4.16” (10.57 cm)
Ventilation Fan
● Weight is approx. 4.4 lbs. (2.00 kgs.)
● 7” motor and fan assembly
Lead Time
Price: $457.00
Lead Time
Price: $272.00
NYK:035035-7X
NYK:035035-503X
Ventilation Fan 110 VAC, w/ Aerial Inlet
● Weight is approx. 7.5 lbs. (19.05 kgs.)
● (1) 035035-500 aerial outlet
Ventilation Fan 220 VAC, w/ Aerial Inlet
● Weight is approx. 7.5 lbs. (19.05 kgs.)
● (1) 035035-500 aerial outlet
Lead Time
Price: $894.00
Lead Time
Price: $1046.00
NYK:050971-26X
NYK:035908-1X
Cable Riser 36” (91.44 cm)
● Weight is approx. 6.7 lbs. (17.02 kgs.)
Cable Riser 18” (45.72 cm) w/ Foot Mount
● Weight is approx. 11.4 lbs. (28.96 kgs.)
Lead Time
Price: $71.87
Lead Time
Price: $130.00
NYK:050971-X
Cable Riser 24” (60.96 cm) w/ Foot Mount
● Weight is approx. 4.3 lbs. (10.92 kgs.)
Lead Time
Price: $36.50
Optional Accessories
| SIEMENS Part Number | Description |
| NYK:035035-X | Aerial cable inlet |
| NYK:051151-1 | 1 Cable support |
| NYK:051128-AX | Door handle |
| NYK:035049-X | X Ground terminal |
| NYK:051154-500X | Lamp socket |
J1 - Tools and Accessories (Padlocks)
Tools and Accessories
Model A030399 Padlock shown for reference purposes only!
Actual unit selected may vary in mounting and features.
Padlocks
SIEMENS Padlocks are rugged and reliable.
Simple body and hook construction are
made of either cast zamak or cast bronze.
The locking screw is made of brass and
is designed to prevent
backing all the way out of the lock body.
Models are available with
or without attached chains
Other configurations may be
available that are not listed. Please
contact the Siemens Technical Assistance
for Rail Automation Team for further details.
Tools and Accessories
NYK:030399-19X
NYK:030399-15X
- Weight is approx. 0.5 lbs. (0.23 kgs.)
- Cast zamak construction
- Brass locking screw
- Includes chain
- Weight is approx. 0.5 lbs. (0.23 kgs.)
- Cast zamak construction
- Brass locking screw
- Includes chain
Lead Time
Price: $54.67
Lead Time
Price: $58.34
NYK:030399-X
NYK:030399-87X
- Weight is approx. 0.5 lbs. (0.23 kgs.)
- Cast zamak construction
- Brass locking screw
- Includes chain
- Weight is approx. 0.5 lbs. (0.23 kgs.)
- Cast zamak construction
- Brass locking screw
- Includes chain
Lead Time
Price: $52.02
Lead Time
Price: $75.99
NYK:030399-13X
NYK:030399-75X
- Weight is approx. 0.5 lbs. (0.23 kgs.)
- Cast zamak construction
- Brass locking screw
- No chain
- Weight is approx. 0.5 lbs. (0.23 kgs.)
- Cast zamak construction
- Brass locking screw
- No chain
Lead Time
Price: $48.96
Lead Time
Price: $65.40
NYK:030399-16X
NYK:030399-24X
- Weight is approx. 0.5 lbs. (0.23 kgs.)
- Cast zamak construction
- Brass locking screw
- No chain
- Weight is approx. 0.5 lbs. (0.23 kgs.)
- Cast zamak construction
- Brass locking screw
- No chain
Lead Time
Price: $51.00
Lead Time
Price: $52.02
NYK:030399-84X
NYK:030399-31X
- Weight is approx. 0.5 lbs. (0.23 kgs.)
- Cast zamak construction
- Brass locking screw
- No chain
- Weight is approx. 0.5 lbs. (0.23 kgs.)
- Cast zamak construction
- Brass locking screw
- No chain
Lead Time
Price: $61.90
Lead Time
Price: $65.59
NYK:030399-14X
NYK:030399-51X
- Weight is approx. 0.5 lbs. (0.23 kgs.)
- Cast zamak construction
- Brass locking screw
- No chain
- Weight is approx. 0.5 lbs. (0.23 kgs.)
- Cast bronze construction
- Brass locking screw
- Includes chain
Lead Time
Price: $58.34
Lead Time
Price: $124.00
NYK:030399-1X
- Weight is approx. 0.5 lbs. (0.23 kgs.)
- Cast zamak construction
- Brass locking screw
- Includes chain
Lead Time
Price: $79.97
J7 - Tools and Accessories (Semaphore Oil)
Tools and Accessories
Oils and Greases
Shown for reference purposes only!
Actual unit selected may vary in
mounting and features.
SIEMENS offers TM tried and true Exxon®
Mobile® UNIVOLT N 61 B for all of your
semaphore oil needs. A fully inhibited oil, meeting
or exceeding ASTM D 3487 Type II (2000)
specifications. Providing good oxidization stability
and low temperature pouring performance helps
in easy low temperature start up.
NYK:032400-X
- (1) qt (0.95 L)
- Meets or exceeds applicable ASTM D 3487 Type II (2000) specification
- Viscosity, cSt, 40C, per ASTM D 445: 9.2
- Viscosity, cSt, 100C, per ASTM D 445: 2.3
- Aniline Point, C, per ASTM D 611: 75.8º
- Color, per ASTM D 1500: L0.5
- Corrosive Sulfur, per ASTM D 1275: non corrosive
- Pour Point, per ASTM D 97: (-58º F) -50º C
- Flash Point, per ASTM D 92: (303º F) 151º C
- Specific Gravity, per D 1298: 0.91
- Interfacial Tension, 25C, dynes/cm, per ASTM D 971: 48
- Neutralization Number, mg KOH/g, per ASTM D 974: 0.013
- Water, ppm, per ASTM D 1533 35
- Dielectric Strength, kV, per ASTM D 877 30
Lead Time
Price: $82.21
J9 - Tools and Accessories (NO Oxide Grease)
Tools and Accessories
Oils and Greases
Shown for reference purposes only!
Actual unit selected may vary in mounting
and features.
SIEMENS offers TM tried and true Shell®
Alvania Ep2 Automotive Grease. High quality
multipurpose, extreme-pressure greases
based on a blend of high viscosity index
mineral oils and a lithium hydroxysterate
soap thickener and contain extreme-pressure
and other proven additives to enhance their
performance in a wide range of applications.
Designed for multipurpose grease lubrication
of rolling element and plain bearings as well as
hinges and sliding surfaces such as those
found in throughout most industrial and transport
sectors.
NYK:032401-X
- (1) pt (0.47 L)
- Meets or exceeds applicable ASTM D 3487 Type II (2000) specification
- Viscosity, cSt, 40C, per ASTM D 445: 9.2
- Viscosity, cSt, 100C, per ASTM D 445: 2.3
- Aniline Point, C, per ASTM D 611: 75.8º
- Color, per ASTM D 1500: L0.5
- Corrosive Sulfur, per ASTM D 1275: non corrosive
- Pour Point, per ASTM D 97: (-58º F) -50º C
- Flash Point, per ASTM D 92: (303º F) 151º C
- Specific Gravity, per D 1298: 0.91
- Interfacial Tension, 25C, dynes/cm, per ASTM D 971: 48
- Neutralization Number, mg KOH/g, per ASTM D 974: 0.013
- Water, ppm, per ASTM D 1533 35
- Dielectric Strength, kV, per ASTM D 877 30
Lead Time
Price: $97.55
J11 - Tools and Accessories (AAR Terminal Wrenches)
Tools and Accessories
Hand Tools
Model A032619 AAR Terminal Wrench shown for
reference purposes only! Actual unit selected
may vary in mounting and features.
SIEMENS AAR terminal wrenches are
designed for use with AREMA® 14.1.11-6
specified AAR binding nuts. Available in a
variety of lengths and configurations,
including optional padlock key wrench.
Select models additionally are sealed within
an electrically insulative coating which
extends completely over the entire
wrench, including the socket itself.
Ruggedly constructed using nickel plated
cold drawn hexagon tubing embedded in an
Eastman® Tenite insulating injection molded
handle providing a TM sure grip as well as added
safety for the user.
Tools and Accessories
NYK:032619-1X
NYK:032619-5X
- Ø 1.2” (3.0 cm) X 4.5” (11.43 cm) long
- Nickel plated cold drawn hexagon tubing
- Eastman® Tenite insulative injection molded handle TM
- Weight is approx. 0.5 lbs. (0.23 kgs.)
- Additional electrical insulative coating on tubing
· Ø 1.2” (3.0 cm) X 11” (27.94 cm) long
· Nickel plated cold drawn hexagon tubing
· Eastman® Tenite insulative injection molded handle TM .
· Weight is approx. 1.2 lbs. (0.54 kgs.)
Lead Time
Price: $36.41
Lead Time
Price: $37.97
NYK:032619-3X
NYK:032619-6X
- Ø 1.2” (3.0 cm) X 6.5” (16.51 cm) long
- Nickel plated cold drawn hexagon tubing
- Eastman® Tenite insulative injection molded handle TM
- Weight is approx. 0.8 lbs. (0.36 kgs.)
- Ø 1.2” (3.0 cm) X 6.5” (16.51 cm) long
- Nickel plated cold drawn hexagon tubing
- Eastman® Tenite insulative injection molded handle TM
- Weight is approx. 0.8 lbs. (0.36 kgs.)
- Additional electrical insulative coating on tubing
Lead Time
Price: $36.41
Lead Time
Price: $46.82
NYK:032619-8X
NYK:032619-9X
- Ø 1.2” (3.0 cm) X 11” (27.94 cm) long
- Nickel plated cold drawn hexagon tubing
- Eastman® Tenite insulative injection molded handle TM
- Weight is approx. 1.2 lbs. (0.54 kgs.)
- Ø 1.2” (3.0 cm) X 11” (27.94 cm) long
- Nickel plated cold drawn hexagon tubing
- Eastman® Tenite insulative injection molded handle TM
- Weight is approx. 1.2 lbs. (0.54 kgs.)
- Additional electrical insulative coating on tubing
Lead Time
Price: $53.14
Lead Time
Price: $53.14
NYK:032619-28X
NYK:032619-35X
- Ø 1.2” (3.0 cm) X 5.5” (13.97 cm) long
- Nickel plated cold drawn hexagon tubing
- Eastman® Tenite insulative injection molded handle
- Weight is approx. 0.8 lbs. (0.36 kgs.)
- Padlock Key Wrench (Standard Triangle)
- Ø 1.2” (3.0 cm) X 7.5” (19.05 cm) long
- Nickel plated cold drawn hexagon tubing
- Eastman® Tenite insulative injection molded handle TM
- Weight is approx. 1.1 lbs. (0.50 kgs.)
- Padlock Key Wrench (Standard Triangle)
Lead Time
Price: $78.64
Lead Time
Price: $82.01
NYK:032619-24X
NYK:032619-34X
· Ø 1.2” (3.0 cm) X 5.5” (13.97 cm) long
· Nickel plated cold drawn hexagon tubing
· Eastman® Tenite insulative injection molded handle TM .
· Weight is approx. 0.8 lbs. (0.36 kgs.)
· Padlock Key Wrench (Modified D)
· Ø 1.2” (3.0 cm) X 7.5” (19.05 cm) long
· Nickel plated cold drawn hexagon tubing
· Eastman® Tenite insulative injection molded handle TM .
· Weight is approx. 1.1 lbs. (0.50 kgs.)
· Padlock Key Wrench (Modified D)
Lead Time
Price: $86.39
Lead Time
Price: $88.43
NYK:032619-28
NYK:032619-23
- Ø 1.2” (3.0 cm) X 5.5” (13.97 cm) long
- Nickel plated S.A.E 4140 chrome steel alloy construction
- Weight is approx. 0.8 lbs. (0.36 kgs.)
- Padlock Key Wrench (Standard Triangle)
· Ø 1.2” (3.0 cm) X 7.5” (19.05 cm) long
· Nickel plated S.A.E 4140 chrome steel
alloy construction
· Weight is approx. 1.1 lbs. (0.50 kgs.)
· Padlock Key Wrench (Modified D)
Lead Time
Price: $12.70
Lead Time
Price: $58.28
NYK:032619-22X
NYK:032619-30X
· Ø .44” (1.12 cm) X 11.0” (27.94 cm) Long
· Nickel plated cold drawn round tubing
· Eastman® Tenite insulative injection
molded handle TM
· Weight is approx. 1.2 lbs. (0.54 kgs.)
· Additional insulative sleeve sealing
· 4 1/2” (11.43 cm) Long
· Convenient folding design
· Rugged nylon handle
· Nickel plated cold drawn hexagon tubing
· Weight is approx. 0.6 lbs. (0.27 kgs.)
Lead Time
Price: $89.56
Lead Time
Price: $85.68
J15 - Tools and Accessories (Switch Adjustment Wrenches)
Tools and Accessories
Wrenches
Hand Tools
Model A032249 Switch Adjustment Wrench shown for
reference purposes only! Actual unit selected may vary
in mounting and features.
SIEMENS Switch Adjustment Wrenches are
designed using forged steel, and are specifically
for railroad use. Their wide jaw widths,
and the angle on which they are attached,
allow them to overcome the tendency to slip
off of the nut.
Tools and Accessories
NYK:032249-1
NYK:032249-2
Double End Box Wrench
· Heat treated S.A.E 4140 chrome steel alloy
construction
· Weight is approx. 10.0 lbs. (4.54 kgs.)
Switch Adjustment Wrench
· Heat treated S.A.E 4140 chrome steel alloy
construction
· Weight is approx. 10.0 lbs. (4.54 kgs.)
Lead Time
Price: $772.00
Lead Time
Price: $515.00
NYK:032249-4
Double End Box Wrench
• Heat treated S.A.E 4140 chrome steel alloy
construction
• Weight is approx. 10.0 lbs. (4.54 kgs.)
Lead Time
Price: $650.00
J17 - Tools and Accessories (Torque Wrench Kit)
Tools and Accessories
Wrenches
Hand Tools
Model A070981-X shown for reference purposes only!
Actual unit selected may vary in mounting and features.
SIEMENS Torque Wrench Kit permits horizontal
and vertical torque adjustments and measurements
to be taken from the 1/2 inch hexagon end of the motor
shaft on the S-60 Wayguard® Grade Crossing Gate
Mechanisms. It provides a simpler method
than the conventional manner with a spring scale for both
measurements and adjustments.
The Torque Adapter (NYK:070554-2X), must
be ordered separately, and is only used with
older model gates before 1977 provides for torque
adjustments. The adapter consists of a hex shaft
made onto a collar which fits over the end of the motor
pinion, and is held in place by a set screw. The Torque
Wrench Kit allows the gate arm to be cranked up, or in
the case where the arm has been sheared off, to crank
the weights to the horizontal position.
J17 Tools and Accessories ©
NYK:070981-X
● Torque Wrench (ft - lb and in - lb readings)
● Ratcheting box end wrench (1/2 and 9/16 inches)
● Socket (1/2-inch, 3/8-inch drive)
● Allen Wrench (3/16-inch)
● Ratchet Wrench (3/8-inch drive)
● Tool Box
● Instruction Sheet
Lead Time
Price: $495.00
J18 - Tools and Accessories (Crimping Pliers)
Tools and Accessories
Hand Tools
Model A080600-7 Bond Punch shown for reference
purposes only! Actual unit selected may vary in
mounting and features.
SIEMENS punches are made of hardened chisel steel,
hardened and gauged at the punch end for severe
service. Other punches may be available that are
not listed. Please contact the Siemens Technical
Assistance for Rail Automation Team for further
details.
NYK:420000-85
● High carbon steel jaw
● Weight is approx. 1.1 lbs. (0.50 kgs.)
● 9 3/4” (24.77 cm) overall length
Lead Time
Price: $134.00
J19 - Tools and Accessories (Bond Punches)
Tools and Accessories
Hand Tools
Model A42000-85 shown for reference purposes only!
Actual unit selected may vary in mounting and features.
SIEMENS crimping tool crimps and cuts
insulated and non insulated solderless
connections and terminals. For use with wires
ranging from 10 - 22 AWG.
Tools and Accessories
NYK:080600-7
NYK:080305-2
Starting Punch
• Heat treated S.A.E 4140 hardened steel construction
• Weight is approx. 1 lbs. (0.45 kgs.)
• Punch end 0.170” to 0.175” (4.3 mm to 4.4 mm)
• Hex end 5/8” (15.8 mm)
Bond Punch
● Heat treated S.A.E 4140 hardened steel construction
● Weight is approx. 1 lbs. (0.45 kgs.)
● Punch end 0.255” to 0.260” (6.4 mm to 6.5 mm)
● Hex end 5/8” (15.8 mm)
Lead Time
Price: $12.50
Lead Time
Price: $45.80
NYK:023834
NYK:023832
AAR beveled washer
● Weight is approx. 0.1 lbs. (0.05 kgs.)
● Meets or exceeds AREMA® 14.1.11-8 specification
AAR clamp nut
● Weight is approx. 0.2 lbs. (0.10 kgs.)
● Meets or exceeds AREMA® 14.1.11-7 specification
Lead Time
Price: $0.41
Lead Time
Price: $2.35
NYK:023831
NYK:023833-X
AAR binding shoulder nut
● Weight is approx. 0.2 lbs. (0.10 kgs.)
● Meets or exceeds AREMA® 14.1.11-6 specification
2” Ground Stud Post Assembly
● Weight is approx. 1.1 lbs. (0.49 kgs.)
● (1) NYK:023833 2” ground stud post
● (1) NYK:023832 AAR clamp nut
● (2) NYK:023831 AAR binding shoulder nuts
● (5) NYK:023834 AAR beveled washers
Lead Time
Price: $2.14
Lead Time
Price: $16.90
NYK:023833
NYK:023833-4
2” Ground Stud Post
● Weight is approx. 0.2 lbs. (0.10 kgs.)
● Meets or exceeds AREMA® 1
4.1.11-9 specification
1 5/8” ground stud post
● Weight is approx. 0.2 lbs. (0.10 kgs.)
Lead Time
Price: $1.90
Lead Time
Price: $4.59
NYK:023408-1X
NYK:023408-5X
Insulated #14-24 nut
● Weight is approx. 0.3 lbs. (0.14 kgs.)
Shield and cap, Bakelite
● Weight is approx. 0.2 lbs. (0.10 kgs.)
● 3/4” wire slot
Lead Time
Price: $11.30
Lead Time
Price: $11.40
NYK:023408-6X
NYK:023408-7X
Shield and cap, Bakelite
● Weight is approx. 0.2 lbs. (0.10 kgs.)
● 1/2” Wire slot
Shield and cap, Bakelite
● Weight is approx. 0.2 lbs. (0.10 kgs.)
● (2) 3/4” wire slots
Lead Time
Price: $11.60
Lead Time
Price: $11.50
NYK:023408-8X
NYK:023837
Shield and cap, Bakelite
● Weight is approx. 0.2 lbs. (0.10 kgs.)
● (2) 1/2” wire slots
Terminal Connector Clip
● Weight is approx. 0.1 lbs. (0.05 kgs.)
● 1” center to center
● Meets or exceeds AREMA® 14.1.15-1
specification
Lead Time
Price: $14.00
Lead Time
Price: $3.70
NYK:023839-2
NYK:023839-3
Connector Buss
● Weight is approx. 0.1 lbs. (0.05 kgs.)
● 1” center to center
● Meets or exceeds AREMA® 14.1.15-3
specification
Connector Buss
● Weight is approx. 0.1 lbs. (0.05 kgs.)
● 1” center to center
Lead Time
Price: $1.12
Lead Time
Price: $2.10
NYK:023836
NYK:023839-1
Connector Buss
● Weight is approx. 0.2 lbs. (0.10 kgs.)
● 2 3/8” center to center
● Meets or exceeds AREMA® 14.1.15-2
specification
Connector Buss
● Weight is approx. 0.2 lbs. (0.10 kgs.)
● 2 3/8” center to center
● Meets or exceeds AREMA® 14.1.15-1
specification
Lead Time
Price: $8.80
Lead Time
Price: $4.49
NYK:023839-21
NYK:024620-3X
Connector Buss
● Weight is approx. 0.5 lbs. (0.25 kgs.)
● 1 7/16” to 1 5/8” center to center
Straight Insulated Link
● Weight is approx. 0.3 lbs. (0.15 kgs.)
● (1) NYK:024620-11 test link
● (1) NYK:024620-12 insulated bushing
Lead Time
Price: $18.19
Lead Time
Price: $4.18
NYK:024620-13
NYK:024620-2X
Gold Colored Test Nut
● Weight is approx. 0.1 lbs. (0.05 kgs.)
Straight Insulated Link Assembly
● Weight is approx. 0.4 lbs. (0.18 kgs.)
● (1) NYK:024620-3X straight insulated link
● (1) NYK:024620-13 gold colored test nut
Lead Time
Price: $4.18
Lead Time
Price: $4.18
NYK:024620-1X
NYK:024620-15
Straight Insulated Link Assembly
● Weight is approx. 0.6 lbs. (0.27 kgs.)
● (1) NYK:024620-3X straight insulated link
● (1) NYK:024620-13 gold colored test nut
● (1) NYK:023832 AAR clamp nut
Offset Test Link
● Weight is approx. 0.2 lbs. (0.10 kgs.)
Lead Time
Price: $8.50
Lead Time
Price: $0.88
NYK:024620-19X
NYK:024620-11X
Offset Insulated Link
● Weight is approx. 0.2 lbs. (0.10 kgs.)
● (1) NYK:024620-15 offset test link
● (1) NYK:024620-12 insulated bushing
Offset Insulated Link Assembly
● Weight is approx. 0.4 lbs. (0.18 kgs.)
● (1) NYK:024620-3X straight insulated link
● (1) NYK:024620-13 gold colored test nut
Lead Time
Price: $9.38
Lead Time
Price: $11.30
NYK:024620-7X
NYK:024620-14
Offset Insulated Link Assembly
● Weight is approx. 0.6 lbs. (0.27 kgs.)
● (1) NYK:024620-3X straight insulated link
● (1) NYK:024620-13 gold colored test nut
● (1) NYK:023832 AAR clamp nut
Straight Test Link
● Weight is approx. 0.3 lbs. (0.14 kgs.)
Lead Time
Price: $12.14
Lead Time
Price: $6.20
NYK:024620-6X
NYK:024620-5X
Straight Insulated Link
● Weight is approx. 0.3 lbs. (0.14 kgs.)
● (1) NYK:024620-14 straight test link
● (1) NYK:024620-12 insulated bushing
Straight Insulated Link Assembly
● Weight is approx. 0.7 lbs. (0.32 kgs.)
● (1) NYK:024620-8X straight insulated link
● (1) NYK:024620-13 gold colored test nut
Lead Time
Price: $7.45
Lead Time
Price: $10.30
NYK:024620-4X
NYK:024620-16
Straight Insulated Link Assembly
● Weight is approx. 0.9 lbs. (0.41 kgs.)
● (1) NYK:024620-8X straight insulated link
● (1) NYK:024620-13 gold colored test nut
● (1) NYK:023832 AAR clamp nut
Offset Test Link
● Weight is approx. 0.3 lbs. (0.14 kgs.)
Lead Time
Price: $12.00
Lead Time
Price: $1.90
NYK:024620-20X
NYK:024620-8X
Offset Insulated Link
● Weight is approx. 0.3 lbs. (0.14 kgs.)
● (1) NYK:024620-16 offset test link
● (1) NYK:024620-12 insulated bushing
Offset Insulated Link Assembly
● Weight is approx. 0.9 lbs. (0.41 kgs.)
● (1) NYK:024620-8X straight insulated link
● (1) NYK:024620-13 gold colored test nut
● (1) NYK:023832 AAR clamp nut
